Microtomes Dealers in Ambala

We offer Advance Rotary Microtome. MRM-1120 :MEDIMEAS ADVANCE ROTARY MICROTOME (LATEST “SPENCER” 820-TYPE): With feed indicators and CAM DRIVE SYSTEM for accurate feed settings from 1-50 microns in steps of 1 micron each, automatic safety device, universal knife holder with lateral movements to permit use of complete knife edge, ball & flange type object holder for accurate centering of the specimen, razor 120 mm with back & handle is fabricated from imported fine grain steel alloy tested for micro structure and is heat treated to maintain optimum strength and sharpness. Supplied complete with object holder, dust cover, oil can, honing stone & wooden cabinet.

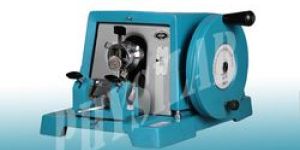

Physilab Senior Rotary Microtome   Model:SI-9 is a higly versatile sectioning device suitable for medical institutions, reearch & Pathological Laboratories.This microtome has special application for cutting these sections of histopathological specimens.It is ideal for those who want  to avail advantages of a Rotary Microtome at a moderate cost.The entire mechanism stands on a heavy cast iron base ensuring stability and rigidity, its compound slide ways of critical tolerance guide the specimen block.The metal hinged cover housing protects the internal machanism against dust and paraffin waste, it can be conveniently opened for resetting, cleaning and lubricating.The microtome is driven by a handle which can also be locked.Cutting sections are obtained in different thickness by machanically operated crank through a lnurled in front of the instrument.The knurled knob is graduated in microns for feed setting and ready reference detent click action ensures positive adjusments in one micron increment.The knife holder unit is equipped with a rotating knife clamp to adjust desired angles for best sectioning.It as forward and backward movement to ensure contact of specimen with the knife and lateral movement to get maximum use of knife edge.Smooth & accurate specimen movement is achieved with the time proven operating principles of the feed mechanism.Travel is entirely independent to the vertical movement of the specimen block.When the feed limit reaches to an end point, it disengages itself.To bring the feed screw back, the vice is pressed slightly and the main gear wheel is turned clockwise till the screw reaches its starting position.All parts are fabricated from selected alloys and the Microtome knife is manufactured from fine grain steel tested to maintain optimum sharpness strength.   Feed Adjustment 1-25 Microns Minimum Thickness One microns Total Feed execursion 28mm Objecct Holder(3Nos.) 1 Set Knife 120mm in a box 1 Nos. Honing Stone 1 Nos. Lubricating Oil 1 Bottle Dust Cover 1 Nos. Operating manual 1 Nos.

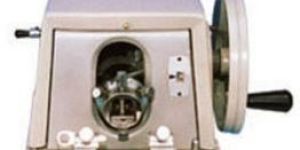

We are a renowned manufacturer, supplier and exporter of Laboratory Microtome. The laboratory microtome offered by us consists of well designed features for precise and accurate serial sectioning with feed setting visible from front locking device and counter balanced wheel. Height aluminum cover hinged at back provided the internal parts form dust feed is adjustable from 1 to 50 micron in step of 1 micron each up and down movement of object clamp. Automatic mechanism to prevent jumping and ball and flange object clamp provides flexible orientation of object piece. Take specimen up to 32 x 27 mm on stem of block holder. Knife holder allows for 120 mm on 180 mm long knife cutting angle is adjustable through 30 degrees supplied complete with one knife 120 mm long with back and handle in wooden box. 3 block holder, one bottle of lubrication oil.

It is used for cutting sections of comparatively soft tissues embedded in paraffin wax. It can cut specimens of diameter upto 20mm. Thickness of the sections can be varied from 2 to 24 microns. Supplied with complete accessories three object holder, one honing plate, one knife and one oil can for lubrication.

Most versatile section cutting machine for quick sectioning of tissues instantly freeze on built-in rapid freeze stage for Biological, veterinary and Medical diagnostic biopsies etc. The Cryostat Microtome complete made of brass & stainless steel is placed in stainless steel cold chamber with an observation glass window. Cryostat Microtome is provided with a hermetically sealed compressor unit with 'A' grade components to achieve quick cooling up to -50°C. It is also provided with feed range from 0-40 microns in steps of 2 microns each. Supplied Complete WithRazor -120-mm with Back & Handle (1 nos)Object Holder (3 set)Honing Stone (1 nos)Oil Can with Low Temp. Oil (1 nos) Optional Temperature Range : 30oC with Microprocessor Digital Temp. Controller & Indicator.Temperature Range : 40oC with Microprocessor Digital Temp. Controller & Indicator.Temperature Range : 70oC with Microprocessor Digital Temp. Controller & Indicator.

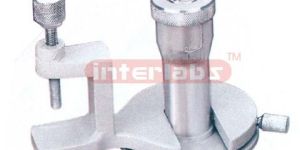

It Is Very Useful For Elementary Biology Class Students For Cutting Their Sections For Microscopic Examination Of Various Organisms. Can Be Fixed With Table Clamp.

The Precision Rotary Microtome manufactured by us is used precise sectioning of tissues up to 1 micron thickness. The feed locator drives for system for accurate feed setting from 1 to 50 microns in steps of 1 micron. Features of Our Precision Rotary Microtome :- Independent feed mechanism with automatic safety deviceUniversal knife holder with lateral movementPermits use of entire knife edgeBall and flange type object holder for accurate centering of the specimenFull swing protective cover for easy cleaning and lubrication Available With :- One razor 120 mm with back and handleA set of three object holdersOne honing plateOil canDust cover, in wooden cabinet

Our area of expertise lies in manufacturing an exceptional range of motorized microtome which finds usage in diverse laboratories. The motorized microtome is manufactured using sophisticated machinery which enhances its properties. We have established a dependable name in the industry in exporting motorized microtome of excellent quality obtainable at market leading price. working / components of motorized microtome with every revolution of the drive wheel, the teeth engaged with the ratchet wheel advances the object holder through cone and inclined plane mechanism thus helping in the cutting of the tissue sections into 1 micron sizesprovided with safety device to automatically disengage the feed mechanismthe razor is in an adjustable tilt angle of up to 30 degrees on a reference scalethe feed indicator is provided in frontthe feed setting is at the back of micro tome which sets 1 to 50 micronprovided with a razor of 120 mm made from heat treated steel tested for micro structure is supplied with the instrument manufactured with a heavy base and a hinged cover, for protection of the interior medium and a knife holder

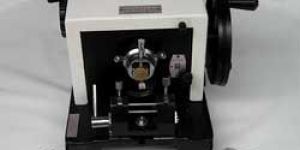

We offer Laboratory Microtome that is widely used in Biological Labs. The Laboratory Microtome is manufactured with a heavy base and a hinged cover. This is done for the protection of interior medium and knife holder of the Laboratory Microtome. Details Of Laboratory Microtome The teeth engaged with the ratchet wheel advances the object holder through cone and inclined plane mechanism. This helps in the cutting of the tissue sections into 1 micron sizesSafety devices provided to automatically disengage the feed mechanismFeed indicator provided in frontFeed setting at the back of Micro tome which sets 1 to 50 micronRazor of 120 mm made from heat treated steel providedRazor is tested for micro structureRazor is adjustable tilt angle up to 30 degrees on a reference scale

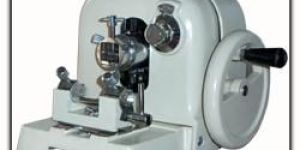

We are actively engaged in providing Rotary Microtome to the clients. We employ cutting-edge technology for the manufacturing of our Rotary Microtome. The Rotary Microtome promises excellent durability and reliable performance. With its trusted performance, our Rotary Microtome is perfect for sectioning of specimens. Providing high quality Laboratory Equipment, we are reckoned as prominent Rotary Microtome Manufacturer and Supplier. Specifications : For very precise sectioning of tissue up to 1 micron thicknessThe feed indicator located in front of Microtome is operated by the latest "CAM DRIVE SYSTEM" for accurate feed setting from 1-50 microns in steps of 1 micronThe interior mechanism rests on a heavy cast iron base and is covered with a full swing protective cover for easier cleaning & lubrication. Salient Features : Independent feed mechanism with automatic safety deviceUniversal vice type object holder for accurate centering of the specimen Supplied With : Razor 120mm with back & handle in box :1 No.Oil Can & Dust Cover :1 No. EachHoning stone in Box :1 No.Object hold

It is designed for sectioning comparatively soft, wax-embedded tissues with a thickness range of 2mm to 24mm, in steps of 2mm. Calibrated in 2 micron divisions, the section cutting thickness can be set easily and quickly by a single control. It is recommended for elementary biology & pathology students. The instrument is supplied with three standard specimen holders, razor with built in handle in a box alongwith operating manual.

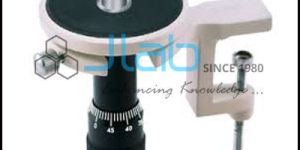

Hand and Table Microtome - Microtomes Biology Stage dia. 80mm. vertical lift 20 mm. and least count 0.01 mm, Can be securely attached to the edge of bench.

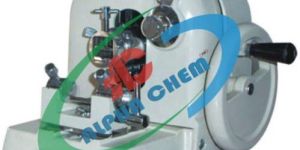

Rotary Microtome Erma Type : Alpha Chem is manufactures,exporter & suppliers Rotary Microtome Erma Type. Rotary Microtome Erma Type : Heavy cast iron base with entire mechanism covered with a heavy cast iron protective dust cover. It incorporates a Ball & Flange type object holder for exact centering of specimen. Lateral Movement of Knife holder ensures use of complete knife edge. Microtome has a feed range of 1-25 microns in steps of 1 micron each. Supplied with Razor 120 mm long with back and Handle, Dust cover, Honing Plate, Object Holder ( set of 3 ) and oil can. Razor supplied is made out of alloy steel & duly hardened for long lasting knife edge. Accessories supplied with equipment:- Razor-120 mm with back & handle-one Object holders-set of three Honing plate-one Oilcan-one Packed in card board box and thermocol packing

Freezing Microtome 'INSIF’ Freezing Microtome is used for cutting thin to semi-thin sections of fresh, frozen tissue and semi-thin sections The Microtome is equipped with a stage upon which tissue can be quickly frozen using either liquid carbon dioxide, from a cylinder, or a low temperature re-circulating coolant. Some cooling systems also allow the knife to be cooled at the same time. The cooling system allows the block to be cooled with the help of CO2.. Freezing stage : 35 mm dia Feed range: 5-40 micron, total feed excursion : 25 mm Accessories as in M-52 5 micron step complete.

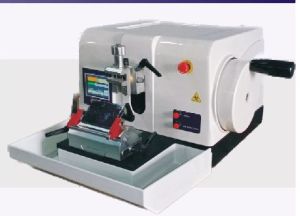

We manufacture and supply feature packed Semi Automatic Microtome. 'Easy cut' is a new generation microtome designed for application of paraffin and resi embedded samples in clinical research and industrial laboratory proposes. We offer Semi Automatic Microtome at very attractive price/benefit ratio and the focus is solely set on the essentials without conceding on sectioning eminence. Semi Automatic Microtome offered by us is an easy cut microtome, which is an impeccable mixture of electronics & mechanism. Technical Specifications Slice thickness range : 0 � 100 µm Setting valuesFrom 0 � 10 µm in 1 µm � incrementsFrom 10 - 20 µm in 2µm-incrementsFrom 20 � 50 µm in 5 µm � incrementsTrimming section range : 0-500µmSetting value : from 0-500µm in 1µm incrementsHorizontal specimen stroke : 28 mmVertical specimen stroke : 60 mmSpecimen retraction : 12 µm Physiognomies Rationalize Design Exceedingly smooth-running gear wheel Precise knife holder ensures the entire width of the blade edge usage. Spacious magnetized section waste trayFatigue-free operation achieved due to ergonomically located coarse feed wheel. The hand wheel positions to ensures added safety and handinessCassette clamp for single-hand operation Essential features In Inherits advance import actuation system for slicing the tissue more precisely and quietlyThe LCD display show the slice and trimming thicknessIt comprises special function of sample retractor the waste tray can be disassembled easily

We are reputed as one of the prominent Scientific Microtomes Manufacturers and Suppliers in India. The Microtomes are ideally designed for the cutting of the tissue sections into 1 micron sizes. For the feed mechanism, an indicator is provided in the front with feed setting at the back with setting of 1 to 50 micron. A razor of 120 mm, made from heat treated steel, is adjustable to tilt angle of up to 30 degrees on a reference scale. Additionally, customers are eased with the availability of the Laboratory Microtomes at the most affordable prices.

We offer Microtome. SITRO scientific is a leading manufacturer company of "MICROTOME". We can provide you best quality product at very competitive price.

We are offering microtome. we present highly advanced rotary microtome in the market. Scientific microtome is used to cut a specimen of organic tissue into a thin section for microscopic examination. Our spencer microtome is suitable for very precise sectioning of tissue up to 1 micron thickness. The feed indicator of the microtome is operated by the latest "cam drive system" for accurate feed setting from 1-50 microns in steps of 1micron. It has independent feed mechanism with automatic safety device, universal vice type object holder for accurate centering of the specimen and universal knife holder with lateral movements permitting use of the entire knife edge. Moreover, we are one of the reputed microtome exporters and suppliers in india.
