Radical Instruments Ambala Cantt, Haryana

Large stage is equipped for convenience of work. A long life and low temperature 10W Fluorescent lamp is provided for built in incident light.

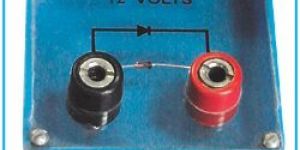

Mounted on transparent base, with 4 mm. colour coded sockets, with circuit diagram printed for demonstration. Available from 2.7 V to 24 V.

Searle's Pattern. Spirit level mounted in two rectangular cast iron frame with one end resting on point of micrometer screw, fitted in one frame, the second end of spirit level pivoted in the second frame. The micrometer is provided with vertical scale 10 mm. on either sides of the zero and vernier reading 0.01 mm. Complete with ceiling bracket having two self-centering chucks and tension weight. Supplied in case.

The two plates are supported in two rigid uprights and driven by belt in opposite direction. They are heavy, high resistance plastic with sectors of aluminium sheet. Two leyden jars (condensers) made form corning glass and aluminium foil. The whole is mounted on a wooden base nicely polished.

The two plates are supported in two rigid uprights and driven by belt in opposite direction. They are heavy, high resistance plastic with sectors of aluminium sheet. Two leyden jars (condensers) made form corning glass and aluminium foil. The whole is mounted on a wooden base nicely polished.Size :  A    200 mm. Dia.           B    250 mm. Dia.           C    300 mm. Dia

Consisting of a wooden double wheel with flat bottomed grooves, 150 and 50 mm. diameter respectively. The wheel is pivoted on a spindle 10 mm. diameter which projects for a distance of 100 mm. so that the apparatus may be clamped to a normal retort stand. The apparatus is supplied complete with two hooks and 6 meters of whipcord, but WITHOUT masses and stand.

To show conversion of mechanical energy into electrical energy. Turbine with transparent cover, inlet and outlet tubes, directly connected to a dynamo. Fitted on base.

It is used for measuring viscosity of very viscos liquids. The outer cylinder can be clamped at any desired height and the inner cylinder is graduated in mms and slot is covered by a transparent cover. Complete with scale pans and releasing pin.

Micro Hardness Tester can be used to determine the vickers hardness of steel, non-ferrousmetals, ceramics, treated layers of metal surface, & hardness grades of carburized, nitrided & hardened layers of metals. The Micro Hardness Tester are precision hardness testing machine integrated with technology of optics, mechanics & computer hardware.

Plated steel, Columbus type calliper enabling the user to read either inside, outside or depth measurements. With dual scale 0-12.5 cm. x 0.1 mm. Imperial scale graduated to 5 x 1/128 inches provided with thumb wheel for easy motion of jaws, in plastic case.

Comprising metal box, 220x100x165mm. length x width x height, with sliding front, two glass chimney, standing over tubulure at top of box, candle holder fixed top the base of box beneath the left hand chimney. Without candle.

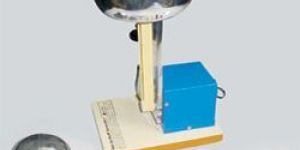

VAN DE GRAFF GENERATOR MOTOR DRIVEN   Specially designed for electrostatic experiments and where continuous source of high voltage is required. Fitted on base with smooth running A.C. Motor, operates on 220 volts A.C. 50 Hz. Charge collecting Belt : Silicon rubber having excellent insulation resistance. Tracking : Belt-tracking easily adjusted. Charge collecting combs : Aluminium mesh, clearly visible. Sphere : Aluminium 150 mm. dia. Connections : 4 mm. sockets in dome and base. Voltage developed : Upto 200 kV, depending on ambient conditions, with a spark length of 60 mm. Discharger : Spherical 100 mm. dia., with insulated handle and 4 mm. sockets.

Specially designed for electrostatic experiments and where continuous source of high voltage is required. Fitted on base with smooth running A.C. Motor, operates on 220 volts A.C. 50 Hz. Charge collecting BeltTrackingCharge collecting combsSphereConnectionsVoltage developedDischarger Silicon rubber having excellent insulation resistance.Belt-tracking easily adjusted.Aluminium mesh, clearly visible.Aluminium 150 mm. dia.4 mm. sockets in dome and base.Upto 200 kV, depending on ambient conditions, with a spark length of 60 mm.Spherical 100 mm. dia., with insulated handle and 4 mm. sockets.

Hand operated on base. The generator is self exiting and charge separation occurs. A metal sphere surrounds the upper pulley assembly and charge accumulates on the sphere, which is insulated by a plastic column supporting the pulley assembly. The charge builds up untill electrical breakdown of air surrounding the sphere occurs. Supplied with a discharging sphere.

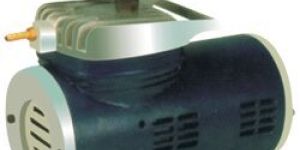

Oil Free Vacuum Pump, Exclusive oil-less construction of piston or diaphragm does not requires lubrication, practically maintenance free, portable light weight die-cast aluminium components. Balanced eccentrics provide smooth, low vibration operation. Built in micro air filter, fitted with metal round plate.

Country of Origin : India

Number Of Flower : High Vacuum Pumps

Material : Mild Steel

Shape : Rectangular

Operating Type : Semi Automatic

  Represents internal structure and operating principles of an air-cooled two-stroke engine. All parts in aluminium alloy. Ignition is shown by means of a miniature bulb. Carburetter and fuel supply also sectioned. Mounted on metal base.

A model of two-stroke diesel engine made in aluminium alloy and gun metal. Ignition is shown by means of a miniature bulb. Fuel supply is also sectioned. With hand crank, provided for manual operation. Mounted on base.

For use as a water turbine to drive a generator producing electricity or for use as a pump driven by a motor and raising a head of water to produce potential energy. The rotor has eight 'bucket' blades and is housed in a block turbine chamber with a clear Perspex front. Two inlet tubules (for turbine and pump operation respectively) and one outlet tubule are provided, and the shaft carries a 15 mm. diameter pulley. With driving belt.

For studying the characteristics of a TRIODE VALVE and its practical applications.

  are designed to meet the requirements of Research, Colleges, Schools and Industrial laboratories. They are used for accurate measurement of the diameters of different objects. They are also used in Physics Laboratories for more accurate determination of small variation in the liquid levels, Manometers, the refractive index of liquids as well as in surface tension & viscosity experiments. The travelling microscope consists of a cast iron base with machined vee-top surface and is fitted with three levelling screws, one being fixed the microscopes can travel Horizontally 22 cm. and vertically 15 cms. with the help of slides. Two slow motion knobs are provided for taking accurate readings. Vernier readings 0.01 mm. or 0.02 mm. Microscope tube consists of eyepiece 10x with 15 mm. or 75 mm. Objective . For placing objects on horizontal stage, made of milky cenolite sheet is provided on the base.

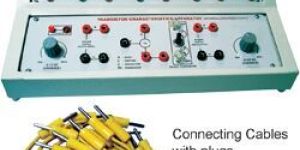

The objective is to plot the input, output and transfer characteristics of a PNP or NPN transistor in common emitter & common base configuration.The device consists of: Two regulated DC power supplies, one is 0-1 volt and other is 0-10 volts. 1PNP & NPN transistor with three terminals for base, emitter & collector. Four square transparent deluxe quality moving coil type meters, two meters are for measurement of different voltages and other two are for measurement of different currents. These meters have different ranges as mentioned: 1st meter 0-1V for measurement of base voltage (input) (VB) 2nd meter 0-1/10V (double range) for measurement of collector voltage (output) (VC). 3rd meter 0-250µA/25mA for measurement of base current. (IB) 4th meter 0-25mA for measurement of collector current. (IC)

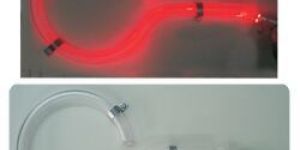

To demonstrate the total internal reflection in a perspex tube is form of (1) turn coil whose dia. about (120) mm; dia. of the tube in a perspex tube about (8) mm. Fitted on the wooden board with laser source.

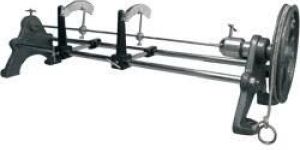

The apparatus consists of two parallel metal support rods with heavy cast metal legs at their either end. One of the legs has ball bearing mounted pulley wheel at its outer side with its spindle carrying split collect chuck for holding one end of test rod while other end of the test rod supported to clamping block on the other leg.

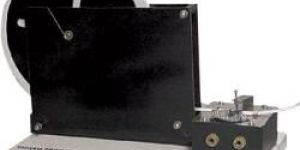

For the measurement of velocity and acceleration, using timing marks made on a moving paper tape by a vibrating striker. Designed to operate on a 12V A.C. supply and uses the mains frequency as its timing standard. The unit is housed in a moulded case including mounting flanges. The top of the case caries a tape guide which incorporates a carbon paper disc support and an adjustable anvil for the striker point. All moving parts are fully enclosed and a pair of 4mm sockets are provided on the side of the case for connection of the electrical supply. Supplied with a roll of self marking paper tape.A. Paper tape : 100m of paper tape, 9.5mm wide. B. Carbon Paper Discs : 40mm diameter, with 3mm hole, cut from long life plastic film type carbon paper.
