Student Projection Microscope Dealers in Ambala Cantt, Ambala

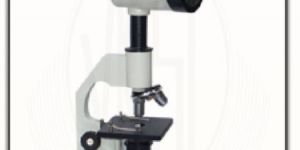

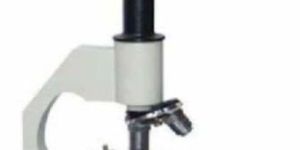

A standard student microscope with built in transformer (solid state) base with continuously variable light control. A 100mm dia. Projection screen attachment has been provided to achieve projection for group viewing of slide image. Illumination by 12V 20W halogen bulb. Achromatic Objective: 10x, 45x Hug. Eyepiece: 10x, 15x Magnification: 100x to 675x

150mm Dia screen Projection Microscope. Objectives: 10x, 20x. Eyepiece: 10x. Magnification: 100x - 200x Plain stage with slide holding clips. Rack  Pinion coarse focus. 12V Halogen projection bulb.

We offer Student Projection Microscope. A standard student microscope with built in transformer (solid state) base with continuously variable light control. Triple revolving nose piece to carry two achromatic objectives 10x, 45x. Two huygenian eye pieces 10x & 15x have been provided. A 100mm dia, projection screen attachment has been provided to achieve projection for group viewing of slide image. Illumination by 12v-20w halogen bulb. Packed in a card-board box.

Miko Pathological Microscope Mode MP-12A-VD Consists of graduated straight Drawtube, Inclineable through 90 with separate coarse motion and graduated fine motion knobs. Quadruple revolving nosepiece with click stop. Fixed square stage 120 x 120 mm with mechanical stage having travel range 50 x 75 mm with graduated scales and verniers.

We are the manufacturer, supplier and exporter of student projection microscope with built in 6v- 20w halogen lamp 6" dia projection doom screen, seperate coarse and fine focusing system, with two objectives 10x and 45x having detachable mechanical stage for slide manipulation, complete in thermocole carrying box.

The structure of microscopic specimens becomes visible to the naked eye by taking the projection on the screen, during observation and demonstration to a group of students. The microscopes are compact in design and can easily contrast and distortion free magnified images on a fine ground glass screen. Body - Monocular Fixed Straight Tube, length 160mm. Nosepiece - Triple revolving nosepiece with accurate centering and positive click stops Stage - Detachable Mechanical stage for X-Y cross movement 50X75mm, fully graduated vernier scale.   Illumination - 20W halogen lamp, 220/110Volts. Lamp slots provided for natural cooling of the illuminator. Objectives - Achromatic 4X - 10X- 40XSL. Eyepieces - Huygenian 10X and 15X Screen - 150mm diameter Glass Projection Screen is provided, can be rotated over 360° on Microscope tube. Model PRM-11 - All specifications are as per PRM-11A but has only 2 Objectives 10X & 40X. Screen size 100mm and without mechanical stage. Packing - The Microscopes are packed in full mould Styrofoam Boxes with Vinyl Cover, Duster, Cleaning Brush, Filter, Immersion Oil and Operating Manual.

The structure of microscopic specimens becomes visible to the naked eye by taking the projection on the screen, during observation and demonstration to a group of students. The microscopes are compact in design and can easily contrast and distortion free magnified images on a fine ground glass screen. Body - Monocular Fixed Straight Tube, length 160mm.Nosepiece - Triple revolving nosepiece with accurate centering and positive click stopsStage - Detachable Mechanical stage for X-Y cross movement 50X75mm, fully graduated vernier scale.Illumination - 20W halogen lamp, 220/110Volts. Lamp slots provided for natural cooling of the illuminator.Objectives - Achromatic 4X - 10X- 40XSL.Eyepieces - Huygenian 10X and 15XScreen - 150mm diameter Glass Projection Screen is provided, can be rotated over 360° on Microscope tube.Model PRM-11 - All specifications are as per PRM-11A but has only 2 Objectives 10X & 40X. Screen size 100mm and without mechanical stage.Packing - The Microscopes are packed in full mould Styrofoam Boxes with Vinyl Cover, Duster, Cleaning Brush, Filter, Immersion Oil and Operating Manual.
