B. D. Instrumentation (india) Ambala Cantt, Haryana

We have established ourselves among the leading manufacturers and exporters of zoom operating microscopes. The terms like exclusive and unmatched appear out to be most appropriate if one starts looking for the words to describe the quality of products provided by us. Bd-43 zoom ent operating microscope magnifications : 5x to 20x with swf 15x eye piece & f=200mm objective lens. 100% co-axial light. 24v-250w, fibre cable light source. Floor stand with shocker arm bd-44 step magnification ent zoom microscope step magnification : 5x, 10x, 20x with wide field 15x eyepiece & f=200 mm objective lens. 100% co-axial light. 24v-250w, fibre cable light source. Floor stand with shocker arm. optionals : (extra)1. Objective lens : f = 300 mm & f = 400 mm2. Motorised clamp with foot control. bd-45 zoom operating microscopes zoom ratio : 5x to 20x with swf 10x eye piece & f = 200 mm ojective lens. 100% co-axial light. 24v-250w fibre cable light source. Floor stand with shocker arm. Bd-46 step magnification zoom operating microscope step magnification : 5x, 10x, 20x with wf 15x eye pieces & f = 200 mm objective lens. 100% co-axial light. 24v-250w fibre cable light source. Floor stand with shocker arm. optional (extra) motorised clamp with foot control

Our Water Bath Tissue Flotation suitable to spread wax section ribbons double wall round construction inner chamber black anodized aluminum and outer made out of mild steel sheet duly finished in stoving white enamel paint . Inner chamber is single stainless piece to avoid chances of any leakage with enough wide rim for drying wet slides .temp range 5°c above ambient wide to 70°c± 2°c immersion type heating elements attain the controlled temperature regulated by a capillary thermostat panel provided with thermo regulator knob pilot lamp and is supplied with cord & plug equipment workable on 220v ac 50hz single phase. chamber sizes in mms & inches a) 200x 75 (8” x 3”)b) 250x125 (10” x 5”).

We offer Water Bath Rectangular (single Wall) body made out of thick stainless. Top made out of chrome plated sheet concentric rings to cover 3” dia holes are provided heating elements have an automatic cut-off device which operates when the bath gets dried equipment working on 220v ac 50 hz single phase models: 6 holes 12 holes.

We offer Water Bath Rectangular(thermostatic control). Standard double wall construction inner being of stainless steel outer of ms duly staving paint finish and gap fitted for temp insulation with glass wool top cover with 75mm (3”)holes with concentric rings temp rang 5°c above ambient to 95°c controlled by a thermostat heating is attained by an immersion type element with accuracy of ± 1 °c supplied complete with plug & cord panel provided with pilot lamps thermostat control knob etc models : 5 holes ,6 holes ,12 holes.optional:- digital temp indicator.digital temp indicator-cum-controller.

Water Bath Precision construction as per models but with glass windows on both opposite for observation temp controlled by mercury contact thermometer with a sensitivity of 0.2 °c suitable for precision laboratory activities requiring constant temp with high degree of accuracy complete with stirrer with speed control regulator workable on 220v ac 50 hz single phase.chamber size in mms & inchesa) 425x 250x 225 (17” x 10” x 9”)b)450x 375x 375 (18” x 15” x 15”)c) 600x 450x 450 (24” x 18” x 18”).

Our Water Bath Incubator Shaker useful for studies on tissue metabolism enzymes and protein coagulation and other experiments demanding shaking at constant speed under controlled temperature conditions double walled construction inner chamber made out of thick highly polished stainless steel sheet and outer made out of thick mild steel duly finished in stoving enamel paint. The lid made up of stainless steel and the gap between two chambers filled with glass wool to prevent loss of heat the shaking mechanism is fitted with variable speed motor coupled to shaking tray working on rollers. Shaking speed is control from 40 to 140 cycles per minute. Shaking tray can hold either test tube or flasks of 25ml to 50ml or 100ml capacity. Front panels includes on-off switch, shaking mechanism indicator, speed control, thermostat control etc. L-shaped thermometer is provided to indicate inside temperature. Equipment to work on 220v ac 50hz single phase. inner chambers size in mms:275 x 275 x 75275 x 275x 150400 x 300 x 50 optional:- shaking tray for 25ml, 50ml, 100ml, test tube or flasks.

Our bd-147 Vortxe Shaker (test tube shaker)useful for accelerated mixing of solutions in test tubes small flask or centrifugal tube etc the housing is 150x150 mm. The speed is regulated by a speed control devices . Shorts eccentric stroke motor imparts vigorous agitation to the tubes or flasks body is strong and finished in stoving enamel paint the equipment is workable on 220v ac 50 hz single phase.

We offer coloured Video Projection Microscopes. Laboscope fine focus research microscope model bd-15b with advanced coloured video-equipment for achieving high grade coloured images on the coloured monitor. the equipment comprises of:1. Ccd colour camera head (charged coupled device)2. Colour video monitor (14”)3. Trinocular microscope with colour corrected optics.

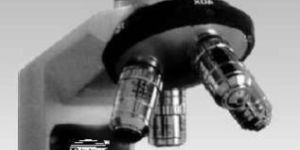

We offer Trinocular Research Microscopes. Body specification as model bd- 09 and bd-11 but provided with din standard objectives and superwide field hkwf 10x eye piece (pair) note : imported objective 100x and set of objectives 4x, 10x, 40x, 100x, can be supplied against extra cost as quoted earlier.

We offer Tray Dryer. Standard sturdy double wall fabrication. Inner & outer chamber made out of thick mild steel sheet. Inner chamber backed silver paint finish and exterior finished in hammertone .gap between two walls filled with glass wool for temperature insulation .heavy duly forced air blower are provided to constantly circulate hot air to achieve uniform temperature in the whole chamber. Double wall door is mounted on heavy hinges and provided with heavy moulded latch.temperature is controlled by a thermostat and it can be read on dial type thermometer . Temperature range : 50 c to 250 c, 2 c to 5c, and equipment is workable on 220 v ac 50hz single phase or 440 volts ac supply. a) for 12 trays of 16” x 32” x 1%” sizeb) for 24 trays of 16” x 32” x 1%” size c) for 48 trays of 16” x 32” x 1%” size d) for 96 trays of 16” x 32” x 1%” size e) for 12 trays of 16” x 32” x 1%” size optionals:- digital temp indicator digital temp indicator-cum-controllertimer 0-24 hourstray size 16x32x1%

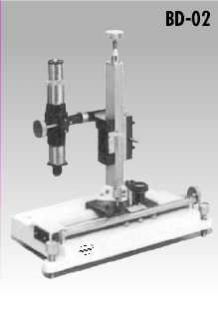

Travellingvernier microscope :- the microscope consists of a heavy cast iron base fitted with three levelling screws with the top fitted with white hylem sheet for placing the object. It can travel horizontally 18 cm & vertically 14 cm with the help of slides. The free moving slides can be clamped at any position by clamping screws & fine adjustment for final reading is done by micrometer screws. Both vernier readings having a sensitivity of 0.02mm or 0.01mm microscope tube can be focused by rack & pinion and it consists of 10x ramsden eye-piece with crossline graticule & an achromatic 2"or 3" focal length objective made out of highly polished optical glass. Supplied completely in a thick & attractive wooden cabinet. With embedded stainless steel scale.

We offer Student Projection Microscope. A standard student microscope with built in transformer (solid state) base with continuously variable light control. Triple revolving nose piece to carry two achromatic objectives 10x, 45x. Two huygenian eye pieces 10x & 15x have been provided. A 100mm dia, projection screen attachment has been provided to achieve projection for group viewing of slide image. Illumination by 12v-20w halogen bulb. Packed in a card-board box.

Our Student Polarising Microscope horse shoe base, heavy body with round stage and graduated mechanical stage. Provided with condenser set na 1.25 moveable through rack-n-pinion. Plano-concave reflector has been provided for light.huygenian eyepieces : p-5x with cross line. P-10x with ocular micrometer, p-15xachromatic objectives : p-5x, p-10x, & p-45x

Bd-03 student microscope(single nose piece) : horse shoe shaped base, monocular inclinable body having coarse motion focusing by rack-n-pinion. Sub stage iris diaphragm for light control from plano -concave reflector. packed in a plywood boxachromatic 10x objective 10x or 15xhuygenian 100x or 150xeyepiecemagnification bd-03a student microscope similar to bd - 03 but with revolving nose piece to carry two packed in a plywood boxachromatic 10x or 45x (sl)objectives 10x or 15x.huygenian 100x or 675xeyepiece magnification

We offer Srological Water Bath double wall construction inner being made out of higly polished thick stainless steel and outer made out of thick mild steel sheet finished in staving white enamel paint . The gap is filled with special glass wool for temp insulation the bath is provided with a drain cock to easily drain out the water and clean the chamber when required a pyramidal shaped cover is provided immersion type heating elements are fitted at bottom temp range 5 °c above ambient to 80°c with accuracy ±0.5 °c to 1°c is controlled by capillary thermostat regulated by a graduated knob on the panel which is also provided with pilot lamp etc. The equipment’s workable on 220v ac 50 hz single phase the baths are supplied without racks , thermometer and stirring arrangement.working chamber size in mms (stainless steel )a) 300x175x175 (12”x7”x7”)b) 300x250x175 (12”x10”x7”)c) 375x 300x175 (15”x12”x7”)d) 450x300x175 (18”x12”x7”)e) 600x300x175 (24”x 12”x 7”)optional:- digital temperature indicator. Digital temp indicator-cum-controller.stirring arrangement with ss rod and blades.

We offer Seed Germinator(single chamber). A) it’s specification as above with chamber of anodized aluminum. Chamber size 555(w) x 910 (h) x 605 (d) mms. B) as above but chamber of stainless steel.

Our bd-146 Shaking Machine (wrist action) heavy cast iron base with stirdy construction with two side arms for holding flaks a heavy duty fractional motor with variable speed through continuously variable speed controller is provided the holder can hold flask of capacity 100 to 1000 ml . Supplied complete with cord & plug etc to work on220v ac 50hz single phase speed 80-280 oscillation per minute .(a) model to hold 4 flasks.(b)model to hold 8 flasks. (c) model to hold 16 flasks. Optional ( ) automatic 0-60 minutes timer.

Our bd-145 Rotary Shaker (vdrl rotator ) fixed speed suitable for vdrl and others agglutination tests, blood grouping tests and for mixing of solution in small flask , beakers or bottles .body made of sturdy mild steel sheet duly finished in stoving enamel paint tray type platform size 300x300 mm can take cavity slides bottles flask etc for shaking at a fixed speed by the help of spring wires standard fixed speed 180 rpm an automatic 60 minutes timer can be provided against as optional by which shaking duration can be set to work on 220v ac 50hz single phase note: variable speed rotator can be offered on demand 0-60 minutes timer.

Rotary senior microtome (spencer 820 types) streamlined standard equipment incorporated with latest technology for cutting serial section in research work the precise feed mechanism cuts sections from 1-50 microns in steps of one micron each.feed adjustments 1-50 microns total feed excursion 25mm with opening of object clamps 37x27mm overall dimension 16x10x9” complete with razor-120mm with back & handle honing plate object holder set of three ,oil can packed in a wooden box (b) as above but micron setting in front for quick & clear glance.

We offer Rotary Microtome Razor. Fabricated out of grain tool steel heat treated and tested for microstructures both slides wedges with back & handle in wooden box size a) 120mm b) 140mm c) 160mm

Rotary microtome (erma type)simple but versatile rotary microtome for uniform sectioning up to 25 microns in step of 1 microns each the mechanical system encased in a removable cover complete with razor (120mm) with back 7 handle object holder set of three, honing plate and oil can packed in a box.

We have established ourself among the well renowned manufacturer of Refractometer. There exists different varieties of superb quality refractometer with us. So feel free to avail the opportunity of most competitive prices for optimum quality products.

RAZOR SHARPNER AUTOMATIC (SPENCER TYPE) Automatic microtome razor sharpner with electric timer coupled with simple operation for razor upto 185mm on both the wedges wor king mechanism encased in aluminium cover and front portion coverd with clear Acrylic canopy to observe safe and dust free honing Complete with honing plate ,coarse & fine abrasives & dust cover
