Dryer / Drying Machine Dealers in Ambala

We are offering rotary dryer(mt-19). The set-up is designed to demonstrate and stimulate the moisture removal by heat under forced draft action created by hot air stream and shower of moist solid due to rotary action of dryer drum. The set-up consists of a long cylindrical shell slightly inclined towards the outlet rotating at low rpm. Counter current hot air from blower passes through heating chamber to produce hot air works as the drying agent entered from one side of the rotating shell and leave from other side removes the moisture from the moist solids. High moisture content feed enters from one end of the shell and low moisture content product discharges from the other end of shell. As the shell rotates internal flights lift the solids and shower them down through the interior of the shell. This action increases the contact of wet solid against hot-air making the dryer very effective. An arrangement is made to vary and measure the airflow rate. A digital temperature controller is used to control and measure the temperature of air stream experiments to study the operation of a rotary dryer to study the drying characteristics of a solid material under batch drying condition in a rotary dryer features superb painted structure simple to operate & maintain compact & stand alone set up utilities required electric supplyprovide 230 +/- 10 vac, 50 hz, single phase electric supply with proper earthing. 5a, three pin socket with switch for weighing scale, 15a, three pin socket with switch for heater materialsaw dust @ 1kg. Granular and free flowing solid of size I - 2 mm anemometer air flow measurement

We, as a prominent Manufacturer, Exporter & Supplier, bring forth Seeds Testing Dryer.  It is manufactured using first-class raw material ensuring its durability and longer service life. Our team of experienced professional takes care of the designing and fabrication. We leave no stone unturned to ensure that we match the various parameters and standards set by the industry. Different customized specifications are available at economical rates.   Specifications : Capacity - 34 cu ft. x 2 No of trays - Two x 2 Provision for increase the No. of Trays upto 12.

* used for surface drying of products after application of wax * temperature range 30oc - 50oc * electrical heaters with thermostatic control * rollers made of pvc or aluminum * contact parts of s.s. And structure of mild steel

Double walled and double door. Temperature controlled by thermostat with dial type thermometer , Forced air blower. Chamber Size Tray Inner S.S. Inner M.S 430x840x650 8 Tray 46200.00 42000.00 430x840x910 12 Tray 56600.00 50400.00 910"x840x910 24 Tray 81800.00 68000.00 There are Many Sizes OPTIONAL: 1. TImer0-24 hours. 2800.00 2. Digital Temp. Indicator cum controller 6600.00 3. Tray 16"x32"x1/4" Size AL 800.00 4. Tray 16"x32"x1/4" Size SS 1500.00

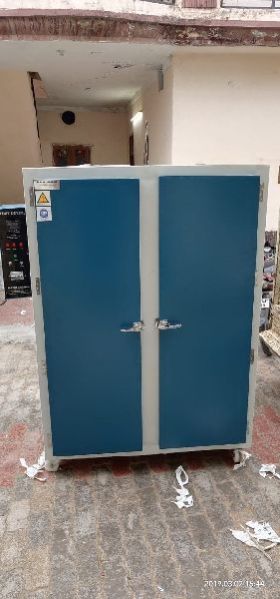

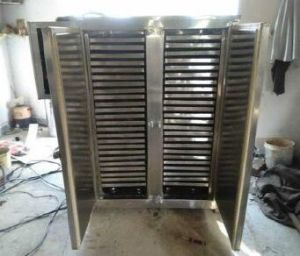

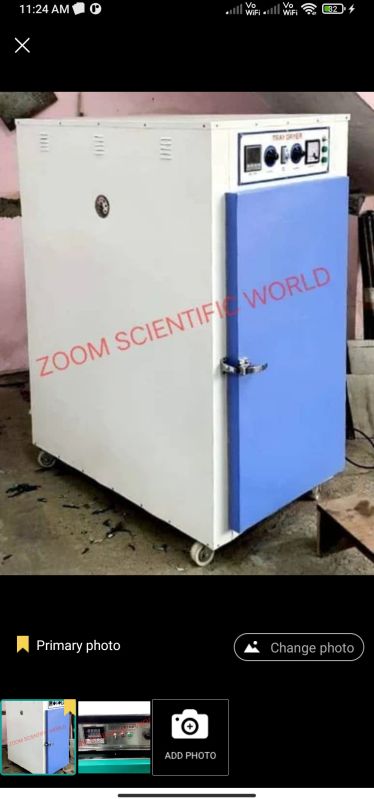

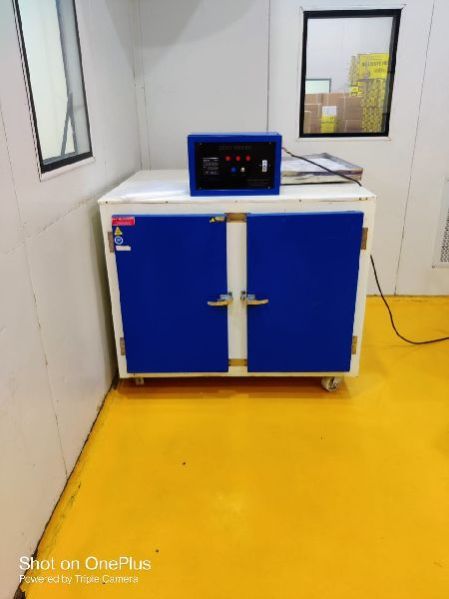

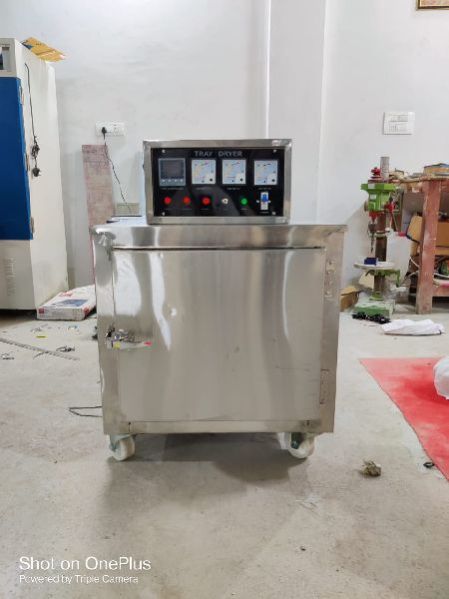

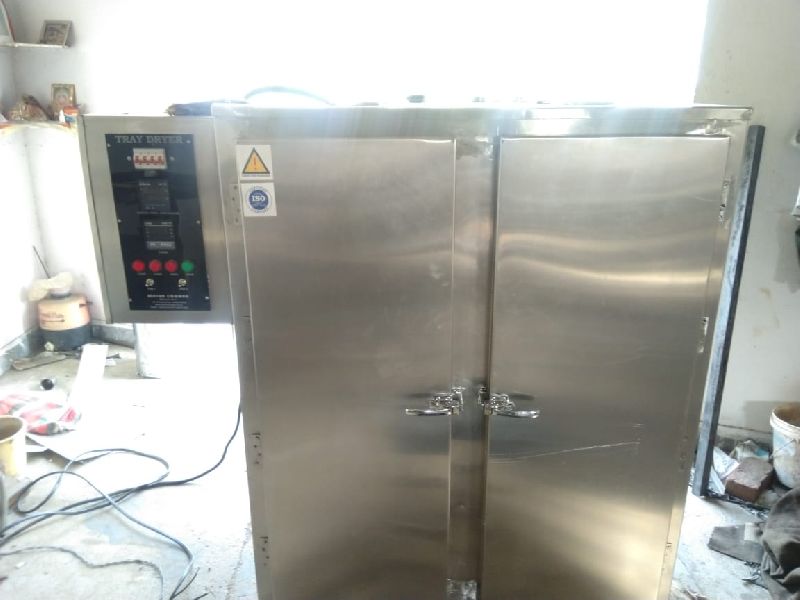

Tray Dryer : Alpha Chem is manufactures,exporter & suppliers Tray Dryer. Tray Dryer :Double walled and double door. Temperature controller by thermostat with dial type thermometer. Forced air blower. Chamber Size (HXWXD)mm Tray Tray Capacity Inches. 430x840x650 8 Tray 16”x32”x 1 14 430x840x910 12 Tray 16”x32”x 1 14 910x840x910 24 Tray 16”x32”x 1 14 960x1270x1450 45 Tray 16”x32”x 1 14 960x1700x1700 96Tray 16”x32”x 1 14 Optional: • Timer 0-24 hours. • Digital temp. Indicator-cum-controller. • Tray 16”x32”x 1 14 size.

Double walled heavy duty with forced air circulation thermostatically controlled, Temperature upto 250 a) 430x840x650 mm 8 trays of 16"x32"x1 1/4" b) 430x840x910 mm 12 trays of 16"x32"x1 1/4" c) 910x840x910 mm 24 trays of 16"x32"x1 1/4" d) 960x1270x1450 mm 48 trays of 16"x32"x1 1/4" e) 960x1700x1700mm 96 trays of 16"x32"x1 1/4" 0C accuracy ±2°C to ±5°C with dial type thermometer. To work on 220/230 or 440 V A.C.

We are a well-reputed Manufacturer and Supplier of Tray Dryer in Haryana, India. It is widely used for the purpose of drying various materials. We offer it in various sizes and capacities, to cater to the variegated industrial requirements. These Tray Dryers are thoroughly observed by our dexterous professionals on the basis of various quality parameters, to ensure their flawlessness. We offer them in a sturdy packing, to avoid the chances of mishandling during the transit.
