Dryer / Drying Machine Dealers in Thane

Kilburn undertakes design and manufacture of Vibratory Fluid Bed Coal Dryer in collaboration with Carrier Vibrating Equipment Inc., USA. Kilburn Coal Drying System has several advantages compared to the conventional systems used for such applications.

With the assistance of skilled professionals and high-grade packaging system, we can easily furnish customized packaging requirements of the customers. We are well supported by a team of experienced personnel who take care of the storage facility ensuring zero damage to the products till the final dispatch of the orders.Salient Features : All contact parts made of SS 316 as cGMP standard Design for uniform circulation of hot air in the drying chamber Electric & Steam heating system Fresh air inlet and outlet air flow can be adjusted with damper control valve Trays are placed on the movable trolleys provided with castors. Available in different models with options for 24, 48 and 96 trays. Easy accessibility of impeller for cleaning.

Drying oven is fabricated of rigid angle/square pipe frame with double walled panels insulated with best quality compressed fibre glass. It is provided with a rigid door fitted with strong hinges and best choosen locking arrangement. A control panel is fixed in front of the oven to facilitate its operation. It has a large working space and is available in good matt surface finishing (in synthetic / enamel colours for non gmp). Inner walls are SS-304 / 316 as required.The Drying ovens are electrically heated and thermostatically controlled. It can be fitted with timer to facilitate working day and night. Dryers are well accepted for fast & economical drying of powders, bottles & other materials.   Optional : Available in STD/GMP models Construction SS 304 / 316 / 316L Flame proof motor & panel Intrinsically safe earthing system Chart Recorder device for temperature Control Panel with PLC control Applications : Widely Used in the fields of Pharmaceuticals, Bulk Drugs, Dyes & Chemicals, Food Products & Starch Derivatives, Pesticides, etc.

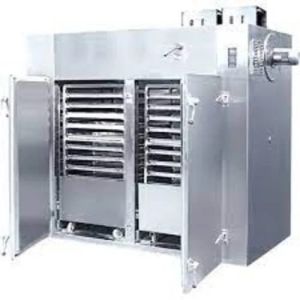

Vats And Vessels Tray Dryers are useful in Pharmaceutical, Chemical, Dyestuffs, Food & Automobile Industries. A Tray Dryer is an enclosed, insulated housing in which Trays are placed on angled rack. Material to be dried is placed on the trays. Heating media is Hot Air, and heat transfer is direct from gas to solid. Electric heaters and circulation fan arrangement maintains the constant temperature in the dryer and ensures uniform circulation of hot air. Tray Dryers are available in 12, 24, 48, & 96 tray capacity models, constructed in Stainless Steel 304 / 316 / 316L cGMP construction Special Features of Vats & Vessels Tray Dryer Fan is dynamically balanced with specially sealed bearing to withstand the high temperature. Heating Arrangement - Electrical / Steam heating. Designed for uniform circulation of hot air in the drying chamber. Tunnel type dryers wherein trolleys are placed one behind the other and double door loading. Electric heater terminals situated outside the hot zone in case of electrically heated dryers. Heaters are accessible and replaceable from outside the dryer. The front doors are explosion proof and are locked with the help of spring loaded ball latches with suitable pressure. Tray Dryer has a filter for fresh air inlet and an adjustable air outlet.

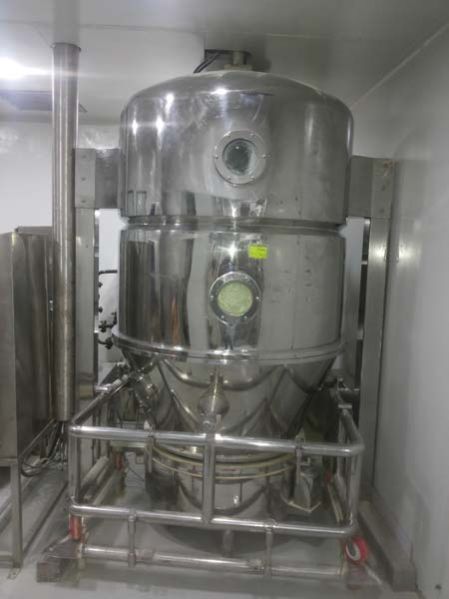

Fluid Bed Dryer is specifically designed for 2 bar pressure shocks. At Shashvath Fabricators and Engineers, we manufacture and supply the product across the globe from Thane, Maharashtra. We manufacture the product with various specifications to meet the needs of diverse clients. This dryer comes with a carrying capacity of 10kg, 30kg, 60kg, 120kg, 200kg and 250kg. We welcome bulk orders from our valued clients.   Operation : Due to induced draft created by specially designed heavy-duty fan, the atmospheric air is drawn through air filter The filtered air is then heated to the required temperature by electric steam radiator The hot air passes through the product container and the product is dried by air fluidization The air circulation is controlled by damper The filter bag prevents fine particles from carrying over to exhaust air stream.   Selection : Selection of capacity of fluid bed dryer depends upon bulk density, drying temperature and moisture contents of wet material to be dried In case of 120 kg model a batch of 145 kg wet material can be loaded provided the bulk density of the material is 0.6 kg. Lit. (approx) Pharmaceutical granules with 20-25% moisture can be dried in 30-45 minutes at 800 c approximately It holds a capacity of 10 kgs 30 kgs 60 kgs 120 kgs 200 kgs 250 kgs.

The purpose of spray drying is to produce powder or a granular product in ONE step by drying 'atomized' liquid feed in heated air or other gaseous medium. By atomizing the feed into fine droplets, a very large surface area per unit mass is generated with a very short path for heat and mass transfer. The heated air supplies latent heat of evaporation to the droplets and brings about rapid drying which in turn brings about rapid cooling of the drying gas. At the same time the particle temperature is kept low by adiabatic cooling. Drying can take place in a very short time, typically 5-20 seconds. Spray dried particles are usually spheroidal, which gives the product excellent flow characteristics. Size of the dried product particle depends on the size of the droplet from the atomizers. Different atomizers produce different particle size distribution and spray patterns. The drying air flow pattern must be carefully selected for optimum performance.

Continuous travelling type ovens with wicket chain conveyor designed for drying printed/coated Tin & Aluminum sheets. The temperature profile is maintained uniformly by automatic temperature controller operating the burner. These ovens are running all over India in so many reputed companies.

Optimum and continuous vacuum maintenance during processing Working cone totally leak proof during operation Easy loading with quick discharge Uniform Material shuffling over the heated contact surface of cone Suitable size condensers and receivers for solvent collection Preventive controls on Energy heads to maintain operational efficiencyMechanical seals for vacuum and heating sides Vacuum Gravity & Bin loading system for Minimal Material handling Can be offered in Nickel, Hastalloy, Titanium and Tantalum All rotating parts are provided with - SS Guards for Operator Safety Interlocking with Drive through Proximity Switch

KHE_HND-A1-ABS- HAND DRYER Voltage : 220V ~ 240V Power : 1800W Frequency : 50/60 Hz Air Speed: 8M/S PCS/ CTN : 8

  Description Conical screw mixers (also called Nauta Mixers) make use of a conical chamber with a verticals screw that mixes the powder or substance. Convective mixing effect : The convective mixing effect is created by following 3 factors : Axial mixing by the screw. Radial mixing by shape of the cone. Tangential mixing by the arm.   Applications: Gentle mixing of free flowing and segregative powders, pastes and liquids Addition of liquids of powders by means of spray nozzle or intensifier Intensive dispersion of liquids and solids by means of the intensifier Granulation by moisture addition Heating and cooling Drying by means of heat input in combination with vacuum and possible liquid recovery Chemical reactions De-aeration of paste Coating solids with liquids ( with intensifier)    Benefits :   Gentle blending action is ideal for friable or shear sensitive materials One blender can be used for a wide range of Batch size, ranging from as small as 10% of the rated capacity. Nearly 100% of the blended materials are discharged through the bottom valve after completion of the blend cycle Use nearly 50% less power per unit being blended. Less floor-space and are ideally suited to multistory facilities   Special Applications: The conical mixer can be equipped with a high speed rotor for liquid addition or de-lumping product. Rotating up to 20m/s, this rotor creates vortex effect and injects the liquid through the paddles directly in the product resulting in an excellent dispersion or coating. By spraying the liquid in the mass itself in a vortex, we avoid over-moistening of particles and risk of sticking phenomena on the vessel. This intensifier can replace several lump breakers.
