Vacuum Dryer Dealers in Thane

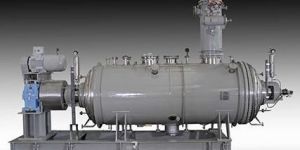

Rostary vacuum dryer offer clean, simple and effective method of drying wet cake, powder and even slurry. Labor and energy costs are minimal compared to tray dryers and product losses during handling are also negligible. Additionally valuable organic solvents can be conveniently condensed and recovered. Working principle the drying in a rotary vacuum dryer is a batch operation under vacuum. It is possible to dry heat sensitive materials at well below boiling points of water and solvents. Drying time depends on material being dried, amount of solvent or water to be removed, desired final moisture content, permissible jacket temperature etc. The dryer is available in sizes ranging from 100 liters to 20,000 liters gross volume. The volume of wet material loaded into the dryer is usually restricted to 40-45% of gross volume.

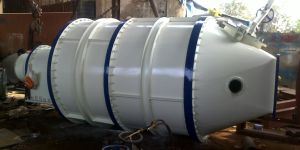

We manufacture a quality assured range of Vacuum Spray Dryers, which are extensively used for drying as well as particle formation. These dryers are used to convert the suspensions, solutions and slurries in dry powder. Our products are manufactured using special designed as well as standardized method and used in Soap plants. We offer these products in various sizes to the clients . Thus, we offer these products with compact layout to the clients and these are widely used for their user friendly operations. Our clients can avail these products in pressure designs along with automatic or remote change over of nozzle. It is easy to operate these dryers and we offer these dryers with an option of single as well as two fluid nozzles. Thus, these can be customized as per the client’s desired requirements and needs.

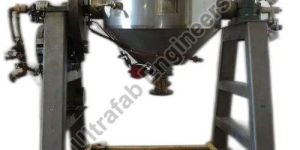

Being one of the eminent entities, we are instrumental in offering Rotocone Vacuum Dryers to the clients. We are based in Maharashtra, India. Owing to their efficient functioning, robust structure, sturdy structure, and long working life, these are copiously admired by our clients. We are endowed with an ample storage facility, which enables us to meet the bulk and urgent requirements of the clients on a timely basis. We offer them at a highly feasible rate.   Detail : It is a multipurpose drying unit that is extremely useful for uniform and low :temperature drying of heat sensitive chemicals, pharmaceutical formulations, fine chemicals etc. It has a double conical vessel with a rotating system and vacuum solvent recovery system. As the dryer is rotating, there is no charring or retention of the product. The result is that one can change the material to be dried without much toil. It rotates at a very low speed (5 to 15 rpm) and thus, has very low wear and tear.

VVPL-V-Cone mixer dryer are used in the Pharmaceutical, Cosmetic, Chemical, Food and other process industries. Products which are friable, shear sensitive, voluminous and heat sensitive can be easily dried in the V-cone Dryer. The large handling capacity coupled with a low power requirement makes it one of most efficient and quick Drier. Due to the application of vacuum, drying is faster and more efficient as the boiling point of the products being dried reduces. The V Cone Vacuu Mixer Dryer has got a small footprint and is ideally suited to multi-storied facilities. The product container is in a V shape due to which the materials are discharged totally from the bottom. Additional the mixing screw forces the materials to be discharged completely.   Working PrincipleA combination of three mixing effects is produced - The mixing screw rotates about its own axis and it also rotates around the periphery of the cone continuously. First the screw lifts the product from the bottom to the top of the vessel and then the movement of the arm makes the product to move across the cone’s periphery. Combining these effects with gravity produces excellent mixing effect.   Special Features of VVPL V-Cone Mixer Dryer Constructed in SS 304, SS 316, Hastelloy C276. Discharge through remotely operated Vacuum Enabled Valve, Pneumatic or motorized valves. Central operations with constant monitoring of Speed, Temperature, Pressure and other parameters. PLC based controls. Capacity - 25 Ltr. to 25,000 Ltr. Applications - Excellent for Chemicals, Bulk Drugs.

Rotary Vacuum Dryers, Multi Mill, Agitated Nutsche Filte

Vacuum Dryers are widely used in the Industry for drying of variety of products.Vacuum Dryer is batch dryer ideal for drying of heat sensitive products, drying of products in solvents (for subsequent solvent recovery), drying requirements necessitating achievement of very low moisture or low oxygen drying environment to minimize oxidation or for explosion prone products.

Vacuum Tray Dryer is the most commonly used batch dryer. The box-shaped machine has a door (two doors in case of larger models) for loading and unloading. The product is placed on trays which are placed on heating plates one upon another. Distance between the heating plates is calculated by the surface loading and foaming of the product. The bottoms of the trays and heating plates are kept as smooth as possible for optimum heat transfer between the plates and the product. Now comes the preheating stage in which the product is heated at atmospheric pressure till all trays reach the same temperature, after which the drying can start. 40-80 mbar abs is reached in the main drying phase while only a few mbar abs are reached in the final drying stage. Heating temperatures range normally between 80C and 110C. The drying process requires a few hours to time depending upon the product and its surface load. Automatically controlled vacuum and temperature profiles can be set to prevent going over the threshold of the critical product temperature. Dimensions of the vacuum system play a crucial role in the design of drying cabinets. If intense foaming of the product is desired, the transfer to operational vacuum level must take place very quickly so that the vapours produced are taken out directly or through the means of a steam jet compressor and the non-condensable vapours are extracted by the vacuum system.
