Aries Engineers Mira Bhayandar, Thane, Maharashtra

Being a quality :oriented entity, we are earnestly engaged in offering Vacuum Reactor to the clients. Our business is based in Maharashtra, India. It is equipped with a fully swept cylindrical shell with flat endplates. It limits the build :up of adhesive or wetted powders, filter cakes, and sludge. The turbulent action of the agitator creates a high particle transport, ideal for adding liquids, coating, chemical reaction, and granulating. This reactor is important equipment for reactive power compensation of power system.

The new design makes installation a process saving time and resources. Our optimized piping design makes operating and maintaining a tank very easier. Readily accessible valves and controls provide ample clearance, facilitate operation and simplify maintenance procedures. Wider space and superior performance meet the flow requirements of a complete range of gas and liquid applications.

Option 1: A heat-exchanger system consisting of a bundle of U tubes (hairpin tubes) surrounded by a shell (outer vessel); one fluid flows through the tubes, and the other fluid flows through the shell, around the tubes. Multitherm can duplicate any existing bundle to include dimensions, materials and performance. we can build “U” tube bundles, straight tube “floating” tube bundles, or we can retube fixed tube sheet heat exchangers when the bundles is not removable. Multitherm is not locked into any one material. Most bundles tend to be build with copper tubes and steel tube sheets. Option 2: The U-tube head (U) is a very simple design requiring a bundle of U tubes, only one tube sheet, no expansion joints, and no rear-end head at all, allowing easy removal of the bundle. The thermal stress problem is eliminated because each tube is free to expand/contract independently. One disadvantage is, individual tube replacement is not possible except in the outer rows, and an even number of tube passes is required. Some tubes are lost in the center due to HEAT EXCHANGERS 17.7 tube bend limit, and tube side mechanical cleaning of the bends is difficult. Flow-induced vibration could be a problem for tubes in the outermost row. It is the lowest-cost design because there is no need for the second tube sheet.

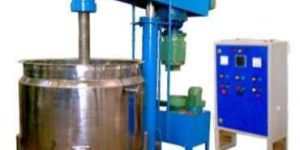

Twin shaft disperser machine is suitable for mixing of ointments, inks, sauces, pastes, foam, used in the pharmaceutical, food, chemical and allied industries. The mixing blades revolve in opposite direction to sweep the entire circumference of the vessel as well as rotate around its own axis. Intimate mixing is achieved in short intervals. The mixing elements are raised vertically by an electric or hydraulic lifting or lowering arrangement. The vessel can be removed and next batch can be kept ready for processing in these Twin Shaft Disperser. Mixing elements can be cleaned completely with vessel removed or by rotating the blades in the vessel loaded with solvent. A high speed emulsifier is provided in the center of Twin Shaft Disperser machine for thorough mixing of the mass.   Technical Features: Construction: Stainless Steel Mild Steel Control Panels: Multi speed control using suitable Variable Frequency Drive and Motor for both high and low speed stirrers. Safety Controls: Limit Switch for Hydraulic systemEmergency stop. Handling: Hydraulic lifting & lowering (ON/OFF). Automation and logic: As per clients requirements   Features: Better Services Lives Robust Construction Easy Installation Safe Operations Corrosion & abrasion resistant surface finish

We manufacture Stainless Steel Storage Tanks ,ss316 tanks,ss304 tanks ,ms tanks from 1 kl to 100 kl.aries engineers engaged in manufacturing quality and durable range of oil storage tanks. These oil storage tanks available in different configurations such as vertical, horizontal and jacketed. Reliable and dependable treatment of water used in petroleum process depends on quality of tank and manufacturer standing behind it. Our tanks are constructed quickly and easily ready to handle tough water challenges of any drilling process. Manufactured using high grade raw material procured from reliable vendors from market, these oil storage tanks are acknowledged for their leak proof property and longer shelf life. Aries engineer oil storage tanks are designed to ensure industrial and commercial properties comply with control of pollution regulation and site health and safety regulations. Advantages of stainless steel tanks: heat resistant - deform under direct sunlight leak proof - longer life span makes it one time investment unique design - prevents insect from entering and contaminating water do not rust hence water is hygienically clean no growth of bacteria in stored water ideal for storage and portable water used in commercial

Material : Stainless Steel

Shape : Round

Condition : New

Finishing : Polished

Feature : Anti Corrosive, Durable, Eco-Friendly, High Quality, Shiny Look

Warranty : 5years

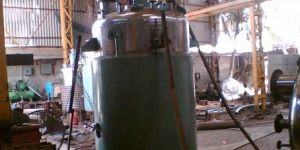

Being a client :centric entity, we are engaged in offering Solid Liquid Reactor. Our business is based in Maharashtra, India. Our professionals precisely engineer it with the aid of the premium grade materials and modern machines in tune with the set industrial standards and norms. We are renowned for making timely deliveries of our consignments even if the client places a bulk order. Our clients can avail it at the leading market rate.   Details : We are one of the leading manufacturer and supplier of Solid-Liquid Reactor. These reactors are precisely engineered and are widely used in various industrial units. The Solid-Liquid Reactor offered by us are largely preferred by our esteemed clients for their facial appearance. We also offer customized Solid-Liquid Reactor as per the necessities of our clients. Our range of Solid-Liquid Reactor is manufactured using high quality raw material in compliance the international quality standards.

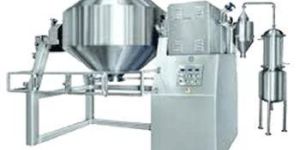

Aries Fabricators Pvt Ltd. make Rotocone vacuum dryers are multipurpose drying unit that are extremely useful for uniform and low temperatures drying of heat sensitive chemicals, pharmaceutical formulations, fine chemicals etc. It has double conical vessel with rotating system and vacuum solvent recovery system. As the dryer is rotating, there is no charring or retention of product. the result is that one can change the material to be dried without much a do. The Rotocone vacuum dryers rotates at a very low speed (5 to 15 rpm) and thus has very low wear and tear and requires very little maintenance. This machine is ideal for crystalline products, granules used in chemical, pharmaceutical and food industries. Features: GMP Models for final Pharma products. Totally sealed. Quick loading and unloading. Energy saving.

Being one of the eminent entities, we are instrumental in offering Rotocone Vacuum Dryers to the clients. We are based in Maharashtra, India. Owing to their efficient functioning, robust structure, sturdy structure, and long working life, these are copiously admired by our clients. We are endowed with an ample storage facility, which enables us to meet the bulk and urgent requirements of the clients on a timely basis. We offer them at a highly feasible rate.   Detail : It is a multipurpose drying unit that is extremely useful for uniform and low :temperature drying of heat sensitive chemicals, pharmaceutical formulations, fine chemicals etc. It has a double conical vessel with a rotating system and vacuum solvent recovery system. As the dryer is rotating, there is no charring or retention of the product. The result is that one can change the material to be dried without much toil. It rotates at a very low speed (5 to 15 rpm) and thus, has very low wear and tear.

The ribbon bender that Aries manufacture’s is an efficient and versatile blending machine for mixing of dry granules & powders homogeneously. Approximate two third of the volume of the container of Ribbon Blender is filled to ensure proper mixing. The Ribbon Blender gives best result for mixing of dry powder & granules due to the design and shape of the mixing ribbon and product container. These are manufactured in a range of 25Kg to 5000Kg batch capacity in mild steel and stainless steel.   General Features : Less working time No dust formation Lesser Maintenance cost Less Service after sales

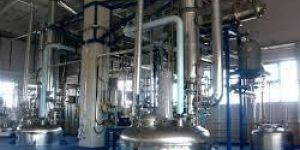

Being a dedicatedly engaged in offering Resin Plant to the clients. We are based in Maharashtra, India. It is widely used for making various types of resins like alkyd, polyester, Phenolic, Isophthalic, Polyurethane ketonic etc. Our adroit professionals fabricate it with the utmost precision by using the top notch grade materials and modern techniques in line with the set industrial standards and norms. We offer it at a budget : Friendly rate.   Client List :  Natural Petrochemicals Ltd.  Euro ceramics Ltd.  Bombay Paints Ltd.  Modern Textiles  Auxillaries Pvt ltd.

Sturdy construction in Mild Steel / Stain less Steel and as per GMP Norms under ASME code. We are pioneers and specialist for manufacturing different type of resin such as alkyd, polyester, Phenolic, Isothelic Poly Urethane Ketonic etc .We have provided resin manufacturing project on turnkey basis. We have proven our capability by supplying turnkey projects to various client in India and abroad .   Client List: Natural Petrochemicals LTD Euro Ceramics LTD Bombay Paints LTD Modern Textiles Auxiliaries PVT LTD

We are pioneer and specialist for manufacturing different type of resin such as alkyd,polyester,Phenolic, Isothelic Poly urethane ketonic etc .We provide resin manufacturing project on turnkey basis.We have proved our capability by giving turnkey project to various client in India and abroad .

With the assistance of our highly skilled professionals, we are able to offer a premium grade Plough Shear Mixer to the clients. We carry out our operations from Maharashtra, India. These are easy to install and demand the least of maintenance cost. We offer it in various specifications, to cater to the variegated industrial requirements. It is completely at par with the predefined industrial standards and norms. We are competent to take bulk orders for it.   Detail : Plough Shear Mixer is suitable for mixing of ointments, inks, sauces, pastes, foam, used in the Pharmaceutical, Food, Chemical, and allied Industries. The mixing blades revolve in the opposite direction to sweep the entire circumference of the vessel as well as rotate around its own axis. Intimate mixing is achieved in short intervals. The mixing elements are raised vertically by an electric or hydraulic lifting or lowering arrangement. The vessel can be removed and the next batch can be kept ready for the processing in these Twin Shaft Dispersers.

The Horizontal Pharma Peeler is a batch type automatic / semi automatic filtering centrifuge. The axis of rotation of the basket in this centrifuge is horizontal. It is ideally suited for a clean room installation – ”through the wall” using a flexible membrane as required in pharmaceutical applications.   Filling The suspension that is to be separated is filled into the horizontal, overhung perforated basket at a pre-selected loading speed. As a result of the centrifugal force, the solid particles settle on the filter fabric on the basket shell.  The solids are retained by the filter fabric, suspension fluid flows through the forming filter cake, including the filter fabric and leaves the perforated basket through bore-holes in the basket sleeve.  During filling, the fluid level in the basket and the growth of the filter cake are controlled by sensors. Upon reaching the desired filter cake height the filling process is stopped automatically.   Intermediate spinning Depending on the product, a filling process will be interrupted by intermediate spinning with increased speed, in order to free filling volume in the basket and continue the filling process.  Depending on the filtration reaction of the product, intermediate spinning will be repeated several times.    Washing the solids As soon as the suspension fluid has been centrifuged, the washing the solids in the basket process is started. During this phase the washing fluid is evenly distributed via a suitable washing pipe (nozzle pipe or orifice-type sprayer) throughout the whole length of the basket. As a result of the centrifugal force, the washing fluid penetrates the filter cake, displaces the still sticking suspension fluid and leaves the basket in the same way as the suspension fluid during filling.   Spinning In order to separate the fluid from the filter cake the basket is generally accelerated to the maximum allowable speed and kept constant at this speed. Kinetics of the spinning process depend on the solids and fluid parameters, the height of the filter cake and, naturally, the centrifugal force acting upon the fluid to be separated. The residual humidity in the filter cake decreases over time under the constant  centrifugal force and asymptotically it approaches a theoretical limit.   Discharging After hydro-extraction and with the basket rotating, the filter cake is peeled layer by layer by means of a discharge device, which consists of a knife box which can be rotated and moved in linear direction.  The solids are then discharged via a suitable chute or a conveyor screw.   Residual heel removal Generally, the solids are not completely removed, but a residual layer is left in the basket. It serves as a filtration accelerator for the next work cycle in order to obtain a filtrate that is as free from particles as possible. However, this residual layer loses its permeability after several cycles and must be removed from time to time. This is done by separating the residual layer from the filter fabric by the use of a pressurized gas device that blows from the outside into the bore-holes in the basket shell.  The residue is then transported out of the centrifuge via the discharge device.   Cleaning Cleaning of the interior of the centrifuge is often required after every cycle or several cycles, in order to ensure a defined product separation between two following batches, or to prevent an infection.  The inside of the centrifuge with all built-in devices can be completely cleaned with an integrated CIP cleaning system without the need to open the centrifuge.      Advantages:  Broad operational spectrum  Highest standards regarding cGMP  Fully automatic, validated CIP cleaning  All components in the process chamber can be inspected  Clean room installation (optional)  Use of pharmaceuticals compliant materials and sealing materials  Avoidance of potential sources of contamination

Weight : 10-20Kg, 20-30Kg, 40-50Kg, 5-10Kg

Voltage : 110V, 220V

Condition : New

Automatic Grade : Automatic

Power : 1-3kw, 250-500Wt

Warranty : 5 Years

Driven : Electric

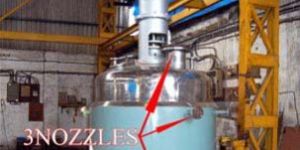

We are counted amongst the prevalent entities, engaged in offering Petrochemical Reactor to the clients. We are based in Maharashtra, India. It can be availed in various sizes and dimensions, to meet the variegated requirements of the clients. At our state of the art unit, we are well :equipped with modern machines and equipment required for making a high :quality product. We are well :capacitated to deliver it in bulk quantities, within the promised time frame.

Paddle Dryers is utilized in varied industries to extract and obtain dry powder either from solutions or wet cake. Operational efficiency is high and the costs incurred are low with this dryer when compared to other dryers in the market. The mechanism, involves a closed system wherein hot water, steam, or hot fluid is used as a heating medium within the jacket, in the hollow paddle as well as in the hallow shaft. This paddle dryer includes vacuum pump, condenser, receiver and dust collection. The wet feed is continuously agitated by the heated rotating blades, thus exposing new areas to heating surfaces. This results in the moisture boiling off and rendering the wet material dry to the required degree.     Special Features: Suitable for processing entire range of feeds, except liquids Granular and powdery product Very high evaporation capacity Very high thermal efficiency Partial drying possible Continuous Operation Compact Installation   Typical Applications: Crystalline Solids Pasty Solids Sludge Agro Waste Magnesium Carbonate Polypropylene Beads   Technical Features: Externally heated through jacket/limpet coils. Internally heated agitator shaft for maximum heat transfer area. Dries and conveys for discharge. Efficient Rotary joint to inject heating media into agitator and remove condensate. Pre-piped with heating medium inlet to dryer and condensate out to headers. Quick opening manual discharge valve and changing door for minimum manual handling. Chain sprocket drive through speed reducers and motor. Direct drive through speed reduced motor. Control Panel totally pre-wired for ease of performance taking into account safety factors.

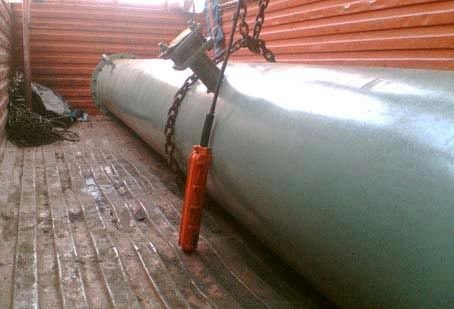

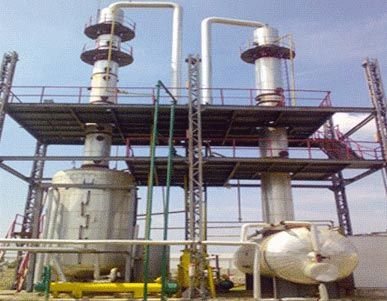

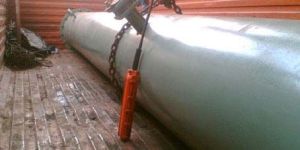

Being a quality conscious entity, we are engaged in offering Multi Purpose Distillation Plant to the clients. We use the optimal grade basic inputs and modern technology for manufacturing it. It is manufactured under the supervision of experienced professionals, who thoroughly adhere to the predefined industrial standards and norms. Our clients highly applaud its key features like robust construction, faultless performance, optimum functionality, and long working life.   Detail : It is used for various purposes like hydrodistillation, steam distillation etc. It is useful for the leaves, barks, roots, grasses, rose petals etc. We also undertake turnkey project / plants & equipment for chemical & pharma, drug & allied industries

Capacity : As per design

MS Aries Fabricators’s rubber lining division provides cost-effective and durable rubber lined reactors to industries where corrosive and abrasive protection are a number one priority. Whether your application calls for natural rubber, nitrile rubber, or a thermoplastic PVC like Koroseal, Aries Fabricators Pvt Ltd has the expertise to protect your Reactor tanks, pipes or other metal fabricated products.   Test Procedures Conducted Testing Spark Testing: To ensure no pinholes are present after applying rubber lining to the equipment. Shore Hardness testing: For quality assurance of the rubber used. Stirrer Types: Anchor stirrers used for high density materials moving at slow RPM (15 to 60 RPM Maximum) Propeller stirrers used for medium density materials moving at steady RPM (100 to 300 RPM Maximum) Turbine stirrers used for low density materials moving at high RPM (100 to 1000 RPM Maximum) Cutter stirrers used for particular processes moving at very high RPM Shore Hardness testing: For quality assurance of the rubber used. Different types of Rubber that can be used: Soft Natural: 35 to 65 Shore A durometer hardness Semi Hard Natural: 80 to 95 Shore A durometer hardness (normally backed with a soft rubber tie gum) Hard Natural (Ebonite): 100+ Shore A durometer hardness (Sulphur content exceeding 40 parts) Chlorobutyl: 45 to 65 Shore A durometer hardness (1% chlorine with excellent impermeability to gases and good heat resistance) Neoprene: 35 to 80 Shore A durometer hardness (polymerization of chloroprene) * Other custom formulations are also available.     Technical Features: Capacity Range: 450 to 15000 liters

Aries Fabricators lead bonding/lining division is known for its high quality finish. We execute lead bonding activities by procuring 99.97% pure lead ingot imports from Australia. The surface of the Reactor is cleaned by sand blasting it after total fabrication of the reactor. Lead sticks derived from lead ingots are then bonded with the vessel. Lead bonding and lining is generally used in reaction of anti-corrosive and acidic components.   Test Procedures Conducted Congo Red Test or HCL Acid Test Homogenous lead bonding tests are conducted to ensure quality and proper application of lead bonding/lining on the equipment. Stirrer Types: Anchor stirrers used for high density materials moving at slow RPM (15 to 60 RPM Maximum) Propeller stirrers used for medium density materials moving at steady RPM (100 to 300 RPM Maximum) Turbine stirrers used for low density materials moving at high RPM (100 to 1000 RPM Maximum) Cutter stirrers used for particular processes moving at very high RPM Technical Features Capacity Range: 450 to 15000 liters GMP and non-GMP models available MOC – Mild Steel Custom build – Aries Recommended or as per client drawings

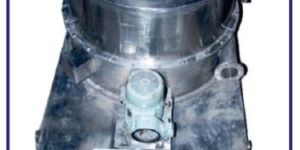

One of the simplest types of centrifuge widely used in the industry. The solid material is scooped out manually from the top of the centrifuge. Types: cGMP Model Non GMP Model MS Rubber Lined Model MS or SS Halar Coated Model FRP Lined Model   Variants (Based on size) : 24 inch MTD 36 inch MTD 46 inch MTD 60 inch MTD Custom Built   Technical Features: Suspension / Mounting : Inertia Plate and Anti Vibration Mounts ( 4 Point Mounting ). Drive and Transmission : Variable Frequency Drive (Inverter) Operating Panel: Flameproof Zero Speed Interlocking System Flame Proof Limit Switch/Proxy Sensor Nitrogen Purging Arrangement Optional Features : Full Body Opening ( FBO ) for excellent accessibility for cleaning and maintenance Full Lid opening for accessibility for cleaning and maintenance Cake Thickness Monitoring System Inerting System Vibration Monitoring Cleaning in Place   Advantages:  Manual removal of solids results in total protection of crystal structure.  Extremely simple operation.  Very low solids loss in filtrate.  Distinct separation between mother liquor and crystal enable better product quality

One of the simplest types of centrifuge widely used in the industry. The solid material is scooped outmanually from the top of the centrifuge.Advantages : Manual removal of solids results in total protection of crystal structure. Extremely simple operation. Very low solids loss in filtrate. Distinct separation between mother liquor and crystal enable better product quality. Available Features : Suspension / Mounting : Inertia Plate and Anti Vibration Mounts ( 4 Point Mounting ). Drive and Transmission : Variable Frequency Drive (Inverter) Optional Features : Full Body Opening ( FBO ) for excellent accessibility for cleaning and maintenance Full Lid opening for accessibility for cleaning and maintenance Cake Thickness Monitoring System cGMP Construction Inerting System Vibration Monitorin

Weight : 40-50kg

Color : Silver

Voltage : 110V

Power : 9-12kw

Warranty : 1 Year

We are instrumental in producing a wide range of industrial reactors that serve diverse industrial requirements. Specially used for chemical and pharmaceutical industries, these industrial reactors are fabricated to accuracy using qualitative material. We have been manufacturing a comprehensive assortment of Vertical Reactors that can be constructed either in M.S. or S.S. These vertical reactors are provided with different capacities ranging upto 25KL and comprises of the following construction elements: These reactors are manufactured in our state-of-the-art infrastructural facility using the high grade materials. Known for sturdy construction, leak proof and durability, these reactors find application in various industries such as pharmaceutical and, chemical engineering industries.

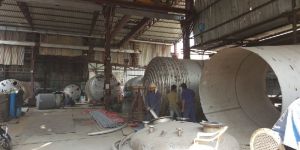

Aries Fabricators limpet reactor/coil reactor is made by welding a half pipe around the outside of the vessel to create a semi circular flow channel. The heat transfer fluid passes through the channel in a plug flow fashion. Large reactors use several coils to deliver the heat transfer fluid. Like the single jacket, the temperature in the coil/limpet reactor is regulated to control heating or cooling. The plug flow characteristics of a limpet/coil reactor permits faster displacement of the heat transfer fluid (typically less than 60 seconds). This is desirable for good temperature control. It also provides good distribution of heat transfer fluid which avoids the problems of non uniform heating or cooling between the side walls and bottom dish.
