Dryer / Drying Machine Dealers in Saharanpur (15 products available)

• Space Requirement: 13x30 Fts.
• Power Requirement: 35 HP
• Steam Kg./Hr.: 1600
• Blower CFM: 46000
• Height of Elevator: 82 Fts.
• Buckets in Elevator: 12"
• Height of Drier: 67 Fts.
• Loading Time: 90 min.

• Country of Origin: India
• Certification: ISO 9001:2008
• Weight: 50Kg
• Voltage: 220V
• Power Source: Electric
• Warranty: 1 Year
• Dryer Capacity: 20-50Kg, 50-60Kg
• Brand Name: Able Engineering

Vacuum Tray Dryer (VTD) is suitable for drying of thermally sensitive materials easily resolved, polymerized, or deteriorated under higher temperature widely used in Herbal Extraction Plants and Pharmaceutical Plants. Sterilization can be conducted before the drying process, during which no matter is allowed to enter the product. Able Engineering manufactures the most qualitative Vacuum Tray Dryer that is well known for its high quality and efficiency levels. This gamut of products is in high demand in the market for heating and drying up of various items involved in the manufacturing processes of several industries.Inside the vacuum dryer materials to be dried are kept on the trays and  pressure reduces through the vacuum pump. The dryer door is tightly shut and between trays and jacket steam passes through space so that the heat transfer occurs by conduction.Features Light and sight glass provided for checking the process of the material. Temperature gauge and vacuum gauge are provided for monitoring. Modified lock hinge for better grip and easily sealed the chamber. Gasket provided in the door for reducing the chances of leakage. Lower Drying Temperature. Due to the Large Surface Area, faster drying takes place. Dries Large Moisture as compared to Normal Dryers. Consume less power than other traditional drying technologies. Optional A Digital temperature meter can be provided. High mirror polish can be provided. 12 to 96 Trays.

• Country of Origin: India
• Material: Stainless Steel
• Number Of Tray: 6 to 192 trays
• Cabinet Configuration: Double Walled Cabinet
• No of Doors: 1 or 2
• Features: Two Walls are Filled with High Density Fiber Glass Wool Insulation Material to Avoid Heat Transfer
• Steel Grade: SS 304, SS 316

• Material: SS
• Color: Silver
• Power: 800 W
• Power Source: Electric
• Automatic: Semi Automatic
• Voltage: 220V
• Brand Name: STIPL
• Controller: Thermostat Controller
• Sheet Width: Max. Width 300 Mm
• Sheet Length: Max Length 300 Mm
• Temperature Range: Adjustable Over a Wide Range upto Maximum of 180 0c ± 10 0c
• Heaters: Flat Electrical Elements Single Phase, 220 V, 400 W Each for Upper and Lower Plates
• Power Supply: 220 V, Single Phase, 50 Hz

• Type: Automatic
• Voltage: 220V/380V
• Condition: New
• Warranty: 1 Year
• After-sales Service Provided: Spare Parts
• Certificate: CE Certified

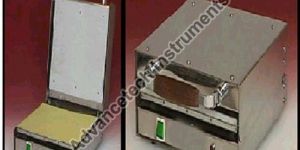

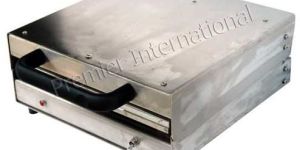

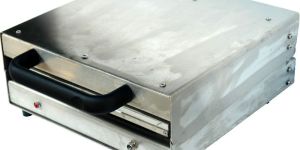

Wet pulp paper can take time to dry and hence, the manufacturers require rapid sheet dryers. These dryers help in drying the pulp paper faster than the usual drying time. The dryer comes with a flat heating element that dries out the sheet. Advantages and Features of Rapid Sheet Dryer There many benefits of having a rapid sheet dryer. One of the biggest advantages of the dryer is that the wet pulp or the paper dries out quickly and the process of determining the moisture content of the paper. It helps in saving time that is required to dry the paper or pulp. Sheets of various sizes can be dried in the dryer. The dryer comes with an adjustable thermostat and hence, it is easy to control the temperature of the dryer. The lower and upper heating plates heat up together ensuring the temperature applied to the paper is equal on both sides. The wire cloth on the lower plate of the dryer removes the vapour during the drying process. Why Choose Us? We are a rapid sheet dryer manufacturer in Uttar Pradesh offering the highest quality rapid sheet dryer to our customers. Our sheet dryers are durable and safe. All our products come with a guarantee. Contact us for more information or query.

• Brand Name: Advancetech

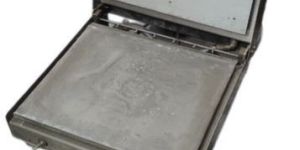

Rapid Dryer is used for quick drying of wet pulp or paper samples before measuring dry weight, while determining moisture content. A wet sample of pulp or paper is placed between the upper and the lower drying plates of the dryer. The temperature of the dryer is adjustable, allowing precise control of the drying conditions.After the prescribed drying time, the samples can be weighted to determine the moisture / solids content.Features : Rectangular Drying Plates Lower Plate is lined with wire cloth to lead off vapour during drying Adjustable thermostatically controlled drying temperature over a wide range Switch provided with indicator lamp. Upper and lower drying plates are heated with flat electrical elements. Technical Specifications : Sheet Size - Max width 250 mm, Max Length 300 mm Temperature Range - up to 1800C ± 100C Power Consumption - 0.8 KW Heater - Flat Electrical Elements single phase, 220 V, 400 W each for upper and lower plates.
