Fastener Making Machine Dealers in Amritsar

The Plant consists of the main machine, washer cutting press, polishing drum and nail cutter and cutter grinding machine. Plain washers made on the press are fed in the hopper of the machine, On every stroke, one washer is inserted, given shape and fixed into nail. Ready nails are polished into polishing drum.

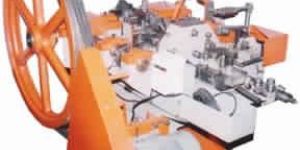

This machine is simple and sturdy in design, high output easy to operate and long service life. All tools are easily accessible and can be quickly exchanged. These machines have been tested under the most extreme conditions, which have proved itself the utmost reliability even at their max. Capacity of 70-80 pcs operators per minute. HORSESHOE NAILS MAIN MACHINE requires 7.5 H.P Electric Motor and Starter. Motor and the side shafts are driven by bevel gears to ensure correct and permanent adjustment of the cutting tools directly drive its main crank. The length and thickness of the nail is adjustable.Production 200 LBS Standard Size No. in 8 hour Approx.This machine is able to make various types of HORSESHOE NAILS like E-Series, JN Type, CH Type and many more by changing the toolings upto length 58 mm after fabrication.

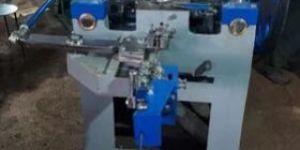

We offer high speed Wire Nail Making Machine that is appreciated for flawless performance, easy operation and sturdy construction. Our Wire Nail Making Machine is fully automatic wire feeding unit that carries out clamping of wire through conical rollers, heading operation, point forming and process of finished nails automatically. The technical specifications of our Wire Nail Making Machine vary with chosen model of the machine for wire diameter, length of nail and production. Solid main bed bushes increase the bearing surface and eliminate deformation with fluent lubricating oil film that ensures long life of bushes. The flywheel is mounted on a support independent from the main crank-shaft which therefore is not affected by stresses produced by freewheel itself and by the drive belts. Spiral type bevel gears run in continuous lubricating system and need no maintenance and are noiseless. The round section hammer slide allows correct alignment with the connecting rod, a larger support surface and excellent lubrication. Moreover, an air circulation system cools the slide's running guide and keeps dirt away from the slide itself. The nails ejector is driven by a cam, so there is no contact between the punch and the ejector. The crank shaft and lateral shafts are of high quality steel fully ground and are counter-balanced to extend cutters life. Cutters and grippers are adjusted by means of vertically positioned screws operating on the wedges. The grippers die box is made up of two slides; the stationary gripper is mounted on the former, the sliding one is mounted on the latter that offers large bearing surfaces. Grippers can be removed from the box without taking the box off from the press. This allows shortening the down-times. The wire feeding driven by rollswedge system is self-locking. The clamping pressure on the wire is adjustable, the wire release is pneumatic and the centralized lubrication is partially continuous & partially timer controlled. The oil gets accumulated in a tank located in the machine bed and it is filtered both on suction & in delivery machine and is totally covered which exceptionally reduces the noise level. Wire Nail Making Machine is equipped with 110 v auxiliary controls, a PLC (program logic control) controls the lubrication systems, the wrong wire feeding alarm and operator machine safety devices.

Wire Nail Making Machine that we offer has the capacity to manufacture different types of nuts such as unail umbrella Horse, Pannel Pin etc. We manufacture Wire Nail Making Machine using high grade cast iron, gum metal bushes and guiding plates to ensure high speed & longer functional life. We are named among the renowned Manufacturers, Exporters and Suppliers of Wire Nail Making Machine from Punjab, India.

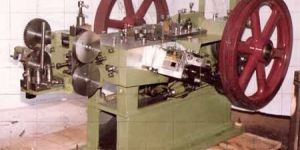

We are a renowned manufacturer of varied types of screw making machines, used in manufacturing screws of numerous types & sizes such as wooden screws, stainless steel wooden screw, machine screw and many more. We provide tailor made screw making machines, manufactured to deliver optimum results in a time bound manner. In our product line up of screw making machines, we have developed competency in manufacturing screw head making machine. From our rich array of screw making machines, our customers always find a best fit product, capable of delivering results, as expected by them. And for us its a treat seeing a satisfied customer and we are committed to further improve our services, to get excellence in all sections of provide/services which we provide to our customers. Over the year of delivering unmatched quality screw making machines, we are now a glowing star among the unending galaxy of screw making machinery manufacturers from India.

We take immense pleasure to introduce ourselves as the reliable firm engaged in providing Wire Nail Making Machine in different models to meet the varied demands of the customers. We are one of the sophisticated Manufacturers, Exporters and Suppliers of Wire Nail Making Machine from Punjab. Our reasonable range of Wire Nail Making Machine is mainly used for making wire nails in bulk.  Features : Impeccable performance Sturdy construction High functionality Power efficient

We are well reckoned as one of the prominent Nail Making Machine Manufacturers based in India. CONSTRUCTION : The main frame of Wire Nail Making Machine is of high grade and all leavers and their components subject to heavy duty are all manufactured from high quality steel and designed with high safely factor. MAIN DRIVE : Operating mechanism of Automatic Nail Making Machine is to longer mount on one common shaft but on two auxiliary shifts thus eliminating long cutter leavers. The cutter slides move in substantial guides and driven directly by cracks acentric. This avoids all detrimental impacts of the cutter against each other consequently reduces cutter wear. CRANK SHAFT : The crankshaft is carried in four bearings, the smooth ruining of the nail machine is thus ensured. FEEDING MECHANISM : Operated by crank drive, which reduces feeding speed. A screw controls the length of intake. The intake cutter is raised mechanically during backstroke so that its wear is considerably reduced. EJECTOR : One ejector fitted with the punch ensures that the nails are ejected at the right moment, avoiding any bending of nails. PRESSURE : The necessary pressure on grip of the dies is obtained shaft the roller. There are seven models of wire nail making machines to cut different length of nail with different gauge of wire.

Backed by a state-of-the-art infrastructure, we are involved in manufacturing, exporting and supplying precisely engineered Wire Nail Making Machine. Proffered assemblage is manufactured in accordance with the predefined industry standards. Owing to the excellent performance, rugged construction and consistent operation, offered series is vastly asked for.

Owing to rich industry experience, we offer Wire Nail Making Machines to our clients. These machines are manufactured using advanced technology and quality components which are procured from our vendors. The product is manufactured under the supervision of our skilled and experienced workers. These are in accordance to the standards as well as manufactured using supreme quality materials supplied by our vendors.Features: High tensile strength Corrosion-resistance Unmatched performance Other Details:Construction: The main frame is of high grade cast iron and all leavers and other components subject to heavy duty are manufactured from high quality steel and designed with high safety factor. Main Drive: Operating mechanisms are to longer mount on one common shaft but on two auxiliary shafts thus eliminating long cutter leaver The cutter slides move in substantial guides and driven directly by cranks a centric This avoids all detrimental impacts of the cutter against each other consequently reduces cutter wear Crank Shaft: The Crank Shaft is carried in four Bearings. The smooth ruining of the nail machine is thus ensured
