K.K.ENGINEERING & KUTHALI WORKS Daim Ganj, Amritsar, Punjab

SECTIONAL WARPING MACHINE [KK-A] Technical Specification: 1. Working Width : 1800 mm-4500 mm (72'' to 180'') 2. Drum Type : Open with M.S Tubings 3. Drum Circumference : 4mts 4. Cone Height : Adjustable with individual Cone Blade 5. Cone Blade Length : 750 mm to 850 mm 6. Warping Speed : 0 - 400 mtr / min 7. Beaming Speed : 0 - 500 mtr /min 8. Beam Flange Dia : 600 mm to 1250 mm 9. Beaming Section : Bult in with machine 10. Beam Doffing+Doming : Electromagnet 11. Breaking System : Break with instant stop 12. Electric Motor : 2 [one common for Warping +Beaming] [+one for Lift] Features : 1. Mechanical Lift 2. Speed Gear Box for Diffrent type of Section 3. All M.S. Gears 4. Wide choice of selection of working Width / Flange Dia. 5. Safety device on Beaming side 6. Digital Encoder & Counting Meter for Reset + Auto Stop 7. With fully side covers 8. Electro Magnetic Break with Panel Board Optional 1. Auto breaking in case of power failure 2. A C drive for frequency controlled variable speed.

Power Loom is used for Weaving all types of Cloths Like Suiting, Shirting, Blankets, Shawl, Backing Cloth, Knotting Cloth, Industrial Cloth, Wrapper Cloth Etc.

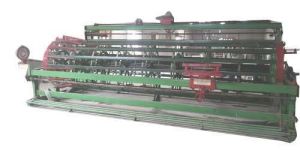

Sectional Warping Machine Manual with different types of Gear Ratio for Shuttle Less Looms with Tight Tension on Warp Beam.

Sectional Warping Machine Automatic with Auto Stop Motion & Electro Magnetic Brake with Digital Counting Meter & Drive for variation of Warp Speed with different types of Gear Ratio as per Your Requirement.

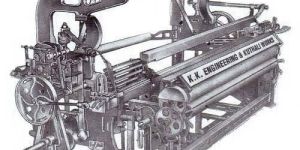

Power loom is used for weaving all types of cloths like suiting, shirting, blankets, shawl, backing cloth, knotting cloth, industrial cloth, wrapper cloth etc.

Technical Specification: 1. Reed Space : 30” to 300” 2. Reed Type : Fast / Loose 3. Type Hand Side : Right / Left 4. Frame : The complete frame of loom is fitted with the dowel pin at different joints of binders, crank bushes and tappet bushes in order to facilitate foolproof align-meant while erection of the loom. 5. Crank Shaft : 50mm machine forged and grinded edges provided with cast-iron / gunmetal bushes / self-lubricating bushes (optional). Extra middle support provided for rigidity over 60” reed space loom 6. Crank Arm : Made from cast iron / gunmetal bushes / self-lubricating bushes and fitted with gunmetal / self lubricated bushes (optional) and reinforced by steel strapping 7. Tappet Shaft : Superior quality tested I.S. standard bright bar moving on cast iron / gunmetal bushes / self-lubricating bushes and fitted with gunmetal / self lubricated bushes (optional) fitted brakes. 8. Gears : Hob-cut helical gears to give smooth and noiseless working & uniform quality of fabrics. Double drive for loom above 84” reed space 9. Picking : Under-picking system having chilled picking nose and picking bowl perfectly matched and made up of special quality metal to give longer life. 10. Shedding : Twill / Twin / Dobby / Jacquard 11. Beating : Slay is carefully made from selected good quality of seasoned teak wood & shisham wood. Race board fitted with polished slay cap is incorporated in the loom which ensures suitable flight of the shuttle and correct beating. 12. Shuttle Box : 1x1, 1x2, 2x2, 2x4, 4x4, Pick-n-Pick 13. Take Up : Seven wheel take motion 14. Let Off : Negative / Semi Positive / Positive 15. On Request : Extra beam attachment for special fabrics Push button system driven by the individual motor drive Weft stop & warp stop motion

Jute Machine is used for Making Jute Carpet (Flooring Carpet) or Other Jute Fabrics for Industrial use.

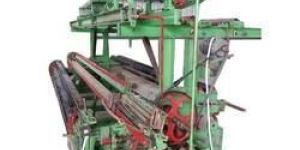

This Machine Weave Rugs (Durry) which is used for Flooring which looks like Carpet. Dobby is Attached with this loom for various Designs. (Electronic Jaquard is Optional)

Light dobby for light fabrics like suiting, shirting, blankets, worsted yarns, & other fabrics of woollen cotton pv etc from 8 jacks to 24 jacks.

1. 240 - 800 Ends Capacity of Creel. 2. M.S fabricated, vibration free struture. 3. Quick positioning of new cones by turning cone mounted package frame to 180degree with locking facility by foot pedal. 4. Tension assembly + cone holders are perfectly aligned. 5. Distance between Cone + Tension Mounting frame easily adjustable hand wheel operation. 6. All thread guide are ceramic.      OPTIONAL : 1. Optical sensing stop machine. 2. Dust proof electronic sensing stop motion. 3. Locking facility of thread stop motion in case of non-working ends. 4. Instant Stop. 5. Individual row wise indication of broken end.       TENSIONER : 1. Three pillar type tensioners with adjustable tension control manually.

Extra Heavy Dobby of Power Looms for Canvas & Other Heavy Industrial Cloths Minimum With 8 Jacks to 12 Jacks.
