Cranes Dealers in Anand

We design and manufacture construction cranes such as portalgoliathgantry cranes as per our customer requirement for various industrial applications like shipping, construction, power, material handling, water gate handling, etc. Depending on the capacity & application, we design the cranes as single girder or double girder and also as per the requirements of our customers.

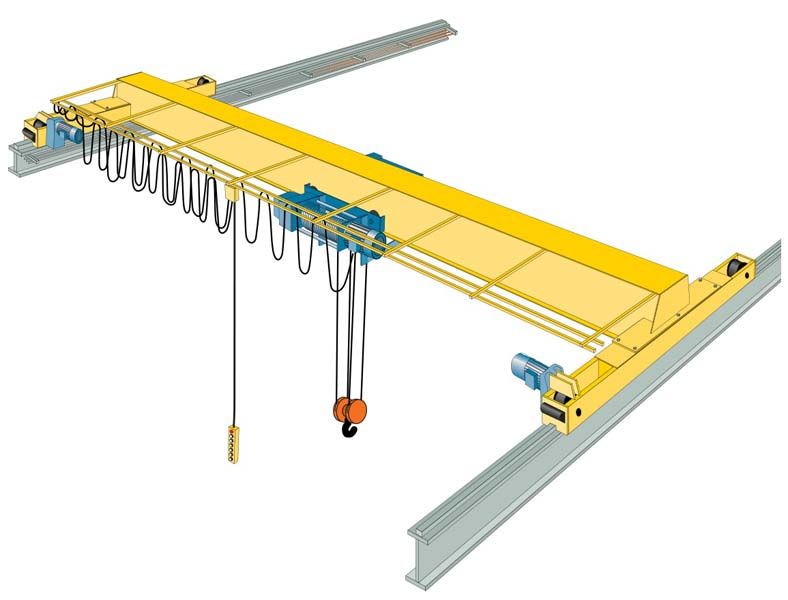

We are the manufacturer and supplier of EOT (Overhead Travel) Single Girder Cranes. We are based in Gujarat and take pride in our flawless EOT Single Girder Cranes ranging between 0.5 to 100T capacity. The cranes can be used in normal outdoor or indoor, flame proof (Hazardous) area, or Seismic Zones.   Features : Highly efficiently squirrel cage motors Electromagnetic disc/drum type brake Integrated motor, brake and gear box Soft start and stop in travel motion Eddy current speed control Limit switches provided to prevent accident. Storm anchoring device for outdoor application   Technical Specifications : Type : Single Girder or Double Girder. Capacity: 0.5T to 100T Design standard : IS:3177, IS:4137, IS:807, IS:800 / JIS / FEM / DIN Application for : Normal outdoor or indoor / Flame proof (Hazardous) area / Seismic Zone Basic parameter as per client requirement : Type, Capacity, Span, Lift & Speed. We are following Indian Standard IS : 13834 for Crane Classification with respect to design effective parameters like type of load, state of loading and operation time etc.

We are offering the crane solution with impact to easy material handling and low price of operating as well as capital cost. We have developed the specially bearing housing to reduce the power consumption. We supply all type of overhead cranes, like single girder, double girder, zib crane as per span suggested by customer. The capacity of cranes is up to 100 MT.Related Standard :  IS 3177, IS 807, IS 4137.Ladel transfer car (Remove word ladel and consider Transfer car. The Transfer car specially design with rigid construction, Bearing housing arrangement and top bad is as per custom requirement. If is operated by geared motor with cable reeling drum arrangement. Also, we can supply as per customer requirement.Details : Size of trolley :  As per customer requirement or components specification. Rail size and gauge :  As per customer requirement or components specification. Capacity in Ton :  1, 2, 3, 5, 10, 15, 20, 25, 30, 40, 50 etc.

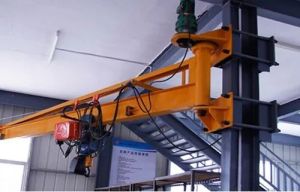

We are one of the most reliable Manufacturers & Exporters of strong and sturdy Load lifting Equipments. Our wide range of products includes EOT Cranes, Double Girder EOT Cranes Single Girder EOT Cranes, Jib Cranes, Gantry Crane, Grab Bucket Crane, Wall Cranes, etc. with capacity up to 5.0 Tone to 100.00 Ton. The quality features of our products are as follows : Double Girder Eot Crane Fabricated using superior quality raw material, our range of Double Girder EOT Crane is a compactly designed, low weighing crane and is easy to maintain. Single Girder EOT Crane We offer wide range of Single Girder EOT Crane, which is available in both top running and under running design. They have Low dead weight and provide greater floor coverage, which are advantages over conventional cranes. The hoisting unit in a Single Girder Crane is a wire rope hoist, which travels on the bottom flange of the girder where as bottom flange of the girder and control is floor operated through Push Button Pendant or Radio remote control. Goliath Cranes We offer a unique range of Goliath cranes / Gantry Cranes, which are ideal Material Handling Equipment for various industries and projects and are mainly employed to work in open area like roadsides, shipping yards, construction industry and many other applications. Jib Cranes Manufacturing a unique range of simple yet rugged jib cranes that have a mechanism intended to serve various industrial purposes such as: Machine loadingMaterial loading and unloadingLight assembly workLocalized fitting Occupying a minimum amount of floor, these can be mounted on any existing structure or on independent column.

Goliath Cranes are installed in Outdoor open area and widely utilized in Construction sites, Store yards, railway yards, large water works, port & harbors, mines, quarries etc. Goliath cranes run on the Long travel rails which is laid on Ground. These type of cranes are carefully designed to withstand storm conditions and adequate safety features are installed on the machine.

Ladle Cranes, Container Handling Cranes, Steel Mill Duty Crane

Hydraulic Cranes, Material Handling Equipment, Switch Gear

Double Beam EOT Crane, Double Girder EOT Cranes, Heavy Duty EOT Crane

Sts Cran

Double Girder Ladle Cranes, Four Girder Ladle Cran

Forklifts, Industrial Plan

EOT Crane Cabin, Chemical Vessel, Porta Cabins, Surface Miner

We are the largest supplier of steel mill duty cranes to the steel industry. Top notch steel companies trust our cranes for smooth transportation of their material. We manufacture various types of cranes for different applications for the steel industry. We customise and recommend the perfect solution to our clients after making a thorough analysis of their plant. Features girders are cambered to an amount equal to the deflection caused by dead load plus one half the live loads and the trolley. 100% radiography test for butt welds in tension zone of flange and web for box girder and end carriage. guards on all couplings and rotating parts. full length platforms for ease of maintenance. micro speed for all motions through inverter (vvvf) drives with suitable interlocking. close loop circuit for hoisting mechanism with encoder feedback for fault detection. all rotating parts with proper lubrication system. Forced lubrication for vertical type big gearbox.

Tower Crane, Tower Cran

EOT Cranes, Sand Mixer Muller, Mobile Cran

Zoomlain, Tower Crane Transportation, Tower Crane Parts, Ac

Electric Hoists, Industrial Belts, Conveyo

over Head Crane

Ladle / Charging Cranes, Container Handling Cranes, Semi Portal Cran

Telescopic Crane Boo
