FeatureDurable, High Accuracy, Light Weight, Low Power Consumption, Stable Performance
Total Carbohydrate1Years
Brand NameREALLTECH
Availability415g(Not Including Batteries)
Power Supply4x1.5V AAA(UM-4)Battery
Sensor3 Piezoelectric Transducers

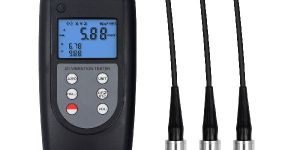

Vibration Meter VM-6380-3
1.Spec:Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery.
2.Features:
* 3 same parameters in one display for 3 position measurement or 1 position measurement specified, showing 3 different parameters of velocity, acceleration and displacement in 1 display.
* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.
* Individual high quality ccelerometer for accurate and repeatable measurements.
* Wide frequency range (10Hz~10kHz) in acceleration mode.
* Optional headphones for use as electronic stethoscope.
* Bearing condition monitoring function.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
3.Specifications:
Sensor:3 Piezoelectric Transducers
Measuring Range:Acceleration:0.1~400m/s² 0.3~1312ft/s² 0.0~40g Equivalent Peak;
Velocity:0.01~400mm/s 0.004~16.0inch/sTrue RMS;
Displacement:0.001~4.0 mm 0.04~160.0 mil Equivalent Peak-peak
Frequency Range:Acceleration:10Hz~10kHz;
Velocity:10Hz~1kHz;
Displacement:10Hz~1kHz
Accuracy:5% of Reading+2 digits
Operating Conditions:Temperature:0~50ºC;Humidity:
