In situations where standalone aluminium towers are called for very heavy loads (static plus dynamic), steel access towers provide a more economic solution.
Our range of steel knock down modular concept access towers has the same boutique as that of aluminium access towers.
Steel access towers like the aluminium version employ steel snap locks with hand operated quick action self locking trigger action features. In short what we can do with aluminium, we can do the same with steel.
These towers have been found very useful by maintenance engineers in heavy engineering industry. Event management companies have also used these very effectively for flying speakers and also lifting for heavy loads.
In situations where standalone aluminium towers are called for very heavy loads (static plus dynamic), steel access towers provide a more economic solution.
Our range of steel knock down modular concept access towers has the same boutique as that of aluminium access towers.
Steel access towers like the aluminium version employ steel snap locks with hand operated quick action self locking trigger action features. In short what we can do with aluminium, we can do the same with steel.
These towers have been found very useful by maintenance engineers in heavy engineering industry. Event management companies have also used these very effectively for flying speakers and also lifting for heavy loads.
Aluminium tubular construction fully knock down type modular access tower comprising of span frames, guard rails, platform with trap door, toe boards, connecting braces with trigger action snap lock mechanism, direct inline lockable casters, suitable stabilizer with articulated foot or outriggers etc. with climbing option on staircase with mid landing platforms.
Maximum Heights*
Working upto 18 m
Overall upto 17 m
Platform upto 16 m
Safe Working Loads
On Platform 275 kg UDL
On Structure 600 kg UDL
On Ladder 100 kg UDL
On Mid Landings 100 kg UDL
Ladder Specifications
Inclination - 250 to 300
Tread - 65 mm or 115 mm
Accepts
Ladder handrails
Cantilever platform options
Adjustable leg with base plate
Rolling outriggers
Aluminium tubular construction fully knock down type modular access tower comprising of span frames, guard rails, platform with trap door, toe boards, connecting braces with trigger action snap lock mechanism, direct inline lockable casters, suitable stabilizer with articulated foot or outriggers etc. with climbing option on staircase with mid landing platforms.
Maximum Heights*
Working upto 18 m
Overall upto 17 m
Platform upto 16 m
Safe Working Loads
On Platform 275 kg UDL
On Structure 600 kg UDL
On Ladder 100 kg UDL
On Mid Landings 100 kg UDL
Ladder Specifications
Inclination - 250 to 300
Tread - 65 mm or 115 mm
Accepts
Ladder handrails
Cantilever platform options
Adjustable leg with base plate
Rolling outriggers
Single Width Stand Alone Modular Access Tower (SW)
Aluminium tubular construction fully knock down type modular access tower comprising of span frames, guard rails, platform with trap door, toe boards, connecting braces with trigger action snap lock mechanism, direct inline lockable casters, suitable stabilizer with articulated foot or outriggers etc. with climbing option on anti skid rungs.
Maximum Heights*
Working upto 14 m
Overall upto 13 m
Platform upto 12 m
Safe Working Loads
On Platform 275 kg UDL
On Structure 600 kg UDL
Accepts
Cantilever platform options
Adjustable leg with base plate
Rolling outriggers
Single Width Stand Alone Modular Access Tower with Ladders (SW)
Aluminium tubular construction fully knock down type modular access tower comprising of span frames, guard rails, platform with trap door, toe boards, connecting braces with trigger action snap lock mechanism, direct inline lockable casters, suitable stabilizer with articulated foot or outriggers etc. with climbing option on internal ladders and intermediate platforms.
Maximum Heights*
Working upto 14 m
Overall upto 13 m
Platform upto 12 m
Safe Working Loads
On Platform 275 kg UDL
On Structure 600 kg UDL
On Ladder 100 kg UDL
Ladder Specifications
Inclination - 150
Tread - 44 mm 'D' rung
Accepts
Cantilever platform options
Adjustable leg with base plate
Rolling outriggers
Single Width Stand Alone Modular Access Tower (SW)
Aluminium tubular construction fully knock down type modular access tower comprising of span frames, guard rails, platform with trap door, toe boards, connecting braces with trigger action snap lock mechanism, direct inline lockable casters, suitable stabilizer with articulated foot or outriggers etc. with climbing option on anti skid rungs.
Maximum Heights*
Working upto 14 m
Overall upto 13 m
Platform upto 12 m
Safe Working Loads
On Platform 275 kg UDL
On Structure 600 kg UDL
Accepts
Cantilever platform options
Adjustable leg with base plate
Rolling outriggers
Single Width Stand Alone Modular Access Tower with Ladders (SW)
Aluminium tubular construction fully knock down type modular access tower comprising of span frames, guard rails, platform with trap door, toe boards, connecting braces with trigger action snap lock mechanism, direct inline lockable casters, suitable stabilizer with articulated foot or outriggers etc. with climbing option on internal ladders and intermediate platforms.
Maximum Heights*
Working upto 14 m
Overall upto 13 m
Platform upto 12 m
Safe Working Loads
On Platform 275 kg UDL
On Structure 600 kg UDL
On Ladder 100 kg UDL
Ladder Specifications
Inclination - 150
Tread - 44 mm 'D' rung
Accepts
Cantilever platform options
Adjustable leg with base plate
Rolling outriggers
SizeSizes from 3.6 m closed and 6.1 m extended upto 6.1 m closed and 10.7 m extended
Details :
25 mm diameter corrugated round rungs
Automatic rung locks
Stile ends of plastic / aluminium caps
Platform size 400 mm X 550 mm
Manual winch operated mechanism for vertical movement
Ladder mounted on steel frame with castor and floor jacks
Details :
25 mm diameter corrugated round rungs
Automatic rung locks
Stile ends of plastic / aluminium caps
Platform size 400 mm X 550 mm
Manual winch operated mechanism for vertical movement
Ladder mounted on steel frame with castor and floor jacks
Double Width Stand Alone Modular Access Tower (DW)
Aluminium tubular construction fully knock down type modular access tower comprising of span frames, guard rails, platform with trap door, toe boards, connecting braces with trigger action snap lock mechanism, direct inline lockable casters, suitable stabilizer with articulated foot or outriggers etc. with climbing option on anti skid rungs.
Maximum Heights*
Working upto 18 m
Overall upto 17 m
Platform upto 16 m
Safe Working Loads
On Platform 275 kg UDL
On Structure 600 kg UDL
Accepts
Cantilever platform options
Adjustable leg with base plate
Rolling outriggers
Double Width Stand Alone Modular Access Tower with Ladders (DW)
Aluminium tubular construction fully knock down type modular access tower comprising of span frames, guard rails, platform with trap door, toe boards, connecting braces with trigger action snap lock mechanism, direct inline lockable casters, suitable stabilizer with articulated foot or outriggers etc. with climbing option on internal ladders with intermediate platforms.
Maximum Heights*
Working upto 18 m
Overall upto 17 m
Platform upto 16 m
Safe Working Loads
On Platform 275 kg UDL
On Structure 600 kg UDL
On Ladder 100 kg UDL
Ladder Specifications
Inclination - 150
Tread - 44 mm 'D' rung
Accepts
Cantilever platform options
Adjustable leg with base plate
Rolling outriggers
Double Width Stand Alone Modular Access Tower (DW)
Aluminium tubular construction fully knock down type modular access tower comprising of span frames, guard rails, platform with trap door, toe boards, connecting braces with trigger action snap lock mechanism, direct inline lockable casters, suitable stabilizer with articulated foot or outriggers etc. with climbing option on anti skid rungs.
Maximum Heights*
Working upto 18 m
Overall upto 17 m
Platform upto 16 m
Safe Working Loads
On Platform 275 kg UDL
On Structure 600 kg UDL
Accepts
Cantilever platform options
Adjustable leg with base plate
Rolling outriggers
Double Width Stand Alone Modular Access Tower with Ladders (DW)
Aluminium tubular construction fully knock down type modular access tower comprising of span frames, guard rails, platform with trap door, toe boards, connecting braces with trigger action snap lock mechanism, direct inline lockable casters, suitable stabilizer with articulated foot or outriggers etc. with climbing option on internal ladders with intermediate platforms.
Maximum Heights*
Working upto 18 m
Overall upto 17 m
Platform upto 16 m
Safe Working Loads
On Platform 275 kg UDL
On Structure 600 kg UDL
On Ladder 100 kg UDL
Ladder Specifications
Inclination - 150
Tread - 44 mm 'D' rung
Accepts
Cantilever platform options
Adjustable leg with base plate
Rolling outriggers
We have specialized in designing ladders for various unorthodox applications like VIP ladders to provide safe access in unique situations. One such set of ladders was developed by us for boarding ALH helicopter exhibited by HAL in Paris air show in the year 2005 meant for VVIPs and other dignitaries.
We have also developed pilot access ladder for helicopters which could be carried by the pilot in the same aircraft once he had boarded the same. We were also called in to develop pilot access ladder for Mirage 2000 aircraft.
If you need to reach any spot and need a safe ladder or other access system, we will definitely have a solution for it.
We have specialized in designing ladders for various unorthodox applications like VIP ladders to provide safe access in unique situations. One such set of ladders was developed by us for boarding ALH helicopter exhibited by HAL in Paris air show in the year 2005 meant for VVIPs and other dignitaries.
We have also developed pilot access ladder for helicopters which could be carried by the pilot in the same aircraft once he had boarded the same. We were also called in to develop pilot access ladder for Mirage 2000 aircraft.
If you need to reach any spot and need a safe ladder or other access system, we will definitely have a solution for it.
We have specialized in designing ladders for various unorthodox applications like VIP ladders to provide safe access in unique situations. One such set of ladders was developed by us for boarding ALH helicopter exhibited by HAL in Paris air show in the year 2005 meant for VVIPs and other dignitaries.
We have also developed pilot access ladder for helicopters which could be carried by the pilot in the same aircraft once he had boarded the same. We were also called in to develop pilot access ladder for Mirage 2000 aircraft.
If you need to reach any spot and need a safe ladder or other access system, we will definitely have a solution for it.
We have specialized in designing ladders for various unorthodox applications like VIP ladders to provide safe access in unique situations. One such set of ladders was developed by us for boarding ALH helicopter exhibited by HAL in Paris air show in the year 2005 meant for VVIPs and other dignitaries.
We have also developed pilot access ladder for helicopters which could be carried by the pilot in the same aircraft once he had boarded the same. We were also called in to develop pilot access ladder for Mirage 2000 aircraft.
If you need to reach any spot and need a safe ladder or other access system, we will definitely have a solution for it.
The design of our Aluminium Ladders incorporates many features which makes them highly safe and versatile.
These Ladders of exceptionally high strength and rigidity have the following salient features:
Ladder stiles are made from I-section extrusion imparting a very high load bearing capacity with minimum deflection thus making them very strong and rigid.
Ladder rungs are D-profiled which ensures turn proof and twist proof capability
Its flat ribbed surface provides a sure-foot grip for safe climb and comfort
Ladder rung joints are made by a unique cold forming process to yield sandwich type joint which makes it a fail safe joint for the entire lifecycle of the product
Rung locks are made of high strength aluminium castings and are spring less thus ensuring freedom from maintenance. The design of these locks is such that locking process is made automatic by only a small upward and downward movement and holding the fly section at the desired position for a few seconds
Ladder feet are self adjusting articulated feet with a rubber base to provide full area anti slip grip to the ground or floor even if the surface is sloping
The design of our Aluminium Ladders incorporates many features which makes them highly safe and versatile.
These Ladders of exceptionally high strength and rigidity have the following salient features:
Ladder stiles are made from I-section extrusion imparting a very high load bearing capacity with minimum deflection thus making them very strong and rigid.
Ladder rungs are D-profiled which ensures turn proof and twist proof capability
Its flat ribbed surface provides a sure-foot grip for safe climb and comfort
Ladder rung joints are made by a unique cold forming process to yield sandwich type joint which makes it a fail safe joint for the entire lifecycle of the product
Rung locks are made of high strength aluminium castings and are spring less thus ensuring freedom from maintenance. The design of these locks is such that locking process is made automatic by only a small upward and downward movement and holding the fly section at the desired position for a few seconds
Ladder feet are self adjusting articulated feet with a rubber base to provide full area anti slip grip to the ground or floor even if the surface is sloping
Aluminium Trusses designed and manufactured by us have found very wide application by entertainment industry. Event managers have used these to build structures for lighting on the stage. Exhibition managers have found these useful for spot lighting of their exhibits and stalls.
Aluminium Trusses designed and manufactured by us have found very wide application by entertainment industry. Event managers have used these to build structures for lighting on the stage. Exhibition managers have found these useful for spot lighting of their exhibits and stalls.
Details :
Heavy duty C-section stiles of 67 mm X 22 mm
25 mm diameter corrugated round rungs
Automatic rung locks
Stile ends of plastic / aluminium caps
Platform size 400 mm X 550 mm
Manual winch operated mechanism for vertical movement
Manual winch operated mechanism for tilting
Ladder mounted on steel frame with castor and floor jacks
Loading capacity 75 kg
Sizes from 3.6 m closed and 6.1 m extended upto 6.1 m closed and 10.7 m extended
Details :
Heavy duty C-section stiles of 67 mm X 22 mm
25 mm diameter corrugated round rungs
Automatic rung locks
Stile ends of plastic / aluminium caps
Platform size 400 mm X 550 mm
Manual winch operated mechanism for vertical movement
Manual winch operated mechanism for tilting
Ladder mounted on steel frame with castor and floor jacks
Loading capacity 75 kg
Sizes from 3.6 m closed and 6.1 m extended upto 6.1 m closed and 10.7 m extended
Climbing SideSingle Side Climbing & Double Side Climbing
Type :
One Side Climb - Wide Tread
One Side Climb - Extra Wide Tread
Both Sided Climb - Wide Tread
Both Sided Climb - Extra Wide Tread
Details :
Stile ends non-skid rubber shoes
Spreader braces for prevention of ladder closing accidentally
Type :
One Side Climb - Wide Tread
One Side Climb - Extra Wide Tread
Both Sided Climb - Wide Tread
Both Sided Climb - Extra Wide Tread
Details :
Stile ends non-skid rubber shoes
Spreader braces for prevention of ladder closing accidentally
SizeSizes of 0.9 M Folded and 3.6 M Extended or 1.2 M Folded and 4.8 M Extended
Details :
Multi Purpose folding ladder of four elements
Exclusive spring loaded hinged joint
Box section stiles
25 mm diameter corrugated round rungs
Stile ends non-skid rubber shoes
Splayed ends for extra stability
Details :
Multi Purpose folding ladder of four elements
Exclusive spring loaded hinged joint
Box section stiles
25 mm diameter corrugated round rungs
Stile ends non-skid rubber shoes
Splayed ends for extra stability
Details :
Two part or Three part ladders
Positive rung lock
Stile end caps of aluminium
Ladder feet articulated with rubber base
Sandwich type Rung joint
Ladder width
Base part 445 mm / 405 mm
Fly section 405 mm / 365 mm
Details :
Two part or Three part ladders
Positive rung lock
Stile end caps of aluminium
Ladder feet articulated with rubber base
Sandwich type Rung joint
Ladder width
Base part 445 mm / 405 mm
Fly section 405 mm / 365 mm

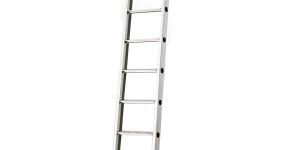

Details :
Reclining cum self supporting ladder
Splayed base for extra stability
Heavy duty C-section stiles of 67 mm X 22 mm
Stile ends non-skid rubber shoes
Cotton belt spreader limiter
25 mm diameter corrugated round rungs
Sizes
Self support version from 1.8 m upto 3.0 m
Wall reclining version from 3.6 m upto 6.0 m
Details :
Reclining cum self supporting ladder
Splayed base for extra stability
Heavy duty C-section stiles of 67 mm X 22 mm
Stile ends non-skid rubber shoes
Cotton belt spreader limiter
25 mm diameter corrugated round rungs
Sizes
Self support version from 1.8 m upto 3.0 m
Wall reclining version from 3.6 m upto 6.0 m
