Amith Garment Services Banashankari, Bengaluru, Karnataka

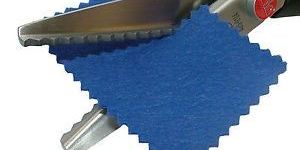

Imported with titanium quoting. Easy handling. Long durable. Special pivot to make cutting operation easy.

To determine accurate twist measurement of Single, Plied and OE yarn specimens. Direct TPI / TPM / TT results in digital display for selected gauge length avoids manual calculations. Operating principle : Untwist & re twist method for single Yarn, Untwist method for plied yarn. Unique tension mechanism suitable to all kind of textile yarns. Microcomputer based operation with user friendly menus. Feather Touch Operation switches, suits laboratory purpose. Adjustable gauge length up to 20 / 50cm. Adjustable Operating speed increases the efficiency.

  Useful scale with sliding facility. Easy to calculate with the help of the scale conversion from English count to other systems of measuring count like tex,denier etc. Directly gives reading of equivalent denier/tex/metric count etc to thee yarn count. Also on the reverse of scale conversion table from grams t ounces to pounds etc. can be easily noted

For measuring colour fastness against xenon light. Measures against accelerated sun exposure & countdown timer up to 999hours. Hour totalizer – 1500W air cooled temperature. Measure, Control and Display of Black Panel and/or standard temperature (BPT &/or BST) from 9 to 90. Measure, Control and Display of test chamber temperature. Display of Humidity % RH.

Machine equipped with 0.5 kg, 1 kg & 2 kg load which is a stainless steel used in main body for robustness & resilience. Supplied with calibration and inspection certificates with latest design. Smooth precision engineered components for excellent performance complete with all accessories – template, marking pen. Related Standards AATCC 128, ISO 9867 standards

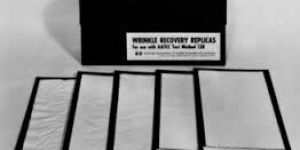

Wrinkle Recovery Plastic Replicas The five plastic replicas are each mounted on a black plastic backing and packaged in a hard storage case. The replicas are used to visually evaluate the appearance of fabrics after induced wrinkling. The replicas represent grades of 1 to 5 with 5 being the smoothest and 1 being the most wrinkled in appearance.

The wrap reel is used for making leas for strength testing, count testing and for other chemical processing. The leas are either imperial leas having a swift perimeter of one & half yards with 80 turns or metric leas having swift perimeter of one meter with 100 turns. Leas of other swift perimeters and number of turns may also be used for specific applications. The standard wrap reel is suitable for making either imperial or metric leas. Composite wrap reel which can make either of the two types of leas with the help of an additional reel is also available. Reels of other swift perimeters can also be supplied against specific requirements. Amith Garments Digital Twist Tester is completely made of Mild Steel which is duly powder coated for long life. It consists of a rotating jaw which is motor driven and next is stationary which is fitted on tensioning assembly. It works on twist-untwist method. Microprocessor based control panel is provided for setting the equipment according to single & double yarn. Digital display of TPI in the control panel is also provided. Tensioning weight from 1 – 50 g is supplied with the machine. Related Standard ISO 1671 – 1971: Method of determination of yarn strength Perimeters of Yarns spum on cotton System.

SDC Wool Abradent Fabric : Testing and quality control are carried out at the yarn stage, after weaving of the greige fabric and the final finished abradant cloth. This ensures excellent correlation and conformity, not only within the production batch, but also between different production batches. Available in 5 metre packs or in pre-cut 140mm discs.

Whirling hygrometer Q-TEST Model to check humidity & temperature in lab. Portable & can be carried from place to place. Net weight : 125 gm Net Dimension: length×depth×height 8”×2”×14”.

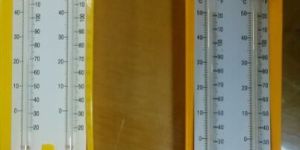

Wet & dry bulb- Q-TEST Model to check humidity & temperature in lab. Wall mounting. Net weight : 125 gm Net Dimension: length×depth×height 8”×2”×14”

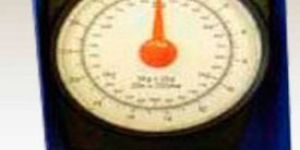

Specifications: Taring Range : Up to full capacity Response time : 3 secs Power Req : 90-250V, 50/60Hz, 10 Watt Operating Temperature: 10 to 45 deg C   Garment Weighing Scale ( 1 gm - 35 Kg): Bright LED display Clear and bright extra display for customer viewing at a distance 100 % tare facility Net & Gross weight indication Accumulation of weights in memory Rs. 232 interface to connect to a computer / printer Audio visual overload indication Optional Battery Backup.   We Offer Garment Weighing Scales from 0.0001 up to 500Kg for difference purposes in Garment/Textile Industry : For Measuring Yarn Count For Measuring Chemicals Weight For GSM Calculation For Piece Counting Options to calculate No. Of pieces in label/Button/Collar Bone/Polybag Categories Platform Weighing Scale for measuring carton boxes To Measure weight of fabric pieces/garment samples

Water hardness has traditionally been defined as the capacity of water to precipitate soap. The ionic species in the water causing the precipitation was later found to be primarily calcium and magnesium. In the present, therefore, water hardness is actually a quantitative measure of these ions in the water sample. It is also now known that certain other ion species, such as iron, zinc and manganese, contribute to the overall water hardness. The measure and subsequent control of water hardness is essential to prevent scaling and clogging in water pipes. The HI 3812 test kit tests the hardness level as mg/L (ppm) calcium carbonate, via an EDTA (ethylene-diamine-tetraacetic acid) titration.   HI 3812 test kit comes with 30 mL hardness buffer, 10 mL calmagite indicator, 120 mL EDTA solution, 20 mL plastic beaker with cap, 50 mL plastic beaker with cap and 1 mL syringe with tip

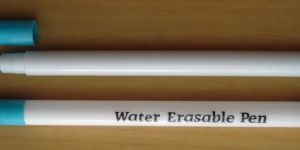

To erase mark made on fabric by exposing to water drops.

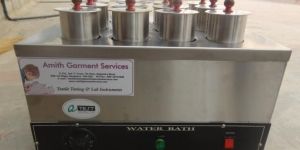

  Water Bath 6 Holes and 12 holes –Q-TEST. For Sample Dyeing of cotton yarn, lea. At a time 12 samples can be treated in our all stainless steel rectangular, double walled water bath with each pot of 500 ml. All inside and outside are of Stainless steel. Ambient to 100 degree temperature range. Fitted with imported thermostat for precise control of temperature. Net weight : 15 kg for 6 holes & 25kg for 12 holes. Net Dimension: length×depth×height 14”×12”×13” for 6 holes 20” ×16” ×14” for 12 holes.

Availability : 15 kg for 6 holes & 25kg for 12 holes.

Amith Garments Digital Washing Fastness Tester is completely made of Stainless steel. Supplied with Eight Beakers Four 1200ml & Four 550ml which meets AATCC & ISO Standards. Gear Motor of 40 RPM is used for meeting standard specification. Microprocessor based controller is provided for controlling time & temperature. Neoprene Gaskets are used for leak proof beakers at high temperature. 1.5 kw two heater is used for fast heating.

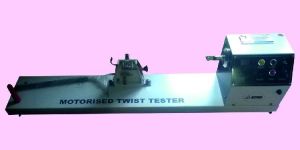

Amith Garments Digital Twist Tester is a used to evaluate Twist per Inch or Twist Per cm of Single& Double Yarn. Product Details Amith Garments Digital Twist Tester is completely made of Mild Steel which is duly powder coated for long life. It consists of a rotating jaw which is motor driven and next is stationary which is fitted on tensioning assembly. It works on twist-untwist method. Microprocessor based control panel is provided for setting the equipment according to single & double yarn. Digital display of TPI in the control panel is also provided. Tensioning weight from 1 – 50 g is supplied with the machine.   Special Features Single & Double yarn can be tested. TPI or TPCM can be calculated. Tensioning weight 1-50 g is provided. Microprocessor Control panel for accurate test results. Motor driven automatic twist tester. Max test length 500mm. Works on Twist – Untwist method.     Technical Specifications

Specifications: Dying Capacity 20lbs / 9.1kg. Drum Volume 7.4 Cu.Ft. Automatic Dryer Sensor 8 Professional Dying Cycles 4 Temperature Settings Wrinkle Guard Large Side Opening Door Sound Insulation End of Cycle Signal Dimensions (H x W x D) 43.3 x 27.0 x 29.3 inch 1100 x 686 x 743 mm

Pick glass with powerful travelling microscope to determine no. of threads per inch in warp way (reads per inch) & weft way (picks per inch).Magnification: 40x with built in reference line to measure no. of threads. Slot size: 10mm , 20 mm & 50mm, ½”, 1”.

Pick glass with powerful travelling microscope to determine no. of threads per inch in warp way (reads per inch) & weft way (picks per inch).Magnification: 40x with built in reference line to measure no. of threads.

  To find out fabric thickness and compressibility in mm. Portable handy model with easy and safety operation. Used to find out thickness of any kind of fabric/paper/cardboard/blanket. Digital display of results. Range 0-10 mm with 1micron resolution. Options of computer connectivity exist. Net weight : 3.5 kg Net Dimension: height 7”.

Amith Garments Thickness Tester is very useful for college, Universities, Textile Mill & Export Houses. It is used to evaluate the thickness of fabrics. Product Details : Amith Garments Thickness Tester is completely made of Mild Steel which is duly powder coated for long life. It consists of an analog dial which shows the thickness of fabrics. It is supplied with 10 mm pressure foot for accurate results. A dead weight of 78.5 g is provided for creating standard pressure on the test sample. Lifting arm is fitted to lift the pressure foot upward to remove & put the sample under this.   Special Features : Used to evaluate thickness of fabrics. Supplied with 10 mm pressure foot. Standard dead weight 78.5 g.

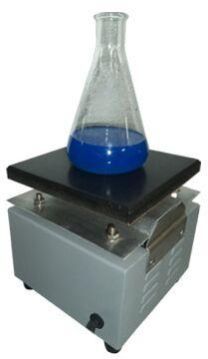

  Thermostir has its latest design with portable size. Equipped with all accessories like two 500ml beakers, dust cover, magnetic paddle which is coated with Teflon to tolerate high temperature & to heat chemicals. Solution heated mostly with simultaneous stirring option. For simultaneous heating and stirring works. Available in 16cm*16cm platform for single station option. Multi station options also available.    lesser dimension like 7”×7” for single station also available.

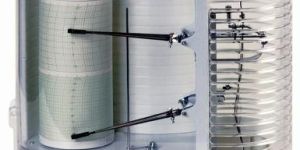

Thermohygrograph – Q TEST Useful instrument to indicate and record temperature and humidity in the lab.Highly precise instrument.Results can be recorded on hourlydailyweekly basis by way of graphical representation.Two separate curves, one for humidity and other for recording temperature in the lab.   Thermohygrograph – Q TEST Useful instrument to indicate and record temperature and humidity in the lab. Highly precise instrument. Results can be recorded on hourly/daily/weekly basis by way of graphical representation. Two separate curves, one for humidity and other for recording temperature in the lab. Net weight : 2.9 kg Net Dimension: length×depth×height 14”×7”×12”.

Thermo Strips are basically paper strips with temperature indications. These are very useful for measuring exact temperature during pasting fusible interlining in the garments. It is basically used for measuring hot roller nip temperature in any kind of machine. Procedure Testing Thermo Strips are placed inside the fabric where interlinings have to be pasted. Then, the fabric is passed through the hot nip of the fusing machine. One of the portions of the strips gets black in colour. See the temperature written on that portion. This is the fusing temperature.   Available Ranges 071 - 110◦ C 093 – 132◦ C 121 – 160◦ C 127 – 171◦ C 143 – 182◦ C 160 – 199◦ C 182 – 224◦ C 82 – 127◦ C 160 – 204◦ C
