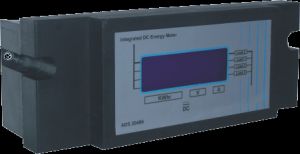

ADS 2049 is a Microcontroller based Integrated Digital Meter to measure Multiple parameters on DC power Management applications. The general range available is 48V DC & 100A DC. Clamp type DC CTs    - 20  mm dia CT Vent - No Additional Shunts Multiple channels     4 and is economically priced. Measures & Displays  DC Volt, DC Current & DC Energy(KWhr) of each channel. And Cumulative  Current & Energy(KWhr) PC INTERFACE :     RS485 DISPLAY  Alphanumeric     16 X 2 LCD Display       Features Single meter measures Multiple channels Built-in CTs for every ch Measures DC Volt & Amp & Energy of each ch. Measures Cumulative Current & Energy Micro controller based Large Alphanumeric back lit LCD Display 1% FSD Accuracy Software calibration RS485 Interface for PC communication Built-in noise filter for harsh field conditions Compact meter

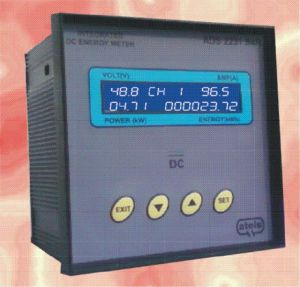

ADS 2231 is a Microcontroller based Integrated Digital Meter to measure Multiple parameters on DC power Management applications. The general range available is 48V DC & 100A DC. Standard  Shunts Input  External shunts input 100A / 75mV Multiple channels     ( 4 ) and is very economically priced. Measures & Displays  DC Volt, DC Current & DC Energy(KWhr) of each channel. And Cumulative  Current & Energy(KWhr) PC INTERFACE :    RS232 or RS485 DISPLAY  Back lit alphanumeric     16 x 2  LCD Display      Features Single meter measures Multiple channels Standard Shunt Input 100A/75mV DC Measures DC Volt & Amp & Energy of each ch. Measures Cumulative Current & Energy Micro controller based Large Alphanumeric back lit LCD Display 0.5% FSD Accuracy Software calibration Records Data with Time stamp RS 232 - RS485 Interface for PC communication Built-in noise filter for harsh field conditions Compact meter

Mains Data logger Records the variations in Mains Voltage Supply, on Real-Time basis.  It is Self-powered and draws very minimal power from the Mains Line under Monitoring. It Records and retains data of previous 50 days. Data can be downloaded through USB Port. AVAILABLE WITH CALIBRATION CERTIFICATE        Features TRUE RMS Measurements Accuracy better than 1% Micro controller based Design Software calibration Built-in digital noise filter

The Input Protection Module ( IPM ) relates to aprotection plug used in the telephone exchanges to protect the electronic exchanges from over voltage and over current. These plugs are used at the interface between the subscriber line and the exchange lines. This interface is called Main Distribution Frames (MDF).The protection of the electronic exchanges from over voltage and over current is ordinarily ensured by providing a GDT (Gas Discharge Tube) also called Arrester and a PTC thermistor.

Availability : 2.725 kg

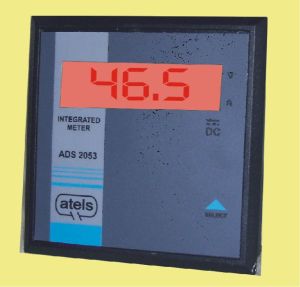

ADS 2053 is a Microcontroller based Integrated Digital Meter to measure Multiple parameters on a Battery charger. The Meter accepts direct Inputs. The meter measures DC Voltage & DC Current. The general range available is 48V DC & 15A DC It's specially available at a depth of 20 mm   Features Single meter measures DC Voltage & Current Micro controller based Built-in selector switch 3 digit Red high-bright LED display 1% FSD Accuracy Software calibration Built-in digital noise filter to cater to harsh UPS field Compact meter

       ADS 2048 is a Microcontroller based Integrated Digital Meter to measure Multiple parameters on DC applications. The Meter accepts direct Inputs. The general range available is 48V DC & 15A DC. The meter measures DC Volt, DC Current & DC Energy(KWh)     Features Single meter measures DC Volt & Amp & Energy Micro controller based Built-in selector switch Alphanumeric back lit LCD Display 1% FSD Accuracy Software calibration Built-in digital noise filter to cater to harsh field conditions Compact meter

ADS 2217 is a Hall Effect Based, Non-Contact, Clamp type DC Current Sensor with an output of RS485. The Vent dia is 20mm. Standard unit can measure 0-100A. The Output is 0-2VDC & RS 485. Features Non-Contact current measurement Clamp Type DC CT Hall-effect based sensor 1% FSD Accuracy Built-in RS 485 Port

ADS DCCT-014 is a Hall Effect Based, Non-Contact, DC Current Sensor. The Vent dia is 20mm. It can measure 0-100A. The Output is 0-2VDC.  Features Non-Contact current measurement Hall-effect based sensor 1% FSD Accuracy

Gargi 2613 is a Microcontroller based Digital Voltmeter designed to measure AC Voltage. The Meter accepts  Inputs upto 500V. and Line frequency range of 45 Hz to 65 Hz.  eatures TRUE RMS Measurements Accuracy better than 1% Micro controller based Design Sleek 96 X 96 X 70 mm ABS Cabinet Software calibration Built-in digital noise filter

Single meter measures Multiple channels, Standard Shunt Input 100A75mV DC, Measures DC Volt & Amp & Energy of each ch.Large Alphanumeric back lit LCD Display, Built-in noise filter for harsh field conditions.
