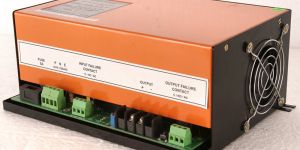

  The design is based on the fly back topology. High switching frequency makes thecomponents sizes to decrease, and hence reduction in the size. The efficiency of the unitis greater than 80%. The input voltage is applied to the transformer primary which isswitched at high frequency controlled by the feedback. The feedback is incorporatedusing Opto - isolators. The output of the transformer is rectified using proper rectifier diodes.The output is further smoothened with the use of smoothing inductors to reduce the rippleto the desired level. Specification Wide input voltage tolerance High efficiency Overload, short circuit & reverse polarity protection Very low load & line regulation Output power up to 480W Rugged, reliable and tropicalised design Work with natural convection cooling(No forced air cooling required) The operating temp. is -5° C to +55 ° C Input and output terminations and LED indications

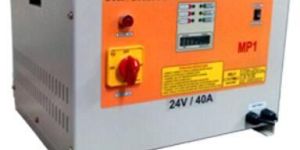

Quick charging is the essence of these chargers. The charging is totally automatic and in two stages. First stage comprises of bulk charge, when approximately 75 to 80% of charge is provided to battery in a short time of 3 to 4 hours by charging the batteries at higher current, till the terminal voltage reaches to about 2.3 to 2.35 volts per cell. There after in second stage the charging current is substantially reduced to avoid gassing of electrolyte. The charger automatically switches off after preset time of 1 to 6 hours. All these controls are achieved through dedicated micro controller based electronic circuits to give fail proof charging operation.

This fully enclosed charger has microprocessor to oversee all charging functions. It has all the relevant functions, indications and alarms to give maximum life to the battery.   Features Wide input voltage range Automatic float and boost charge functions Microprocessor controlled Fully enclosed unit Remote failure monitoring through potential free relay contacts

Rectifier Equipment for formation of Battery Plates are suitable for Tacked as well as Tackles process. The Rectifiers are highly rugged, capable of operation in ambient temperatures of upto 45C without derating.   Acid Filling Machine The expert team of our company has developed single cell acid filling machine to our valuable clients.These machines are designed all components with PP and there is no metal inside pump.Pump of these machines is specially made with PP.Features: This acid filling machine  well suitably for small scale industries. Acid quantity can be settable. No spillage of acid during filling. Uniform quantity of acid will be filling in all  the  cell. Avoid wastage of acid. Safety to use.

We are a prominent name, which is engaged in delivering a superior range of Emergency Mobile Chargers. We ensure that defect free Emergency Mobile Chargers are delivered at customers' premises within the assigned time. Our Emergency Mobile Chargers are acclaimed for features like highly portable design, charges phones very quickly, easy to operate, carry characteristics etc.

We Offer Smps Batter Charger with Constant Current Constant Voltage ( Cccv ) Charging Mode to Ensure that Within the Voltage Range, the Battery is Charged At a Constant Rate. with the Inhert Advantage of Bringing Charging Mode in to Trickle Curretn Mode, Bc, Restricts the Voltage from Reaching Any Undesired Stage. Smps (cccv) Has a Provision to Cut Off the Boost Current. During Charging It Ensures that the Battery is Fed a Constant Boost Charging Current Until the Battery Voltage Reaches Its Full Charged Condition. Thereafter the Float Current is Maintained. this Float Current Flowing for the Longest Period During the Charging Process is Reduced to Nearly Zero Ultimately Results in Enhanced Battery Life, Keeping It Fully Charged Always. The Unique Charge Evaluation Circuit Monitors the State of Charge of Battery and Automaticaly Cut Off the Charging When the Battery is 100% Charged Which Results in No Over Charge or Under Charge But An Extended Battery Life. Custom built to any Voltage / Current. Available in Din Rail mounting and in 19” rack mounting.

Having rich industrial knowledge, we are providing EV Battery Charger to the customers. Our product-line is manufactured using excellent quality material and components so that these are in tandem with industrial quality standards. Besides, we make sure that the consignments are timely delivered at clients' destination using easy modes of shipment. Features: Sturdy design Fine finish Good performance

A battery is a collection of multiple electrochemical cells, but in popular usage battery often refers to a single cell. The usage of "battery" to describe electrical devices that converts chemical energy directly to electrical energy . Special Features Cold forged terminal inserts Microporous PVC glassmatPolythelelene envelope separator Batteries with tubular positive plates Pasted type negative plates with PVC guards Heat sealed covers Extra electrolyte above the plates PolypropyleneHard rubber container Ceramic vent plugs Low maintenance Best after sales & service

Specifications 12V, 24V, 36V, 48V, 72V batteries up to 250AH with six pulse or twelve pulse rectifier Intelligent Thermal Management Over voltage, Under voltage and Over current protection switching mode control (SMPS or transformer) based design . Protection against the reverse polarity of battery . Alphanumeric LCD display panel for user-friendly interface . Also available in customized forms for applications on request . Easy battery connection with clip leads

Range:15 amps to 500 amps, DC voltage to suit battery bank, Input supply :Single phase & three phase, Topology:Float, Boost, Float cum Boost Float and Boost, Redundant. Efficiency better than 80% at nominal input and output from 50% to 100% load, High reliability and minimum downtime due to usage of ribbon cable connectors, Built-in status indication LEDs for diagnosis and automatic electronic trip and pulse inhibition, Ripple is less than 3% of RMS of full load current.

'Smart Charge' features to extend battery life. AUTO-CUT-OFF when battery is 100% Charged. LCD display to display charging voltage, charging current, charge time and Ampere-Hours put back. No OverchargingUndercharging. EQUALISE Facility, Temperature Compensation. Electronic protection against reverse battery, over current & short circuit. Accepts wide input voltage variation. Front panel LEDs for displaying charging and fault status.
