Brushless DC Motor Dealers in Bangalore

Our organization specializes in providing a comprehensive range of x-y stepper motor (table) to our clients, which is especially designed to provide movement in two axes. Our range of x-y stepper motor (table) built using multiple hepco linear actuators and is well known for user friendly nature.

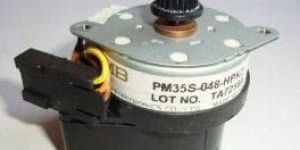

Our organization is very well known in offering used and refurbished precision electronic components. These items are in good condition pulled out from old machineries, which is fully operational and functions as intended. This item may have some signs of cosmetic wear. The item may be a floor model, store return, factory second or a new unused item. This Items has been professionally restored to working order, this means the product has been inspected, cleaned, and repaired to meet the specifications and functions as intended and is in excellent condition, Which is not approved by the manufacturer. The item will not be in its original packing. This item is guaranteed. You may qualify for a refund if it does not perform as described above.   Details :   Stepper Motor : NMB -PM35S-048-HPK2 Encoder : Avago Technologies - HEDS-5500 I02 Description PM35S-048-HPK2   Step Angle : 7.50 deg Frame Size : 35 mm Max Holding Torque : 20 mNm Steps per Rotation : 48 Drive Voltage : 24 V Drive Circuit : Unipolar Insulation Resistance : 100 Dielectric Strength : 500 Class of Insulation :  E Operating Temperature : -10 ~ +50 Storage Temperature : -30 ~ +80 Operating Humidity : 20 ~ 90 RH Standard : No  Encoder Description (HEDS-5500 I02)   Manufacturer : Avago Technologies Product Category : Encoders Type : Incremental Pulses per Revolution :  512 CPR Number of Channels : 2 Mounting Style : Screw Termination Style : Solder Pin Output : Quadrature with Index Supply Voltage : 5 V Operating Temperature Range : - 40 C to + 100 C   Magnet Material : Nd-Fe-B bounded magnet Ferrite plasic magnet Polar anisotropy ferrite sintered magnet   Technical Specifications   Drive Circuit Uni-polar Bi-polar Coil Resistance 50 Ohms 7 Ohms Drive IC 2SC3346 UDN2916B-V

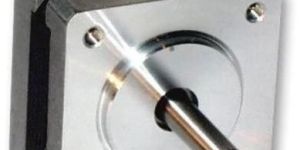

We are offering stepper motors. stepping motors can be used to achieve highly accurate positioning operation via digital control; the motor operates by accurately synchronizing with the pulse signal output from the controller to the driver. Stepping motors feature high torque and low vibration at low-speeds, which is ideal for applications requiring quick positioning in short distance. stepping motor and driver packages  ac power supply input  dc power supply input 5-phase stepping motor and driver packages  ac power supply input  dc power supply input 2-phase stepping motor and driver packages  ac power supply input  dc power supply input • 2-phase stepping motors • 5-phase stepping motors accessories  cable, flexible coupling, motor mounting bracket, etc., controllers stepping motors require a controller (pulse generator) that issues operation commands. We offer controllers that allow you to fully utilize the characteristics of stepping motors. • stored-program type • stored-date type • accessories

Stepper Motor: A stepper motor is an electro mechanical device which converts electrical pulses into discrete mechanical movements. The shaft or spindle of a stepper motor rotates in discrete step increments when electrical command pulses are applied to it in the proper sequence. 2 phase and 4 phase motors with NEMA 8 to NEMA 42 dimensions are available. DC Motor: A DC motor in simple words is a device that converts electrical energy (direct current system) into mechanical energy. we offer 3-watts to 240-watts with the speed of 2 - 215RPM motors are available with us. Rated torque 140 kgf cm available BLDC Motors: DC brushless motors are electric 3-phase motors with Hall sensors. We offer power range up to 52 watts to 660W output with the rpm of 3000 to 4000 RPM. Rated torque from 1 to 21kgf cm.

We are offering tca3727 2-phase stepper-motor driver. Features: • 2 x 0.75 amp. 50 v outputs. • integrated driver, control logic and current control(chopper). • fast free-wheeling diodes. • max. Supply voltage 52 v. • outputs free of crossover current. • offset-phase turn-on of output stages. • z-diode for logic supply. • low standby-current drain. • full, half, quarter, mini step.

Stepper motor step angle is usually defined with parameters or a number of steps, the general motor revolution is divided into 200 steps, which is the step angle of 1.8 degrees, EasyDriver subdivision function with a step, this driver board subdivision 8 segments, that is, each step of the motor is subdivided into 8 small step, this can be more precise control, ie EasyDriver to 1600 steps to complete a full 360 degree rotation.

Stepper Motor, Tower Light, Stepper Drives, Sensor, Rotary Encode

Stepper Motors, Actuators, Servo Motors, Stepper Motor Based Linear Actuator
