Conet Technologies Private Limited Rajajinagar, Bengaluru, Karnataka

Frequency range from 100 kHz to 3.6 GHz or 8 GHz 100 dB (typ.) dynamic range for filter and antenna isolation measurements Factory calibration over entire frequency range Built-in DC voltage supply (bias) for active components such as amplifiers Power meter option Saving of measurement results on SD memory card or USB memory stick Easy operation with user-configurable test sequences (wizard) Easy-to-replace Lithium-ion battery for up to 4.5 h of operation Rugged, splash-proof housing for rough work in the field Easy handling due to low weight (3 kg with battery) and easy-to-reach function keys

– Covering KHz to GHz ranges, single to multiport Analyzers Vector Network Analyzers – Two port and Multiport EMC & Field Strength Test Solutions – Pre-compliance Test systems Power Meters & Voltmeters – RF & Microwave Ranges Audio Analyzers Digitizing Oscilloscope – “ SCOPE OF THE ART” Real Time Digital Oscilloscope 500MHz, 1GHz, 4GHz & more

Frequency ranges from 5 kHz to 2/3/4 GHz; upgrade via keycode Solid RF performance Ideal for field use: 8 hour battery life, 2.5 kg (5.5 lb) weight, backlit keypad, fast boot time, nonreflective display, small footprint, ruggedized housing Large color display with touch and gesture operation Measurement wizard that supports measurement campaigns speeds up measurements and avoids errors Features and options for various industries such as aerospace and defense, wireless communications, broadcasting, spectrum regulators and education Easy and cost-efficient upgrades of all options via software keycode Three-year warranty as standard (battery one year)

Affordable 1GHz, 3GHz Analyzers EMI Measurement Solutions EMC Precompliance Set 3 (3 GHz) The EMI pre compliance Set consist of all necessary instruments and software to measure typical EMI problems. It includes the modern spectrum analyzer HMS3000, the Line Impedance Stabilization Network HM6050-2 , the HZ540 probe set and the HM EMC Pre-Compliance software for Windows.

RF & Microwave Vector Signal Generators RF & Microwave Analog Signal generators Microwave Signal generators Baseband Signal Generators

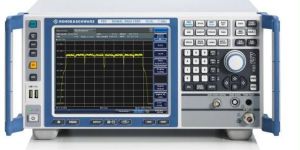

frequency range up to 4/7/13.6/30/40 ghzup to 160 mhz signal analysis bandwidthconvenient, intuitive operation with touchscreen based user interface 5 ghz0.4 db level measurement uncertainty up to 7 ghz–110 dbc (1 hz) phase noise at 10 khz frequency offset+15 dbm third-order intercept (toi)displayed average noise level (danl) in 1 hz bandwidth: –155 dbm at 1 ghz, –147 dbm at 30 ghz; with r&s®fsv-b24 preamplifier: –162 dbm at 30 ghzgeneral-purpose measurement applications for phase noise, noise figure, vector signal analysis, analog demodulation, emi diagnosticswireless measurement applications for lte (including lte-advanced), wlan (including ieee 802.11ac), wcdma/hspa+, td-scdma, gsm/edge, cdma2000®/1xev-do, bluetooth®frequency range up to 500 ghz with harmonics mixerskeeping test data confidential with removable solid state or hard disk drives.

High speed(up to 100MSs) Multi channel, up to 128 Voltage or 128 logic bits Continuous hard disk recording at 100kSs simultaneously on 16 channels

Bandwidth: 60 MHz to 500 MHz Isolated channels (CAT IV 600 V) Memory Depth: 500 kSample 7” capacitive touch color display 8 in 1: lab oscilloscope, logic analyzer, protocol analyzer, data logger, digital multimeter, spectrum analyzer, harmonics analyzer and frequency counter Wireless LAN remote control

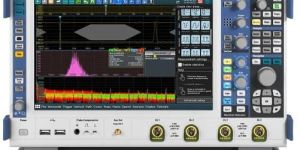

Bandwidth: 600 MHz to 6 GHz Up to 16-bit vertical resolution Quickly find signal faults with 1 Million waveforms/s Integrated spectrum analysis Industry leading 2 Gsample deep memory First zone trigger in time and frequency domain High-resolution capacitive touch screen with gesture support Easily customizable waveform display with SmartGrid

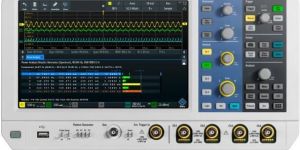

Bandwidth: 100 MHz to 1GHz Sample rate: up to 5 Gsample/s Memory depth: up to 80 Msample ADC resolution: 10-bit Display: 10.1’’ capacitive touchscreen

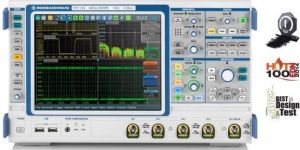

Bandwidth: 200 MHz to 2 GHz Sample Rate: 5 Gsample/s Memory Depth: up to 200 Msample Vertical resolution: up to 16 bit MSO Option R&S RTE-B1: 16 digital channels, 400 MHz, 5 Gsample/s, 100 Msample Display: 10.4″ XGA touch FingertipZoom: Signal details at the tip of your finger

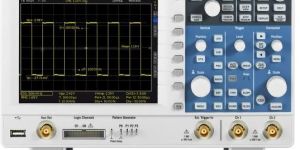

Bandwidth: 50 MHz to 300 MHz Max. sample rate: 2 Gsample/s Max. memory depth: 2 Msample MSO: 8 digital channels, optional, retrofittable Pattern generator: 4-bit patterns up to 50 Mbit/s

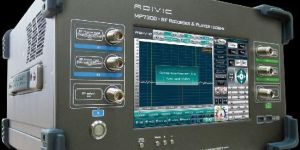

Key Features： Dual Channel for Antenna Diversity signal record/playback, used for car DTV receiver test Adjustable bandwidth from 1 MHz to 45 MHz Frequency coverage from 300 KHz to 3.0 GHz Programmable DC output for the external active antenna 250 MS/s sampling rate in recording and playback 16-bit resolution for Rx and 14-bit resolution for Tx High linearity to accommodate strong & weak signals Supports GPS NMEA data recording for route playback on Google Maps, along with RF playback Remote control available Pre-trigger recording function Data formats compatible to MATLAB analyzer Software utility support including I/Q data extractor and File segment

ADIVIC RF recorderreceiver is an exquisite RF-engineering tool for both field testing & performance testing that has been engineered for all existing RF communications & modulation schemes, analogue & digital. It is also capable of RF signal real-time record and play.

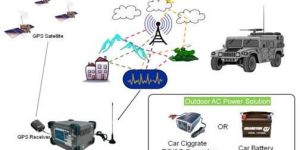

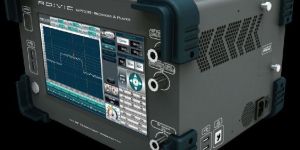

Adjustable bandwidth from 1 MHz to 25 MHz, capable of recording and playback of the entire FM stereo broadcasting band 88MHz~108MHz Frequency coverage from 25 MHz to 2.7 GHz RF connector with programmable DC output to power the external active antenna 100 MS/s sampling rate for recording and playback path respectively Supports GPS NMEA data recording for route playback on Google Maps Remote control available Baseband IQ Data formats compatible to MATLAB Software utility support including I/Q data extractor and File segmentation

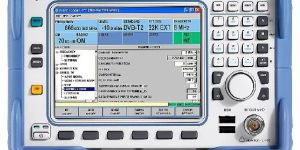

Multistandard signal generator Frequency range up to 2700 MHz High-precision modulator (MER typ. 43 dB) Integrated 12-path fading simulator Integrated noise source, BER tester and transport stream generator

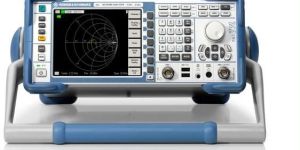

Optional spectrum analysis and digital communications standards Bidirectional test set for displaying all four S-parameters R&S®ZVL3-75: 75 Ω vector network analyzer for TV and CATV measurements Multitrace display for displaying all relevant parameters Distance-to-fault measurement for detecting cable faults Time domain analysis USB connector for R&S®NRP-Z power sensor series for precise power measurements Internal battery and 12 V DC operation Small, compact, lightweight and portable

Triple output power Supplies Quadruple High performance power supplies Arbitrary Power Supplies Programmable Power Supplies Programmable Measuring Instruments Function Generator Arbitrary waveform generator – 12.5MHz, 25MHz, 50MHz 6.5digit Digital Multi meter 8KW Power Meter 200KHz LCR Bridge RF Synthesizer – 1.2GHz, 3GHz Universal Counter

Simultaneous display of forward and reverse power Measurement of average power, average burst power, peak power, crest factor, CCDF and mismatch 5" color touchscreen Direct operation of the R&S®NRT-Zxx directional power sensors from a PC Frequency range from 25 MHz to 4 GHz (sensor-dependent)

High end model with world-class accuracy and stability Simultaneous measurement of voltage, current, power & harmonic High speed data updating Vivid waveform and vector display Three phase and harmonic measurement Compaq design

Key Features Multichannel measurements of strain-multiplex up to 200,000 measurement locations Flexible, lightweight and easy to install sensors reduce time to first measurement Passive, corrosion resistant, dielectric, flexible sensors go where other sensors can’t – in bends, around corners, embedded inside materials Long sensor life – no drift or recalibration required, cycle counts >107 Large strain range and high resolution allow for mapping of complex strain fields and large strain gradients

Key Features In extended range mode the maximum sensing range is 2 kilometers The OBR 4600 for sensing has a dual display with an intuitive user interface that allows the user to simultaneously view a plot of temperature and strain in the upper graph and a magnification of sections of that plot in the lower graph The user interface can store and display up to five traces (two traces in desk top analysis mode) The scanning wavelength range, sensing range, gage length and sensor spacing are all user adjustable and offer the user maximum flexibility to tailor OBR 4600 measurements to the application requirements The spot scan option is available with the sensing option, offering higher spatial resolution over a user selectable 80 meter section of the total sensing range

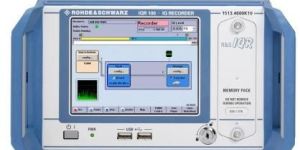

 Realtime recording and playing of digital I/Q data with a sample rate of up to 99.5 Msample/s or up to 398 Mbyte/s  Optional import and export of I/Q data via Ethernet or USB interface Support of automatic gain control (AGC) Optional recording and playing of two I/Q data streams Two models for various requirements   R&S®IQR20 with up to 20 Msample/s  R&S®IQR100 with up to 99.5 Msample/s depending on the memory packs used Easily removable memory packs with hard disk drives (HDD) for stationary use or with solid state drives (SSD) for higher data rates and mobile use Graphical display of power spectrum or I/Q level Optional recording of GPS coordinates Operation on 110 V to 220 V AC or optionally on 10 V to 30 V DC The R&S®IQR base units contain open source software packages. Copies of the respective licenses are included in the Open Source Acknowledgement, see Downloads/Firmware area of this web page

·         outstanding signal quality ·         tailored to digital communications systems ·         variable memory clock rate (1 khz to 300 mhz) can optimally be adjusted to the useful signal ·         rf bandwidth of 200 mhz ·         long signal duration of up to 1 gsample  (r&s®afq-b11 option) ·         excellent spurious-free dynamic range (sfdr) of typ. 83 dbc ·         r&s®winiqsim2™ options for communications standards such as lte, wcdma, hspa, hspa+, gsm/edge, edge evolution, vamos, cdma2000®, 1xev-do, wlan, wimax™, bluetooth®, etc. ·         lxi class c conformant
