Finishing Machine Dealers in Bangalore

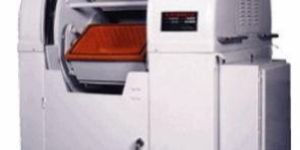

We offer Che Series Centrifugal High Energy Finishing Machine. Model Number : 4 Barrel Manual Models- CHE-30, CHE-40 3 Barrel Semi Automatic Models- CHE-40, CHE-80, CHE-240 Description : Centrifugal High Energy Finishing Machine is manufactured to meet the most rigid standards as demanded by specific industrial requirements of high volume and high surface finish. The machine generates a very high centrifugal force for extremely low process times. The machine is fitted with 4 hexagonal barrels with replaceable polyurethane lining. Sizes up to a maximum of 240 liter capacity are available with complete automated unloading mechanism.

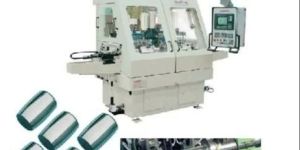

super finishing machine, that we offer, is a twin headed super finishing machine that is specially designed for perfect finishing of cylindrical components. This super finishing machine improves the quality and life of the products. We make available bi-fully automatic super finishing machine that functions with separate roughing and finishing cycle. salient features high precision live spindle and hydraulic tail stock for holding the components between centreinfinkely variable spindle speed through vf drive with separate preset speeds for roughing and finishing cycle.double vibratory heads mounted 90 degree apart for roughing and finishing operationr2 volue of up to 0.2 micron ( pa value of 0.02 micron ) possiblehurnan intervention is required only to load unload the components to the machine (automatic loading unloading is optional).hi-tech hydraulic power unit and electrical condol panel to run the machine in fully automatic cycle.single cyole gaa hot, to complete the entire cycle. advantages improved surface finish up to rz value of 2.0 micronsgreater efficiency of productsconsistent rz value en all componentsimproves productivityless human intervention applications gear pump shaftsvalves and valve spoolsbearing rollersplug gaugespomp pishonspiston rods etc.

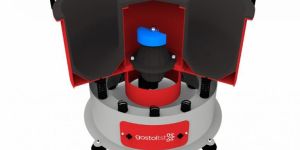

Vibratory bowl finishing machine is among the most commonly used types of machines for vibratory finishing because it has a wide range of applications. Machines can be used for the surface finishing treatment of metal and non-metal (plastics, ceramics, stone, glass, wood, rubber etc.). All vibratory finishing machines are made according to European standards and will meet all your requirements.

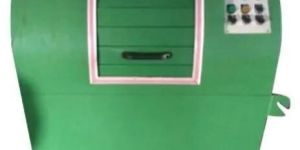

We offer Disc Finishing Machines manufactured using high grade raw material. These machines are also known as Roll Flow Finishing Machines. Known for their features like resistance to corrosion and reliable operation, these machines are popular in the market due to the industry leading prices we offer them at. The operation of these machines is as under:

This machine chamfers the bore on connecting rod’s small end. The client used to do this machining operation on an VMC, which was a time consuming process. In order to reduce the time and deliver an output of 4 component every 20 seconds, we proposed a pendulum type loading unloading concept. Basic features and sequence of operation is given below: FEATURES & SPECS: Rigid, stress relieved and fabricated structural. Atop the base, two fixtures are mounted side by side along the length. Each fixture has hydraulic clamping and can hold 4 components at a time. Adjacent to these fixtures, a servo driven longitudinal slide is mounted with approximate slide stroke of 600mm. Atop this slide a chamfering head with servo driven vertical movement is mounted. The chamfering head will be mounted with a chamfer tool. The chamfering head, at start of each cycle, will be positioned at the center, in between the fixtures. The machine will be provided with a recirculating coolant system. The machine will be provided with complete machine enclosure. LM guides will be used for slideways. Machine will be provided with centralized lubrication system for sliding surfaces. Machine will be provided with touch panel HMI, for easy parameter setting of feed and positions. SEQUENCE OF OPERATION: Load the component onto one of the fixture and press auto-cycle. The components at 1st fixture get clamped. The longitudinal slide moves the unit head top the 1st component of the 1st fixtures and vertical head plunges the chamfer head into the component to chamfer. The chamfer head then retracts and moves to the next component and repeats the above steps for the rest of the component. While chamfering is going on at the 1st fixture, the operator has to load components onto 2nd Now after chamfering components at 1st fixture, the chamfer head returns home and stops inbetween two fixtures. The operator has to press-autocycle. Steps 2 to 5 is now repeated at 2nd fixture, while the operator unloads chamfered component and loads new component at 1st

Silicon Ingot Ductile polish-grinding & chamfering   MPS 3-134 High precision surface and chamfer grinding machine to finish mono- and multi-crystalline and UMG silicon bricks for solar wafer.   Detailed Specs Silicon Ingot Ductile polish-grinding & chamfering MPS 3-134 High precision surface and chamfer grinding machine to finish mono- and multi-crystalline and UMG silicon bricks for solar wafer. – Ductile polish-grinding method – 50% Si wafer breakage reduction – Prepared for in-line-system (robot-loading) – Twin-spindle ® grinding concept for rough and fine / finish grinding of the surfaces – Second grinding spindle for simultaneously chamfering the edges of the brick – Grinding of the surfaces and the edges in the same clamping position (no rechucking / handling in between) – Automatic handling (loading, unloading, turning) of the brick – Automatic grinding progress with integrated measuringWAFER BREAKAGE REDUCTION – Ductile polish grinding for solar bricks helps to reduce wafer breakage significantly

Rugged construction.Hydraulic system gives infinitely variable cutting speeds.Dead constant draw speeds ensure optimum tool life and fine surface finish.

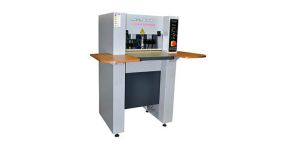

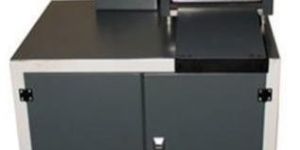

Mega bound twin case corner rounding machine was after completed cases are inserted manually into the corer rounding station, into two passages the machinery allows the perfect rounding of the sides of the 4 corners. The unit is equipped with the heating system which soften the glue before the corners will be rounded. Corner pressure time can be adjusted by simply operating on the display.

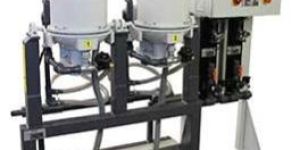

When it comes to processing smaller work piece bathces, compact centrifugal disc finihsing machines represent a cost effective alternative to the fully automatic double batch systems. They offer many of the standar technical features of the "bigger" machine range. With their space saving footprint and ease of operation these compact units are the ideal complement to conventional vibratory finishing systems.

PCB Edge Finisher, V Scoring & V Grooving Machines The EdgeCut is incredibly quick, up to 60% faster than the manual methods of de-burring boards. It eliminates inferior and sub-standard results caused by filing or linishing.  The EdgeCutdeburrs frame centralising lugs in one pass, leaving a high quality routed edge with no need for futher inspection. The EdgeCut gives the operator total control of depth of cut with its unique micro adjuster and dial indicator.  The BevelCut eliminates the inaccuracies in PCB board edge bevelling. The uniqe depth adjustment and variable angle system (between 20 degree and 45 degree) ensures perfect results on every panel. The high speed bevelling tool seamlessly chamfers the most delicate boards without lifting or burring intricate tracking such as gold fingers.  The hardened and ground positioning table incorporates the extraction chamber for effective exhaust of dust.  Tab Cut  Unlike other de-panelling processes which use croppers to free the panel from the scrap (often causing edge de-lamination, component failure or even worse intermittent circuit faults), this process uses high speed routers to precisely remove the webs causing no stress to either the board or components and leaves the cut undetectable.  The machine uses a series of adjustable pins, which locate in the slots to ensure the tabs are removed accurately to either populated or unpopulated boards.  The new mark II version is easier to use than its predecessor. It now comes in its own mobile, purpose-built cabinet with fully interlocked safety switches and built in hepa-filtered extraction with bagged waste disposal.

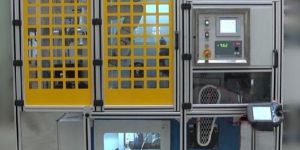

This machine is used for turning and burnishing of ball head used in automobile ball joints. There is an optional CNC slide ( Z-axis) to machine the undercut relief behind the ball head. Sphericity achieved on the ball head is within 4 micron and surface finish better than 0.1 micron Ra. Machine can be tooled up for IBJ, OBJ and SBJ Ball pins. Machines For Ball Valve Industry Also Available

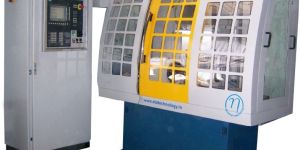

Any job where the hardness is less than 40HRC and which needs grinding after turning can be economically manufactured by turning–cum–burnishing method. In this machine there is provision for three axis ( Z, X & A) interpolation of tool to machine and burnish any profile. Spindle torque : 48Nm Spindle speed : 0 - 4000rpm X-axis stroke : 150mm Z-Axis stroke : 150mm A-Axis rotation (tool) : 360º Max. thrust of burnishing tool : 1000N (spring loaded) Control system : Siemens CNC

This machine is used for turning and burnishing of ball head used in automobile ball joints (steering gears, for e.g). There is an optional CNC slide ( Z-axis) to machine the undercut relief behind the ball head. Sphericity achieved on the ball head is within 4μ and surface finish better than 0.1 μRa. Machine can be tooled up for Inner Ball Joint (IBJ), Inner Ball Joint (OBJ) and Suspension Ball Joint (SBJ) Ball pins. Machines for Ball Valve Industry are also available

Finish Grooving Machine, Groove Insert

We are offering tube and pipe chamfering machine. chamfering of pipe and tube internal and external

Super Finishing Machine, SPM Machines, Length Measuring Equipmen

Super Finishing Machine, Vertical Balancing Machine, Pencil Making Machin

Finishing Tool

Super Finishing Machin

Super Finishing Machines, Boring Machine, Tread Roller, Surface Tester

Centrifugal Finishing Machine, Vibratory Machine, Deburring Machin
