FeatureCorosion Resistant, High Strength, Rugged Structure
Lifting Capacity0-100kn
Designed and developed using the premium raw material and modern work methods; we guarantee high quality standards and longevity of our products. Also, we make sure that the raw material is sourced from the trusted places. With the assistance of our hardworking team, we are able to offer a wide range of quality Worm Gear Screw Jacks (Ball Screw).Product Details :

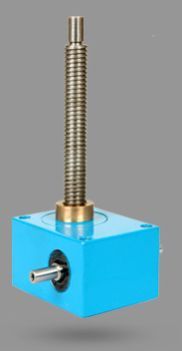

Cubical model.
Three different frames in centre distances of 59.88 and 117mm.
Lifting capacity from 7.5kN to 300kN.
Input motor speed upto 3000rpm.
Lifting speed upto 7.5m/min.
Worm seat ration 5:1 standard.
Ball Screw sizes from 20 upto 80mm from travelling screw and upto 125mm for travelling nut version.
Top and bottom guide bushed for ball screw.
Tapered roller bearings for worm shaft and worm wheel support.
Case hardened and ground worm with Aluminium bronze worm wheel.
Can be used upright or inverted.
Materials of Construction :
Housing mode of SG iron grade 500/7.
Case hardened steel for worm.
Aluminium bronze for worm wheel.
Designed and developed using the premium raw material and modern work methods; we guarantee high quality standards and longevity of our products. Also, we make sure that the raw material is sourced from the trusted places. With the assistance of our hardworking team, we are able to offer a wide range of quality Worm Gear Screw Jacks (Ball Screw).Product Details :
Cubical model.
Three different frames in centre distances of 59.88 and 117mm.
Lifting capacity from 7.5kN to 300kN.
Input motor speed upto 3000rpm.
Lifting speed upto 7.5m/min.
Worm seat ration 5:1 standard.
Ball Screw sizes from 20 upto 80mm from travelling screw and upto 125mm for travelling nut version.
Top and bottom guide bushed for ball screw.
Tapered roller bearings for worm shaft and worm wheel support.
Case hardened and ground worm with Aluminium bronze worm wheel.
Can be used upright or inverted.
Materials of Construction :
Housing mode of SG iron grade 500/7.
Case hardened steel for worm.
Aluminium bronze for worm wheel.
Material : Metal
Application : Machinery Use
Condition : New
Finishing : Non Polished
Feature : Corosion Resistant, High Strength, Rugged Structure
FeatureCorosion Resistant, High Strength, Low Maintenance
Lifting Capacity0-100kn
In order to produce quality products, we make use of superior grade raw materials. Our quality auditors strictly check the raw materials against varied quality parameters before procurement. By making use of premium packaging material, we can guarantee zero damage during transit. Moreover, our packaging experts stringently check the entire lot prior to final dispatch.Product Details :

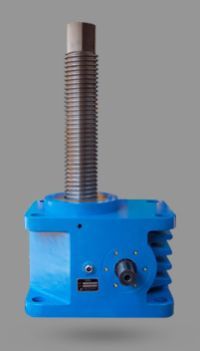

High Performance Model WGJ
9 Different Sizes
Lifting Capacities 5 kN to 1000 kN
Drive Motor Speed up to 3000 rpm
Self Locking trapezoidal Screw
Worm gear in two ratios, Nominal and Slow
Top and Bottom Guide bushes for Lifting Screw
Worm Wheel hobbed for optimum blue contact
Oil filled, Worm Gear Splash lubricated
Higher heat dissipation due to ribbed construction
Can be inverted
Materials of Construction :
Worm Shaft Case carburized Steel, hardened and ground thread profile
Trapezoidal Screw Shaft Cr-Mo Steel, hardened & tempered
Housing Alloy aluminum for 5 and 10 kN, all higher sizes in SG Iron
Worm Wheel and travelling nut in Aluminium Bronze
In order to produce quality products, we make use of superior grade raw materials. Our quality auditors strictly check the raw materials against varied quality parameters before procurement. By making use of premium packaging material, we can guarantee zero damage during transit. Moreover, our packaging experts stringently check the entire lot prior to final dispatch.Product Details :
High Performance Model WGJ
9 Different Sizes
Lifting Capacities 5 kN to 1000 kN
Drive Motor Speed up to 3000 rpm
Self Locking trapezoidal Screw
Worm gear in two ratios, Nominal and Slow
Top and Bottom Guide bushes for Lifting Screw
Worm Wheel hobbed for optimum blue contact
Oil filled, Worm Gear Splash lubricated
Higher heat dissipation due to ribbed construction
Can be inverted
Materials of Construction :
Worm Shaft Case carburized Steel, hardened and ground thread profile
Trapezoidal Screw Shaft Cr-Mo Steel, hardened & tempered
Housing Alloy aluminum for 5 and 10 kN, all higher sizes in SG Iron
Worm Wheel and travelling nut in Aluminium Bronze
Material : Alloy Steel
Application : Machinery Use
Finishing : Non Polished
Feature : Corosion Resistant, High Strength, Low Maintenance
Defined as one of the celebrated names in the market, we are involved in offering excellent quality Universal Joints. Maintaining the set industrial standards, we make sure that the range is as per the requirements.Product Details :
3 types of Universal joint, Single Universal joint, Double Universal joint and Expandable Universal joint.
Diameters from 13 to 63 mm.
Expandable type have splines for telescopic movement.
Various type of bores, cylindrical, square Hexagon to suit every application.
Materials of Construction :
Hubs are made of Cr-Mo medium carbon steel, hardened & Tempered for high torque transmission.
Pins are made of Ni- Cr- Mo medium carbon steel, hardened & Tempered for high shear strength.
Special platings for corrosion resistance available on request.
Defined as one of the celebrated names in the market, we are involved in offering excellent quality Universal Joints. Maintaining the set industrial standards, we make sure that the range is as per the requirements.Product Details :
3 types of Universal joint, Single Universal joint, Double Universal joint and Expandable Universal joint.
Diameters from 13 to 63 mm.
Expandable type have splines for telescopic movement.
Various type of bores, cylindrical, square Hexagon to suit every application.
Materials of Construction :
Hubs are made of Cr-Mo medium carbon steel, hardened & Tempered for high torque transmission.
Pins are made of Ni- Cr- Mo medium carbon steel, hardened & Tempered for high shear strength.
Special platings for corrosion resistance available on request.
We have garnered wide acclaim for bringing forth cost-effective product range that is available at Bangalore(India). Clients can select any payment mode from our online or offline methods. Both of them are secure, hassle free, and ensure the fastest trade with the customers.
We have garnered wide acclaim for bringing forth cost-effective product range that is available at Bangalore(India). Clients can select any payment mode from our online or offline methods. Both of them are secure, hassle free, and ensure the fastest trade with the customers.
We are a quality-centralized firm and make use of only high quality material for manufacturing the offered lot. Also, we ensure that the material is sourced from the reliable places. We are instrumental in offering the products in premium packaging material that is certified by the experts, followed by stern packaging of the products by the professionals.Spiral Bevel Gears /Hypoid Gear Description :
Through Hardening Steel
Non Metal viz. Delrin etc..
We are a quality-centralized firm and make use of only high quality material for manufacturing the offered lot. Also, we ensure that the material is sourced from the reliable places. We are instrumental in offering the products in premium packaging material that is certified by the experts, followed by stern packaging of the products by the professionals.Spiral Bevel Gears /Hypoid Gear Description :
Through Hardening Steel
Non Metal viz. Delrin etc..
We have parted our infrastructure into different units and one of them is warehouse wherein we keep our product lot for meeting urgent and bulk requirements of the buyers at a time. Located in Bangalore(India), we have made our distinguished position in the market since our products are qualitative and of utmost standards.
We have parted our infrastructure into different units and one of them is warehouse wherein we keep our product lot for meeting urgent and bulk requirements of the buyers at a time. Located in Bangalore(India), we have made our distinguished position in the market since our products are qualitative and of utmost standards.
We have gained complete customers satisfaction as we make maintain proper schedules for the delivery of the consignments We are among the major players in the market offering top-notch Quick Lifting Bevel Gear Screw Jack Imperial and that too at marginal prices.Product Details :
5 Sizes with lifting capacity 14000, 30000, 66000, 110000 and 218000 lbs ( 60, 130, 300, 500, 1000kN).
Single bevel gear ratio.
Two Pitches of Lifting Screw for slow & fast traverse.
Lifting speeds up to 520 in/min (13.2m/min).
Self locking Acme Screw threads to ASTM standards.
Bevel Gear Box with oil splash lubrication.
One input shaft with up to 3 output shafts for multi jack system & connecting to motor, read out devices.
High efficiency ratings & long service life.
Materials of Construction :
For 14000 & 30,000 lbs, Housing is made of closed grain cast-iron, for higher sizes, SG 500/7 material.
Screw made of Cr-Mo medium Carbon Steel, hardened and tempered for high core strength.
Nut made of aluminum bronze to British Standard grade AB2.
Bevel gears Case hardened.
Tapered roller bearings to carry heavy Axial as well as radial loads.
We have gained complete customers satisfaction as we make maintain proper schedules for the delivery of the consignments We are among the major players in the market offering top-notch Quick Lifting Bevel Gear Screw Jack Imperial and that too at marginal prices.Product Details :
5 Sizes with lifting capacity 14000, 30000, 66000, 110000 and 218000 lbs ( 60, 130, 300, 500, 1000kN).
Single bevel gear ratio.
Two Pitches of Lifting Screw for slow & fast traverse.
Lifting speeds up to 520 in/min (13.2m/min).
Self locking Acme Screw threads to ASTM standards.
Bevel Gear Box with oil splash lubrication.
One input shaft with up to 3 output shafts for multi jack system & connecting to motor, read out devices.
High efficiency ratings & long service life.
Materials of Construction :
For 14000 & 30,000 lbs, Housing is made of closed grain cast-iron, for higher sizes, SG 500/7 material.
Screw made of Cr-Mo medium Carbon Steel, hardened and tempered for high core strength.
Nut made of aluminum bronze to British Standard grade AB2.
Bevel gears Case hardened.
Tapered roller bearings to carry heavy Axial as well as radial loads.
Phase Shifters Manufacturer, Phase Shifters Exporter, Phase Shifters Supplier We are proud to say that we are the best Phase Shifters Manufacturer and Digital Phase Shifters Supplier. We have been among the most sought after names of Mechanical Phase Shifters Manufacturer, providing Phase Shifters for long time. Their ready adaptability and aesthetic qualities make them highly demanded among a large group of people. We invite you to gain from the opportunity of getting reasonable prices from us.When it comes to superior quality of Phase Shifters, then there are very few alternative available to Phase Shifters provided by us. Our company also leads the market among biggest Phase Shifters Supplier, Phase Shifters Exporter. With the help of our innovative skills and resourcefulness, there is a clear endorsement of the quality of products that we manufacture. Associated by smart energetic people, We have the ability to grow work in the respective areas under the valuable guidance of our people, staff and directors.
Phase Shifters Manufacturer, Phase Shifters Exporter, Phase Shifters Supplier We are proud to say that we are the best Phase Shifters Manufacturer and Digital Phase Shifters Supplier. We have been among the most sought after names of Mechanical Phase Shifters Manufacturer, providing Phase Shifters for long time. Their ready adaptability and aesthetic qualities make them highly demanded among a large group of people. We invite you to gain from the opportunity of getting reasonable prices from us.When it comes to superior quality of Phase Shifters, then there are very few alternative available to Phase Shifters provided by us. Our company also leads the market among biggest Phase Shifters Supplier, Phase Shifters Exporter. With the help of our innovative skills and resourcefulness, there is a clear endorsement of the quality of products that we manufacture. Associated by smart energetic people, We have the ability to grow work in the respective areas under the valuable guidance of our people, staff and directors.
Widely acclaimed for providing high quality products, we are known as the well-known Supplier in the market. We have superior storage capacity to safely store the extensive product range that we offer. Our massive and well-maintained storage space is well-connected with the shipping unit.Where to Use it :
Developed and manufactured for economic use in demanding industrial applications
Universally usable
Easy to fit and adaptable
Easy to design and restore it
Saves cost
How it works

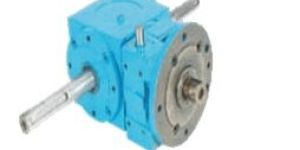

The speed superimposition gearbox or phase shifter is basically a planetary gearbox with one difference;
namely that the outer ring can be rotated through a worm drive. Depending on the direction of rotation of outer ring then the output rotation is added to or subtracted from.
Applications of Phase Shifting :
Printing Machine
Packaging machines
Weaving Machines
Paper making plant
Paper Processing plant
In practical application one can distinguish three possibilities
Adjustment operation Speed superimposition
This refers to the change of the output rotation over a longer period of time
Emergency operation : Incase the main drive fails , a limited amount of movement of the output shaft can be achieved through driving the worm shaft
Widely acclaimed for providing high quality products, we are known as the well-known Supplier in the market. We have superior storage capacity to safely store the extensive product range that we offer. Our massive and well-maintained storage space is well-connected with the shipping unit.Where to Use it :
Developed and manufactured for economic use in demanding industrial applications
Universally usable
Easy to fit and adaptable
Easy to design and restore it
Saves cost
How it works
The speed superimposition gearbox or phase shifter is basically a planetary gearbox with one difference;
namely that the outer ring can be rotated through a worm drive. Depending on the direction of rotation of outer ring then the output rotation is added to or subtracted from.
Applications of Phase Shifting :
Printing Machine
Packaging machines
Weaving Machines
Paper making plant
Paper Processing plant
In practical application one can distinguish three possibilities
Adjustment operation Speed superimposition
This refers to the change of the output rotation over a longer period of time
Emergency operation : Incase the main drive fails , a limited amount of movement of the output shaft can be achieved through driving the worm shaft
Our policies regarding payment are simple and quick. We have ethical business standards, and we make sure our patrons can make payment securely along with documentation. Purchasers can trust our entire range, as it adheres to global quality requirements and is highly reliable.Details :

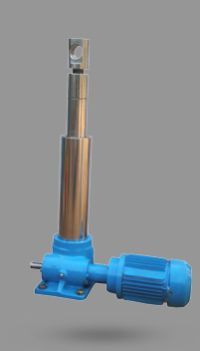

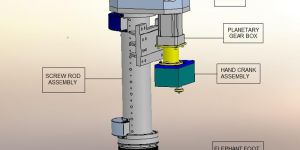

Stroke - 780 mm
Load - 20 Tons
Our policies regarding payment are simple and quick. We have ethical business standards, and we make sure our patrons can make payment securely along with documentation. Purchasers can trust our entire range, as it adheres to global quality requirements and is highly reliable.Details :
Stroke - 780 mm
Load - 20 Tons
As we have an efficient supply chain network, our company is able to fulfill bulk orders with ease and make deliveries on time. We have developed a large storage facility that is equipped with modern facilities for loading and unloading goods. Also, it assist us in meeting bulk requirements at a time.Description :

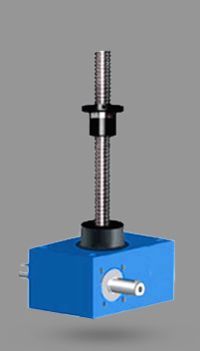

CWJ BS, Ball Screw version :
3 models.
Lifting capacity from 7.5 to 87 kN.
Ball screw dia from 20 to 80mm.
Speed upto 5m/min.
( Metric Series )

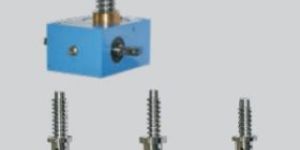

Types of Other Ball Screw versions ( Non Catalogued ) :
IMA BS (Classic)
MWJ BS (Classic)
MCJ BS (Classic)
WGJ BS (High Performance)
BGJ BS (Quick Lifting)
As we have an efficient supply chain network, our company is able to fulfill bulk orders with ease and make deliveries on time. We have developed a large storage facility that is equipped with modern facilities for loading and unloading goods. Also, it assist us in meeting bulk requirements at a time.Description :
CWJ BS, Ball Screw version :
3 models.
Lifting capacity from 7.5 to 87 kN.
Ball screw dia from 20 to 80mm.
Speed upto 5m/min.
( Metric Series )
Types of Other Ball Screw versions ( Non Catalogued ) :
IMA BS (Classic)
MWJ BS (Classic)
MCJ BS (Classic)
WGJ BS (High Performance)
BGJ BS (Quick Lifting)
CLASSIC Model MWJ.
15 Different Sizes.
Lifting Capacities 5kN TO 1500kN.
Drive Motor Speed up to 1500 rpm.
Self Locking Trapezoidal Screw.
Worm Gear in two ratios, Nominal and Slow.
Top and Bottom Guide bushes for Lifting Screw.
Worm Wheel hobbed for optimum blue contact.
Filled with NLGI EP 1 or 2 grade grease.
CLASSIC Model MWJ.
15 Different Sizes.
Lifting Capacities 5kN TO 1500kN.
Drive Motor Speed up to 1500 rpm.
Self Locking Trapezoidal Screw.
Worm Gear in two ratios, Nominal and Slow.
Top and Bottom Guide bushes for Lifting Screw.
Worm Wheel hobbed for optimum blue contact.
Filled with NLGI EP 1 or 2 grade grease.
These units are primarily for lifting or lowering Masses in both Vertical & Horizontal planes. The weight to be lifted is from 250 kg (0.25 Tons) to 150000 kgs. (50 Tons through various Frames of 0.25 T 0.5T 2 T 2.5T 5T 10T 20T 35T 50T 100T 150T (T indicates Tonnage). These units give positive mechanical action, fail proof & Precise Positioning. The Height to be lifted (or) lowered can be upto 3000 MM.
There are two standard speeds available viz., Normal lift & Slow lift. Housing Shell is made of Nodular (SG Iron) Casting from 2 Ton to 150 Tons. For 0.5 Ton & 1 Ton Models we use Aluminum shells & covers
There are two types viz
Lifting screw rod with the stationary head
Rotating Screw rod and moving NUT. Both types have two further design possibilities of Design A (upward & Design (B) Downward. All the Jacks can be used on sideways (or) angular ways also
Additional Accessories such as Anti-turn device, Anti Backlash Attachment, Wear Monitoring Unit, Telescopic Lifting Screws, Miter Gear Box, Bellows, Protective Pipes, Hand Wheel, Potentiometer, Limit switches are available.
These units are primarily for lifting or lowering Masses in both Vertical & Horizontal planes. The weight to be lifted is from 250 kg (0.25 Tons) to 150000 kgs. (50 Tons through various Frames of 0.25 T 0.5T 2 T 2.5T 5T 10T 20T 35T 50T 100T 150T (T indicates Tonnage). These units give positive mechanical action, fail proof & Precise Positioning. The Height to be lifted (or) lowered can be upto 3000 MM.
There are two standard speeds available viz., Normal lift & Slow lift. Housing Shell is made of Nodular (SG Iron) Casting from 2 Ton to 150 Tons. For 0.5 Ton & 1 Ton Models we use Aluminum shells & covers
There are two types viz
Lifting screw rod with the stationary head
Rotating Screw rod and moving NUT. Both types have two further design possibilities of Design A (upward & Design (B) Downward. All the Jacks can be used on sideways (or) angular ways also
Additional Accessories such as Anti-turn device, Anti Backlash Attachment, Wear Monitoring Unit, Telescopic Lifting Screws, Miter Gear Box, Bellows, Protective Pipes, Hand Wheel, Potentiometer, Limit switches are available.
Ours is a well-recognized firm based in Bangalore(India) and appreciated for offering qualitative products and that too at the best market prices. We make sure the products we offer are as per national as well as international quality standards, reliable and worth every penny spent by buyer.
Ours is a well-recognized firm based in Bangalore(India) and appreciated for offering qualitative products and that too at the best market prices. We make sure the products we offer are as per national as well as international quality standards, reliable and worth every penny spent by buyer.
We are a quality centric company and have established a modern warehouse that is equipped with an up-to-the-minute inventory control system. This has helped us in maintaining the quality of the products for a longer time. Contact us our customized packaging solutions. Apart from the standard packaging options, we can pack products in wanted amount and stack them accordingly in premium packaging.Product Details :
Gears & Gear drives Worm gear screw jacks ( classic and cubical), quick lifting bevel gear screw jacks, Bevel gear boxes can be used as either single drive units or multi lifting systems.

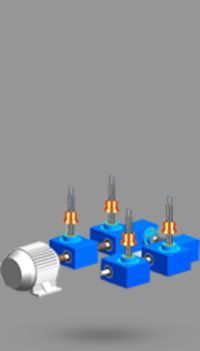

Multi lifting Equipment are generally driven by a single motor. This makes the system to lift Equal. When driven by two or more motors sophisticated electrical synchronization and control is required.
The Equipment is built using :
Worm gear screw jacks
Quick lifting bevel gear screw jacks
Bevel gearboxes
Electric motor
Geared motor
Couplings
Connecting shafts
Bearing blocks
Standard motor flanges
We are a quality centric company and have established a modern warehouse that is equipped with an up-to-the-minute inventory control system. This has helped us in maintaining the quality of the products for a longer time. Contact us our customized packaging solutions. Apart from the standard packaging options, we can pack products in wanted amount and stack them accordingly in premium packaging.Product Details :
Gears & Gear drives Worm gear screw jacks ( classic and cubical), quick lifting bevel gear screw jacks, Bevel gear boxes can be used as either single drive units or multi lifting systems.
Multi lifting Equipment are generally driven by a single motor. This makes the system to lift Equal. When driven by two or more motors sophisticated electrical synchronization and control is required.
The Equipment is built using :
Worm gear screw jacks
Quick lifting bevel gear screw jacks
Bevel gearboxes
Electric motor
Geared motor
Couplings
Connecting shafts
Bearing blocks
Standard motor flanges

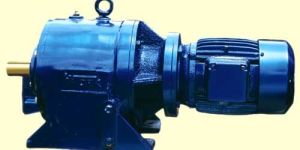

We are a well renowned name among Geared Motor Exporters and Geared Motor Suppliers. We provide world class Helical Geared Motor. With the help our Geared Motor, we occupied a standard market place and are well accepted by a large group of people. Various type of Geared Motor are manufactured by us. We are moving ahead with our Geared Motor that are capable of changing the trends of the life styles. When it comes to best quality Geared Motor, then there are very few alternatives available to Geared Motor provided by us. New materials and technical innovations from over years of research and experience has resulted in such advanced Geared Motor. Our industries are equipped with state- of -art manufacturing facilities. We have all modern machines needed for manufacturing. Our work force is the team of committed individuals, who understand and value their work.
We are a well renowned name among Geared Motor Exporters and Geared Motor Suppliers. We provide world class Helical Geared Motor. With the help our Geared Motor, we occupied a standard market place and are well accepted by a large group of people. Various type of Geared Motor are manufactured by us. We are moving ahead with our Geared Motor that are capable of changing the trends of the life styles. When it comes to best quality Geared Motor, then there are very few alternatives available to Geared Motor provided by us. New materials and technical innovations from over years of research and experience has resulted in such advanced Geared Motor. Our industries are equipped with state- of -art manufacturing facilities. We have all modern machines needed for manufacturing. Our work force is the team of committed individuals, who understand and value their work.

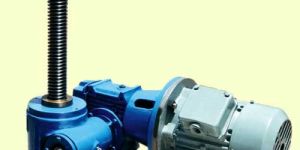

We are very proud to say that with the help of high quality Geared Jack provided by us, we have been able to establish ourselves among the leaders of Geared Jack Exporters and Geared Jack Suppliers. Geared Jack provided by us are trustworthy, manufactured using latest sophisticated technology. Our main mission is to achieve a concrete success in the Industry and build the Brand Image of the company beyond the heights. We have been in the manufacturing of new generation Geared JackM with our main mission of customer satisfaction delivering excellent quality product. We have a well known position in industry as Geared Jack Exporters and Geared Jack Suppliers We always deliver these Geared Jack on time and with most reasonable prices. We are continuously trying to achieve our goal of being one among the Fortune companies and provide the maximum customer satisfaction
We are very proud to say that with the help of high quality Geared Jack provided by us, we have been able to establish ourselves among the leaders of Geared Jack Exporters and Geared Jack Suppliers. Geared Jack provided by us are trustworthy, manufactured using latest sophisticated technology. Our main mission is to achieve a concrete success in the Industry and build the Brand Image of the company beyond the heights. We have been in the manufacturing of new generation Geared JackM with our main mission of customer satisfaction delivering excellent quality product. We have a well known position in industry as Geared Jack Exporters and Geared Jack Suppliers We always deliver these Geared Jack on time and with most reasonable prices. We are continuously trying to achieve our goal of being one among the Fortune companies and provide the maximum customer satisfaction

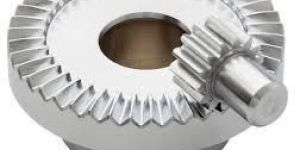

Owing to our renowned name, we are considered as one of the trusted Suppliers of Face Gear. By making use of quality inputs, we carry out the production process in order to conduct subsequent transformation or modification, finally offering a finished good to the customer.
Owing to our renowned name, we are considered as one of the trusted Suppliers of Face Gear. By making use of quality inputs, we carry out the production process in order to conduct subsequent transformation or modification, finally offering a finished good to the customer.
Feature16-bit motion control card., Drive position resolution of 1 micron.
AC powerSingle-phase AC220V ±10% 50Hz/60Hz
Temperature-10°C
Humidity<90% (25°C)
Dimension1500x750x1250mm (DxWxH)
Capacity<1KVA
Pump capacitySingle-Phase
Air flow10L

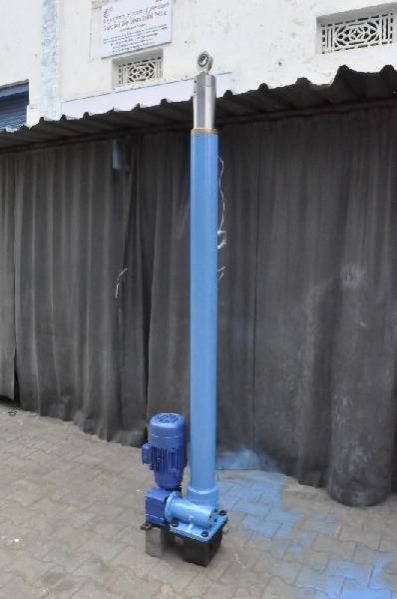

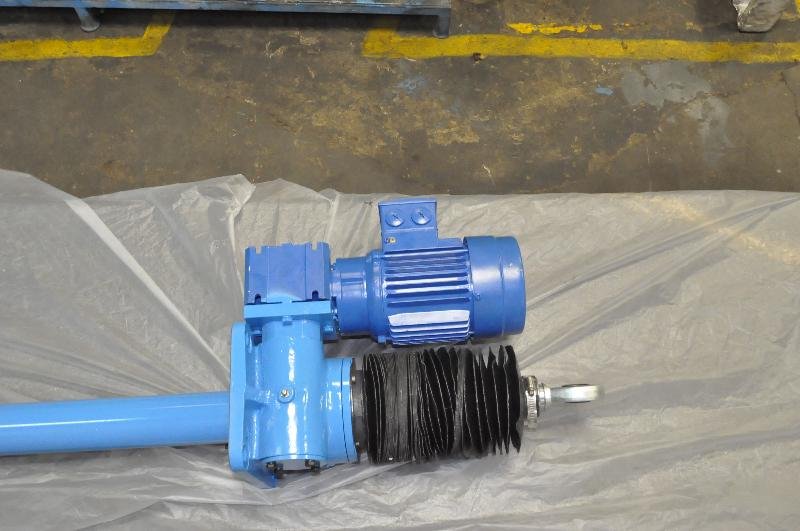

Electromechanical Linear Actuators are electromechanical cylinders able to transform a rotary movement into a linear motion. Developed and manufactured for industrial application. Linear Actuators can offer higher linear speeds and loads at up to 100% duty cycle, even in the most extreme conditions and arduous applications.
Able to work under push or pull load
According to their features they can be
Statically self-locking : able to sustain static load keeping the same position when the motor is switched off
Statically non self-locking: the load can be sustained with a brake motor
They are capable of maintaining constant speed with a varying load, at a very low noise level. Their motion can be simply a push-pull
“ON-OFF” action, also they can become servomechanisms working as controlled axes, by means of accessories such as encoders or potentiometers for the positioning control, motors with tacho-generator and servo drives. Their installation is simple and not expensive: it requires just a front and rear hinging as for standard hydraulic and pneumatic cylinders. They can perfectly replace pneumatic or hydraulic cylinders being able to perform
Accuracy in push-pull motion
Accuracy in stopping position
Position holding under load (self-locking)
Energy consumption only while moving
High safety in lifting a load (internal safety devices available)
Use in low temperature environment without freezing problems
Use in high temperature environment without fire risk
Linear Actuators have a wide application fieldThey are intended for Industrial applications where it is necessary to perform in total safety or to control a linear motion while moving, turning over or lifting a load. The wide range of sizes, stroke lengths, linear speeds, motors and accessories makes it easy to adapt these products for new applications or replace even complicated mechanical solutions and hydraulic or pneumatic cylinders improving the applications final performances.
Electromechanical Linear Actuators are electromechanical cylinders able to transform a rotary movement into a linear motion. Developed and manufactured for industrial application. Linear Actuators can offer higher linear speeds and loads at up to 100% duty cycle, even in the most extreme conditions and arduous applications.
Able to work under push or pull load
According to their features they can be
Statically self-locking : able to sustain static load keeping the same position when the motor is switched off
Statically non self-locking: the load can be sustained with a brake motor
They are capable of maintaining constant speed with a varying load, at a very low noise level. Their motion can be simply a push-pull
“ON-OFF” action, also they can become servomechanisms working as controlled axes, by means of accessories such as encoders or potentiometers for the positioning control, motors with tacho-generator and servo drives. Their installation is simple and not expensive: it requires just a front and rear hinging as for standard hydraulic and pneumatic cylinders. They can perfectly replace pneumatic or hydraulic cylinders being able to perform
Accuracy in push-pull motion
Accuracy in stopping position
Position holding under load (self-locking)
Energy consumption only while moving
High safety in lifting a load (internal safety devices available)
Use in low temperature environment without freezing problems
Use in high temperature environment without fire risk
Linear Actuators have a wide application fieldThey are intended for Industrial applications where it is necessary to perform in total safety or to control a linear motion while moving, turning over or lifting a load. The wide range of sizes, stroke lengths, linear speeds, motors and accessories makes it easy to adapt these products for new applications or replace even complicated mechanical solutions and hydraulic or pneumatic cylinders improving the applications final performances.
Feature : 16-bit motion control card., Drive position resolution of 1 micron.
Since establishment, our organization has associated with leading traders and dealers. Thus, we serve patrons in Bangalore(India) without any problem. We have good rapport with the leading e-commerce merchants who work for us and assure safe and secure transaction of money. Also, we facilitate or clients to make transaction in both online and offline modes.Product Details :
11 models ECL 0.5 to ELC 35
Max thrust from 5kN to 350 kN
Two Worm Gear ratios, Normal and slow
Push rod is Guided in external protection tube
Suitable for manual operation and Electric Motor
Standard head with internal threads fixed at push rod end is suitable for
Attaching other types of attachments
Swivel base, Swivel plate with trunion fixed to the housing base
Materials of Construction :
Worm Shaft Case carburized Steel, hardened and ground thread profile
Trapezoidal Screw Shaft Cr-Mo Steel, hardened & tempered
Housing Alloy aluminum for 5 and 10 kN, all higher sizes in SG Iron
Worm Wheel and travelling nut in Aluminium Bronze
Since establishment, our organization has associated with leading traders and dealers. Thus, we serve patrons in Bangalore(India) without any problem. We have good rapport with the leading e-commerce merchants who work for us and assure safe and secure transaction of money. Also, we facilitate or clients to make transaction in both online and offline modes.Product Details :
11 models ECL 0.5 to ELC 35
Max thrust from 5kN to 350 kN
Two Worm Gear ratios, Normal and slow
Push rod is Guided in external protection tube
Suitable for manual operation and Electric Motor
Standard head with internal threads fixed at push rod end is suitable for
Attaching other types of attachments
Swivel base, Swivel plate with trunion fixed to the housing base
Materials of Construction :
Worm Shaft Case carburized Steel, hardened and ground thread profile
Trapezoidal Screw Shaft Cr-Mo Steel, hardened & tempered
Housing Alloy aluminum for 5 and 10 kN, all higher sizes in SG Iron
Worm Wheel and travelling nut in Aluminium Bronze
With our modern transportation amenities, safe and on-time deliveries are rendered by us!Our quality management policies and very stringent. Therefore, our entire range of products is among the best in the industry. Product Details :
CUBICAL Model MCJ series.
10 Different Sizes in MCJ.
Lifting Capacity 5 to 50 kN in MCJ.
Drive Motor Speed upto 1500 rpm.
Worm Gear in two different ratios, slow and fast.
Top & Bottom Guide Bushes for Lifting Screw.
Worm Wheel hobbed for optimum blue contact.
Oil or grease lubricated.
Oil Seals for Worm and Worm Wheel.
All 6 Sides machined.
Easy fitting of Motor Flange.
Can be used in Upright or Inverted position.
Materials of Construction :
Worm Shaft Case carburized Steel, hardened and ground thread profile.
Trapezoidal Screw Shaft Cr-Mo Steel, hardened & tempered.
Housing Alloy aluminum for 5 and 10 kN, all higher sizes in SG Iron.
Worm Wheel and travelling nut in Aluminium Bronze.
With our modern transportation amenities, safe and on-time deliveries are rendered by us!Our quality management policies and very stringent. Therefore, our entire range of products is among the best in the industry. Product Details :
CUBICAL Model MCJ series.
10 Different Sizes in MCJ.
Lifting Capacity 5 to 50 kN in MCJ.
Drive Motor Speed upto 1500 rpm.
Worm Gear in two different ratios, slow and fast.
Top & Bottom Guide Bushes for Lifting Screw.
Worm Wheel hobbed for optimum blue contact.
Oil or grease lubricated.
Oil Seals for Worm and Worm Wheel.
All 6 Sides machined.
Easy fitting of Motor Flange.
Can be used in Upright or Inverted position.
Materials of Construction :
Worm Shaft Case carburized Steel, hardened and ground thread profile.
Trapezoidal Screw Shaft Cr-Mo Steel, hardened & tempered.
Housing Alloy aluminum for 5 and 10 kN, all higher sizes in SG Iron.
Worm Wheel and travelling nut in Aluminium Bronze.
FeatureCorosion Resistant, Longer Working Life, Rugged Structure
Lifting Capacity300-400kn
We are a high-flying name in this arena and thus, strive hard to deliver the best in class products to the clients. Also, we source the basic material from the reliable places. For the utmost customer satisfaction, we are flexible in delivering the product range at the place agreed by the customers and that too in the set time.Product Details :
CUBICAL Model CWJ series.
13 Different Sizes in CWJ series.
Lifting Capacity 5 to 100 kN in CWJ.
Drive Motor Speed upto 1500 rpm.
Worm Gear in two different ratios, slow and fast.
Top & Bottom Guide Bushes for Lifting Screw.
Worm Wheel hobbed for optimum blue contact.
Oil or grease lubricated.
Oil Seals for Worm and Worm Wheel.
All 6 Sides machined.
Easy fitting of Motor Flange.
Can be used in Upright or Inverted position.
Materials of Construction :
Worm Shaft Case carburized Steel, hardened and ground thread profile.
Trapezoidal Screw Shaft Cr-Mo Steel, hardened & tempered.
Housing Alloy aluminum for 5 and 10 kN, all higher sizes in SG Iron.
Worm Wheel and travelling nut in Aluminium Bronze.
We are a high-flying name in this arena and thus, strive hard to deliver the best in class products to the clients. Also, we source the basic material from the reliable places. For the utmost customer satisfaction, we are flexible in delivering the product range at the place agreed by the customers and that too in the set time.Product Details :
CUBICAL Model CWJ series.
13 Different Sizes in CWJ series.
Lifting Capacity 5 to 100 kN in CWJ.
Drive Motor Speed upto 1500 rpm.
Worm Gear in two different ratios, slow and fast.
Top & Bottom Guide Bushes for Lifting Screw.
Worm Wheel hobbed for optimum blue contact.
Oil or grease lubricated.
Oil Seals for Worm and Worm Wheel.
All 6 Sides machined.
Easy fitting of Motor Flange.
Can be used in Upright or Inverted position.
Materials of Construction :
Worm Shaft Case carburized Steel, hardened and ground thread profile.
Trapezoidal Screw Shaft Cr-Mo Steel, hardened & tempered.
Housing Alloy aluminum for 5 and 10 kN, all higher sizes in SG Iron.
Worm Wheel and travelling nut in Aluminium Bronze.
Material : Mild Steel
Application : Machinery Use
Finishing : Painted
Feature : Corosion Resistant, Longer Working Life, Rugged Structure
Secondary Business TypeManufacturer / Exporters / Wholesale Suppliers
GSTIN Number29AADCG7252L1Z6
Opening Hours
SUN : Closed
MON : 9:30 AM - 6:30 PM
TUE : 9:30 AM - 6:30 PM
WED : 9:30 AM - 6:30 PM
THU : 9:30 AM - 6:30 PM
FRI : 9:30 AM - 6:30 PM
SAT : 9:30 AM - 6:30 PM
Gears and Gear Drives (India) Pvt. Ltd. is Retailer of Auto Parts, Bevel Gear, bevel gearboxes, Gear Boxes, Gears, Linear Actuators, phase shifters, right angles, Geared Jack, Geared Motor in Bangalore, Karnataka.
Reviews & Ratings
Write a Review
Post Free Ad
