Inphase Power Technologies Pvt. Ltd. Magadi Road, Bengaluru, Karnataka

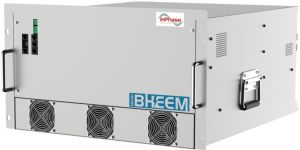

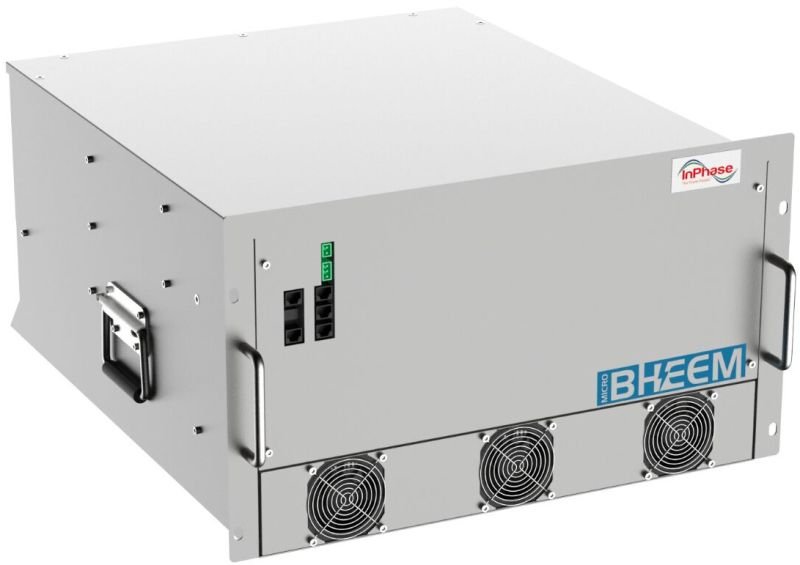

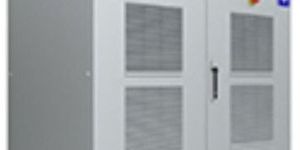

Solutions 50 Kvar to 20000 Kvar Voltage 480V to 690V Types 3Ph3W Compensation Inductive and Capacitive

Brand Name : InPhase

Color : Grey

Condition : New

Power : 50 Kvar to 20000 Kvar

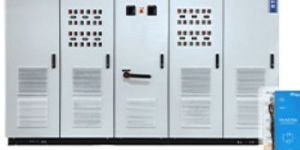

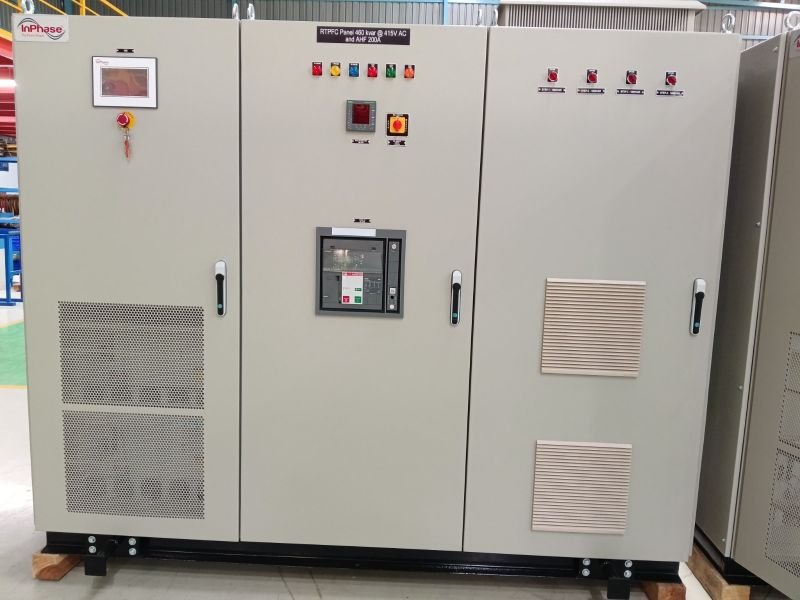

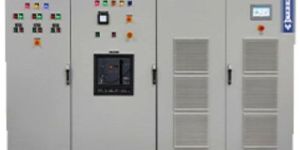

Solutions: 100 Kvar to 20000 Kvar Voltage: 380V to 690V Types: 3Ph3W/3Ph4W Ratio: Active + Passive Passive Steps: Contactor/Thyristor Features & Benefits Accurate compensation Dual PF Settings Cost Effective solution Smoother voltage Less maintenance Quick Reaction Additional Harmonic Control  Monitor from Mobile

Country of Origin : India

Frequency : 50/60 Hz

Brand Name : InPhase

Color : Grey

Condition : New

Rating: 100 Kvar to 2000 Kvar Voltage: 380V to 690V Switching: Thyristor Switched Module   Features & Benefits Instant Response Transient Free Switching DSP based TSC Precise Power Factor control No Harmonic Resonance Extended Capacitor Life Easy Installation  Zero Maintenance

Brand Name : InPhase

Material : Mild Steel

Rated Current : Upto 5000 Amps

Phase : Three Phase

IP Rating : IP44

Rated Voltage : 525V

solutions 75Kvar,100Kvar, 150Kvar , Voltage: 350V-480V , Types 3Ph4W & Compensation Inductive

Brand Name : InPhase

Color : Grey

Condition : New

Power : 75Kvar,100Kvar, 150Kvar , Voltage: 350V-480V

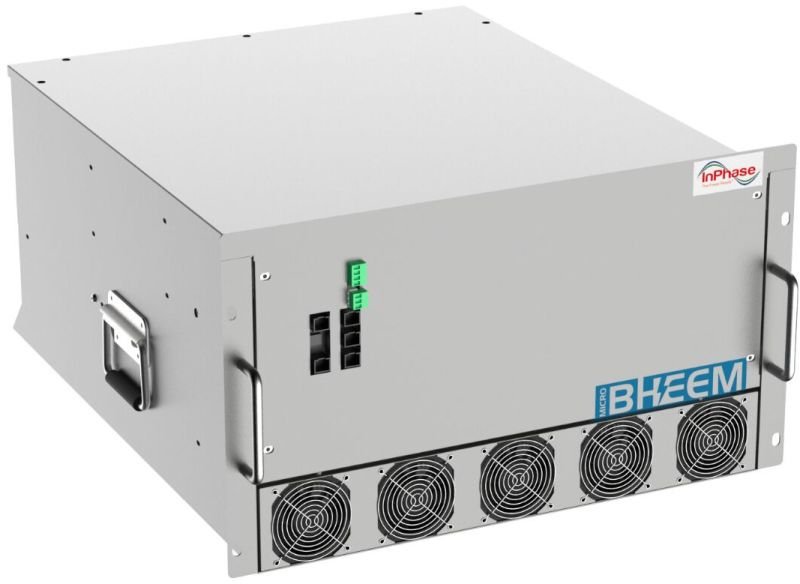

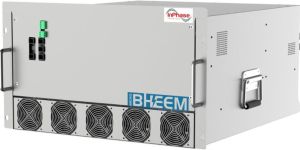

Solutions 75A, 100A, 150A, 210A Types 3Ph4W and Capacitive Harmonics Up to 50th Order

Brand Name : InPhase

Color : Grey

Condition : New

Production Power : 75A, 100A, 150A, 210A

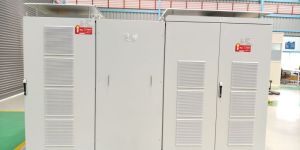

APFC provides compensation for reactive power based on the variations in load conditions to maintain the target power factor. In APFC switching the capacitor is significant as it helps to retain the power factor, the switching is controlled by a Power Factor Controller device that uses the CT feedback to determine the kvar required at any instant. The Power Factor Controller also provides information on the network characteristics such as Active, reactive power, Voltage, power factor for the user to understand. The system generally comprises of Power Capacitors, Controller, firing circuits.The switching system for this depends on the type of compensation. Rating: 100 Kvar to 1550 Kvar Voltage: 380V to 690V Switching: Contactor Switched Features & Benefits Advanced microprocessor for Power factor Control MPP/APP Gas filled/Oil Filled capacitors  440V/525V supported capacitor voltages Detuned to avoid resonance Extended long life with specially designed reactors Complete analysis of customer system before design Switchgear used such as contactors, MCCB conform to International and Indian Standards Compartmentalized/Non compartmentalized design options Power cables suitable for high temperature Rugged panel design for long life   APFC provides compensation for reactive power based on the variations in load conditions to maintain the target power factor. In APFC switching the capacitor is significant as it helps to retain the power factor, the switching is controlled by a Power Factor Controller device that uses the CT feedback to determine the kvar required at any instant. The Power Factor Controller also provides information on the network characteristics such as Active, reactive power, Voltage, power factor for the user to understand. The system generally comprises of Power Capacitors, Controller, firing circuits.The switching system for this depends on the type of compensation.

Feature : Advanced Microprocessor For Power Factor Control.

Application : Industrial Use

Color : Grey

Condition : New

Frequency : 60hz

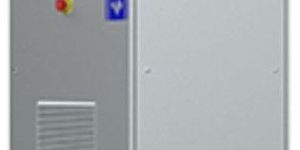

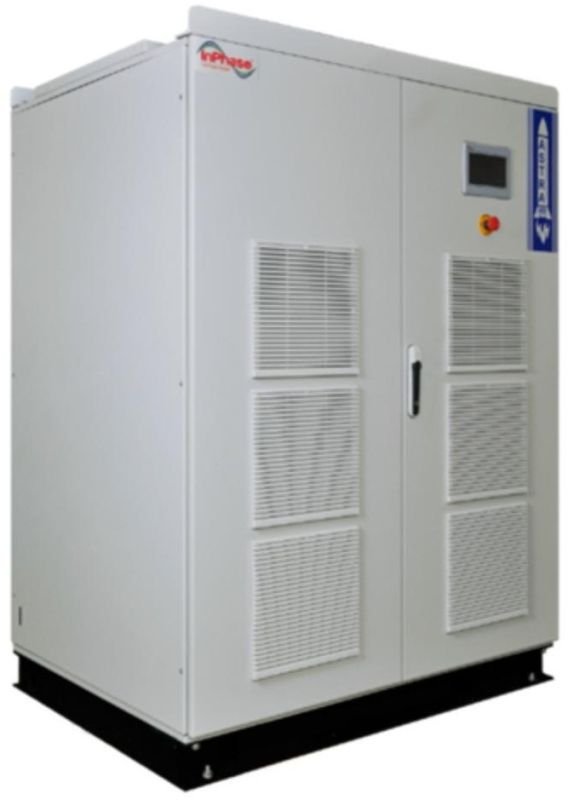

Active Harmonic Filter is a series of IGBT based solution to resolve any challenging power quality problems like Harmonics, Reactive Power management, Unbalance compensation. Our Filters are ingenously designed in India. It is made to withstand the rugged climatic and grid conditions of country like India. InPhase Filters are currently installed in wide range of industries covering steel, cement, foundary, textile, processing and pharma. These filters can also work in single phase traction applications like Metro, Railways, MonoRail. All users are reaping immense benefits by improving their power quality. Benefits range from elimination of penalties to reduction in Energy costs. To realize similar benefits call us today. Solutions 30 Amps to 30000 Amps Voltage 480V to 690V Types 3Ph3W/3Ph4W Harmonics Up to 61st Order.    Features & Benefits     3-Level Topology Extremely Efficient – 98% Low Losses Hybrid compensation Auto Voltage stabilization Eliminate grid resonance Dual quad core DSP Processor  Inbuild cloud connectivity

What is Power Quality Study? Power Quality determines the fitness of electrical power to consumer devices. Synchronization of the voltage frequency and phase allows electrical systems to function in their intended manner without significant loss of performance or life. Power Quality management has become an indispensable need with Utility providers getting conscious to protect their network. InPhase Power has the industry best understanding and capability to analyse, design and establish a good Power Quality management for your Industry. Why do a Power Quality Study with InPhase? Understand Power Quality at your organisation First step to start improving your Power Quality Cut down penalties from Utility Providers Strategize solution to increased life of your expensive equipment’s InPhase has a deep understanding and passion toward Power Quality. Being a Product company who make our own Power Quality Products we are best empowered to give you the right understanding and solution for your power Quality. We can also not only identify your Problems but also design and deliver the solution for managing your Power Quality. Our reports are highly automated and the best in class in the Industry. Since we have automated reports we can deliver the report in just a day’s span from the time the study is complete. Why think more? There can be no better choice than us!!! Get in touch   What is done in a Power Quality Study? The following factors are studied to help you understand your Power Quality Study of Power Factor and Harmonics Analysis of Load Study Current and Voltage Imbalances Neutral Voltage Monitoring Neutral Current Monitoring Energy Consumption Map What is the outcome of a Power Quality Study? The Analysis study will give you a picture of the following at your Plant/Facility, System Voltage RMS Load Current RMS Active, Reactive Power Frequency in Hz. Instantaneous Power Factor PF Total Harmonic Distortion THD in Voltage and Current InPhase designed custom solution to manage your power Quality

Harmonics, a high-frequency current produced by Non-linear loads, i.e., electronics-based load. Harmonics are free from every type of immediate issue; however, slowly lessen the lifetime of all the linked equipment. Harmonics Analysis is performed to find out the magnitude of harmonic current & the sources of harmonics in the network. It is also utilized to check whether they are well-within demarcated standards. This is accomplished by connecting a power analyzer to the network as well as recording harmonics along with power data for a definite amount of time. If harmonics are going beyond limits, then InPhase recommends a solution to reduce it within appropriate standards utilizing the range of products.
