Kalpa Electrikal Pvt Ltd Bangalore, Karnataka

We Kalpa Electrikal Pvt Ltd manufacture conventional open enclosure type vacuum pressure impregnated dry Transformers. These Transformers are specifically needed in the distribution network for feeding basements or stilts of high-rise buildings, hotels, Malls, stadium airports, chemical & refinery plants.Assured Features Windings are electrically balanced to minimize axial short circuit forces. Coils are held rigidly in place between insulators clamped to the upper and lower core frames under high compression. Precise casting under vacuum ensuring low partial discharge. Smooth surface finish and robust construction of MV & LV cast Coils. Adequate ducts between coils, discs for maximum air flow and reduced hot spot Temperature. Step-lap designed CRGO laminations for lower losses and excitationcurrent. Standard Fittings H.V. Cable box. L.V. Cable box with bus bar or bus duct Off circuit tap links. Undercarriage with four Bi-directional rollers. Earthing terminals. Rating and diagram plate. Lifting lugs for complete Transformer Tapping link operation door Enclosure with louvre panels Canopy Base channel – 2 Nos The separate neutral bushing on LV side Paint: Powder coated With RAL7032 Shade Optional Fittings RTD with A/T contact. Marshaling box with control wiring. On Load tap changer with RTCC Panel with AVR Forced Cooling arrangement. Neutral Current Transformer. Space heaters for core & windings Safety Features Environment-Friendly Fire Resistance Non-Hygroscopic

Capacity : Up to 5MVA

Frequency : 50/60Hz

Class Of Insulation : Class B/F/H with Temp Rise of 70/90/115 Deg C or as per customer requirement.

Tapping Range : OCTC or OLTC As Per Customer Requirements

Winding Material : Copper

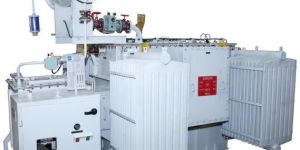

Kalpa offers a complete line of oil cooled three-phase distribution transformers that meet applicable IS / IEC standards. With high voltages up to 33kV and ratings up to 10 MVA, transformers are designed for outdoors covering domestic, International , commercial and industrial applications. High-grade materials, combined with sophisticated engineering design systems and state of the art test infrastructure are key elements of a transformer that will deliver years of highly reliable service. Design can meet any stringent specifications Offering low losses as per request. As per IS1180/EEL - 1, 2 & 3 BEE STAR RATING Capacity to Execute large volume orders. Assured Features Highest dielectric insulation property to withstand Lightening Impulse Mechanical design to withstand short circuit forces arising during faults Optimum oven heating under vacuum as to achieve desired compression height and maximum insulation resistance (IR) to windings Adequate ducts between layers, coils, discs for maximum oil flow and reduced hot spot temperature. Step-lap designed CRGO laminations for lower losses and excitation current Pre-compressed Insulation material for minimal moisture absorption Standard Fittings H.V. Cable box L.V. Cable box with bus bar or bus duct Off circuit tap links Conservator oil filling hole With cap & drain plug Undercarriage with four Bi-directional rollers Earthing terminals Drain cum bottom filter Valve with sampling plug Top filter valve with Sampling plug Plain Oil Level Gauge Rating diagram plate Air release device Thermometer Pocket Lifting lugs Pressed Steel Radiators (Fins or corrugated type) Double Diaphragm explosion vent Silica gel breather Additional Neutral bushing First filling of oil Optional Fittings Detachable Radiators with isolating valves Jacking Pads Dial type Oil Temperature Indicator With A/T contacts Dial type Winding Temperature Indicator with A/T contacts Magnetic Oil Gauge with A/T contactsw Buchholz relay with A/T contacts Marshaling box with control wiring Equalizer pipe between Conservator & explosion vent On Load Tap Changer RTCC Panel with automatic Voltage Regulator (AVR) Pressure Release valve DGPT Relay

Frequency : 50/60 Hz

Accuracy Class : 0.1, 0.2, 0.5, 1, 3

Application : Outdoor

Number Of Flower : Wound Primary Type

Tensile Strength : 0-25Mpa

Warrenty : 1yr

Production Power : 10-25kw

Country of Origin : India

Application : Outdoor

Number Of Cores : 1-2-3-4-5

Number Of Cores : 1-2-3-4-5

Accuracy Class : 0.1 to 3

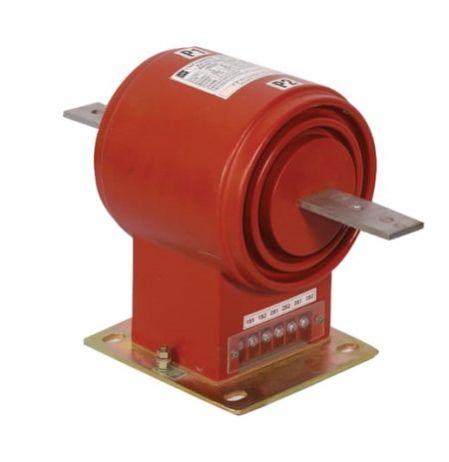

Number Of Flower : Wound Primary/Ring/Rectangular

Finishing : Tape Insulated

Accuracy Class : 0.1, 0.2s, 0.2, 0.5s, 0.5, 1, 3, 5

Number Of Flower : Wound Primary/Ring/Rectangular

Finishing : Tape Insulated/Epoxy Resin/cycloaliphatic

Class Of Insulation : Class B, F & H

Number Of Flower : Bar Primary/Ring/Rectangle Type

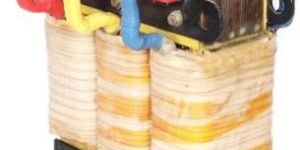

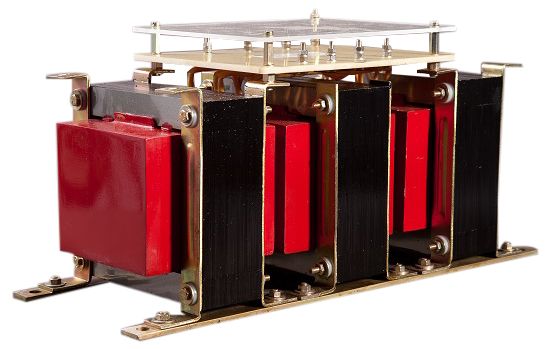

Kalpa Offers a Wide variety of Reactors, sometimes also known and Inductors or Chokes, for multiple applications are manufactured at Kalpa. A few among them are Filter Reactor, Detuned reactors, Series Reactor, Input/output Reactors. All the products are made as per Indian or International Standards (IS, IEC) or as per Customer requirements/ Application. All the manufacturing, testing and evaluation facilities are available in houseOur Range of reactors Include Detuned reactors Series Reactor Input/output Reactor Detuned Filter Reactor Air Core /Iron core Reactors

Certification : ISI Certified, ISO 9001:2008 Certified

Feature : Easy To Install, Electrical Porcelain, Four Times Stronger, Proper Working, Sturdy Construction

Output Type : AC Single Phase, AC Three Phase

Tensile Strength : 0-25Mpa, 25-50Mpa, 50-75Mpa

Country of Origin : India

Production Power : 100-250kw, 250-500kw

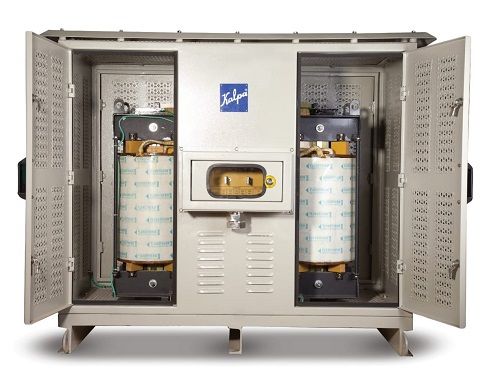

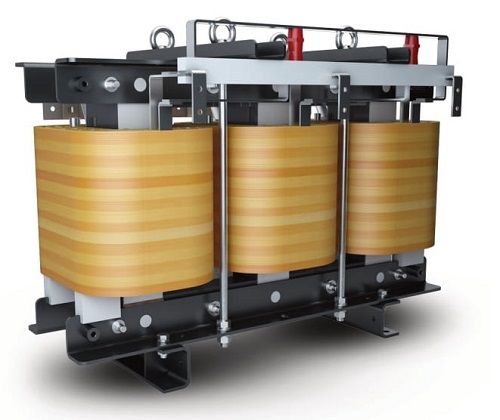

At Kalpa Electrikal Pvt Ltd, casting method of these transformers is obtained with the combined action of vacuum and temperature. The casting method makes it possible to assure void-free epoxy penetration of both the inner layer and between turn insulation. These Transformers are specifically needed in the distribution network for feeding basements or stilts of high-rise buildings, hotels, Malls, stadi-um, airports, chemical & refinery plants.Assured Features Windings are electrically balanced to minimize axial short circuit forces. Coils are held rigidly in place between insulators clamped to the upper and lower core frames under highcompression. Precise casting under vacuum ensuring low partial discharge. Smooth surface finish and robust construction of MV & LVcastCoils. Adequate ducts between coils, discs for maximum airflowand reducedhotspotTemperature. Step-lap designed CRGO laminations for lower losses and excitationcurrent. Standard Fittings H.V. Cable box. L.V. Cable box with bus bar or bus duct Off circuit tap links. Undercarriage with four Bi-directional rollers. Earthing terminals. Rating and diagram plate. Lifting lugs for complete Transformer Tapping link operation door Enclosure with louvre panels Canopy Base channel – 2 Nos The separate neutral bushing on LV side Paint: Powder coated With RAL7032 Shade Optional Fittings RTD with A/T contact. Marshaling box with control wiring. On Load tap changer. Forced Cooling arrangement. Neutral Current Transformer. Safety Features Environment-Friendly Fire Resistance Non-Hygroscopic

Frequency : 50/60 Hz

Capacity : UPTO 2.5 MVA

Class Of Insulation : Class B/F/H with Temp Rise of 70/90/115 Deg C or as per customer requirement.

Tapping Range : OCTC or OLTC As Per Customer Requirements

Winding Material : Copper

Number Of Flower : Window Type

Number Of Cores : 1-2-3-4-5
