Murrelektronik Jayanagar, Bangalore, Karnataka

We are the main supplier of this product.

Usage : Power

Material : Stainless Steel

Phase : Three

Product Features Temperature range from -25°C to +70°C Short startup time of only 600 ms Easy to mount on the DIN rail Range available from 5 to 40 A Adjustable output voltage from 22-28 V DC Nominal input voltage range of 3 x 324 to 520 V AC or 480 to 745 V DC

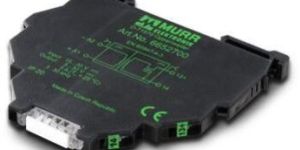

Relays from Murrelektronik are extremely small but perform the best. Integrated LEDs always show the current switching status. Several labels keep the cabinet organized during operation. Relay modules with pluggable relay components are excellent for applications that switch frequently: When the switching component is worn out it can be replaced without any wiring efforts. 100% Tested Murrelektronik quality Integrated LED display Integrated labeling options Integrated suppression for relays - no external suppressors needed Over 600 models offer the best product range Model with gold contacts switches low currents reliably Potential separation jumpers reduce the wiring efforts

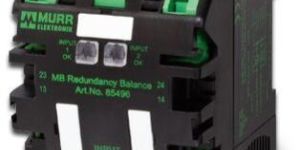

Power supply systems are often redundantly designed with two power supply units in order to achieve the highest machine run time. Murrelektronik's active redundancy module, MB Redundancy Balance, decouples two independent power supply units and generates a redundant 24 V DC control voltage. The Active Redundancy Module Signal contact for each input LEDs for channel-specific status indication Wide temperature range from -25°C to +60°C cULus listed and GL approvals High efficiency thanks to innovative MOFSET technology Energy consumption up to 87% lower than compared with conventional diode modules

Optocouplers are used to combine different signal levels or to isolate one signal from another. They provide a optoelectronic signal transfer between input and output, and therefore, they never wear out. Product Features Made to last No mechanical wear No contact bounce times Shortest switching times Low input power Silent operation Small width:up to 10 A switching current - only 6.2 mm wide Models with switching frequencies of up to 500 kHz Resistant to shock and vibrations Resistant to EMC interference

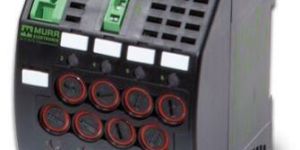

MICO Fuse is the ideal alternative to using individual safety terminals. The compact module features eight sockets for glass tube fuses that can easily be serviced from the front of the module. It protects up to eight channels. The MICO FUSE 24 LED version has additional LEDs that indicate the operating condition of each channel in red and green. A group alarm contact sends the current status to the control. The universal module MICO Fuse 250 covers the complete range from 0 to 250 V AC/DC. Convenient Monitoring with Glass Tube Fuses 8 output channels accessible from the front Small dimensions save space Common voltage supply for all channels Minimal wiring work Various labeling options Total current up to 40 A

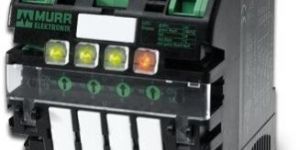

MICO Classic is the intelligent power distribution module from Murrelektronik for 24 V DC applications. This cabinet component monitors currents on up to four channels. It indicates when approaching the maximum load and it shuts the channel off if there's a short circuits or overload. The Electronic Circuit Control for 24 V DC 2 or 4 output channels Adjustable current ranges Remote start with a 24 V DC signal Potential-free signal contact Minimal power loss Temperature independent Perfect shut-down function: as early as necessary, as late as possible

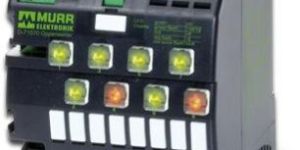

MICO Basic is Murrelektronik's intelligent power distribution module for 24 V DC applications. It monitors the power distribution and reacts to short circuits by shutting the channel down as late as possible but as early as necessary. MICO Basic is perfect for any application that protection a lot of sensors and actuators with similar demands. The current ranges are preset and the modules monitor four or eight channels with 2, 4 or 6 A. The Electronic Circuit Control for 24 V DC 4 or 8 output channels Preset tripping currents: 2, 4 or 6 A Saves space! Requires 66% less space compared to circuit breakers Remote start with a 24 V DC signal Group alarm contact Minimal power loss Temperature independent Perfect shut-down function: as early as necessary, as late as possible

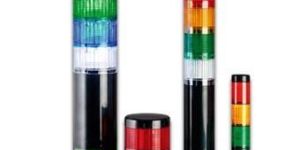

Murrelektronik's lighting systems use the best technology on the market. The LEDs are made to last and don't need much power. The Modlight50 and Modlight70 signal tower's are easy to assemble – the innovative mounting system makes the different colored lights easy to interchange. Modlight XTREME440 lights up your machine and work spaces with daylight quality lighting. And it's IP69K protected so it's designed for harsh industrial environments. Extremely bright and easy to install Maintenance-free and long-lasting LEDs help save energy Excellent luminous efficacy M12 or spring clamp connection Modular design Protected up to IP69K

The heavy-duty plug connectors of the Modlink Heavy series from Murrelektronik guarantee secure transmission of signals, energy, data and pneumatics – even in the roughest of industrial environments. They consistently protect interfaces from water, coolants and lubricants, dirt and high mechanical loads. Maximum Variety Four different housing types, each in seven different sizes Housing up to degree of protection IP68 – maximum tightness Different fixed-pole and modular contact inserts for high flexibility Worldwide use through country-specific approvals such as UL and CSA

Protecting sensors and actuators is an important issue in machines and plant installations. However, using many individual safety terminals means a lot of manual work. With MICO FUSE, Murrelektronik offers a much more convenient solution.

The Emparro ACCUcontrol UPS module rounds out the high-performance Emparro power supply system. In the event of a power failure, it automatically switches to battery operation and prevents machine downtimes. Investing in a UPS system frequently pays for itself the first-time a stoppage is avoided. External lead batteries with a capacity of up to 40 Ah ensure a long-lasting bridging period. The UPS module is available for 20 A or 40 A systems. Emparro ACCUcontrol can be assembled without the use of tools and is maintenance free. Because it is only 65mm wide, the 20A model needs very little space in the control cabinet. Reliable power supply in the event of faults Machine downtimes are prevented through uninterrupted switching to battery operation in power failures Maximum lifetime through temperature-controlled battery charging High operational reliability through comprehensive control and diagnosis options with predictive maintenance A shutdown function for IPCs prevents data loss with easy-to-use computer software

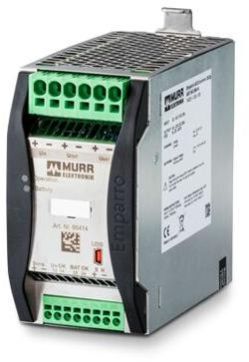

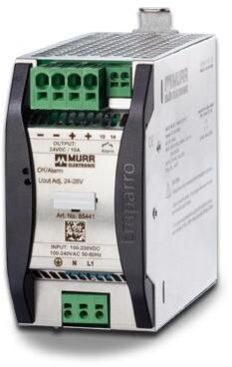

Murrelektronik's Emparro switch mode power supply units' efficiency rate of up to 95% is impressive! This reduces power loss to a minimum and the low energy consumption helps save a lot of money. Efficiency up to 95% 150% Power Boost for at least 4 seconds Metal housing with protective EMC characteristics Derating only at 60°C Slim design High mains failure bridging time Seven different models provide solutions for many applications

EMC filters are essential components that prevent interferences in machines and systems. They reduce the interference emissions while improving immunity from internal and external interferences. Murrelektronik offers a comprehensive range of filters.   Available for single and three phase power supplies Recommended for all fieldbus systems Minimized health risk Over voltage protection with monitoring DIN rail or screw mounting Easy to install

Voltage drops can cause unpleasant effects: interrupt production processes, cause downtime, and require a system resets. They may even cause data loss and machine damage. Murrelektronik's buffer modules protect power supplies by bridging the time without power supply or enabling a controlled shut down of machines connected to a PC. Always Maintenance-free Buffer time up to 38 seconds under full load Signal contacts give latest status Maximum system uptime Slim design Wide temperature range from -40°C to +60°C LEDs directly on the module cULus listed and GL approvals Product range from 3, 10, 20 and 40 A
