KAVERI POLY INFRA MATERIAL SUPPLIERS Mavalli, Bengaluru, Karnataka

A removable mechanism type Woltmann Water Meter with magnetic drive and vacuum sealed register for Water Distribution Network/Industrial/Commercial Water Supply. Features: -   Leak proof and sealed totaliser -   Magnetic drive -   Repairable without interrupting water supply -   Removable mechanism ensures easy maintenance -   Totaliser protected by metallic cover -   Reliable sensitive metrology and low pressure loss

Double Wall Corrugated ( DWC ) HDPE pipes are ideal for cable ducting due to its crush strength, bending radius and superior pulling ability. They are also unaffected by future road constructions, unanticipated digging work and rodents. These pipes that comply with IS 14930 are an asset to the telecommunications and railway industry helping to protect its expensive infrastructure installations. They protect high-bandwidth telecom cables and railway lines which allows them to lie underground for years.   Advantages   Non conducting : not susceptible to galvanic corrosion or electrical interference Low coefficient of friction : Simplifies field installation due to lower cable stress Excellent strength : withstands constant heavy overload pressure Flexible: fewer joints, does not break and adaptable to ground heaves and shifts Lightweight : reduces cost and aids in installation Moisture proof and Watertight : complete cable protection Chemical resistance : Extended outdoor storage life Immune to bacterial or fungal growth : impervious to insect attacks Color coded : easy to identify   Applications     Used in highways, housing developments, special economic zones, commercial projects, retail and industrial infrastructure applications ->    Low tension electric underground cable protection ->    Communication underground cable protection ->    Railway signaling cable protection ->    Indoor ventilation systems ->    PEX plumbing pipes protection

An Inferential, single jet, super dry, straight reading type, hemetically sealed water meter with magnetic drive. Construction: -    Highly sensitive to low flow rates and very accurate ofer its entire flow range -    Having low loss of head which allows water to reach upper floors -    Sealed against tampering -    Totaliser leakproof, totally dry. -    Long maintenance free life -    Self Lubricating gears & bearings

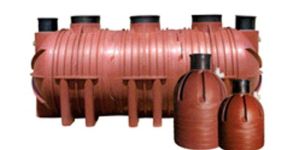

The Supreme SAFEGARD Septic Tanks are designed to provide a better substitute to existing conventional brick and mortar septic tanks. The conventional septic tanks are associated with multiple problems of concrete corrosion (effects of H2S) and leakages thereby creating pollution of soil and ground water. The life span is short and uncertain. On the other hand Supreme SAFEGARD septic tanks are free from above problems and has many outstanding features viz: -    Robust design with great strength -    Simple and quick installation -    Complete corrosion & chemical resistance -    Hygienic and safe with 100% water tightness ensuring complete leakage protection -    Free from infiltration and ex-filtration and hence guarantees prevention of soil and ground water pollution. -    Economical with minimal maintenance -    Long life: expected to last over 50 years under ideal conditions i.e. life time of the building. -    Safe against anti –flotation. -    No root penetration, eco-friendly and may be classified as green product. -    Conforms to various National /International standards, building code and regulations. -    Available in various capacities M/s Deepika Rotomoulders is a well renowned water tank manufacturer offering an impressive range of water storage tanks for domestic as well as commercial use. Our tanks have unique dual advantage of being light in weight and much stronger than other oridinary tanks existing today. Due to commitment to provision of quality products and sevices at reasonable costs, our products have received wide acceptance in the market. The leading brand “Kaveri” Water storage tanks are manufactured by M/s Deepika Rotomoulders Pvt Ltd with ISI mark for product ranging from 200 Ltrs to 20000 Ltrs. Our products are registered with DGS&D, NSIC, MES, Karnataka State Police Housing Corporation, CPWD, BSF etc. Apart from ISI marked tanks, we manufacture a range of commercial tanks like Double Layer, Triple Layer, Colour tanks(Triple Layer), House hold drums, Loft tanks , Sump tanks, Chemical containers, Industrial containers, Heavy duty Plastic Pallets, Processing Trolleys etc conforming to our standard specifications.

New generation PVC - O Pipes offers improved performance. A new molecularly oriented PVC pipe for pressure applications is designed to be lighter, have better impact resistance and increased tensile strength when compared to standard PVC. Molecular Orientation, a revolution in PVC Technology The process of molecular orientation greatly enhances the PVC physical and mechanical properties, maintaining the original polymer advantages. It becomes an unbeatable plastic in terms of strength, impact resistance and flexibility without altering its chemical properties. When applied to high pressure pipelines, they are very resistant and have an extremely long life expectancy. Besides, the pipe is highly energy-efficient and environmentally friendly during all its useful life because of the considerable savings in raw material and also the ease of installation. A plastic with unbeatable properties The process of molecular orientation greatly enhances PVC’s physical and mechanical properties and gives it a number of exceptional features, without altering the advantages and properties of the original polymer. This makes for a plastic with unbeatable qualities in terms of resistance to traction and fatigue, flexibility and impact resistance. When used in high-pressure water pipelines this type of piping is virtually indestructible and has an extremely long lifetime. Moreover, the pipe is highly energy-efficient and eco-friendly not only in the way it is made but also because of its subsequent use. Other advantages include reductions in costs and installation times. For all these reasons, Floking PVC-O pipes are the best solution for medium and high pressure water networks for irrigation systems, portable water supply, fire extinguishing networks and pumping systems, among other applications. Unbeatable impact resistance Unbeatable impact resistance Floking pipes are virtually impossible to destroy by impact. This means that there areno breakages during installation or during on-site trials caused by dropping or by impacts from stones. Furthermore, Molecular Orientation prevents the propagation of cracks and scratches and eliminates the risk of rapid crack behaviour. The result is a spectacular increase in the product’s useful life High short - and long-term hydrostatic resistance Floking pipes offer a resistance to internal pressure of up to two times the nominal pressure (32 bars in PN16 bar pipes or 400 psi in PN 200 psi), which means that they can bear sporadic excessive pressure such as water hammers and other malfunctions in the network. Moreover, the material creep behavior is very low, ensuring the durability of the pipe working at nominal pressure for over a hundred years. Excellent response to water hammers Floking pipes offer lower celerity than other piping systems (four times less than ductile iron pipes), which means less water hammers caused by sudden variations in water volume and pressure. This reduces and almost eliminates the possibility of breakage during opening and closing in the water network and when pumping gets under way, protecting every component of the network. Increased hydraulic capacity Molecular Orientation reduces the pipe wall thickness, giving Floking pipes a greater internal diameter and flow section. Also, the internal surface is extremely smooth, reducing load loss and making it more difficult for deposits to be formed on the inner walls. As a result, Floking pipes offer between 15% - 40% more hydraulic capacity than pipes made from other materials and with the same external dimensions. Maximum flexibility Thanks to their excellent elasticity, Floking pipes can bear deformation of up to 100 percent of their internal diameter. When crushed, or in the event of a mechanical accident, a Floking pipe immediately goes back to its original shape, thus eliminating the risk of potential breakage by soil subsidence or sharp edges on rocks or machinery, for example. And thanks to their considerable capacity for bearing heavy loads, Floking pipes ensure optimum performance once laid underground. Completely corrosion-resistant Oriented PVC is immune to corrosion and to natural chemical substances, as well as to aggression from micro- and macro-organisms. Floking pipes, therefore, are not degradable. Moreover, they do not require any type of special protection or coating, which means costsavings. Total water quality The quality of the fluid that circulates in Floking pipes will always remain unaltered, given that the material neither suffers corrosion nor migrations within the pipes or in their coating. Consequently, Floking pipes are considered the best application for high pressure water transport, particularly drinking water, for water supply networks. Completely water-tight Joints are 100 percent watertight and are guaranteed not to displace once the pipes have been installed. Floking pipes are easy to join and can be installed by lower-qualified workers. Lower cost and easier installation Floking PVC-O pipes are lighter and easier to handle than other pipes made from other materials: in most cases, handling does not require machinery. What’s more, due to the easiness union, flexibility and impact resistance, they make a positive stand out in terms of cost, performance and installation speed compared to other pipes.

Our HDPE Pipes offers a complete range of products for a wide range of applications including potable Water supply, irrigation, Agriculture sector, Industrial waste disposal, oil & gas gathering and gas distribution etc. These pipes are manufactured conforming to IS 4984 with latest revision. We have the entire range of Pipes starting from 20mm to 1000 mm dia Pipes available in PE63, PE80 and PE100 grades with all kinds of Fittings and accessories

Piping made from polyethylene is a cost effective solution for a broad range of piping problems in municipal, industrial, marine, mining, landfill, duct and agricultural applications. It has been tested and proven effective for above ground, surface, buried, slip lined, floating, and marine applications. High-Density Polyethylene Pipe (HDPE) can carry potable water, wastewater, slurries, chemicals, hazardeous wastes, and compressed gases. In fact, polyethylene pipe has a long and distingu ished history of service to the gas, oil, mining and other industries. It has the lowest repair frequency per mile of pipe per year compared with all other pressure pipe materials used for urban gas distribution. Polyethylene is strong, extremely tough and very durable. Whether you're looking for long service, trouble-free installation, fle xibility, resistance to chemicals or a myriad of other features, high-density polyethylene pipe will meet all your requirements. Smooth-wall High-Density Polyethylene pipe systems These pipes are manufactured conforming to IS 4984, IS14333, ISO4427 with latest revision. We have the entire range of Pipes starting from 20mm to 1000 mm dia Pipes in PE63, PE80 and PE100 grades with all kinds of Fittings and accessories

Construction: -   Industry-specific design: suitable for all applications found in the water and waste water industries -   Widest flow range, highest accuracy: diameters from 15mm to 2200mm (0.5 to 84 in.) -   Submersible sensor: suitable for flooded chambers and pits -   Buriable sensor: eliminates chambers and ensures fast, low-cost installation -   Hazardous area approvals:– FM, CSA, ATEX, – ideal for waste water treatment works -   2-year warranty as standard: high-quality product guarantees reliable, maintenance -free operation -   CalMaster compatible; in situ verification of flow meter calibration -   Remote communications: including Profibus DP v0

We have DI pipes of all ranges/sizes from leading brands in India for pressurized water supply applications. Ductile Iron is an alloy of Iron, Carbon and Silicon. If we observe the micro structure of grey caste iron, we will notice that graphite present in it is in the form of flakes. In the year 1948, the flakes structure of graphite was modified by adding magnesium to the molten metal. The resultant product of iron is now typically known as Ductile Iron. Ductile Iron Pipes have higher tensile strength, yield strength, ductility and impact resistance which are the reasons why the use of Ductile Iron Pipes has grown up at a rapid rate over the last 50 years or so. We primarily offer metallic zinc sprayed pipes with a finishing layer of bituminous paint (with fillers). Other special type of external coatings and linings which are available include External Coatings: -    Metallic Zinc coating having an average mass of 130gm/sq.m with finishing layer -    Metallic Zinc-alloy coating having a minimum mass of 200 g/m2 with finishing layer -    Extruded polyethylene self adhesive tape wrapping at factory/at site -    Reinforced cement mortar coating having a nominal thickness of at least 5 mm -    Fusion bonded epoxy coating -    Polyurethane coating Linings: -    Cement mortar lining & thicker mortar lining as per the customer requirement -    Cement mortar lining with seal coat -    Two pack of epoxy lining as a supplement to cement mortar lining -    Polyurethane lining

We are offering finest quality and wide range of PP Compression fittings and Electro fusion fittings for house service connections from leading International and Indian brands .

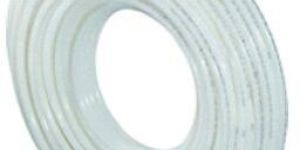

-   Pipes manufactured from peroxide cross-linked polyethylene (PE-Xa) using the Engel method acc. EN ISO 15875, for supply lines, rising mains and connection lines for plumbing. Fire classification E according to DIN EN 13501-1. -    Classification of service conditions acc. to EN ISO 15875: -    Application class 2 - Hot water supply (70°C), malfunction temperature 95°C. Design pressure 10 bar. -    Conduits manufactured from high density polyethylene

-    Pipes manufactured from peroxide cross-linked polyethylene (PE-Xa) using the Engel method acc. EN ISO 15875, for supply lines, rising mains and connection lines for plumbing. Fire classification E according to DIN EN 13501-1. -    Classification of service conditions acc. to EN ISO 15875: -    Application class 2 - Hot water supply (70°C), malfunction temperature 95°C.

Double Wall Corrugated ( DWC ) HDPE plastic pipes are used all over the world as a standard in efficient sewage and drainage systems since the last 40 years. , from ALOM, is a pipe of the finest quality for non-pressure underground sewerage, drainage and cross drainage (pipe culvert) purposes. These pipes will help municipalities, urban conglomerates and industries manage their waste water and rain water very efficiently. Such a system will not only protect the environment but also your investments. Once installed, the pipes are maintenance free and will lie underground for years.   Advantages   Environmentally safe : No leaks, no cracks and no damage to environment and soil   Socio-environmental friendliness : No leaks, no cracks and no damage to environment and soil   Long Lasting : Service life of over 100 years   Cost effective: Uses minimal material for equal strength   Ease of Installation : Uses fewer manpower and can be installed in very constrained locations   Chemical Resistance : Chemically inert to waste water ingredients and ‘crown corrosion’ is non-existent     Application   City and urban clusters : Economical, easier and swifter installation, handling and transportation to overcome socio-environmental issues with underground pipe installations.   Urban sewerage rehabilitation : Economically most viable in crowded and haphazardly grown old core clusters of the city   Highway and busy roads : Anti leakage coupling to create environment friendly and virtually maintenance free drainage corridors   Earthquake prone areas with high tectonic movements: high strength to weight ratio and adaptation of pipe length and roundness to uneven ground or earth movements.   Rainwater drainage : (agricultural, highway and citywide) locations

Ashirvad is a licensee of Lubrizol, a Berkshire Hathaway Company, who are the inventors and largest manufacturers of CPVC compound in the world. Chlorinated Polyvinyl Chloride (CVPC) is a thermoplastic used for hot and cold water lines. CVPC is the first choice of material for potable water supply across the world and is in use across the world for more than 50 years. It is absolutely ideal for use in hot and cold water applications in villas, individual homes, apartments, offices, commercial buildings,hotels and hospitals.   Features of FLOWGAURD Plus -    Ideal for hot and cold water applications -    High withstanding capacity ranging from max 28.1 bar pressure at 23°C and max 8.79 bar at 82°C -   Widest range of pipes and fittings from 1/2” to 6” -   NSF Certified raw material from Lubrizol USA, inventors of CPVC technology -   UV stabilised and designed for over 50 years life -   Regular testing of finished products in globally recognized testing laboratories in Europe and USA -   Tested, approved and used in India in the highest number of projects for over 10 years -   Ashirvad CPVC system is first to be ISI marked -   Ashirvad introduced the alignment system for the first time in India

Ashirvad introduces a new range of products featuring Low Noise SWR System (Silent and Silent Plus), with technical collaboration from France and certified testing in Germany. Made in Triple layer PVC based sound attenuating system and, available in 40 mm to 200 mm both in Solfit and Pushfit type. However, these pipes, must be used ina combination with the special GIRPI brackets to get the desired effects i.e low noise and less vibrations. The system is designed to international specifications, it is easy to install and is low on maintenance. These are suitable for horizontal as well as vertical applications and is adaptable to IS 13592 and IS 14735.   Features of FLOWGAURD Plus -   Silent SWR system: 13dB at 2 lps* -   Silent plus SWR system: 10dB at 2 lps* -   Triple layer PVC based sound attenuating system -   Special brackets to dampen vibrations -   For high rise, commercial and residential spaces -   Simple pushfit type jointing -   Ease of assembly and dis-assembly -   Suitable for horizontal as well as vertical orientation -   Available in 40 mm to 200 mm -   Designed to International specifications -   Technology from Girpi, France * Tested to EN 14366

Ashirvad offers an industry leading range of underground and surface drainage systems. Underground drainage pipes can be used in various constructions such as solid wall and structured wall. Being 100% watertight, it is free from ingress and seepage of water and hence considered to be most hygienic. Unlike conventional drainage products, it is free from pollution of underground water, soil or ill effects on building foundations. They are suitable for all types of commercial and domestic installations. Ashirvad Underground Drainage system is intended to carry soil, waste, rainwater or industrial effluents from building to roadside sewers or drains and from there to waste treatment plant or point of discharge. Ashirvad Underground Pipes are produced in 3 layers with the middle layer comprised of PVC foam to reduce both noise and weight.   Features of FLOWGAURD Plus -    Foam core technology with triple layer -   Solid wall fittings to International specifications -   Pushfit joint technology -   Smooth finish and rodent resistant -   Complete range from 110 mm to 315 mm in surface drains -   Speciality products / accessories such as mechanical connections, non-return valves     and manholes -   Low maintenance, leak and odour proof -   Aesthetic appeal and 100% recyclable -   Technology from REDI, Italy

Supreme underground drainage and sewerage system has been designed with a view to modern man's inclination towards health, hygiene and his aversion to filth and pollutants. Due to unpleasant nature of human waste, a drainage system should be "out of sight and out of mind". Most of the drainage systems are actually hidden from sight. It is hence important that it should be of superior quality and should be able to function year after year without leakage or defects. It becomes unpleasant and expensive to address such problem that arise in conventional underground products unexpectedly. Such problems may happen due to poor product quality or due to faulty construction and outdated technology.   Features and Benefits Great flexibility Due to availability of readymade inspection chambers, manhole, long lengths of lighter weight pipes and different components, installation of this system is very convenient and fast. Perfect hydraulic properties Mirror smooth inside surface of the pipes and streamline design of the chambers and manhole greatly reduce the possibility of blockage and maximize flow characteristics. As a result, carrying capacity of these pipes can be increased by 40% over concrete pipes. Great strength Products are sufficiently durable to meet site-loading requirements. Watertight system Pipe, riser or shaft connection with the chamber base is absolutely watertight and unique design of pipe joints with click ring and sealing ring makes the system completely leak proof. Hygienic and safe Trouble free performance of the joints without blockage and leakage ensures high standards of hygiene. Minimum excavation cost Because of simple jointing technique, trench width can be kept minimum and smoother bore of the pipe allow high flow rates at relatively flatter gradients. Different flow profile designs Inspection chambers and manholes are available in different flow profiles/ configurations of inlet(s) and outlet in different sizes to suit the site requirements. Unwanted inlets if any can be closed with the help of blanking plugs. Minimal Maintenance Optimum functional qualities and good hydraulic properties play an important part in reducing the need for jetting and other forms of maintenance, and therefore operational costs are considerably reduced. Longer life and overall economy It is free from problems like corrosion and susceptibility to chemical reactions and strong enough to carry soil and traffic loads. Nu-drain is sufficiently durable, and offers long and trouble free service life.

Supreme Nu-drain is intended to carry soil and waste from building to roadside sewers or drains and from there to treatment plant or disposal point. This system is advantageous and offer multiple advantages over traditional drainage products for all sorts of drainage and sewerage application and installations. Nu-drain is highly recommended for buildings where hygiene is a prerequisite such as hospitals, hotels etc. This can also be used for rainwater collection and disposal, including rainwater harvesting. Thus, Nu-drain is a complete solution for underground drainage and sewerage application. Being 100% watertight, it is free from ingress and seepage of water and hence considered to be most hygienic. Unlike conventional drainage products, it is free from pollution of underground water, soil or ill effects on building foundations. In this fast age, this product emerged as blessing to housing and construction sector. Due to tremendous saving in time and labor, installation of this system is quite simple and fast. The choice of the raw material, the structural accuracy and the strict quality control imparts high degree of reliability. As a result Nu- Drain is now approved by MCGM. Thus Nu-drain is superior substitute to conventional products.   Features and Benefits Great flexibility Due to availability of readymade inspection chambers, manhole, long lengths of lighter weight pipes and different components, installation of this system is very convenient and fast. Perfect hydraulic properties Mirror smooth inside surface of the pipes and streamline design of the chambers and manhole greatly reduce the possibility of blockage and maximize flow characteristics. As a result, carrying capacity of these pipes can be increased by 40% over concrete pipes. Great strength Products are sufficiently durable to meet site-loading requirements. Watertight system Pipe, riser or shaft connection with the chamber base is absolutely watertight and unique design of pipe joints with click ring and sealing ring makes the system completely leak proof. Hygienic and safe Trouble free performance of the joints without blockage and leakage ensures high standards of hygiene. Minimum excavation cost Because of simple jointing technique, trench width can be kept minimum and smoother bore of the pipe allow high flow rates at relatively flatter gradients. Different flow profile designs Inspection chambers and manholes are available in different flow profiles/ configurations of inlet(s) and outlet in different sizes to suit the site requirements. Unwanted inlets if any can be closed with the help of blanking plugs. Minimal Maintenance Optimum functional qualities and good hydraulic properties play an important part in reducing the need for jetting and other forms of maintenance, and therefore operational costs are considerably reduced. Longer life and overall economy It is free from problems like corrosion and susceptibility to chemical reactions and strong enough to carry soil and traffic loads. Nu-drain is sufficiently durable, and offers long and trouble free service life.
