Kirloskar Electric Company Ltd.bangalore Malleswaram, Bangalore, Karnataka

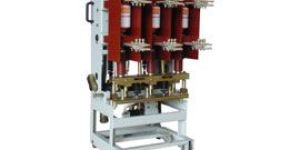

Maintenance free design, Horizontal drawout and isolation, Interlocks to prevent insertionwithdrawal of closed CB, CB can operate in test or service position only, Identically rated CBs are fully interchangable, Easy retro fitting with cassette system, Fully type tested as per IEC60056IS 13118IEC 62271-100.

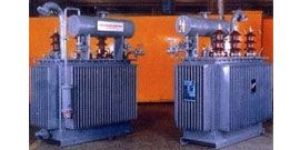

2500 kVA to 100,000 kVA, up to 220 kV Class, Kirloskar Transformers are designed and tested to the following standards:Distribution and power transformers: IS: 2026, BS: 171 & IEC: 76, Converter transformers: IS: 4540, IEC: 146 & IEEE: 444. The company is capable of manufacturing transformers to any other standards as per customers'consultants' requirements.

T.box material:Aluminium (die cast) 160, cast iron 180, 200, mild steel for 250 & 315 Frames, Fan material:Cast iron for 160, aluminium for 180, 200, mild steel for 250 & 315 Frames, Paint & shade:NC base RAL 5012 shade up to 200, Epoxy base RAL 5012 above 200 frame.

Ambient Temperature :-10 to +50°C, Altitude:Not exceeding 1000mtrs above mean sea level.Atmosphere:Non corrosive & non Hazardous, Relative Humidity:Up to 100%, Frequency :50Hz ±5%, Combined Variation :10%, Duty:S1(continuous).

Maintenance free design, Horizontal drawout and isolation, Positive racking mechanism, Interlocks to prevent insertionwithdrawal of closed CB, CB can operate in test or service position only, Fully type tested as per IEC60056IS 13118IEC 62271-100, Easy retro fitting with cassette system, Spring Charging Motor Voltage:230V AC, 110V DC, 220V DC.

Maintenance free design, Horizontal drawout and isolation,Positive racking mechanism, Interlocks to prevent insertionwithdrawal of closed CB, CB can operate in test or service position only, Identically rated CBs are fully interchangable, Easy retro fitting with cassette system, Fully type tested as per IEC60056IS 13118IEC 62271-100

Features Maintenance free design Horizontal drawout and isolation Positive racking mechanism Interlocks to prevent insertion/withdrawal of closed CB CB can operate in test or service position only Identically rated CBs are fully interchangable Easy retro fitting with cassette system Fully type tested as per IEC60056/IS 13118/IEC 62271-100   Operating Mechanism Proven spring operated mechanism Designed to closed and latch Positive racking mechanism Manual/motorised option In built trip free mechanism In built anti pumping feature Mechanical ON/OFF indication

Maintenance free design, Horizontal drawout and isolation, Positive racking mechanism, Interlocks to prevent insertionwithdrawal of closed CB,CB can operate in test or service position only, Identically rated CBs are fully interchangable, Easy retro fitting with cassette system, Closing Tripping Coil Voltage:24, 30, 48, 110, 220DC(V).

Features Total compartment-wise construction and compartment doors are provided separately for easy access The doors are interlocked with micro switches to prevent access to live terminals in such a way that the breaker will trip when the doors are opened Electricity board metering with tamperproof sealing facility can be provided Optionally, up to 2 CRTs with MV/LV controls can be accommodated in enclosures (one CRT on at a time)

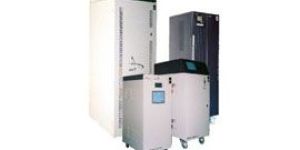

Features Double conversion technology Input power factor > 0.97 Cold start Static bypass Super (maintenance) bypass Crest factor 3:1 Fold back Suits any generator output Serial and parallel (N+1) redundancy Auto shutdown SNMP adaptability Galvanic Isolation User-friendly MIMIC Self-diagnostic function at start-up Event logging and messaging

Uninterrupted power supply:.Range:1 kVA to 6 kVA in 1Ø1Ø, 5 kVA to 60 kVA in 3010,10 kVA to 200 kVA in 3030. Double conversion technology, Super (maintenance) bypass,Serial and parallel (N+1) redundancy, Self-diagnostic function at start-up, Event logging and messaging, Galvanic Isolation.

We are the main supplier of this product.

Application : Varies as per requirement

Frequency : 100-200Hz

Phase : Three Phase

Relative Humidity : Less Than 90%

Efficiency : Greater Than 90%

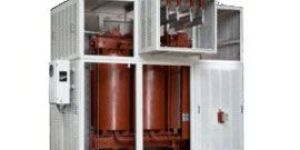

160 kVA to 2500 kVA, up to 33 kV Class, Kirloskar Transformers are designed and tested to the following standards:Distribution and power transformers: IS: 2026, BS: 171 & IEC: 76, Furnace transformers: IS: 2026,Converter transformers: IS: 4540, IEC: 146 & IEEE: 444, The company is capable of manufacturing transformers to any other standards as per customers'consultants' requirements.

The Kirloskar Electric organization comprises nine manufacturing locations and 34 sales offices spread across the country. We have a large network of spare parts dealers and service centres. This enables us to provide premium products, exemplary systems & services at competitive rates to our clients.

Self-excited, self-regulated unit power factor AC generator, Horizontal foot mounted in SPDP enclosure with two bearings, Series compounding type of excitation, Aesthetically designed, Class "F" Insulation, Voltage regulation is maintained within ±10%, Guaranteed voltage buildup

Phase : Three/single

Ambient Temperature :-10 to +50°C, Altitude:Not exceeding 1000 m above mean sea level, Relative Humidity:Up to 100%, Voltage:6.6kV, 3.3kV, 11kV +- 10%, Frequency :50Hz +- 5%, Terminal Box position:LHS from NDE, Accessories:ACH, 6*simplex RTD, 2* Duplex RTD type BTD.

The Kirloskar Electric organization comprises nine manufacturing locations and 34 sales offices spread across the country. We have a large network of spare parts dealers and service centres. This enables us to provide premium products, exemplary systems & services at competitive rates to our clients.

Country of Origin : 6.6kV, 3.3kV, 11kV +/- 10%

Frequency : 50Hz +/- 5%

Air insulated metal clad construction using high quality steel, Durable epoxy powder coated finish, Compartmentalized and compact design, Easy accessibility for maintenance, Meters, relays, and controls are located at a convenient height, Extensible on both sides, Side cable box for single panels, Compatible with state-of-the-art numerical protection, Fully type tested as per IEC 60298IS 3427

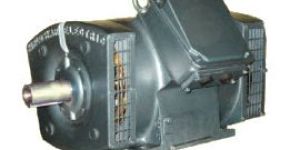

Ambient Temperature :-10 to +50°C, Altitude:Not exceeding 1000mtrs above mean sea level.Relative Humidity:Up to 100%, Frequency:50Hz ±5%. Fan material :Aluminium for all 2 pole ratings of SA frame & all ratings of VSA frame, Polypropelene for 4, 6, & 8 pole ratings of SA180 to 225 frame, mild steel for 250 to 355 – 2pole, Mild steel Aluminium for 250 to 355 frames – 4, 6, and 8 poles.

The Kirloskar Electric organization comprises nine manufacturing locations and 34 sales offices spread across the country. We have a large network of spare parts dealers and service centres. This enables us to provide premium products, exemplary systems & services at competitive rates to our clients.

Country of Origin : 415V ±10% , 3 ph.

Frequency : 50Hz ±5%

Kirloskar Electric Hubli Unit has successfully designed, developed, manufactured and supplied Special Electric Vehicle Motor to India's premier Research Institute. This is a concept development motor for the Research institute which is developing total novel solutions for the Electric Vehicle. The complexity was to give the 10KW power in the most compact and limited space of 125x125x800 mm^3. This has been successfully achieved and after conducting all the evaluation tests prototype motor has been delivered.

Kirloskar transformers are designed and tested to the following standards: distribution and power transformers: is: 2026, bs: 171 & iec: 76 converter transformers: is: 4540, iec: 146 & ieee: 444 furnace transformers: is: 2026 system earthing transformers: is: 3150 & bs: 4944 the company is capable of manufacturing transformers to any other standards as per customers'consultants' requirements.

The Kirloskar Electric organization comprises nine manufacturing locations and 34 sales offices spread across the country. We have a large network of spare parts dealers and service centres. This enables us to provide premium products, exemplary systems & services at competitive rates to our clients.

Country of Origin : 415V ±10%, 3 Ph.

Frequency : 50Hz ±5%

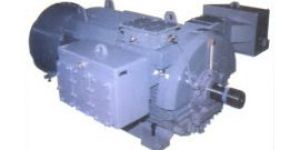

Permissible startshr:Cold successive - 4 hot successive - 3 equally spread - 6, Loading at reduced volts:75% Rated volts for 5 minutes.Bearing life(90% survival basis):40,000 working hrs. For direct drive, 20,000 working hrs. For belt drive. Frame sizes:'ePM80 to 160', 'eSC180 to 355'.(For 'B' flange mounting ratings covered in 'eSC180M' to be offered in 'eVSC180L', & ratings covered in 'eSC225S' to be offered in 'eVSC225M').
