New India Electricals Ltd. Jc Nagar, Bangalore, Karnataka

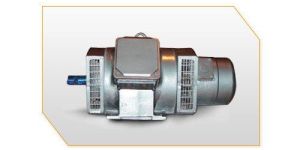

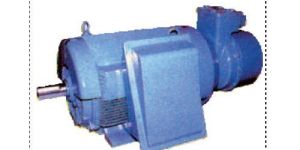

New India offers Low Voltage Slip Ring electric motors ranging from 3.7 kW to 350 kW in Open (Drip Proof – IP23) construction. Our Slipring motors are one of the most robust designs serving the industry for over 5 decades. The special care taken to ensure the quality of the Slip Ring and matching Brush Gear arrangement ensures trouble free operations and long lasting brush life. Our Slip Rings are specially treated copper strips moulded into epoxy-based insulation, the unique design gives them excellent stability in high temperatures with excellent anti-tracking property. Motors are designed especially for applications with high inertia loads. It has Reliable, Rugged design and Construction. Motors are suitable for starting with external resistance in motor circuit. Applications include Fans, Compressors, Mixing and Rotary Mills, Crushers and Pulverizers.Motors comply to IS standards. Specially designed motors are offered with IPSS standards to meet the requirements of Steel Plants.   SALIENT FEATURESDesigned specially for applications with high inertia loads.Reliable Rugged design and Construction.Low Noise and Vibration.Optimum fan design for better cooling.Suitable for Direct/Belt Driven Applications.Bi-Directional Rotation.Rigidly sealed Terminal box.Suitable for starting with external resistance in motor circuit. APPLICATIONS Mixing and Rotory Mills Fans Compressors Crushers Pulverisors

We offer state-of-the–art Worm Gear Boxes and Worm Geared Motors with Solid and Hollow Output Shafts. EATURES Compact and Light Weight Universal Mounting Modular Design Low Noise and Vibration Interchangeable with other International Brand High Reliability Proven Performance

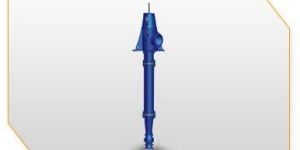

bhr series pumps are vertical turbine pumps which are constructed rigidly to ensure vibration free operation. Pumps are designed for dry pit/wet pit arrangements. Pumps are offered with radial, axial, and mixed flow impellers depending on specific requirements. Pumps hydraulic design are updated with continuous r&d efforts to meet requirements of higher efficiency and lower submergence, taking care of other parameters such as, high reliability and optimum system design. These pumps are used in lift irrigations schemes, water supply, dry docks, refineries and fire fighting. applications irrigation water supply dry docks refineries  features dry pit / wet pit arrangement available. low submergence. gland packed / mechanical seal. radial / axial / mixed flow

Capacity : up to 40,000 m3/hr

Head : up to 240 metres

Temperature : (-) 10oC to 90oC

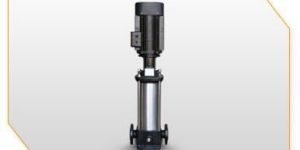

IL Series are Vertical In-Line Multistage Pumps. Specially designed with pressed stainless steel components, these pumps have high efficiencies. All wetted parts are in SS304 or SS316 construction. By default pumps are supplied with Mechanical Seal. These pumps have many applications including Booster, Fire Fighting, HVAC, Boiler Feed, Condensate/DM Water, Water Purification, RO Systems and Drip and Sprinkler Irrigation. APPLICATIONS Booster Fire Fighting HVAC Boiler Feed Condensate / DM Water Water Purification RO Systems Drip and sprinkler irrigation  FEATURES Pressed stainless steel components. High efficiencies. Low NPSH. All wetted parts in SS304 or SS316. Mechanical Seal 50Hz / 60 Hz availability.

Capacity : up to 72 m3 /hr

Head : up to 220 metres

Temperature : (-) 15oC to 120oC

New India offers specially designed Vertical Hollow Shaft Motors for Vertical turbine pumps. The special design makes them easy to install & maintain. The design ensures a proper & permanent shaft alignment with the pump. Motors are provided with a Non-reversible ratchet that prevents the reverse rotation of the motor due to the back flow of water or phase reversal. The Motors are provided with bearings having ample thrust capacity. The bearings are capable of taking the entire thrust load of the pump shaft assembly and the water column. APPLICATIONINDUSTRIESFor Vertical turbine PumpsIrrigation ProjectsPower/Steel/CementPaper Industries IENT FEATURES Specially designed for Vertical Turbine Pumps. Easy Installation as maintenance. Permanent shaft alignment. Well Protected construction. High thrust Capability. Rugged design. Anticlockwise direction of rotation looking from top of the motor. Non-reversible ratchet, which prevents the reverse rotation of the motor due to the back flow of water or phase reversal. Motors are provided with bearing ample thrust capacity. Bearing are capable of taking the entire thrust load of the pumps shaft assembly & the water column. Metalic fans for effective cooling in shorter cycles. A unibake component painting system at controlled atmosphere ensures quality finish, scratch and durability.

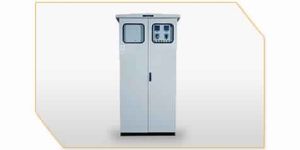

The Power +V3O are an Outdoor 33kV VCB Switchgear Panels of current ratings from 1250A to 2500A. Outdoor Panels are of Kiosk Type construction with double door in the front. The Rear door that is both hinged and bolted for safety. Adequate slope given on roof top to drain rain water. Robust weather and dust proof IP55 degree of protection externally and IP2X between compartments. SPECIAL FEATURES FOR OUTDOOR KIOSK PANELS Kiosk Type construction With Double door in the front shall be provided. Rear door is both hinged and bolted for safety. Adequate slope given on top roof to drain rain water, dust & Particles. Robust weather & dust proof – IP5X degree of protection externally & IP2X between compartments. GENERAL FEATURES Modular& compact for better strength and flexibility in extension. Fully Compartmentalized construction for optimal safety and protection Our design enables adequate space for large cable sizes. Even larger cables and additional runs rear extension is provided for cost effectiveness. Independent exhaust vents for all HT compartment are provided for natural cooling and exit for any flue gasses. Dedicated Circuit breaker compartment as per internationally proven ABB design. Cassette mounted ABB Circuit Breaker with draw out feature for easy maintenance and fail-safe safety. Live parts covered by automatic metallic shutters when breaker is racked out. Electrical anti-pumping design avoids mishaps due to mishandling of the breaker. Additional feature includes a separate Racking in/out mechanism which is provided in the breaker which can change from “test” to “service” positions and vice versa with the cubicle door closed. Only Branded and type tested sub components are used in our panels. Current and Voltage transformers are placed in chamber below Circuit breaker to avoid any kind of flashovers which may damage the breaker. Wiring done with flexible copper cable affirming to IS 694 for Longitivity and Durability. Optional integral earth switch can be provided on the cable side for Earthing. We provide Foundation frame as standard supply All hinged doors are provided with gaskets to keep away dust and water from the electrical components. Multiple guides are provided for safe and sure engagement of fixed and moving contacts. Breaker trolley shall be given along with the breaker panel for maintenance.

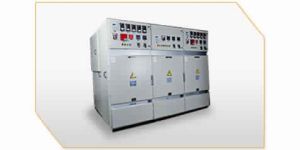

The Power +V3 are an Indoor 33kV VCB Switchgear Panels with current ratings from 1250A to 2500A. We use 33kV ABB VD4 VCB for our 33kV Switchgear Panels and this is latest circuit breaker from their portfolio. This VCB is manufactured in India and supplied worldwide of their plants. Panel shall be constructed with IP4X degree of protection externally and IP2X between compartments. GENERAL FEATURES Modular & compact for better strength and flexibility in extension. Fully Compartmentalized construction for optimal safety and protection For compactness in panels rated upto 2000A special bus raiser panel is provided with bus coupler panel extended in the rear side. IP4X degree of protection is provided externally & IP2X between compartments. Our design enables adequate space for large cable sizes. Even larger cables and additional runs rear extension is provided for cost effectiveness. Independent exhaust vents for all HT compartment are provided for natural cooling and exit for any flue gasses. Dedicated Circuit breaker compartment as per internationally proven ABB design. Cassette mounted ABB Circuit Breaker with draw out feature for easy maintenance and fail-safe safety. Live parts covered by automatic metallic shutters when breaker is racked out. Electrical anti-pumping design avoids mishaps due to mishandling of the breaker. Additional feature includes a separate Racking in/out mechanism which is provided in the breaker which can change from “test” to “service” positions and vice versa with the cubicle door closed. Only Branded and type tested sub components are used in our panels. Current and Voltage transformers are placed in chamber below Circuit breaker to avoid any kind of flashovers which may damage the breaker. Wiring done with flexible copper cable affirming to IS 694 for Longitivity and Durability. Optional integral earth switch can be provided on the cable side for Earthing. We provide Foundation frame as standard supply All hinged doors are provided with gaskets to keep away dust and water from the electrical components. Multiple guides are provided for safe and sure engagement of fixed and moving contacts. Breaker trolley shall be given along with the breaker panel for maintenance.

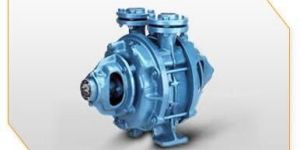

KV / DV Series Vacuum Pumps are Double Suction Double Delivery, Slow Speed, Horizontal, Centrifugal End Suction design. Used to removes gas molecules from a sealed volume in order to leave behind a partial vacuum. Offered in Monoblock & long coupled design the pumps are with sturdy casing provided with Foot, Suction, and Delivery Nozzles. Pumps are easy maintenance and have long life due to replaceable wearing parts. These pumps are many such in Drying & Evaporation, Distillation & Filtration, Sterilization, and Evacuation of air from suction pipes and chambers and Priming of large pumps. APPLICATIONS Drying & Evaporation Distillation & Filtration Sterilzation Evacusation of air from suction pipes and chambers Priming of large pumps APPLICATIONS Drying & Evaporation Distillation & Filtration Sterilzation Evacusation of air from suction pipes and chambers Priming of large pumps

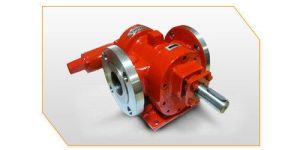

RDMS Series pumps are heavy duty foot mounting type positive displacement rotary twin gear pump. Pups are all stainless steel (SS316) in four piece construction with investment cast. Due to four piece construction it can be easily cleanable and maintainable. These pumps have a double helical refined SS316 gear shaft that is nitrated to give longer life. The Double helical gears prevent axial and side thrust which help increase life & performance of the pump. The Teflon coated, dry running DU bush bearing, supported on bronze wearing plate is placed inside the pump casing. These are a variation of the RDRN type pumps. These pumps are provided with add-on type pressure relief valve. Additional Steam / Water jacketing construction can be made available to facilitate heating of the pump by steam or thermic fluid etc for pumping special liquids that tend to solidify at lower temperatures. The stuffing box is fitted with GFO pack sealant with provision to fit mechanical shaft seal.  General Description: RDMS series pumps are foot mounted Special purpose pumps having flanged inlet & outlet ports.   Material of Construction: Pump Body: SS316 Gears: SS316 Double Helical Shaft: SS  316  H Nitrided & Ground. Bush: Teflon coated DU Bushes Sealing: Teflon base Z pack.   Features: Built in pressure Relief valve. Heavy Duty. Study Applications: All food grade products like Ghee, Butter, Fruit Pulp etc., Corrosive Viscous Liquids / Chemicals.

Number Of Flower : Stainless Steel Gear Pump

Application : Butter,Fruit Pulp etc.,Corrosive Viscous Liquids / Chemicals

Pressure : 20 kg/cm2

Material : Stainless steel

Size : 1/2" to 6"

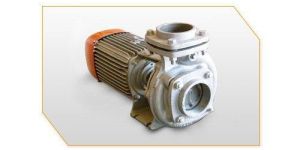

This series of pumps are one of our fastest selling products. Pumps are of End Suction Monoblock Pump. Years of experience, superior design and better manufacturing techniques have resulted in the development of this range of pumps, which are efficient and reliable in operation. Simple construction, easy to maintain and available readily these pumps are widely used for Agriculture, Water Supply, Utility, Cooling Tower and Industrial Uses. The pumps are offered with Gland packing or mechanically sealed. Pumps are suitable for wide voltage fluctuation. It has Top flat efficiency curve to enhance minimum variation efficiency in entire operating range.

Brand Name : Kirloskar

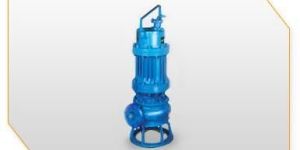

NS Series pumps are single stage, single suction pumps with overhung non-clogging impeller. Pumps are fully submersible and therefore do not require any priming. Pumps can be offered in stationary as well as transportable arrangements. The stationary arrangement is supplied with pump connector unit and the connector unit is connected to pump support bracket with rubber diaphragm to make it a leak proof joint. Pumps are specially designed to pump liquids with suspended solids of up to 105 mm. Pumps are supplied with Multiple impeller options depending on application. Pumps are very Rugged and Sturdy. Pumps are mainly used for Pumping Effluents, Waste Water, Storm Water and Raw Sewage etc. APPLICATIONS Effluents Waste water Storm water Raw sewage SALIENT FEATURES Permissible solid size up to 105 mm. Gland packed/Mechanical Seal. 50 HZ / 60 HZ availability. Multiple impeller options depending on application. Rugged and sturdy. Portable or stationery installations.

Capacity : up to 750 m /hr

Head : up to 48 metres

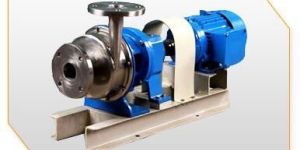

The Stainless Steel Pumps is a chemical pump used in the pumps & valves. Its salient features include a Back pull-out design with Enclosed, Semi open impellers. It is Conforming with DIN 24256 and ISO 2858; generally conforming to API 610. It has Gland packed/Mechanical seal. Its Available in vertical execution as well. Its Working pressure 16-25 kg/cm² and it is Available in various materials. Its applications include Process Liquid, Distilleries, Edible oil, Sugar Syrup and Water treatment plants. Its range includes its delivery Size up to 200 mm, with its Capacity up to 750 m³/hrr. APPLICATIONS Process Liquid Distilleries Edible oil Sugar Syrup Water treatment plants SALIENT FEATURES Back pull-out design. Enclosed or Semi open impellers. Conforming to DIN 24256 and ISO 2858 Generally conforming to API 610. Gland packed/Mechanical Seal. Also available in vertical execution. Working pressure 16-25 kg / cm2. Available in various materials.

Head : up to 150 metres

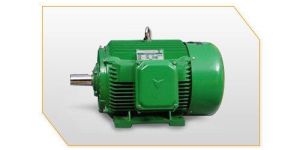

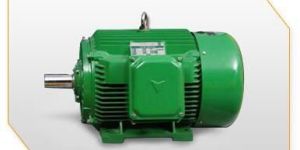

New India offers Energy Efficient LV Aluminum & Cast Iron motor range in frame. Motors are suitable for a diverse range of applications from Pumps, Fans, Conveyors, Compressors, Crushers, Machine Tools, Material Handling & Crane, Roller Table Drives etc. in various industries. Our motors have withstood many applications having adverse operating conditions including Repeated Starting, Occasional Overloading & Other Severe Conditions & Applications.We follow the highest manufacturing processes & practices. Motors with IEC & NEMA standards are offered with efficiency class IE1, IE2, IE3. Applications:  Pumps Fans Compressors Crushers Machine Tools Material Handling Textile Conveyors Cranes Salient Features: Inventor Duty. IE2/IE3/EFF1/EFF2 Motors. Energy Efficient and therefore are ideally suited for power intensive, process and other industries. Class F insulation with class B temperature rise limit. Suitable for DOL starting up to 100 frame and DOL / STAR-DELTA for 112 and above frames. High Starting and pullout torques. Low Noise level with 85 dB [A] at 1 metre and conform to IS : 12065. Low vibration levels conform to IS : 12075. Foot / Flange [ Both B&C type] mounting with single / double shaft extension. Suitable for flexible direct coupling or belt drives with Load GD2 equal to motor Gd2. Diecast aluminium rotor is designed to withstand the severe forces encountered during starting. Special copper brazed rotors are proved for high speed applications. Optimum fan design for better cooling and minimum energy consumption. Rigidly sealed Terminal Box at RHS of the motor when viewed from Driving End [ other positions can be offered against specific request]. Terminal boxes are larger in size with improved aesthetics, sufficient electrical clearances and are sealed against ingress of moisture and dust. Boxes for frames 250 and above are tested for through fault level of 43.7KA for 0.25 secs. Terminal Box can be rotatable 360 in step of 90. Endshields on DE and NDE are identical and can be interchanged, if called for, minimizing the users inventory.

Country of Origin : 220/380/415 V

New India offers Energy Efficient LV Aluminum & Cast Iron motor range with outputs from 0.18 kW to 375kW in frame sizes 63 to 355. Motors are suitable for a diverse range of applications from Pumps, Fans, Conveyors, Compressors, Crushers, Machine Tools, Material Handling & Crane, Roller Table Drives etc. in various industries. Our motors have withstood many applications having adverse operating conditions including Repeated Starting, Occasional Overloading & Other Severe Conditions & Applications.We follow the highest manufacturing processes & practices. Motors with IEC & NEMA standards are offered with efficiency class IE1, IE2, IE3. APPLICATIONS Pumps Fans Compressors Crushers Machine Tools Material Handling Textile Conveyors Cranes SALIENT FEATURES Inventor Duty. IE2/IE3/EFF1/EFF2 Motors. Energy Efficient and therefore are ideally suited for power intensive, process and other industries. Class “F” insulation with class “B” temperature rise limit. Suitable for DOL starting up to 100 frame and DOL / STAR-DELTA for 112 and above frames. High Starting and pullout torques. Low Noise level with 85 dB [A] at 1 metre and conform to IS : 12065. Low vibration levels conform to IS : 12075. Foot / Flange [ Both ‘B’ & ‘C’ type] mounting with single / double shaft extension. Suitable for flexible direct coupling or belt drives with Load GD2 equal to motor Gd2. Diecast aluminium rotor is designed to withstand the severe forces encountered during starting. Special copper brazed rotors are proved for high speed applications. Optimum fan design for better cooling and minimum energy consumption. Rigidly sealed Terminal Box at RHS of the motor when viewed from Driving End [ other positions can be offered against specific request]. Terminal boxes are larger in size with improved aesthetics, sufficient electrical clearances and are sealed against ingress of moisture and dust. Boxes for frames 250 and above are tested for through fault level of 43.7KA for 0.25 secs. Terminal Box can be rotatable 360 in step of 90. Endshields on DE and NDE are identical and can be interchanged, if called for, minimizing the users inventory.

New India offers Solid Yoke DC Motors specifically designed against application requirements. Motors are rugged & reliable in construction and have high dynamic response. Motors are offered with various cooling options for improved efficiency. Motors are used in Steel Mill Drive, Textile Mills, Overhead Cranes & Cement Mill Drives, Mining, and Test Rigs etc. SALIENT FEATURES Rugged reliable design and construction. Various improved cooling options for improved efficiency. Custom built designs for specific / special applications. High dynamic response.

Frame : 122 to 560

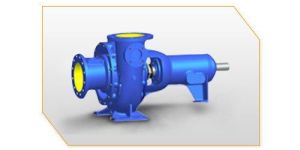

Our SHL pumps are horizontal non-clog pumps having single stage, single suction with back pull out type design. SHS are vertical non-clog pumps for wet pit applications. A column type pipe is used to suspend the pump section, this also protects the transmission shaft. We can offer these pumps with a column length up to 6.5m. Giving it a single suction type, non-clog, free flow dynamically balanced impeller makes them much more efficient in operation. In these SHM pumps grease is the standard lubrication with an option of oil for special needs. These pumps are widely used in Paper Industries, Water carrying Gravel, Sludge & Pulpy material, Sewage or Waste Water with Soft Solids in Suspension, Viscous Liquids, Liquids carrying Fibrous Material, Contaminated Process Liquids, Trade Liquors and so on. Applications: For handling liquids with solids in suspension. Pulpy material in paper Industries. Viscous liquids or powdered material slurries. Contaminated process liquids like sugar factory waste. Silent Features: Back pull-out design. Gland packed/Mechanical Seal. Also available in vertical execution.

Head : Upto 82 meters

Capacity : Upto 13000 m /hr

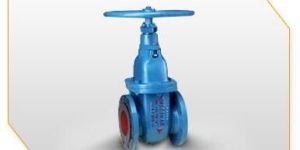

Sluice Valves are available in non rising as well as rising spindle type, suitable for clear water up to 450ºC. Our Sluice Valves are designed in total accordance of the applicable standards. With the integrated testing facility in-house we ensure that each valve performs to design and optimal performance. All designs are validated for stress analysis. Sluice valves find wide application in all types of Water Works, Water Treatment plants, Effluent Plants & Sewage treatment plants too. APPLICATIONS Water Effluent. SALIENT FEATURES Rigid and sturdy design. Low pressure loss. Available in Non Rising as well as in Rising Spindle type. Long service life. Resilient Seated valves available.

Size : 50 to 1300 mm.

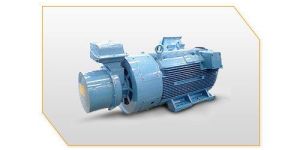

New India offers Low Voltage Slip Ring electric motors ranging Enclosed construction. Our Wound closed type motors have the same qualities of our Wound open type motors with additional enclosure construction that makes it very safe to use in dusty environments too. The design also takes care of the cooling and operation under rigorous conditions. Motors comply to IS standards. Specially designed motors are offered with IPSS standards to meet the requirements of Steel Plants. Motors are designed especially for applications with high inertia loads. It has reliable, rugged design and construction. Motors are suitable for starting with external resistance in motor circuit.Applications: Mixing and Rotory Mills Fans Compressors Crushers Pulverisors Silent Features: Designed specially for applications with high inertia loads. Reliable Rugged design and Construction. Low Noise and Vibration. Suitable for Direct/Belt Driven Applications. Bi-Directional Rotation. Optimum fan design for better cooling. Rigidly sealed Terminal box. Suitable for starting with external resistance in motor circuit.

Country of Origin : 380/415/550 V

New India offers Low Voltage Slip Ring electric motors ranging construction. Our Slipring motors are one of the most robust designs serving the industry for over 5 decades. The special care taken to ensure the quality of the Slip Ring and matching Brush Gear arrangement ensures trouble free operations and long lasting brush life. Our Slip Rings are specially treated copper strips moulded into epoxy-based insulation, the unique design gives them excellent stability in high temperatures with excellent anti-tracking property. Motors are designed especially for applications with high inertia loads. It has Reliable, Rugged design and Construction. Motors are suitable for starting with external resistance in motor circuit.Applications: Mixing and Rotory Mills Fans Compressors Crushers Pulverisors Salient Features: Designed specially for applications with high inertia loads. Reliable Rugged design and Construction. Low Noise and Vibration. Optimum fan design for better cooling. Suitable for Direct/Belt Driven Applications. Bi-Directional Rotation. Rigidly sealed Terminal box. Suitable for starting with external resistance in motor circuit.

Country of Origin : 380/415/550 V

Frequency : 50/60 HZ

Country of Origin : 0.38/0.415/3.3/6.6 kV

Power : 7.5 to 20000 kW

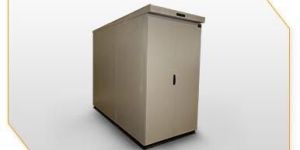

The Power +F3O are an Outdoor 33kV SF6 Switchgear Panels of current ratings from 1250A to 2500A. Outdoor Panels are of Kiosk Type construction with double door in the front. The Rear door that is both hinged and bolted for safety. Adequate slope given on roof top to drain rain water. Robust weather and dust proof IP55 degree of protection externally and IP2X between compartments. SPECIAL FEATURES FOR OUTDOOR KIOSK PANELS Kiosk Type construction With Double door in the front shall be provided. Rear door is both hinged and bolted for safety. Adequate slope given on top roof to drain rain water, dust & Particles. Robust weather & dust proof – IP5X degree of protection externally & IP2X between compartments. SPECIAL FEATURES FOR OUTDOOR KIOSK PANELS Kiosk Type construction With Double door in the front shall be provided. Rear door is both hinged and bolted for safety. Adequate slope given on top roof to drain rain water, dust & Particles. Robust weather & dust proof – IP5X degree of protection externally & IP2X between compartments.

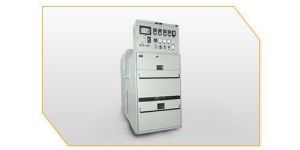

The Power +F are an Indoor SF6 Switchgear Panels. For compactness in panels rated up to 2000A special bus raiser panel is provided with bus coupler panel extended in the rear side. IP4X degree of protection is provided externally and IP2X between compartments. Panels shall have adequate space for terminating large cable sizes. Features: Modular & compact for better strength and flexibility in extension. Fully Compartmentalized construction for optimal safety and protection For compactness in panels rated upto 2000A special bus raiser panel is provided with bus coupler panel extended in the rear side. IP4X degree of protection is provided externally & IP2X between compartments. Our design enables adequate space for large cable sizes. Even larger cables and additional runs rear extension is provided for cost effectiveness. Independent exhaust vents for all HT compartment are provided for natural cooling and exit for any flue gasses. Dedicated Circuit breaker compartment as per internationally proven ABB design. Cassette mounted ABB Circuit Breaker with draw out feature for easy maintenance and fail-safe safety. Live parts covered by automatic metallic shutters when breaker is racked out. Electrical anti-pumping design avoids mishaps due to mishandling of the breaker. Additional feature includes a separate Racking in/out mechanism which is provided in the breaker which can change from test to service positions and vice versa with the cubicle door closed. Only Branded and type tested sub components are used in our panels. Current and Voltage transformers are placed in chamber below Circuit breaker to avoid any kind of flashovers which may damage the breaker. Wiring done with flexible copper cable affirming to IS 694 for Longitivity and Durability. Optional integral earth switch can be provided on the cable side for Earthing. We provide Foundation frame as standard supply All hinged doors are provided with gaskets to keep away dust and water from the electrical components. Multiple guides are provided for safe and sure engagement of fixed and moving contacts. Breaker trolley shall be given along with the breaker panel for maintenance.   Our Design Standards: Breaker IEC 62271-100 Current transformer IS 2705/1992 and IEC 60044-1 Potential transformer IS 3156/1992 and IEC 60044-2 Busbar IS 5082 for Aluminium Sheet Steel: IS 513 Cables IS 694

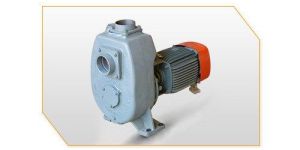

SP / SP-M Series Pumps are Single Stage, Horizontal, Centrifugal, Back Pull Out, Non Clog, Self Priming, Pumps. Pumps are offered in monoblock & long coupled versions. Pumps are fitted with NonClogging impeller is to handle suspended solids, Suitable for coupling with motor or engine. The casing design helps quick & automatic self priming action. Pumps are easy to install and maintain. These pumps are used in various Marine, Industrial, Civil Construction, Mobile Machinery and Public Utilities Applications.Features: Back pull-out design. Self  priming. Available in monoblock version also. Non  Clogging impeller to handle suspended solids. Suitable for coupling with motor or engine. Applications: Sewage / Muddy water Rain and Storm Water Petroleum Products Liquids with Solids in suspension Light Slurries

Brand Name : KIRLOSKAR

Capacity : Upto 275 m3 /hr

Head : Upto 34 meter

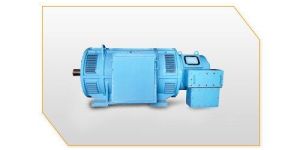

New India offers specially designed motors for Rerolling Mill Duty Motor. Our motors are rugged, heavy duty, compact, and maintenance friendly. Their shock resistant construction takes care of the heavy mechanical jerks and electrical spikes in current due to heavy load cycles. Applications Industries Mill Stands/Mill Drive Steel-Re-Rolling Mills Cain Crusher/Mill Drive Sugar Mills Mill Drive Cement Mills Salient Features: Functional, Rugged, Heavy duty, Compact & Maintenance friendly. Shock resistant construction in cast Iron & Steel fabricated body. Rotor is specially designed with tight-bar-in-slot construction with taper section to obtain adequate stating torque & critical load factors. Stators & Rotors are flood impregnated with polyester resin varnish to ensure longevity of protection against chemicals and moisture. A high carbon, hard steel shaft with a large cross section provides, strength with minimum deflection & vibration. Heavy duty Bearings, Brushgear & Slipring ensure high efficiency even under severe operational conditions. Design ensures efficient ventilation & heat transfer from windings & cores. Can offer IP23/IC01; IPW 44/IC01; IP55/IC61; IP55/IC66; IP55/IC81 Terminations are provided in a large box to ensure full electrical clearances & insulations. Use low-loss magnetic core stamping & high conductivity copper conductors (solid & wire) for windings, with class B/F insulation. With a design that has proved itself over 3500+ machines that have been deployed in the last 50+ years clearly this is the choice for all suitable applications. Can take and sustain high number of sudden overloads.

Number Of Flower : AC

Country of Origin : 415/550/690/3300 V

Mounting Type : IM1001

Number of Poles : 6/8/10

Size (mm) : 400 To 710 Mm

Frequency : 50/60 Hz
