Renewable Energy Applications & Products Malleswaram, Bengaluru, Karnataka

ReAP - Solar powered Irrigation Solutions – A low cost, battery-less solutionReAP solar irrigation Water Pumping System is a stand-alone system operating on power generated by Solar Photovoltaic Panels.The power generated by Solar Panels is used for operating Mono bloc or Submersible pump for lifting water from bore well, open well or water reservoir for irrigation and drinking water purpose. Water can be pumped as long as sunlight is available. Capable of pumping in cloudy weather with varying pressure.Can be used with existing 3-Phase Mono bloc or submersible pumps.System Components• Solar Photovoltaic Panels• Mounting Frame, Cabling System & other Accessories• 3-Phase Drive with Controller. Special Features of Solar Powered Pump• Robust 3 phase inverter Drive connects between Solar panel and Motor.• Rugged construction• Simple installation and maintenance• Highly reliable Applications• Village water supply• Livestock watering• Water supply to remote homes / agriculture• Micro-Irrigation Benefits• No conventional grid electricity required• Long operating life• Highly reliable and durable• Easy to operate and maintain• Eco-friendly• No fuel cost- uses abundantly available free solar energy.

Automatic dusk to dawn operation 12v 50W / 70W Panel 12v 40 / 75 AH Tubular Battery 12W / 18W Luminary Power Saver feature 3 Day Autonomy 50,000 Hrs of LED Life High Efficiency Charge Controller 16' Pole Low ownership Cost This model is recommended for street lighting, pathway lighting, estate and farm house exterior lighting, resort lighting, etc.,

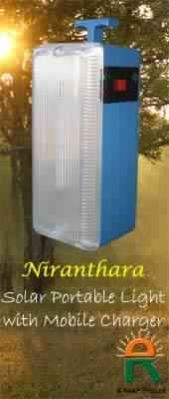

Kit Contents & Features: 6v 5 Watt Mini Solar Panel Built-in 6v 4.5 AH SMF Battery Microcontroller based pwm circuit for charging Intelligence for low light charging Brightness of each unit = 7 Watt CFL 10+ Hours operation on full charge Brightness control thru dimmer switch Supports 220V Charging [Optional Accessory] Ideal solution for rural areas, small shops, high power cut areas and remote segments without grid power access looking for very low cost , affordable and quality lighting.

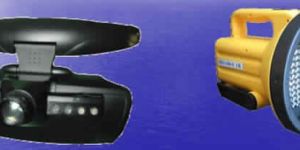

Our night vision   partolling equipment has been designed specially for the forest department personnel who require to have the advantage of stealth when approaching a gang of poachers in the night in the junlge. This low cost equipment has a head ounted visor with wide field of vision and is accompanied by an IR (Infra-red) torch. The torch is capable of illuniating an area of around 50-60 feet with a 60 deg. field of lighting. Some of the features of the Visior are: Miniature TFT Screen Miniature Camera Head Mount with Flip type Visor Built in IR LEDs Some of the features of the torch are: Torch with high powered IR LEDs Built-in 12v Battery for continuous operation Lasts for whole night on a single charge Can be charged in any APC  (Anti-poaching Camp) using the Walkie / Cell phone charger Module

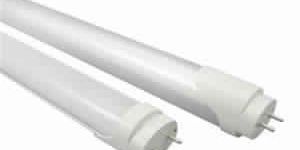

• Is suitable for fitting on existing standard tube light fixture.• Performs  at par with 40W fluorescent tube light• 10 times more life span comparatively• Is having dimmable option under which power consumption is low• Expels 8-% as light energy with 20% power converted to heat which is vice versa in fluorescent tubelight.• Is humidity & moisture resistant• Instant turn on  ( no flickering)• Excellent light performance and considerable savings in cost   of  power consumption  • Lasts more than 10 years• Is eco friendly.  No ultraviolet light or harmful radiation• High brightness & high efficacy of about 125 lm / W• Strong, safe & excellent heat dissipation. Advantages : • Equivalent to 40W fluorescent tube light performance.• ROI with in 1 year under the usage of 24 hrs/day, thereafter 60% cost of power consumption is saved compared to regular tube light.• Very High efficiency of 97% at 230V AC input.• Low thermal dissipation compared to competitors solution, 36 degree centigrade for 14W power output. (See power dissipation graph).• Even spread of light across the tube light length, will give feeling of fluorescent tube.

Power Consumption : 14W

Size : Length: 1200mm (4 feet), diameter: 25mm (1 inch)

Power Factor : 0.5 Leading

Total Carbohydrate : 3 years.

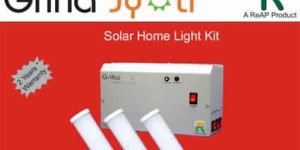

12v 18Watt Solar Panel 3W LED Light x 3 Battery Pack with Built in Solar Charge Controller 12v 7.2Ah SMF Battery Wiring Kit 6 Hours of Charging in bright sunlight Duration: 19 Hrs with 1 Light, 12 Hrs with 2 Lights , 7 Hrs with 3 Lights Supports 220V Charging [Optional Accessory] We have customized kits for home lighting. For details please call. Ideal solution for rural areas, small shops, high power cut areas and remote segments without grid power access looking for very low cost , affordable and quality lighting.

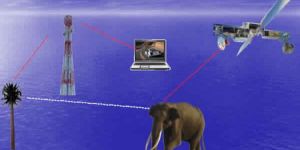

The animal tracking collar will have both GSM and GPS capability. The animal movement coordinates will be tracked using the on-board GPS and stored in a memory chip. To minimize battery consumption of the GSM module, low-cost mini GSM receptors will be installed at various points in a given national park and those towers will have the capability to communicate with the Cell phone towers within range. So the GSM module on-board the animal will just have to transmit the data to the nearest receptor from where it is picked up and re-transmitted to the main cell phone tower . Other features:Remote unlocking of the radio collars for retrieval and repair or to replace dead battery banks.

With our technical expertise and thorough understanding of requirements in the field by conservationists and enthusiasts alike, we have designed several models of camera traps using digital cameras. Each model is custom designed according to the users requirement. Being an ingenious Indian product we are proud to have built the digital camera traps using DSLR cameras, digital cameras and High definition Video cameras, etc. Point and Shoot Digital Cameras triggered  by a PIR sensor Unique Trail Sense ™ Technology developed by our labs Auto Power Off function to save battery power Camera Wake up on animal approach Multiple Pictures in a single trigger Bright Flash for clear night shots 1.6mm Steel Metal cabinet and easy carry handle Weather Proof - [Can withstand Humidity, Rain, Sun, Cold] Built in 6V battery with a option to charge the camera trap using a mini solar panel for unlimited power supply during long field studies Fully Charged battery allows 6000 Pics 2) DSLR Camera trap - For Wildlife Photographers Canon range ofselected DSLR cameras used Unique Trail Sense ™ Technology developed by our labs Instant Trigger with Multiple Pictures in a single trigger. Works the same way when in Flash mode also. Bright Flash for clear night shots 1.6mm Steel Metal cabinet with a tamper-proof lock and easy carry handle Weather Proof - [Can withstand Humidity, Rain, Sun, Cold]

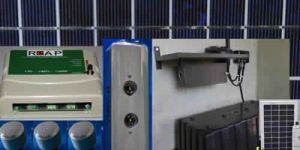

12v 50 Watt Solar Panel 40 AH Tubular Battery Microcontroller based pwm circuit for charging Charging and Battery Low Indicators 6W LED Light x 1 3W LED light x 3 Portable lighting kit Wall mount platform with mirror for charging Motorola Walkie & all models of Nokia cell Phones This kit has been customized and developed specially for use by the forest department in their anti poaching camps located in remote areas.
