Screw Jacks Dealers

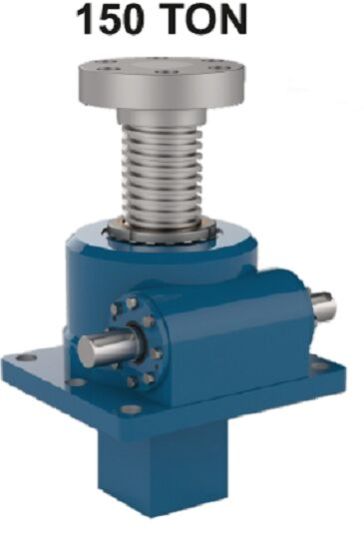

Cubical model. Three different frames in centre distances of 59.88 and 117mm. Lifting capacity from 7.5kN to 300kN. Input motor speed upto 3000rpm. Lifting speed upto 7.5m/min. Worm seat ration 5:1 standard. Ball Screw sizes from 20 upto 80mm from travelling screw and upto 125mm for travelling nut version. Top and bottom guide bushed for ball screw. Tapered roller bearings for worm shaft and worm wheel support. Case hardened and ground worm with Aluminium bronze worm wheel. Can be used upright or inverted Housing mode of SG iron grade 500/7. Case hardened steel for worm. Aluminium bronze for worm wheel.

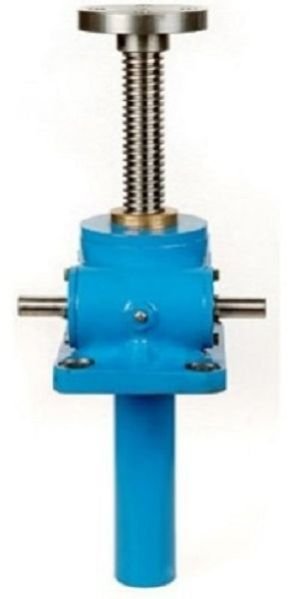

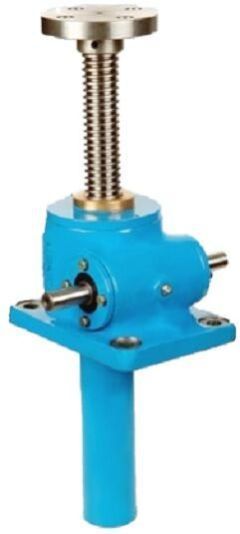

We are one of the prime Mechanical Actuators Manufacturers, based in India. Manufactured from the optimum quality raw materials, our Screw Jacks are perfect to lift heavy articles ranging from 0.5 tons to 200 tons along with the capacity to lift from 50MM to 3000MM. Our Worm Gear Screw Jacks give precise mechanical actuation, position and pressure to lift loads. Depending on the load, our Ball Screw Jacks are used individually or in a set of two to four gearboxes. Our Screw Jacks are reckoned for the durability, low noise emission and economical features.

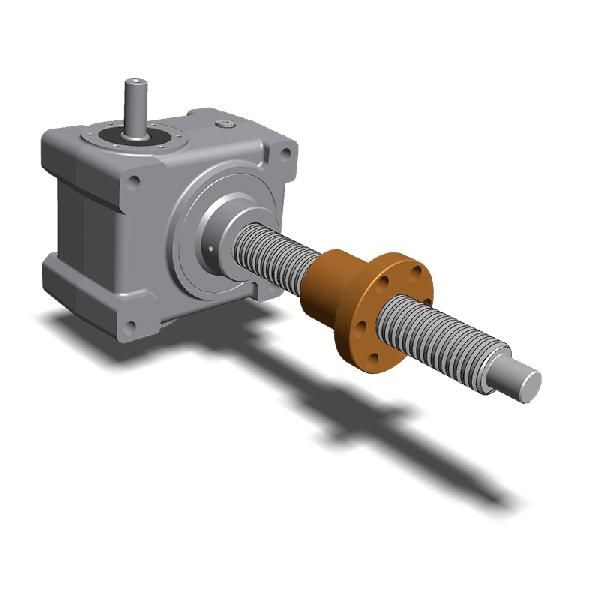

Screw Jacks allow to transform a rotary movement supplied by a motor or even a manual operation into a linear movement of vertical lifting, in push or pull, or horizontal position. Their use can take place either individually for various configurations composed of multiple jacks, through the coupling with joints and connecting shafts and bevel gear boxes. Jacks allow to create lift systems with perfect synchronization even if the load is not perfectly distributed.   Specification : Screw Jack HRHR 05 : Tech Values Max force: 5 kN Gear ratios: 1:4, 1:10, 1:16, 1:30 Acme screws: 18x4 Accessories: limit switches, potentiometer, encoder HR 10 : Max force: 10 kN Gear ratios: 1:4 1:10 1:16 1:30 Acme screws: 20x4 Motor: 1ph - 3ph Vac HR 25 : Max force: 25 kN Gear ratios: 1:5 1:10 1:30 Acme screws: 30x6 Motor: 1ph - 3ph Vac HR 50 : Max force: 50 kN Gear ratios: 1:5 1:10 1:30 Acme screws: 40x7 Motor: 1ph - 3ph Vac HR 100 : Max force: 100 kN Gear ratios: 1:5 1:10 1:30 Acme screws: 55x9 Motor: 1ph - 3ph Vac HR 200 : Max force: 200 kN Gear ratios: 1:5 1:10 1:30 Acme screws: 70x10 Motor: 1ph - 3ph Vac Screw Jacks HTHT 05 : Max force: 5 kN Gear ratios: 1:4 1:10 1:16 1:30 Acme screws: 18x4 Motor: 1ph - 3ph Vac HT 10 : Max force: 10 kN Gear ratios: 1:4 1:10 1:16 1:30 Acme screws: 20x4 Motor : 1ph - 3ph Vac HT 25 : Max force : 25 kN Gear ratios : 1:5 1:10 1:30 Acme screws : 30x6 Motor : 1ph - 3ph Vac HT 50 : Max force : 50 kN Gear ratios : 1:5 1:10 1:30 Acme screws : 40x7 Motor : 1ph - 3ph Vac HT 100 : Max force : 100 kN Gear ratios : 1:5 1:10 1:30 Acme screws : 55x9 Motor : 1ph - 3ph Vac HT 20082877 : Max force : 200 kN Gear ratios : 1:5 1:10 1:30 Acme screws : 70x10 Motor : 1ph - 3ph Vac

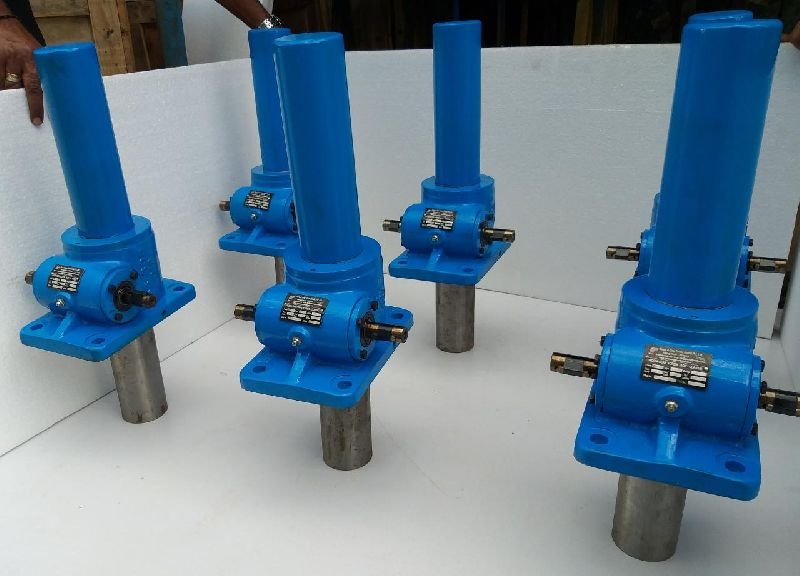

An established manufacturer and supplier from Bangalore, Karnataka, we offer quality Screw Jacks for a variety of applications.  The Screw Jacks we offer are made from superior quality material and are recognised for their sturdiness.  They are widely used in paper mills, power station equipment, sugar and packaging machinery and other areas where lifting of loads is involved.  We can customise these screw jacks as per your individual requirements.   Application :  Paper Mill  Packaging Machinery  Sugar Machinery  Power Station

Screw Jacks, Worm Gear Box, Gear Motors, Crane Duty Gear Boxe

Screw Jack, Flow Control Valves, Gears, Pinion Shaft, Turning Component

Screw Jacks, Material Handling Equipment, Hospital Bed System, Worm Gearbo
