Screw Jacks Dealers

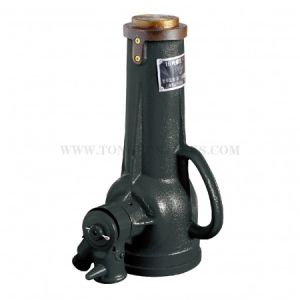

Our range of Smak Mechanical Screw Jack/ Cable Drum Jack/ Long Chasis Jack/ Gear Box Jack conforms to all quality norms of internationals standards. We are the reliable Exporter and Supplier of Smak Mechanical Screw Jack. We offer it in various specifications such as models, different strokes, working pressure and capacity. The mechanical bottle type jack, we offer, is available in different capacities ranging from 3 ton to 65 tons.

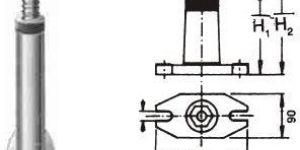

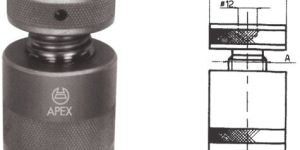

Screw Jack With Double Side Flange   Features : Centering hole dia 12 mm. More base area provided to compensate for height. Spindle: Carbon Steel Trapezoidal Thread Housing: High Tensile SG IRON. Pads Code P911-8/14 and 9/26 can be used for safe locating of U- Clamps.

Features Low cost, effective teaching Self-contained Bench mounted Introduction to simple machines Determination of velocity ratio mechanical advantage and efficiency Overhauling Three year warranty Range of Experiments Experimental determination of velocity ratio and comparison with calculated value Determination of variation with load of: 1. effort 2. friction 3. efficiency Limiting efficiency of the machine Description This simple screw jack is a 220 mm diameter turntable fitted with a 30 mm x 6 mm pitch screw is supported in a heavy cast iron base. The apparatus is stood on a firm bench and a cord and weight hanger are wound round the rim of the turntable and hung over the pulley. The pulley runs on ball bearings to reduce friction to a minimum. This equipment is part of a range designed to both demonstrate and experimentally confirm basic engineering principles. Great care has been given to each item so as to provide wide experimental scope without unduly complicating or compromising the design. Each piece of apparatus is self-contained and compact. Setting up time is minimal, and all measurements are made with the simplest possible instrumentation, so that the student involvement is purely with the engineering principles being taught. A complete instruction manual is provided describing the apparatus, its application, experimental procedure and typical test results.

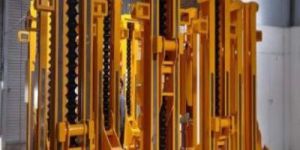

An established manufacturer and supplier from Bangalore, Karnataka, we offer quality Screw Jacks for a variety of applications.  The Screw Jacks we offer are made from superior quality material and are recognised for their sturdiness.  They are widely used in paper mills, power station equipment, sugar and packaging machinery and other areas where lifting of loads is involved.  We can customise these screw jacks as per your individual requirements.   Application :  Paper Mill  Packaging Machinery  Sugar Machinery  Power Station

Screw Jacks_Drawings Trapezoidal self-locking thread, spindle with final safety device. The holders, which can be secured by means of the T-slots, make it possible to tighten the jacks so that they will not slip out of position when a workpiece is changed. They also allow to fit screw jacks to vertical clamping surfaces. Screw jacks are frequently used for supporting workpieces. Use of the self-aligning cap ensures a correctly aligned bearing surface. Using the centering plate as an intermediate element, it is possible to fit a number of screw jacks sizes 52, 70 and 100 together one above the other. Material Caps Steel, case-hardened, blackened holder Steel, blackened Screw Jacks Steel 1.0503 varnished

Our Ratchet Cable Drum Screw Jack comes with the manufacturing tolerance of +10 mm. We make available our Ratchet Cable Drum Screw Jack in different capacities and pressure. Moreover, every single Ratchet Cable Drum Screw Jack is quality tested by the adroit engineers to prevent any kind of manufacturing defect.

Magtorq has now added a new product range with Electro-Mechanical Outrigger Jacks and Actuators in addition to their range of planetary gearboxes and special gear transmissions. Wide range of this product to cover load, stroke length and environmental conditions was necessitated by the demand for motorized, reliable mechanical actuators and jacks out-rigged on military equipments. We are happy to say that hundreds of these units are now in operation successfully and the consolidated details of these supplies form the core of this catalogue which we hope will enable you to select a unit to meet your requirements. Electro-Mechanical Actuators are made on the same principles as Outrigger jacks, they are provided with yokes at one or both ends as required. They are sized similar to the outrigger Jacks and the basic selection can be made from the details provided below. As always, Magtorq is ever ready to work on your enquiries to meet special requirements that are not covered by the features provided in this product range. STANDARD FEATURES: .Fine finished and matched Nut and Screw for smooth operation. .Long life lubricant to provide superior service at high working loads. .Manual operation with minimum effort. .Self locking Screw-Nut combination. .Customized stroke lengths. .Foot with spherical joint to handle ground inclination. .Provision to mount encoder and end limit switches. .Torque limiter between motor and gear train. .Shock absorbers at the ends of stroke. .Fully sealed with Elastomeric seals. .Suitable for operation between -30 and +55 Degrees Centigrade. PRODUCT RANGE

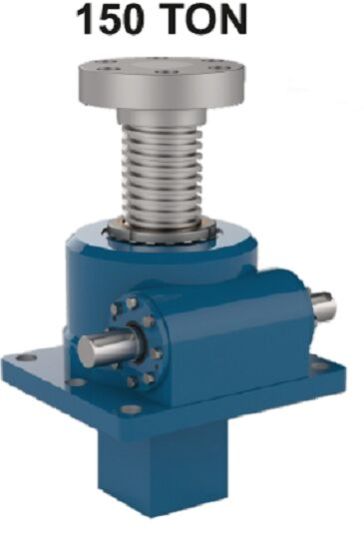

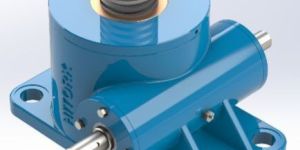

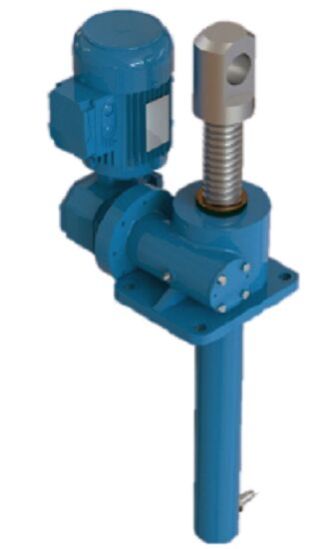

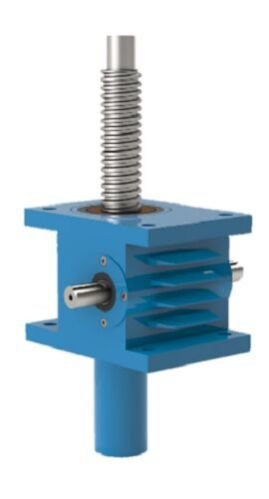

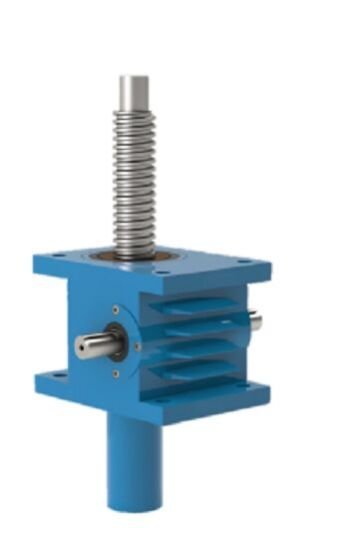

CLASSIC Model MWJ. 15 Different Sizes. Lifting Capacities 5kN TO 1500kN. Drive Motor Speed up to 1500 rpm. Self Locking Trapezoidal Screw. Worm Gear in two ratios, Nominal and Slow. Top and Bottom Guide bushes for Lifting Screw. Worm Wheel hobbed for optimum blue contact. Filled with NLGI EP 1 or 2 grade grease. Worm Shaft Case carburized Steel, hardened and ground thread profile. Trapezoidal Screw Shaft Cr-Mo Steel, hardened & tempered. Housing Alloy aluminum for 5 and 10 kN, all higher sizes in SG Iron. Worm Wheel and travelling nut in Aluminium Bronze.
