SWA Systems India Pvt Ltd Kumaraswamy Layout, Bangalore, Karnataka

SWA Order No. : SWA-1075-A1-R0 Application: For Drive Control   Technical Data

Mounting : DINRAIL

Country of Origin : 0-2000V AC/DC

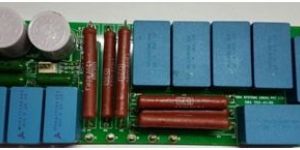

SWA Order No : SWA-1105-A1-R00 Features Used with SIEMENS 6RA22 DC drive Equivalent to C98043-A1604-L1 Used for thyristor gate firing circuit. Snubber Circuit is built into it.

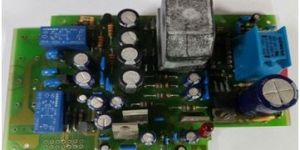

SWA Order No. :SWA-1035-A1-R0 POWER SUPPLY FOR SIWAREX , ±5V AND ± 15V WITH RELAY LOGIC Technical Data: SIEMENS SIWAREX weighing system Power supply for control card Inbuilt in SIWAREX-P 7MH4205-1AC01 module.

SWA Order No : SWA-1092-A1-R0 Features Z80 CPU based Computer. Used to control the Hydraulic Control of Wheel and Axle Plant Press Supports analog and digital signals in expanded rack This card can replace PE-2080

PRODUCT QUOTED sag1-l10 10 push button double step

Voltage : 110v, 220v, 380 ac

Brand Name : saga radio

Material : ABS

Shape : Square

Color : yellow

Design : Standard

Condition : New

Power Source : ac supply

Country of Origin : AC Type 24 /48 / 110 / 220 /380V;DC Type 12

Brand Name : Saga

Application : Material Handling

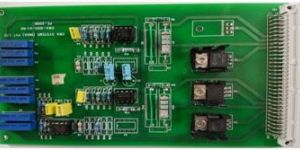

SWA Order No : SWA-1095-A1-R0 Features This card is used for running hydraulic pumps This card can be interfaced with CPU PE-2080 This card can replace PE-2008

SWA Order No. : Triggering Thyristors: SWA-1005-A1-R2 Features: Pulse Transformer assembly for Triggering Thyristors used in DC drives e Specially suitable SIMDYNE C Drive BHEL / SIEMENS make Pulse transformer assembly equivalent to 6QN1010-4AD

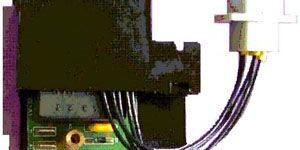

SWA Order No. : SWA-1007-A1-R1 Features: Pulse amplifier assembly equivalent to 6QN1013-3AD

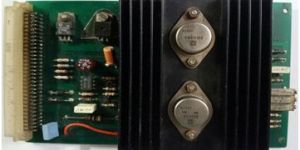

SWA Order No : SWA-1094-A1-R0 Features 2 Channel proportional amplifier Maximum current 800mA Operating frequency 200Hz This card can replace PE-2025 This card can be interfaced with CPU PE-2080

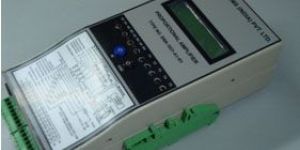

Microcontroller Based Proportional Amplifier with LCD Display for Valve control. This module is suitable for control of proportional directional valves and pressure valves without position feedback.   Technical Data:     Four command values adjustable with potentiometers Differential input Step function generator Ramp generator with five ramp times Two pulsed current output stages LCD display of parameters namely command value(W) and solenoid current (IA & IB) using PIC-Microcontroller Polarity protection for the voltage supply Din-Rail mountable Equivalent to VT 3006 Rexroth DIN RAIL mountable No addition card holder required

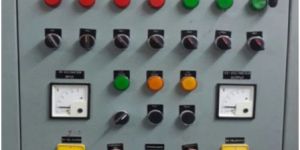

SWA Order No: SWA-1022-A1-R0   Technical Data:     Based on SIEMENS PLC S7 214 Provision for 2 analog input and 2 analog output modules 10 digital output 24V DC 14 digital input 24V DC Power Supply 230V. Works on SIEMENS MICROWIN software. Digital outputs are displayed by indication lamp on the panel Inputs can be given through push buttons selector switch, emergency stock push buttons. Analog inputs can be given through potentiometer

SWA Order No : SWA-1042-A1-R0 Technical Data Consists of 5V , +/-15V and also Programmable TDK Lambda Dual power supplies Voltage Selectable through programming terminal

General purpose board for microcontrollers 8051 , 892051 with Seven segment display , LCD , Separate connector for Inputs and Serial port for interfacing. SWA Order No. :SWA-1026-A1-R0

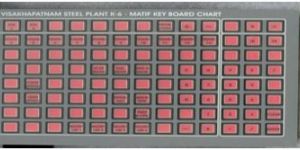

Matif 66 keyboard   SWA Order No : SWA-1006-A1-R1 Technical Data Built with 66 keys both function & numerical keys Communicate with R series computer on 3964R Protocol Ruggedly built for industrial application   Matif 128 Keyboard SWA Order No : SWA-1006-A2-R1 Technical Data Built with 128 keys both function & numerical keys Communicate with R series computer on 3964R Protocol Ruggedly built for industrial application

SWA Order No : SWA-1109-A1-R0 Features Magnetization & Demagnetization circuit for Conveyer System

SWA Order No : SWA-1043-A1-R0 Technical Data Consists of serially interfaced LCD terminal and also all the outputs of HATCT are available on a female 50 pin connector

SWA Order No. : Receiver : SWA-1023-A1-R0 Transmitter : SWA-1023A-A1-R0 IR operated module is for remote control of lifting of heavy loads , movement of cranes up to 8 meter range with line of sight communication.   Technical Data:     110/230V AC power supply 8 Relay outputs with LED indication Microcontroller based Operating range up to 8 m AA size battery operated transmitter with compact size Up, Down , Right and left keys are available

SWA Order No : SWA-1038A-A1-R0 Features Separate cards mounted in 6U rack facilitating easy maintenance and test 200W Programmable DC power supplies with built in RS-232 & RS-485 interface with GPIB optional. Easy availability of voltages and resistances on facia Flashing through BDM connector on Facia Used in automobile industry for testing ECU Application : Test ZIG using in Automobile Industry

SWA Order No : SWA-1041-A1-R0 Technical Data 8 Digital Output discreet board Output 0.02% accuracy

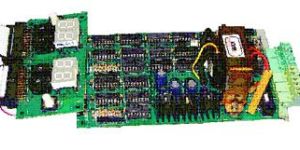

SWA Order No. : SWA-1021-A1-R0   Technical Data:     On delay and Off delay timer with preset value 0- 99 secs / minutes / Hrs Timer with relay output , 12V and 5V outputs

Technical Data

Output : 0mA to 1250mA / 0 to 10v / 20 mA. max

SWA Order No : SWA-1099-A1-R0 Technical data 0-40A to 0-10V 24V power supply Microcontroller based. Can be programmed for any signals for 3 levels to operate 3 relays Signal is 0-10V
