Taurus Powertronics Pvt. Limited Rajajinagar, Bengaluru, Karnataka

The max-3 is a revolutionary innovative system significantly minimizes the transmission line downtime and overall line maintenance time. Max-3 is the third generation, one of its kind product that works on the principle of multiple pulse echo corelation technique, using advanced matrix processors. A single system offers a cost effective monitoring of all ac overhead deenergized lines from 66kv to 800kv, providing accurate information on all faults and line signature analysis, which give data of all inhomogeneous points advantages: offline fault location ã� overhead ehv ac transmission line signature analysis ã� line healthiness analysis and diagnosis ã� commissioning of new overhead transmission line ã� virtual line patrolling ã� predicts inhomogeneous points ã� attaining optimum transmission line availability ã� effective maintenance of transmission system ã� all types of faults & inhomogeneities in line will be located accurately in very short time

Brand Name : Taurus Max-3

Preziohm tfr is a portable system specially designed to measure impedance and resistance of transmission line tower footing without necessitating removal of top ground wire. Preziohm tfr has a wide measurement range (0to 2k ohms) and is immune to power frequency interference and its harmonics. The instrument is designed to operate in a highly induced environment and to give highly stable, reliable, repeatable readings with its strong capability of noise & leakage current voltage suppression advantages: measures impedance along with resistance of the transmission line tower footing without isolating overhead earth wire ø automatic suppression of all noise and leakage currents ø metallic shielding to suppress emi interference and emc compliance ø dynamic measurement ø rock steady, reliable and repeatable readings in induced environment ø high capacity battery for long and continuous operation

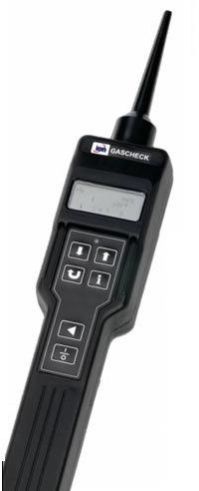

Detailed description sf6 leakcheck p1:pis designed for the location, leak testing and measurement of sf6 inhigh voltage electrical switchgear. The instrument uses ion science's negative ion capture (nic) technology which eliminates the need to use the radioactive source ecd principle. Therefore leak check has none ofthe problems of registration, storage and transportation associated with other radioactive based products. Leakcheck is highly sensitive with a response of less than 1 second to even the smallest of leaks.clear down is also less than 1 second and importantly the instrument is unaffected by large leaks - even 100% sf6 will not contaminate the detector. sf6 leakcheck p1:p is now also available with a highsense option detecting leaks as small as 1 x 10-8 mlsec! features include: no radioactive detector no argon or other pressurised gases required smart sensor technology, detachable probe 1 second rise and clear down display units ccsec, gmyr and ppm touch screen with help menus lightweight 3 button handgun data storage and printing no training required, switch on and go rugged pelican case exterior large leaks present no contamination problems with rapid clear down ultra high sensitivity with a 1 x 10-8 mlsec highssense option.

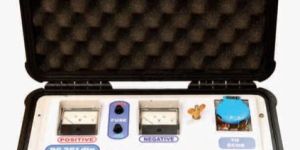

Digitrace dc 361p simplifies the tracking of ground faults on floating dc systems in power station. It's an advanced sensing system which precisely identifies and pinpoints the complex earth faults on any floating dc system in on-line condition. The fault resistance range is up to 100kî©. It is capable of finding faults in a maze of noise and other mimicking fault conditions, source of which is perplexing and misleading. It is a portable system comprising of two units : transmitter unit and receiver unit. the necessity dc floating system is an important part of any power station. Any earth faults on dc system can disturb the sensitive functioning of control units like trip relays, breaker etc., there by affecting the stability of the power station. Tracing earth faults in offline condition will interrupt the functioning of critical control circuitry and it is highly recommended to have an online dc earth fault locator to find out the faults on-line. Why taurus digitrace ? ã� high sensitivity ã� automatic capacitance balancing ã� detects and pinpoints faults on -line ã� indicates and pinpoints mixing of sources ã� high capacity battery for long and continuous operation ã� immune to 50hz and its harmonics ã� emc emi compliance ã� protected with ip 67 pelican casing ã� portable and easy to operate ttrraannssmmiitttteerr ã� power supply : built-in rechargeable battery ã� operating frequency : very low frequency ã� output voltage : auto selected from â± 12 to â± 50v ã� can be connected to any floating system from 48vdc to 300 vdc.

We are offering new digital earth ground resistance tester.

Place of Origin : Karnataka, India

Application : Other

Lead Time : As per requirement

Model Number : ALCL 40L

We are offering insulation tester.the ohmega it is a digital insulation analyser with simultaneous indication of insulation resistance in kilo megha ohms, pi index,dar, voltage applied, leakage current, time elapsed etc. The output is derived with the latest state of the art technique achieving high efficiency and output regulation.the ohmega it comes with various models with test voltages ranging from 5kv to 30kv, range up to 35 tω. Apart from standard models available,the option of customized short circuit current is also provided. Advantages- ø automatic suppression of induction and specially designed to operate in highly induced environment. Ø metallic shielding to suppress emi interference and emc compliance ø dynamic measurement ø rock steady, reliable and repeatable readings in power station environment ø high capacity battery for long and continuous operation. Salient features: the taurus ohmega it insulation analyser has test voltages ranging from 5kv to 30kv. The user can also opt for continuously variable test voltage ø the insulation resistance range up to 35 tohms is selectable in the list of variants. Ø short circuit current customization apart from standard models. Ø all models are provided with induction suppression of 2.5kv. Additionally the user can opt for induction suppression up to 10kv. Ø single button operation for all tests ø simultaneous display of all the parameters like applied voltage, leakage current, ir value, darpi, time elapsed without need to scroll the display. Ø high capacity battery (12v, 7ah) for long and continuous operation ø metallic shielding to suppress emi interference and emc compliance

Brand Name : Flir i3

Voltage sensing range : 50V AC to 750KV AC

Voltage sensing range : 50V AC to 750KV AC

Brand Name : Energomonitor 3.3 T1

Brand Name : Digital power recorder
