Wide Belt Sander Machine

1,148,000 / Units

Automatic GradeFully Automatic
Working Height125mm
Feed Motor3HP
Table Hoist Motor1/2 Hp
Feed Speeds (variable)4-16 M/min
Conveyor Belt Size610 x 4000mm
Sanding Belt Size25 x 60 inch
Net Weight/Gross Weight1850/2150Kg
Dimensions (LxWxH)87 x 54 x 73 inch

...more
Wide Belt Sander Machine

1,148,000 / Units

Automatic Grade : Fully Automatic

Get Best Price
Vacuum Press Machine

Get Latest Price

Table Frame Dimension2870 x 1350 mm
Motor Power2,8 Kw
Motor Speed1450 rpm
Noise68 Dba
Total Operation Time4- 5 min
Max Temperature200 Deg C

...more
Vacuum Press Machine

Request for Price

Get Best Price
Straight Line Rip Saw

1,123,000 / Piece

Availability1782 Kgs
Feeding Speed5
Max Blade Diameter455 mm
Max Working Width600 mm
Max Working Thickness120 mm
Min Working Length250 mm
Overall dimensions2320 x 1600 x 1450 mm(L x W x H)
Voltage415 V / 50 Hz / 3P
Blade dimensions455 x 40 x 60 x 50.8mm
Saw blade dia50.8mm
Spindle speed2900 r/min
Spindle Motor Power11 KW
Motor power12.5 KW
Working table dimensions2100 x 1185 mm

...more
Straight Line Rip Saw

1,123,000 / Piece

Availability : 1782 Kgs

Get Best Price
Single Head Horizontal Boring Machine

320,000 / Piece

Availability300 kgs
Country of Origin420V / 50C / 3P
Overall Dimension1200 x 900 x 1350 mm
Maximum Drilling DiameterMax 35 mm, D. 13 mm
Maximum Drilling DepthH Max 60 mm
Total Number Of Drilling Shafts21
Installation Pitch Of Drilling Head10 mm
Spindle Speed2840 rpm
Air Pressure5
Total Power Of Motor1.5 kw

...more
Single Head Horizontal Boring Machine

320,000 / Piece

Availability : 300 kgs
Country of Origin : 420V / 50C / 3P

Get Best Price
Rapid Drill Wood Boring Machine

3,527,000 / Units

Model Name/Number2309E
Maximum Speed80(x)/75(y)/30(z)(m/min)
Automatic GradeAutomatic
Working Pressure6 Bar
Packing Size5200 x 2240 x 2300mm
Voltage420V / 50C / 3P
Power11.93 kw
Minimum Panel200 x 50 mm
Maximum Panel2500 x 1000(3H)2500 x 900(4H)
Air ConsumptionMilling550L/min,Drilling5L/min
Maximum Speed for Y axis75 m/min
Maximum Speed of Z axis30 m/min
Max Speed of gripper80 m/min
Number of tools12V2 x 4 Drill package
Overall size5020L x 2230W x 2080H mm
Working piece length200
Working piece thickness10
Spindle power3.5 kw
Working piece width50
Drilling Head Power2.2 kw
Blower Power1.75 kw
Suction Hood Dia8 inches x 1
Drill package brandTaiwan Protean brand
Working SoftwareTrepan
Drill Shank size10
Gross Weight3060 kgs

...more
Rapid Drill Wood Boring Machine

3,527,000 / Units

Get Best Price
Radial Arm Saw Machine

179,000 / Units

ModelRAS-800
Motor Speed2,900 rpm
Bearings for Rails8 pcs
Max. Trimming Width860 mm
Max. Cross Cutting Length620 mm
N.W. / G.W.200 / 240 kgs
Motor4.5 HP
Spindle BoreDiameter 1"(25.4 mm)
Blade Diameter12"(305 mm)
Head Tilting0 - 90 Degree
Head Swiveling0 - 180 Degree

...more
Radial Arm Saw Machine

179,000 / Units

Get Best Price
Multi Blade Rip Saw

1,455,000 / Units

Weight2250 Kgs(MRS-143S),2300 Kgs(MRS-143E)
Maximum Working Width300 mm
Available ModelMRS-143E
Working Thickness10-85 mm(MRS-143S),10-120mm(MRS-143E)
Minimum Working Length(Single/Continuous) 530/200 mm(MRS-143S),(Single/Continuous) 600/300 mm(MRS-143E)
Saw Blade Diameter205-305 mm(MRS-143S),205-380 mm(MRS-143E)
Bore Diameter of Saw Blade70 mm
Spindle Diameter55 mm
Spindle Speed4000 r/min
Feed Speed4-30 m/min(Frequency Inverter Control)
Total Power32.57 kW / 43.5 HP(MRS-143S),39.57 kW / 52.7 HP(MRS-143E)
Spindle Motor30 kW/40 HP(MRS-143S),37 kW / 50 HP(MRS-143E)
Feeding Motor2.2 kW/ 3 HP
Lifting Motor0.37 kW / 0.5 HP
Suction Hood Diameter2 x 150 mm (6 inchx2)
Dust Extraction Capacity3800M3 /h
Overall Dimensions1930 x 1580 x 1560 mm (LxWxH)(MRS-143S),2200 x 1500 x 1580 mm(MRS-143E)
Voltage415V / 50Hz / 3P

...more
Multi Blade Rip Saw

1,455,000 / Units

Get Best Price

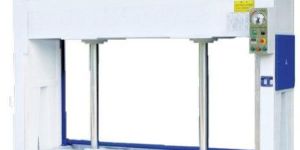

Hydraulic Press Machine

571,000 / Units

Model NumberCP48/50/1
Country of Origin420V/50C/3P
Press Board Dimension2500 x 1250 mm
Max Pressure50 T
Installed power4 KW
Gross Weight2085 Kg

...more
Hydraulic Press Machine

571,000 / Units

Model Number : CP48/50/1
Country of Origin : 420V/50C/3P

Get Best Price

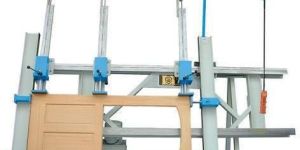

Frame Assembly Machine

Get Latest Price

Country of Origin415 V/50C/3P
Item CodeCGZK-2000x800-X
Weight2 T
The Maximum Processing Range2000x800 mm
The minimum Processing size300x300 mm
Constraint ConditionLength -width less than 1200 mm
HF Maximum Output Power8 KW
HF Maximum oscillatory power5 KW
Loading ModelManual
Stress QuomodoStepping motor,Precise ball screw
Operation ModelHuman-Machine Interface with Touch Screen
Controlling SystemPLC Control
External dimension3260(L)x1880(w)x2300(H)
Frame Assembling type45 /135 degree,shape frame
Plate Size3000 x 1700 mm
Vertical Cycle Stroke150 mm
Side Cycle Stroke100 mm
Hyd Power2 Hp
Net Weight870 Kg
Machine Size3800 x 1100 x 2700 mm

...more
Frame Assembly Machine

Request for Price

Country of Origin : 415 V/50C/3P

Get Best Price
Cross Cut off Saw

3,558,000 / Units

MaterialCarbon Steel
Power Consumption (Watt)340W
No Load Speed (rpm)275
Cutting Blade Size (inch)5 inch
Dust Exhaust DiameterDiameter 4' x 1
Cycle Speed45
Saw Blade Size14inch
Infeed and Outfeed Roller Table8 inch

...more
Cross Cut off Saw

3,558,000 / Units

Material : Carbon Steel

Get Best Price
CNC Router

388,000 / Pieces

Weight3000 Kgs
Table Size2650 x 1300 mm
Warranty12 months
Router Spindle TypeSK-30 Air- Cooled
StrokeX-Axis 2500mm,Y-Axis 1600mm,Z-Axis 200mm
Pop Up Pin3
Light Barrier3 Sets
NC ControllerSYNTEC
Line Boring Unit5 x 5 Vertical Drilling
Shank DiameterMax @ 25mm
Router Spindle Power10 HP
Router Spindle RPM1000 - 18000 RPM
ModelSPECTRA - 48
Length3600 mm
Width2700 mm
Height2500 mm

...more
CNC Router

388,000 / Pieces

Get Best Price

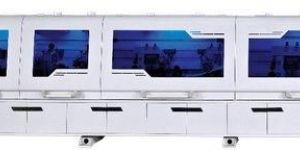

Automatic Banding Machine

5,205,000 / Units

Country of Origin420V / 50C / 3P
Automation GradeAutomatic
Feeding Speed20,23,26 m/min
Glue Tank Capacity1.6 kgs
Working Pressure6 Bar
Power of Pre Milling Unit3.7 kw x 2
Minimum Width of the Panel60 mm
Minimum Length of the Panel150 mm
Minimum Thickness of the Pane10 mm
Maximum Thickness of the Panel60 mm
Edge Dimensions in Strips0.4 - 3 mm
Anti Adhesive UnitBy Pneumatic
Power of End Trimming Unit0.37 kw x 2
Power of 1st and 2nd Top and Bottom Trimming Unit1.1 kw x 2 / 1.1 kw x 2
Power of High Performance Corner Trimming Unit0.73 kw x 4
2nd Edge Scraping UnitNumerical Digital Read Out
Flat Scraping UnitNumerical Digital Read Out
2nd Buffing Unit 2 Motors With Cloth Disc0.37 kw x 2 & Diameter 150 mm
Conveyor Motor5.5 kw
Beam Lifting Motor0.37 kw
SprayingBy Pneumatic
Suction Hood Diameter4 inch x 8
Installed Power25.03 kw
Gross Weight3602 kgs
Net Weight3570 kgs
Packing Size9180 x 1000 x 785 mm

...more
Automatic Banding Machine

5,205,000 / Units

Country of Origin : 420V / 50C / 3P

Get Best Price
