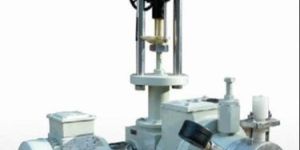

Hydraulic Diaphragm Dosing Pump is one of the many pumps manufactured by us. We make available a wide range of Hydraulic Diaphragm Dosing Pump that is made using sturdy material at our state of the art facility. Our Hydraulic Diaphragm Dosing Pump is durable and compactly designed. We offer Hydraulic Diaphragm Dosing Pump at competitive prices. Highlights
Metering accuracy is almost independent of back pressure
Flow rate is linear to stroke length variation
Diaphragm is always balanced between the pressure exerted by the hydraulic oil and the liquid to be dosed. Longer diaphragm life
Automatic air bleeding from the hydraulic oil ensures better metering accuracy Arrangement of in-built pressure relief valve to protect the pump from pressure exceeding the rated pressure
Rupture Indication Arrangement (RIA) is an additional facility available with these pumps. These pumps with RIA are provided with sandwich of two diaphragms. The rupture of any one of the diaphragms can be sensed by pressure sensing device
In case of metering pumps to be used in hazardous areas, the liquid head can be kept at a remote place from drive side. The head & drive are coupled by hydraulic oil in flexible tube.
Details
Capacity
Upto 7000 LPH pressure upto 100-KG CM2, Capacity can be varied from 0 to the maximu
Material of Construction
(PTFE Diaphragm) AISI 304, AISI 316, Monel, Alloy 20, Hastalloy B, Polypropelene, Hastalloy C, Titanium, GFT
Used In
Sod. Hypochlorite
Ceramic slurry
hazardous acids
Aggressive liquids
Food products

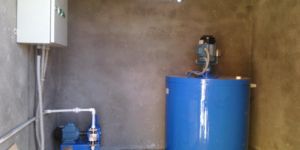

Crienviro made Dosing systems are well designed compact systems mounted on skids and are engineered to provide steady set dosing rates for varying conditions. Crinenviro supplied Chemical dosing systems can be interfaced to an automation system, to have online control and monitoring.
Material:FRPHDPESS
Type: Standard and Customized on demand
