Dosing Pump Dealers in Bangalore

Chemical dosing pumps a maximum movement of 1.25 mm. There are no rotating parts in the pump and hence, no lubrication is needed. The wear and tear is negligible and the pump is virtually maintenance free.

We are engaged in offering Metering Pumps, which are reciprocating type positive displacement. Our range is mainly used at high viscosity and stickiness to transfer fluid (measured) from one place to another. The metering pumps offered by us are available in different types like plunger type, diaphragm type (single double), metallic diaphragm, single or multi cylinder. These pumps are provided with common gear box.

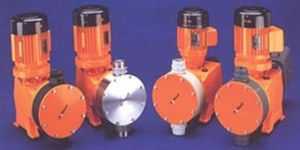

! Multi-functional and user-friendly: on principle! The design principles underlying the Meta series involve decades of ProMinent experience and guarantee operator safety at every stage. Oscillating positive displacement pumps based on the spring cam principleThe drive is a three-phase motor whose drive output is reduced by a worm gear pair, and conveyed via a cam to the connecting rod, producing reciprocal motion. The stroke action is subject to no play and accurate repetition is maintained over a long service life. This is the result of a spring-loaded recuperator which ensures the connecting rod stays in constant contact with the cam (i.e. the spring cam principle). Reciprocal stroke limits may be very finely adjusted which means stroke lengths are extremely precise (1 % graduations for Meta HM). 0.37 kW for 2370 I/h - is enough! The minimal friction within the drive mechanism ensures high power output from the standard-sized dual-wound three-phase motor (0.1 8/ 0.37 kW, 230/400 V, 50/60 Hz). With its 0.37 kW a triple Meta Pump has enough power to dose 2370 I/h now that's efficient! A cool head keeps its distance...The mechanical separation of dosing head and gears effectively prevents seepage of chemicals into the casing and gears. ..and can even dose highviscosity liquids!The specialised dosing head design, in conjunction with valves particularly suited to accommodate liquid through-flow makes these models ideal for dosing highviscosity liquids. With dosing heads incorporating an integrated heating system, e.g. for glue, syrup or sugar-solutions, or dosing heads in stainless steel (1.4571), or chlorine and acid-resistant Hastelloy C we've got all media options covered, and under control! We can supply manual or timer-controlled rinsing, enabling you to adopt a flexible approach to specialised processes. !At the heart of the action: Highly-developed membrane technology! Lift off!The suction lift of ProMinent (regtd) Meta diaphragm dosing pumps creates a water column of 2 to 5 m (dependant upon model). It varies according to the thickness and viscosity of the medium, and the size of the connecting pipework. A heart of steel: ProMinent (regtd) Meta HM/AMThe heart of the dosing head is the well-proven DEVELOPAN (regtd) dosing membrane: it consists of a steel core, which is vulcanised into a chemical and temperature-resistant EPDM material, strengthened with Nylon webbing, and which is Teflon (PTFE) -coated on the chemical - contact side. This ensures reliable dosing even under varying back-pressures. Durability comes as standard!The long service life of these membranes is a result of the symbiosis of material, construction and the maximum movement of 4 and 6 mm. Dosing heads are fitted with precision ball valves. The material variants - Polypropylene, PVC, Teflon and stainless steel 1 .4571 - correspond to current resist ance requirements and allow practically limitless application options for the ProMinent (regtd) Meta. Reproducibility better than +/- 2%Dependant upon a stroke length programmed at between 30% to 100% under defined and constant conditions, and provided installation has been carried out correctly reproducibility is better than ± 2%. This ensures the quality of all your technical processes. The new Meta-generation represents an advance: of 2mmThe increase in the length of the dosing stroke from 4 to 6 mm on the new Meta dia phragm dosing pumps means that in conjunction with newly constructed DN 25 ball valves the ProMinent(r) Sigma series can achieve up to 50% higher dosing capacities - and that's at the same cost and with the same pump size. Using a combination of one main pump and three externally - mounted pumps the operator can count on a maximum dosing quantity of 3.160 I/h (4 x 790 I/h). Work it out for yourself...

Controls with digital display and keys Automatic batching Automatic air release Highly polished zirconia balls offer excellent NRV characteristics Braided 20 kg/cm2 class tubing to prevent pinching 4×7 segment LED display 110-250 V power supply PC enclosure, noryl head, Viton rubber parts and Teflon diaphragm

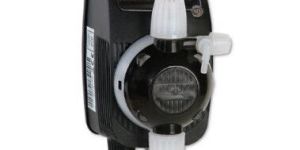

 Analogical metering dosing pump with constant flow rate;• Level probe input;• Power supply: 220VAC – 50/60Hz. Upon request 110V;• On-Off switch;• IP65 protection degree;• Analogical interface by knob and a LED bicoloured;• Manual priming valve;• Wall or foot mounting (brackets included in the kit);• PVDF BODY PUMP – high chemical compatibility;• FIXING BRACKET – to simplify the installation;• PBT CASE – high mechanical resistance-eco-friendly-ergonomic low flammability;• BUILT-IN PIPE HOLDER – safe and clean installation;• REMOVABLE CONNECTIONS – easy maintenance of the pump. Standards: • n° 2004/108/CE Direttiva EMC • n° 2006/95/CE “DBT Low Voltage Directive” • n° 2011/65/UE , 2012/19/UE “direttive RoHs e WEEE” • no. 2004/108/CE EMC directive • no. 2006/95/CE “DBT Low Voltage Directive” • no. 2011/65/UE, 2012/19/UE “RoHs and WEEE directives” Model CODE DESCRIPTION AD89000010000 HC897-1 02-08/05-05/07-02 230V PVDF-PTFE-VT AD89001010000 HC897-2 07-04/08-02/10-00 230V PVDF-PTFE-VT AD89002010000 HC897-3 03-12/04-10/05-08 230V PVDF-PTFE-VT AD89003010000 HC897-4 10-04/12-02/14-00 230V PVDF-PTFE-VT AD89007010000 HC897-5 02-20/2,5-18/03-15 230V PVDF-PTFE-VT INSTALLATION KIT ADSP6000078 PE TUBE D. 4×6 2MT ADSP6000546 PVC CRYSTAL TUBE D. 4×6 2MT ADSP6000028 FOOT VALVE PVDF-PTFE-VT 4×6 ADSP6200031 INJECTION VALVE M1/2″ PVDF-PTFE-VT 4×6 ADSP6020221 WALL BRACKET HC150-897-997-999-100 ADBAS100 FOOT BRACKET HC150-797-897-997-999-100 ADSP6000041 ANCHORS AND SCREWS ACCESSORIES AND SPARE PARTS ADSLG1 LEVEL PROBE SWITCH w/2 m cable + BRACKET A-SL without CONNECTOR ADLASM1000 COMPLETE SUCTION LANCE WITH LEVEL SWITCH PROBE – WITHOUT CONNECTOR T-A (60/100L-H600) GL-VT 4X6 ADLASM3000 COMPLETE SUCTION LANCE WITH LEVEL SWITCH PROBE – WITHOUT CONNECTOR T-A (2/300L-H940) GL-VT 4X6 ADTANK010 A-TANK 1 100 LITRES ADTANK020 A-TANK 2 200 LITRES ADTANK030 A-TANK 3 300 LITRES ADSP900P000 HC150/797/897/997 PUMP HEAD 2-14 PVDF-PTFE-VT ADSP900S000 HC897 PUMP HEAD AUTOMATIC BLEED PVC-PVDF-VT

Fibreglass reinforced PP plastic enclosure guarantees great resistance to impact and chemical attack Counters power supply variations Pump Head - Suction & Discharge assembily made of PVDF suits all chemical used in industrial, wastewater treatment & potable water applications Use of ceramic balls as standard improves pumping reliability and chemical compatibility of the whole liquid end 4 models cover 1 to 60 litre per hour with an output pressure upto 20bar Reduction in spares stock holding

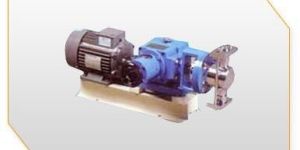

The Dosing & Meter pumps are part of the chemical pumps section. It has applications in dozing of chemicals, alkalis & acids. Its salient features include among many the following. It has Metering accuracy almost independent of back pressure. It has a Flow rate linear to stroke length variations. With Multiple head plunger pumps with common drive for mixing two or more liquids in a desired ratio for which the ratio can be easily set. The Jacketed liquid heads that can be heated by hot water/steam with the ability to transfer and dose products that are highly viscous at room temperature. An external arrangement for flushing the gland packing to increase its life is also possible. It has a capacity of 0.1 to 10000LPH, with pressure up to 400 Kg/cm²

Leveraging on our vast industry experience, we are offering our clients the finest quality Industrial Dosing Pumps. Offered pumps are used to control water pressure, flow of air and are widely demanded in the petrochemical, natural gas processing, petroleum refining and various other industries. These pumps are manufactured using top class raw material and advanced technology by our dexterous professionals. Our Industrial Dosing Pumps are also facilitates indication for low-level in dosing tank. Features: Compact Size Double Ball Check Valves High Quality, Long lasting re-in forced PTFE Diaphragm Maximum stroke length of only 1.25mm, hence maintenance free No lubrication needed Discharge Range Accuracy ± 2% Handles any corrosive chemicals Can accept Potential Free Pulses and 4-20 mA signals Suitable for single phase power supply of 230V (AC) Specifications: High Quality Plastic pump body Steps i.e. 25%, 50% and 100% Stroke frequency adjustment 0% to 100% stroke length adjustment Can accept 4-20mA signals. Can accept external pulse signals. 0.75 LPH to 12 LPH Capacity Maximum pressure of 15 Kg/cm2
