Available with us is the Radial Drilling Machine with Auto-feed and without box table & Electrical. We provide the Radial Drilling Machine in the market at reasonable price. Salient Features Arm and drill-head guide ways are precisely hand-scraped for minimum play and rigid clamping of drill-head with armHeavy Duty �38mm drilling in steelGears made from best quality material are helical teethed on imported hobbing machine for smooth and noiseless runningPillar & other parts being provided in machine are ground and finished by imported grinding machine8 spindle and 2 auto feed System for drilling, tapping, reaming operationsSix splined EN8 steel spindles running in a set of 4 bearings offers rigidity and precision while drillingMT-Bore is provided internally grinded by internal grinding machineProvides 8 Speeds by accurate balanced pairs of cone pulleys, which runs on two ball bearingsGrinding is provided on protector for swiveling of radial arm to required degreeWell adequately ribbed base plate, arm & arm bracket for maximum rigidity & minimum deflectionStrongly ribbed and thick walled base plate having built-in coolant tankSpindle sleeve is properly grinded and hardened is guided in honned, Drill head bore spindle is mounted on five ball & bearing for smooth and accurate runningBy simple adjustment of only tapper wedge facility to set drill head on arm guide way Standard Accessories Standard Motor Pulley-2 Nos.Instruction & Spares Parts Manual Book. Optional Accessories (At Extra Price) Coolant Equipment consisting of Coolant Pump with motor, On/Off Swtich, Buitt in tank, piping and SpoutMachine Lamp (Without Bulb) with Transformer Facitity 60w CapacityBox TableDrill SleeveDrill ViceDrill Chuck with key & arborSpecial T-boltsWooden Box Packing & ForwardingV- BeltElectric Motor & Wireing Technical SpecificationsCapacity Capacity 38mm Drilling Capacity in Solid In Steel having 600 Mpa Tensile Strengh38mmIn Cast Iron having 180BHN40mmTapping Capacity Metric Threads up to size [MM]30mmAny Other Threads [Inch]1-3/16" Fine Pitch Boring in Steel Boring in Steel 80mm Drilling in Head Taper in Spindle - [Nose]MT - 4Spindle travels - [Auto/Manual]250mmSpindle Diameter at Front Bearing56mmRAM Diameter72mmNo. of Spindle Speeds/Range8/65 - 1982 RPMNo. of Auto Feeds [Rev./mm.]2/0.04 - 0.08 Rapid Feeds Travel of Rail - [Vertical]750mmTravel of Drilling Head - [Horizontal]450mm Manual Electrical Power Supply415V, 3 PHASE, 50HzDrilling Head Two Speed Motor1.5HP, 1440 RPMArm Elevating Motor0.5HP, 1440 RPMCoolant Pump- Working Range Drilling Radius Max895/440Distance between Base Plate to Spindle Min/Max [Spindle Retracted]240/930Distance From Column Face to Spindle Min/Max360/810Max Drilling Head Traverse450MMColumn Sleeve Diameter170mmVertical Traverse of Arm [Auto]750mmRotation of Arm [Both Side]0-180 Deg.Height1850mm Base Plate Working surface [L x W]820 X 660Overall size1300 X 800 X 170 [R x S x Q]No. of T � Slots & Nominal size4/16Weight with Standard Accessories[APPROX] Net/Cross800Kg General 'V' Belt Section of Spindle Drive MotorB' 47'V' Belt Section of Arm Elivater MotorA' 23 Space Required by Machine [L x W x H ] Space Required 1300 X 2600 X 1900 Box Table Size [L x H x W ] Box Table Size 390 X 300 X 300 Color[S] Color[S] MMT Green (Special)

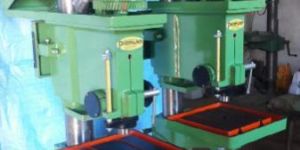

We are counted amongst the reliable Bench and Pillar Drilling Machine (Model P-4) Exporters and Suppliers based in Gujarat, India. We source Bench and Pillar Drilling Machine only from the trusted manufacturers and vendors present in the market. Our team of quality experts strictly checks all products at various standards to ensure zero defects at buyer’s end. Furthermore, we offer bulk quantities of Bench and Pillar Drilling Machine at inexpensive rates.

We are manufacturing, exporting and supplying high performance 25mm & 38mm All Gear Head Radial Drilling Machine and 25mm fine feed radial drill machine. We make use of only superior grade components for the development of our All Gear Head Radial Drilling Machine. It is accredited for its durability, high speed functionality and low maintenance. Our 25mm and 38mm Radial Drill is available in bulk and at the most competitive rates.

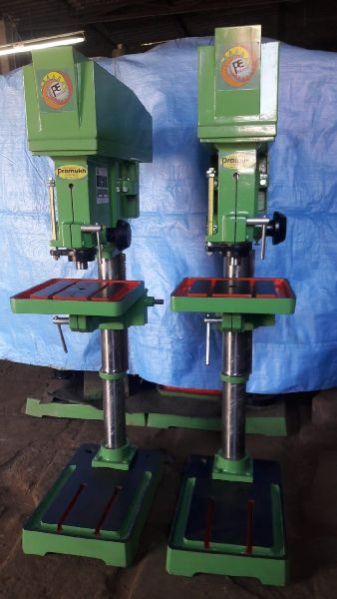

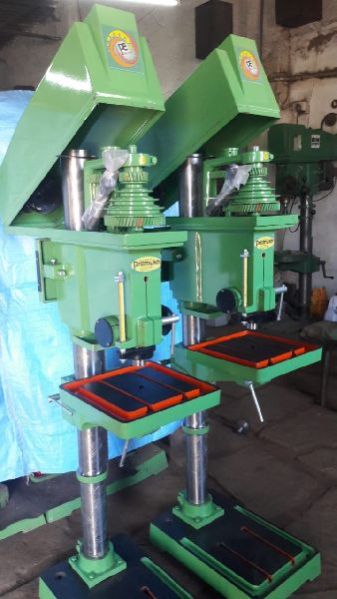

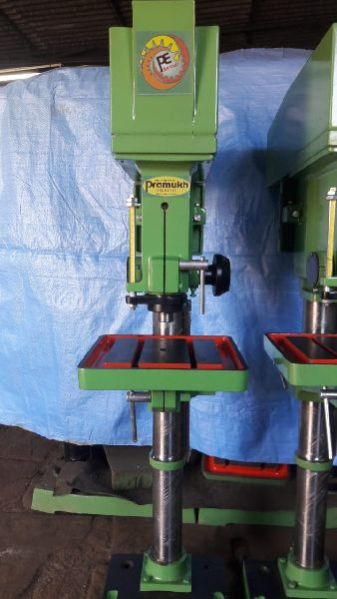

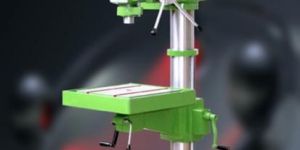

We are a reputed Manufacturer, Exporter and Supplier of Pillar Drilling Machine (40/355). Customers can avail from us Pillar Drilling Machine in different drilling capacities. Pillar Drilling Machine is used for drilling purpose in varied heavy duty and engineering industries. Made from the best quality ground finish parts, our Pillar Drilling Machine ensures high performance and durability. Resistance to corrosion, easy operation and interchangeability are the other salient features of our Pillar Drilling Machine.

Technical Specifications : DESCRIPTION Model No. 5 - 40 BA mm Drilling Capacity in M.S. 40 Drilling Capacity in C.I. 45 Tapping in M.S. 25 Spindle Hole Taper MT - 4 Spindle Travel 250 Spindle Speeds (RPM x Step) 80-2600 x 8 Speed Diameter of RAM 78 Max. Dist Spindle Nose to Table530 Spindle center to column345 Table Size 450 x 455Column Diameter 130 Dist. from Spindle Nose to Base 920 Motor 1440 RPM 1.5 HP HPV-Belt B 79 Weight Approx 450 KG.
