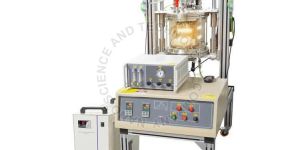

NST 5 Inch Close Range Rotary Evaporation Coating Machine
350,000 - 850,000 / Set
MOQ1 Piece
Brand NameNST
MaterialMild Steel
FinishingPolished
Driven TypeElectric
ConditionNew
CertificationISO 9001:2015
Country of Origin220V
SpecialitiesRuggedly Constructed, Durable, Easy To Use, Excellent Functionality, Less Maintenance
Total CarbohydrateOne Year Limited With Lifetime Support
Country of OriginIndia
Thermal CoupleTwo K-Type Thermal Couples are Installed On Top and Bottom Heaters Separately.
Working Voltage220VAC, Single Phase, 60A Air Breaker Required
Power Requirement9.5 kW Total
Dimensions1085mm L×680mm W×1710mm H
NST-5-INCH CLOSE-RANGE ROTARY EVAPORATION COATING FURNACE is a rapid thermal processing furnace with 11″ I.D. quartz chamber. It is designed for Thermal Evaporating or CSS (Close Spaced Sublimation) film coating up to 5″ Dia. circular samples and 800°C Max. The furnace is heated by two group of halogen heaters (Top and Bottom) separately with max. 10℃/s heating rate. Two 30 segment precision temperature controllers are built in with +/-1ºC accuracy. RS485 port and control software are included to allow for the operation of furnace and temperature profile logging via PC. It is an excellent tool to research new generation thin film for solar cells, such as CdTe, Sulfide, and Perovskite solar cell.
