AIR Flow Cabinets Dealers in Chennai

Spare/Optional Accessories: Transparent front door. Static pressure inclined manometer. Built in UV Germicidal light. Cock for gas, air or vacuum line. Exhaust system suitable for duct above 6ft. Exhaust ducting. Cold rolled MS sheet body of top chamber, duly powder coated, availble at extra cost. Stainless Steel 304/316 body of top chamber, duly polished, availble at extra cost. Particle dust count validation at site installation, at extra cost. HEPA Filter. Pre-Filter. Product Code: YSI-189A

We offer Laminar Air Flow Cabinets. customers from all around the globe are placing repeated orders for the laminar air flow cabinets as no alternative is available when it comes to quality and efficiency. advantages : highly durablerobust in constructionfine finishhighly spaciousresistant to corrosionavailable in customized sizes and dimensions application areas : laboratoriesmedical centerspharmaceutical industries

• Type: Laminar Flow Cabinet
• Material: Mild Steel, Stainless Steel
• Application: In Laboratory
• Voltage: 110V, 220V
• Condition: Good, New
• Power Source: Electric
• Feature: Durable, Easy To Install, Fine Finish, Portable, Strong Construction
• Warranty: 1year, 2years

The range of Immuno Tech laminar air flow ceilings ensures ef¬ficient protection against contamination which can occurduring invasive acts and caused by airborne dead or living particles. The ceilings are available in square, rectangular, octagonal or circular shapes in order to suit any room layoutand answer specific requirements to create a clean zone around the patient, medical staff and medical devices.Our laminar flow ceilings are mainly used with our Clinicair Air Handling Unit, but can be also adapted to anytype of products from a different brand. This system is dedicated to operating theatres in order to meet ISO 5 standard (complying with EN ISO 14644-1 ) as well as to pharmaceutical industry. It helps fight cross contamination and hospital borneinfections. The diffusion plenum is made of 15/10 electro galvanized metal sheet with whiteepoxy paint or stainless steel strictly airtight, and is equipped with air filters of typeH14 (efficiency greater than 99.995% according to EN 1822).It is equipped with an anti-induction lateral apron that enables to eliminate almostcompletely the penetration of airborne particles (in particular via the swivel arms).Possibility to set the speed of air diffusion (from 0.25 to 0.50 m/s) in 2 distinct zones (central and peripheral) which improves the working comfort of medical staff (forlong duration surgeries), reduces the penetration of airborne bio contamination inthe protected area, and enables the evacuation of smokes emitted during surgerie

• Working Area Size(W x D x H): 2' x 2' x 2', 3' x 2' x 2'

Laminar Airflow Cabinets are used as equipment of local workplaces in medical, pharmaceutical and other institutes with high requirements for air cleanliness in the working zone.

• Noise level: 60-65 decibels
• Illumination: 750 - 800 lumen

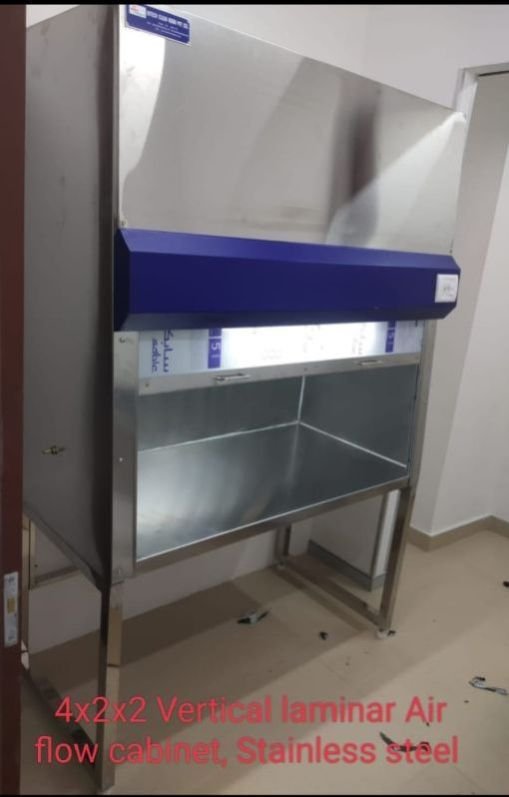

The Vertical Laminar Air Flow Chamber provides a high degree of localized control for critical processes. The work area is continuously bathed with positive pressure HEPA filtered air to protect product from contamination. The Vertical Laminar Air Flow Chamber meet or exceed ISO 14644-1, Federal Standard 209E for ISO 5Class 100 air and IES Recommended Practice for Laminar Flow Clean Air Devices. Our Laminar Air Flow Chamber are available in different sizes and these models can also be configured to meet your needs. These units feature 99.99 % HEPA filtration system, air intake grill and pre-filter, fluorescent lighting, centrally located control center, vibration control system and available in optional stainless steel work-surfaces and increased work zone height.

  Mycron Air Tech presents a Laminar Air flow cabinet fabricated with MS/GI powder coated, stainless steel 304 / 316 grade and plywood box. It is a carefully enclosed bench designed to prevent contamination of semiconductor wafers, biological samples, or any particle sensitive materials. Air is drawn through a HEPA filter and blown in a very smooth, laminar flow towards the user. The cabinet is usually made of Wood, MS/GI Powder Coated and stainless steel (grade 304/316). Such hoods exist in horizontal, vertical and ceiling suspended configurations. Laminar flow cabinets may have a UV Lamp to sterilize the interior and contents before usage to prevent contamination of experiment. UV lamps are usually kept on for 15 minutes to sterilize the interior and no contact is to be made with a laminar flow hood during this time. During this time, scientists normally prepare other materials to maximize efficiency. It is important to switch this light off during use, to limit exposure to skin and eyes as stray ultraviolet light emissions can cause cancer and cataracts.

• Application: Laboratory
• Material: Stainless Steel
• Voltage: 230 V
• Power Source: Electric
• Brand Name: Krishna Scientific Suppliers
• Frequency: 50/60 Hz
• Phase: Single Phase
• HEPA Filter Threshold: 0.3 microns

• Working area: 2’ x 2’ x 2’

Vertical Laminar Airflow directs the air through PRE filter from top bottom level of cabinet and the air flows vertical down flow through HEPA filter towards the work area. Again the air is discharged back to the room. Thus vertical laminar flow cabinet provides only product protection.

Laminar Airflow Equipment provides filtered, clean and dust-free flow of air in a uniform streamline without turbulence. They discharge HEPA – filtered air across the work surface and towards the user / worktable. These devices provide product protection only and should never be used when handling cell culture materials or drug formulations, or when manipulating potential infectious materials. When the LAMINAR AIRFLOW EQUIPMENT switched on, the blower unit creates a suction pressure through the primary filter (or Pre-filters), which removes dust particles of above 10micron size in the first stage. Subsequently, the partly filtered air passed to the HEPA filters, where the particles or substances of 0.3micron size and above are removed. Finally the ultra clean filtered air supplied to the working chamber as a uniform airflow to perform precision research activities Such a uniform dust-free airflow requires for various research activities, in pharmaceutical manufacturing, micro electronic assembly, bio technology, tissue culture, food processing and for various medical applications such as post-operative care, blood bank etc. All the above components are assembled in a fabricated cabinet suitably along with other accessories such as a ultra-violet tube to sterilize the working area before & after usage, illuminating tube to provide lighting, acrylic door to protect the working area from external contamination Accessories includes Deep / Mini-Pleat HEPA, Pre filter, Transparent front door, UV lamp, Illumination, IS 304 grade SS worktable, manometer / Minhelic Gauge, Gas cock, Castors, Additional power sockets & Power chords etc.

The Laminar Air Flow Cabinet is a standard air flow model used in most laboratories. It provides only product safety and not user or environmental safety. The area of work table will be under Class 100 clean air working condition and the cabinet air will be vented exhausted out through the front opening.

APPLICATION Working table is made of Stainless Steel Sheet (SS-304 grade). Side panels and front doors are made out of thick transparent plexi glass. Air drawn through pre-filter is made to pass through highly effective HEPA (High Efficiency Particular Air) filters having efficiency rating as high as 99.99% with cold DOP and 99.97% with hot DOP, thus retaining all air-borne particles of size 0.3 micron and larger. Heavy Duty Motor operates with minimum noise level. Working area is illuminated by fluorescent lighting fitted to the unit. Supplied complete with S.S. Satin finish Table Top, Transparent front door, Static Pressure Manometer, Built in U.V. Germicidal light and Cock for gas, air or vacuum line, HEPA filters and pre-filter. The highly efficient HEPA filter maintains the optimum cleanliness and purity. The prefilter fitted extends the life of HEPA filter drastically.
