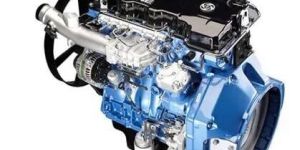

HP Industrial Engine

Get Latest Price

FeaturesRobust & Rugged – Sturdy in construction, tough & resilient.
BrandAshok Leyland
Displacement5.76 Lts
Compression Ratio17.5 : 1
Product TypeIndustrial Engine
Lube oil Sump Capacity16 Lts
Dry Weight of Engine530 Kg
Dimension1060x820x760 (LxHxW) mm
Starting System Voltage Vdc12/24V
Interval Of Maintenance500 Hrs
ApplicationsCrane,Cold Miller,Loader etc
Engine ModelH6ETICRC3
BHP Range225 (Gross) HP
RPM Range2300-2500 RPM
Max Torque800Nm @ 1700-1900 RPM Gross
No of Cylinders6
AspirationTCIC
BoreXStroke104 x 113 mm
Direction of RotationAnticlockwise when viewed from Flywheel end

...more
HP Industrial Engine

Request for Price

Get Best Price
Ashok Leyland Natural Gas Generator

Get Latest Price

Power Rating62.5 kVA
Electric Power50 kWe
Rated Current86.9 A
DG Weight approx.2200 kg
Battery Capacity150 Ah
System DC Voltage24 V
FeaturesReliable, Robust & Rugged engines designed to deliver continuously in arduous environment,Better Block Loading Capability,Compact engine - Engineered for Optimized Power Solutions,Low Ownership Cost

...more
Ashok Leyland Natural Gas Generator

Request for Price

Get Best Price
Ashok Leyland Marine Engine

Get Latest Price

Cooling SystemSea water cooled heat exchanger & charged air cooler
AspirationTurbocharged & Intercooled
Displacement8 Litres
Bore x Stroke112 mm X 135 mm
FeatureHigh Power to weight ratio,Constant torque at low RPM,Cooling system - Indirect sea water cooling with heat exchanger
BrandAshok Leyland
Product TypeMarine Engine
Max Torque1360 Nm @ 1600 RPM
Fuel Injection PumpRail Fuel
Coolant Type and RatioGulf Euro cool LL Max / 50 : 50
Coolant Capacity44Litres
Lubricating Oil Capacity25 Litres
Starting System24V Dc,BOSCH ECU based
Charging Alternator Capacity24V 100Amps
Engine Dry Weight without Gearbox1150 Kg
Suitable Gearbox ModelDMT 135HL
ModelALMN6
Gearbox Ratio4 : 1, 4.5 : 1, 4.95 : 1
No of Cylinder and Configuration6,CRS
Rated Power in KW250Kw 2200 RPM
Rated Power in PS340 HP 2200 RPM
Idle and Flyup Speed Range600 +/- 25 RPM to 2500 +/- 50 RPM
Flywheel Housing and FlywheelSAE 1 & 14

...more
Ashok Leyland Marine Engine

Request for Price

Cooling System : Sea water cooled heat exchanger & charged air cooler
Aspiration : Turbocharged & Intercooled
Displacement : 8 Litres
Bore x Stroke : 112 mm X 135 mm
Feature : High Power to weight ratio,Constant torque at low RPM,Cooling system - Indirect sea water cooling with heat exchanger
...more
Get Best Price
Ashok Leyland HP Industrial Engine

Get Latest Price

BrandAshok Leyland
Displacement5.76 Lts
Compression Ratio17.5 : 1
Product TypeIndustrial Engine
Lube oil Sump Capacity16 Lts
Dry Weight of Engine530 Kg
Dimension1060x820x760 (LxHxW) mm
Starting System Voltage Vdc12/24V
Interval Of Maintenance500 Hrs
ApplicationsCrane,Cold Miller,Loader etc
Engine ModelH6ETICRC3
BHP Range225 (Gross) HP
RPM Range2300-2500 RPM
Max Torque800Nm @ 1700-1900 RPM Gross
No of Cylinders6
AspirationTCIC
BoreXStroke104 x 113 mm
Direction of RotationAnticlockwise when viewed from Flywheel end
Robust & RuggedSturdy in construction, tough & resilient
Compact & DurableHeavy Duty
Ever evolving technologyLatest Know-how’s & Continuous product improvement
ReliabilityWell grounded , Dependable & Consistent performance
Abreast with latest emission normsEmission Certified to CEV BSIII/IV
Compact DesignHigher Power to weight ratio & Lighter engine
Wide Aftermarket SupportPAN India Service Network & Immediate customer support

...more
Ashok Leyland HP Industrial Engine

Request for Price

Get Best Price
Ashok Leyland Diesel Generator

Get Latest Price

Power5 kVA
Genset BrandAshok Leyland
Phase3 Phase
Fuel Consumption (at 100% Load)1.5 ltr/hr
Fuel Tank Capacity12 Litres
Dry Weight (Kg)200
Frequency50 Hz
Bore X Stroke86 x 72
Compression Ratio20 +/- 0.5 : 1
Displacement0.418
Battery Capacity35 AH
Governing ClassA1
Rated Current20.85 Amp

...more
Ashok Leyland Diesel Generator

Request for Price

Power : 5 kVA
Genset Brand : Ashok Leyland
Phase : 3 Phase
Fuel Consumption (at 100% Load) : 1.5 ltr/hr
Fuel Tank Capacity : 12 Litres
Dry Weight (Kg) : 200
Frequency : 50 Hz
...more
Get Best Price
Ashok Leyland Agricultural Engine

Get Latest Price

BrandAshok Leyland
Displacement3.84 Lts
Compression Ratio17.5 : 1
AspirationTCIC
Direction Of RotationAnticlockwise when viewed from Flywheel end
Engine ModelH4CTIC3N
Max Torque350Nm@1460 RPM (Gross)
Product TypeAgricultural Engine
Interval Of Maintenance250 Hrs
ApplicationsWheel Combine Harvester 9 ft Cutter bar and Tractor
BHP Range76 (Gross) HP
RPM Range2200 RPM
No of Cylinders4
Bore X Stroke104 x 113 mm
Lube Oil Sump Capacity9.5 Lts
Dry Weight of Engine400 Kg
Dimension940x680x930 (LxHxW) mm
Starting System Voltage Vdc12V/24V
Robust & RuggedSturdy in construction, tough & resilient
Compact & DurableHeavy Duty
Ever evolving technologyLatest Know-how’s & Continuous product improvement
ReliabilityWell grounded , Dependable & Consistent performance
Abreast with latest emission normsEmission Certified to CEV BSIII/IV
Compact DesignHigher Power to weight ratio & Lighter engine
Wide Aftermarket SupportPAN India Service Network & Immediate customer support

...more
Ashok Leyland Agricultural Engine

Request for Price

Get Best Price
