Bottle Packaging Machine Dealers in Chennai

ShivsuRita  SRM 130/140/150 Automatic Bottle Washing Machines are designed for high output and for cleaning very dirty bottles with labels and foils. It has 3 to 4 multi soak tanks for intensive soak of the bottles and spraying inside, outside with high pressure sprays. The movement of the main carrier chain is continuous, giving high spraying and soaking times. The in-feed of bottles is with automatic auto-loader and out-feed by CAM system.

SEPPA Technology Pvt Ltd., is one of the Leading manufactured in Soda Processing Equipments. SEPPA incorporate the state of art technology in design engineering of the systems being manufactured. SODA PROCESS The purified drinking water from the water treatment system is sent to the water chilling system. The chiller consist of PHE where glycol circulates at -2°C to -8°C temperature. The purified water at ambient temperature of 28°C to 35°C passes through PHE and comes out at 2°C to 4°C. This is done to achieve CO2 gas and water meshing. The cold water is then taken to carbonator storage tank which consist of a high level and low level switch. The low level switch ensures protection to the carbonator high pressure pump from running dry. The carbonator is provided with CO2 gas from a CO2 Cylinder. The carbonator system reduces the CO2 gas pressure in the cylinder to 9.5 kg/cm² by means of a jumbo regulator. Prior to the gas passing to the jumbo regulator the CO2 gas which is at -10°C to -32°C in the cylinder is heated by immersed copper tubes in a hot water bath. The temperature of CO2 gas is brought to 2°C to 4°C. The gas after passing through jumbo regulator is injected into the carbonator ventury system after once again passing through a stainless steel, gas volume regulator. The gas volume regulator determines the strength of the soda in the final product. General gas volume for pet soda is set at 4.2 to 4.8 to a maximum of 5 gas volume. The glass bottles can be filled with soda even as high as 5.5 gas volume. The high pressure pump of the carbonator pumps the water through the injection system i.e.,Ventury to the carbonator diffusion tank. During this process CO2 gas mixes along with the water and enters the diffusion chamber. In the diffusion chamber plate diffusers are used to achieve total dissolution of CO2 gas into water forming soda. A counter pressure system is provided in diffusion chamber to ensure dissolved gas is not released from the water. The diffusion chamber has a high level low level control system which starts the high pressure pump as well as CO2 gas supply as and when needed. The soda stored in the diffusion tank can automatically raise and be transferred to the filling machine tank. All liquid transfers after soda production are done by umbrella effect to ensure minimum agitation to the liquid. This ensures required gas volume in final packaged container. Example Pet or Glass. The filling machine for soda is a specialized system working with counter pressure filling methodology. The counter pressure valve in filling machine is critical to the Quality of Soda packed. The Machine exclusively designed for Carbonated Liquids Canadian Clear is the world leaders in Bottled Water Technology and one of the only companies in the world which manufactures complete range of Bottled Water Equipments under one roof on Turnkey basis.SEPPA ranges of equipments include water treatment plant, reverse osmosis plants, micron filtration, ultra violet purifiers, silvering unit, mineral water plant equipment, ozonator, evats 1000 - automatic bottling plant, pet bottles manufacturing equipments and desalination plants.Canadian clear has successfully commissioned more than 2000 Mineral Water Projects / Bottled Water Projects worldwide. The following equipments are manufactured by us: 1. Mineral Water Processing Machine / Bottled Water Processing Machine.2. Automatic Bottle Washing, Filling and Capping for 1/2, 1, 11/2 & 2 Litres.3. Automatic Bottle Washing, Filling and Capping for 20 Liters Poly Carbonate Bottle (20 Ltr Jar).4. PET Bottle making Machine for manufacture of bottles from 60ml to 5 Liters. 5. Automatic Carbonated Water washing, Filling and Capping machine (Sparkling water Pet Soda).6. Pet Jar Making machine up to 20 Ltr Jar.Bottled Water "Mineral Water" Processing Machine CARBONATED SOFT DRINK The soft drink line is customized in accordance to the industry needs. This soft drink line is developed in adherence to the quality standards by using quality material & advance techniques. Also, our quality controllers check this soft drink line at various quality parameters to assure a flawless dispatch. FRUIT JUICE PRODUCTION LINE Taken various fresh fruit , juice concentrate, juice powder as main raw material, through dilution, extraction, cooking, grinding, homogenization, degassing and filling etc flow procedures, which can be manufactured into various fruit juice, flavor juice beverage High standard design, manufacture and project installation requirements, which guarantee the first-class finish products in various beverage Production line. PLC control the whole production line, saving labor force and facilitate production management. Full-auto CIP cleaning, to ensure whole production line equipments meet food sanitary safety requirements. OUR PRODUCT RANGE: Automatic Bottling Plant as per International Bottled Water Association Standards Commercial Reverse Osmosis System Micron FiltersUV SystemsOzonators 1. Stainless Steel Storage Tank ranging from 1000 to 6000 liters capacity2. Automatic Bottle making machine for PET bottles of 60ml to 2000 ml 3. Automatic Bottle filling machine to fill one liter, 2 liters and 20/25 liters Jar etc. SEPPA is one of the leading Manufacturers of the Mineral Water Packaging Equipment. Canadian Crystalline incorporate the State - of - the - Art Technology in design engineering the systems being manufactured. S-RFC 1000 is a fully automatic bottling machine specially designed by SEPPA Technology Pvt Ltd for Mineral Water / Carbonated Beverag The entire process has provisions in the machine for Rinsing, Filling, Capping and Sealing automatically. The entire process is fully computerized with PLC and Sensor Control with one touch instrumentation system under technology transfer and technical collaboration from US Microcons Inc., California USA. The whole equipment is sleek and is capable of bottling various sizes of bottles ranging from 500ml to 2 Litres. The mineral water bottles are fed into the input feed conveyor of the S-RFC1000 systems. The bottles are first picked up using an automatic robot arm, which tilts the bottle on the top of a rinsing spray, which rinses the bottles in three stages. The bottles are cleaned with ozonized mineral water. After rinsing the bottles are transferred by neck to the filling stations. Here the bottles are filled accurately by filling valves. The filling valves are very accurate and give equal filling to every bottle. The special feature in the system is that no bottle no wash no bottle no fill. After filling, bottles are automatically move to the capping stage where the caps are released from the vibrator on to the bottle. The caps are sealed automatically using special capping heads. A number of germicidal lamps are provided to disinfect the water from air borne contamination. S-RFC 1000 is a unique bottling machines with in-built High-Tech features. The entire system is enclosed in a Stainless Steel / Glass outer casing. After the capping stage the bottles are automatically ejected out to the output conveyor to the out feed area.

Bottle Filling Size 200 to 2000 ml   MOC : Stainless steel (304 Grade) Water contact parts 316 grade   Rotary - Neck Holding   No bottle - No rinsing - No Filling - No Capping   Compact Design - High output   Separate cap hopper / elevator   Bottle in feed Air Conveyer System   Out conveyer - Shrink tunnel & Inspection lamp

We Offer Manufacturing and Supplying a Wide Range of Pet Bottle Filling Machine and Automatic Pet Bottle Filling Machine as per the Specific Requirements of Our Valued Clients. These Automatic Bottling Machines are Essential for Small to Mid Sized Bottlers and are Widely Used in Various Industries for Packaging Purpose. We Offer this Automatic Bottling Machine in Many Sizes and Dimensions and We also Customize These On the Specifications Laid By Our Clients. * Takes Very Less Space * Easy to Operate * High Performance our Range of Automatic Pet Bottle Filling Machine is a Completely Automatic Machine that Requires No Manual Touch. These have a Stainless Steel 304 Body with Contact Parts in Stainless Steel 316 and Complete Unit with Plc, Digital Timers & Bottle Counter. specifications: includes Rinsing speed: 24 Bottles / Min, 30 Bottles / Min, 60 Bottles / Min has Vfd (variable Frequency Drive).

To provide better quality products to our clients, we are offering them a wide range of Bottle Filling Machine. Our clients can easily avail these range from us at industrial leading price range

We are Offering Automatic Bottle Filling Machine specially design for high speed Bottle Filling from 1000 to 15000BPH with Crowning Head, Bottom Mounted Filling Valves & its Used for 200 ML and 300 ML Round Glass Bottle.

HIGH SPEED CAPACITIES, SRM 224/ 236/ 240/ 260/ 280, GERMAN TECHNOLOGY, SUPER FLOW VALVE WITH VACUUM PRE-EVACUATION Shivsu SEPPA Pvt Ltd, Manufacturers of Automatic Glass Bottling Plants In Technical Collaboration with Rita Bottling brings you an advanced Glass Bottle Filler Crowner machine. Air containing 21 % oxygen is detrimental to the stability and shelf life of beverages. The percentage of oxygen in the bottled product has to be reduced to a minimum since it is a risk for preservation of the bottled beverage. The vacuum pre-evacuation system ensures removal of oxygen during filling to give a packaged product of international standards. Ideal for bottled beverages such as Beer, Cola, Lemonade and Champagne. These Filling machines incorporate the latest in filling technology for carbonated beverages. The filling valves are designed to prevacuate the bottled before filling. This ensures very low oxygen content in the product as per international standards, and hence high stability and shelf life. The valves are suitable for filling under CO2 Counter Pressure. While using Co2 pre-stressing, one-third Air Consumption will be replaced by Co2. The equipment has Cleaning in Place (CIP) facility. The equipment has an automatic Central Lubrication System. The machine has safety cut off switches, Automatic Splinter Spray- off System, Height adjustment of bowl suitable for all bottled size up to 1000ml. These filling machines are designed for accurate level filling without beverages loss. Note :- Due to Continuous improvements, specifications are subject to change without notice. We also manufacture Vacuum Fillers, Tunnel Pasteurizers and Coolers, Bottle Washers, Premix Carbonators, Crate Washers, Cap Conveyors and Other Bottling Equipments.

Adhisakthi Projects is the OEM of Processing Equipment's,Packaging machinery & Complete Automation Provider. We have supplied nearby 100 bottle filling machines all over the world.

In our Automatic mineral water bottle filling machine, U.V. Tech Systems, India make Rinser Filler Cappers are designed for optimum speeds based on 1 litre pack size. We have capacities ranging from 40 bottles minute to 200 bottles minute. The material of construction is SS 304 for the Frame and outer panel. All Wetted Parts are in SS 316. The Human Machine Interface is PLC with Touch Screen Control that makes the machine user friendly. The machine is equipped with features viz.. no bottle no fill , no bottle no cap, low fill no cap. One more salient feature is the Cap sorter which ensures that the caps are fed only in the right orientation. The caps of wrong orientation are sorted and are sent back to the cap sorter thro a drop down mechanism.

Pet Bottle Filling Machines, Bottle Filling Machine

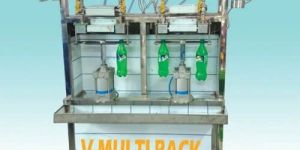

Pet Soda Filling Machine, Pet Blowing Machine Semi And Aut
