Industrial Furnace Dealers in Porur, Chennai

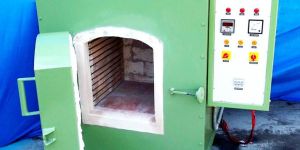

We are engaged in offering precision engineered high temperature furnace. Insulated double walled door of high temperature furnace is mounted on heavy duty hinges, in the front is provided with locking arrangements. The door is gasketted along edges to provide tight seal when the door of high temperature furnace is in closed position. Heating in high temperature furnace is achieved by kanthal a1 heating coils, evenly distributed in the inner chamber. Temperature is indicated and controlled by digital onoff controller working in conjunction with cral thermocouple housed in the hot zone. In addition, digital timer and heating achieved indication alarm to cover 30 square meter area will be provided in high temperature furnace. Air circulating fan assembly driven by suitable motor is incorporated in the unit for maintaining uniform temperature inside the working chamber. Adjusted air ventilator is provided at the top of high temperature furnace. Built in control panel accommodating indicating lamps, digital onoff controller, timer, onoff switch, etc., is located at the right side of the chamber for operational convenience. Since the high temperature furnaces are tailor-made, we can design and supply the same as per the customers' specificationsrequirements. material of construction triple walled chamber, (triple walls on three vertical sides) inner made of thick gauge stainless steel sheets of 304 grade, middle and outer made of 18 swg. Cold rolled mild steel sheets duly finished in powder coating. Inter space in between the walls is tightly packed with special grade ceramic fiber blankets to a thickness of 150 mm. technical specifications inner chamber size : 3’ x 3’ x 3’operating temperature : ambient + 5o to 500o ctemperature at unloaded condition : 550o ctemperature accuracy : 3 to 5o cpower rating : 9 to 12 kwoperating volt : 440 volts three phase 50 cys.

Nitriding Furnaces, Gas Carburising Furnaces, Hardening Furnace

The furnace body is fabricated out of mild steel sheet and sections with welded and screw joints. The  Terminal connection to the furnace will be brought out at the rear side of the furnace is finished in an Attractive colour paint. The furnace working heart will have a 30◦ height from the floor level. The heating chamber of the furnace is lined with high quality siliminate grooved refractories to hold the heating elements. High graded ceramic  insulation will be provided all around the heating chamber to minimize the heat loss. Heating is accomplished by the aid of imported KANTHAL  AI wire wound on coil from and  Provided on all four sides of the chamber. The design is such that the heating elements will distribute the heat throughout the chamber uniformly and is easily accessibly for easy maintenance. The furnace has a well insulated lifting type of door balanced by counted weight, Control gear: Consists of one No. Automatic temperature controller, pyrometer, with Cr./al.  Thermocouple, indicating lamps, energy regulators, Air break magnetic contractor etc. which will be housed on sheet steel cubicle and fitted on to one side of the furnace itself The furnace is supplied suitably wired for operation on 400/440 volts, 3 phase, 50 c/s. AC mains 4 wire system. TEMPERATURE RANGE: Maximum temperature 1000 Deg. C. and regular woring temperature not to exceed 900 Deg. C.   INNER CHAMBER SIZE 12” x 12” x 12” 12” x 12” x 18” 18” x 12” x 24” 18” x 18” x 24” 24” x 24” x 36” 36” x 24” x 48”

Hot Dip Galvanizing Plant are used by galvanizing plants manufacturers for usage in high tension transmission Tower , poles, Pipe Cable Trays ,Grating , Guard, Tails, Railing and other steel items.

Salt Bath Furnace, Stainless Steel Fan Heaters, Heater Elemen

Melting Furnaces, Heat Treatment Furnaces, Industrial Electric Oven

Ceramic Furnaces, Abrasive Furnaces, Driers, Forging Furnace

Oil Fired Furnace, Infrared Pyrometer, Thermocouple with Connector

Industrial Furnace, Mixer Grinder, PULVERIZE

High Temperature Oven, Temperature Transducer, High Voltage Mete

We are main supplier of this product.

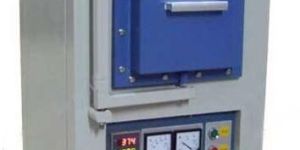

Electric Furnace, Heating Elements, Thermocoupl

Precious Metal Melting Machine, Metal Melting Furnace, Hardening Furnace

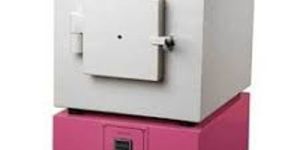

High Temperature Muffle Furnace, non-ferrous melting furnace

non-ferrous melting furnaces, Crystal Growth Furnace

Furnace Spare Part, Furnace, Ovens, Ceramic Fibers, Radiant Tub
