Metal Forming Machine Dealers in Chennai

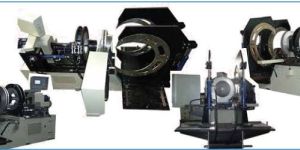

* Suitable for fabricating PE reducing tee in a workshop.Integrated function of wdlding and taping enables to complete the whole fabricating process. * Removable PTFE coated heating plate. * Separate two-channel timer records times in soaking and cooling phases. * Digital high-accurate pressure meter indicates clearer readings. * Linear guide ways are equipped with heating plate and dragging plate

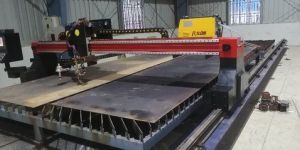

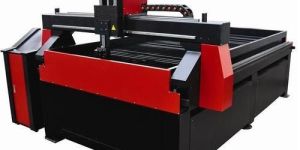

CNC Profile Cutting Machine developed by Mass Cutting Systems as SuperXL series which is suitable for many industries for metal plate cutting.   This machine is rigid gantry type design Economical level solution for production of Oxy fuel & Plasma cutting process. This machine driven system with heavy duty track for steady and precision cutting. • Longitudinal and transverse energy feed drag-chains, hose/ cable clean and move smooth. • Direct rack and pinion of 1.5 Module in both axes for accurate and repeatable motion. • Plasma Torch height sensing system with rapid initial height sensing. • High torque Stepper motors 3.4nm, 6.8nm or 8.7nm capacity. • CNC Controllers of 7” or 10.4” screen allows entering the program directly on the system or transfer files through USB. • Gantry Effective width available in 1.5, 2.0 & 2.5 Meter in standard size. Effective Length available from 3 Meter – 12 Meter. • Variety of Nesting software available for programming. • Rapid Speed 10mm – 6000mm/ min, Cutting speed 10mm -2000mm/min. • Maximum two torch stations available as per customer requirement. • LM Guides for X axis movement for smooth & precision driving. • Suitable for Oxy Fuel & Air Plasma cutting application. • Oxy fuel cutting thickness 5mm – 150mm. Plasma cutting thickness as per selected Air Plasma Model. Users can select the units which has several optional functions such as automatic ignition, powder spraying lineation, cutting back, dynamic graphic tracking shows and so on. It realizes the whole cutting process automatic control

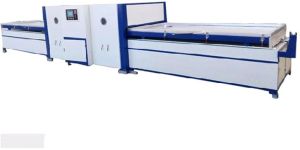

In addition to stretching the film to be outside the artificial, all automated operation, that is, a key forming. The power of the machine using the international advanced stepper motor, the control part of the use of high-tech PLC digital intelligent system, Panel with a 7-inch high-definition, high-sensitivity touch screen, more intuitive, more convenient, high-end. Transmission part of the high-precision gears and racks combine to bid farewell to the ancient rope pulling exercise, the platform to run more stable, more accurate, never crash collision. Vacuum adsorption pump uses a direct-type, greatly enhance the speed of air pressure, running noise, and other advantages.

The Mill consists of stages with steel fabricated Stress Relived Base. Housing stands are machied to close Tolerance. Shafts are made of EN24 material, flame hardened and ground. Top-Bottom Drive Gears and worm are made of EN24 induction hardened and ground. All the Bearings (22 Nos) are SKF.The Drive of the Mill from Main Gear Box in between Clutch/Break transmitted to an individual stages by chain coupling. Forced type lubrication provided by all moving parts. Panel Board provided with controls luch Forward-Reverse and Emergency stop in each stage.

Commercial applications include rocket nose cones, cookware, gas cylinders, brass instrument bells, and public waste receptacles. Virtually any ductile metal can be formed, from aluminum or stainless steel, to high-strength, high-temperature alloys. The diameter and depth of the formed parts are limited only by the size of the equipment available.

CNC Punching Machine, Canvas Bags, Synthetic Bag

CNC Folding Machine, CNC Shearing Machine, Laser Engraving Machin

CNC Shearing Machine, CNC Folding Machine, CNC Turret Punching Machin

CNC Bending Machine, CNC Laser Cutting Machine, CNC Turret Punching Machin

CNC Bending Machine, CNC Welding Machin

CNC Tube Bending Machine, CNC Stone Engraving Machin

CNC Plasma Cutters, CNC Cutters, CNC Gas Cutters, CNC Plasma Cutting Machin

CNC Punching Machine, Laser Cutting Service, Folding Machine

CNC Plasma Cutting Machine, CNC Cutting Machine, Duramax Torche

CNC Folding Machines, CNC Patterns, CNC Plasma Cutte

CNC Shearing Machine Repairing Machine, CNC Machine Repairing Servic
