Microne Industries Patravakam, Chennai, Tamil Nadu

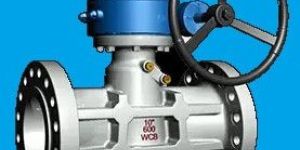

Lubricated Plug Valves are robust in construction and easy-in-line to maintain. These valves are used where existing pulsating or static high pressures are present. These valves are suitable for media that are used in various industries, such as petroleum, chemical industry, pharmacy, chemical fertilizer, electric power industry, etc. A lubricant is injected in between the plug face and the body seat to reduce friction and seal ports. The lubricants are selected based on the process fluid used. The sealant is injected through a pressure fitting into the body cavity and distributed across all seating surfaces via grooves in the plug.

Packaging Type : Standard Packaging

Usage : Suitable For High-pressure Applications In Various Industries

Construction : Robust Construction

Microne Valves manufactures a comprehensive range of Double Block & Bleed (DBB) Plug Valves in sizes up to 42” (1050 mm), and in ASME classes from 150 to 600. The valves are offered in a combination of materials and actuation options to suit customer requirements. The highly reliable valve has successfully completed over 10,000 cycles at its rated pressure. Compliance Standards DBB Plug Valves are designed in accordance with key international standards. They also meet the requirements of major hydrocarbon industry standards and customer specifications.

Pressure Rating : Rated Pressure

End Connection : Threaded, Flanged

End Connection : Threaded,Flanged, Socket Weld,Butt Weld

Application : Water, Oil, Gas, Steam

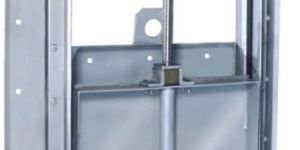

Microne specialized in manufacturing valves in Duplex, Super Duplex, Inconel, Monel, UNS N08926, UNS N07718, UNS N08825, UNS N06625, Hastelloy, Aluminium Bronze, 17-4PH. Design Features Built to IS and AWWA standards. Robust,reliable & long lasting. Range 200 mm to 2500 mm circular / rectangular / square openings,larger sizes on request. Manually Gear / electric operated. Reinforced frame and disc gives the rigidity. Rubber seal design. Rising stem & Non-rising stem configuration Wall / Embedded / Channel Mounting and other installation Other Material of constructions are available

Design Features : Robust, Reliable, Long Lasting

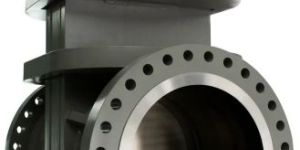

MICRONE through conduit slab gate valves are typically used in the oil and gas industry for installation in liquid products and secondary recovery, midstream and downstream pipelines. Typical applications include, but are not limited to: Mainline block valves. Tank and station valves. Launcher/receiver trap valves Meter bypass valves Emergency shutdown valves Manifold valves Transmission and distribution pipelines

Material : Typically Made Of Carbon Steel,Stainless Steel, Or Alloy Steel

Application : Mainline Block Valves, Tank And Station Valves

Pressure Seal valves are used primarily, but not limited, to power generation plants with fossil, coal, thermal, gas, nuclear power plants, steam power stations, etc. Pressure seal valves are excellent in the following conditions: high pressure, high temperature, steam, oxidizing environments, among others. One of the most important features of MICRONE Pressure Seal Cast Steel Valves is it ability to use the pressure line to assist in the seal of the valve with a preloaded metallic or graphite pressure seal gasket placed between body and bonnet which reduces weight for easy installation and maintenance increasing safety and seal of the body-bonnet joint. Pressure Seal Valves are designed in accordance ASME B16.34. Pressure Classes 600, 900, 1500 & 2500 # and sizes from 2” up to 24” nominal diameter

Application : Power Generation Plants, Steam Power Stations

Design Standard : ASME B16.34

End Connection : Female, Male

Material : Metal

Connection Type : Threaded, Socket, Flanged

Pressure Rating : 150 Psi, 200 Psi, 300 Psi

Temperature Rating : Up To 200°F, Up To 250°F, Up To 300°F

Sizes : 2 Inches, 4 Inches, 6 Inches

Pressure Rating : 150 PSI, 300 Psi

End Connection : Wafer, Lug, Flanged

Actuation Type : Manual, Electric, Pneumatic

Trunnion Mounted Ball Valve is the preferred choice of ball valve in higher sizes and pressure ratings and is used in pipelines and critical process applications. The valves have advanced design features such as a built-in cavity relief mechanism, anti-static, and intrinsic double block and bleed facility. The valves are of 2-piece or 3-piece design, bolted/welded at the body connection joint, with flanged/butt weld ends, in reduced and full bore designs. These valves are available in forged construction as well as cast construction. Full Internal weld overlay or weld overlay on seat pocket area and body cavity can be provided with in-house cladding facility.

End Connections : Flanged Ends,Butt Weld Ends

Bore Designs : Reduced Bore,Full Bore

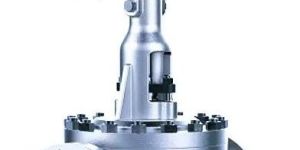

Specially designed for Molecular Sieve application it can be used effectively in dirty services. The ball movement off the seats allows a cleaning action of the ball surface thus eliminating the friction during opening/closing actions and allowing for reduced torque/thrust during operation (Non-contact Rising Stem Ball Valves). DESCRIPTION The design of the Non-contact Rising Stem Ball Valve (RSBV) avoids issues of trunnion mounted, floating ball and other conventional valve types under the next extreme conditions:

Cleaning Action : Cleaning Action Of The Ball Surface

Torque Reduction : Allows For Reduced Torque/thrust During Operation

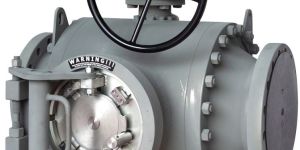

Pig valves basically work like ball valves. They are used in pig launching and receiving systems. These valves are preferred instead of using pig launcher and receiver spools. They have a compact structure. Quick open closures are mounted on them. STANDARD FEATURES : 1 Due to low torque values, smaller actuator can be selected. 2 The actuator selection is automatic. 3 Fixed lifting lugs on the valve. 4 Easy maintenance. 5 The closure has special quick open design. 6 Renewable seats. 7 Available with metal and soft seats. 8 Blow-out-proof stem.

Application : Pig Launching And Receiving Systems

We manufacture a versatile range of process ball valves in single, two, and three-piece constructions. The valves are available in full-bore and regular-bore designs, in a variety of end connections and materials to suit customer requirements. The floating ball design of ball valves is the universal choice for most process and utility applications. In this design, sealing takes place by allowing the ball under pressure to move towards the downstream seat to effect a tight seal. Our floating ball valve design has a small cavity, making it a “no cavity ball valve” with a low pressure drop. These valves are bidirectional valves. Product Details : Floating Ball Valve design complies to API 6D, API 608, ISO 17292. Fire-safe to ISO 10497 and API 607. Mirror-finished solid stainless ball. Fine-grained PTFE seats. Cavity Pressure Relief mechanism.

End Connections : Various End Connections Available

Material : Stainless Steel,PTFE
