FEATURES: Low pressure 1" female NPT connection for high f low . Lockable w eather tight enclosure, for outside mounting. Gauge for display of supply pressure. Box can be mounted horizontally or vertically by changing f ront label. Box available in recessed or surface mounting.
 SPECIFICATIONS: The “Emergency Gaseous Oxygen Inlet Station” shall be an CMM Alert-1 series. As required by NFPA 99 (National Fire Protection Association) “Health Care Facilities”, oxygen systems having the source of supply outside the building shall have an inlet to connect a temporary, auxiliary source of supply for emergency or maintenance situat ions. This connection shall include necessary valves and to allow for an emergency supply of oxygen and isolation of the normal source of supply. The inlet connection shall be a 1" female npt connection and be provided w ith a plug to prevent entry of foreign matter into the oxygen system w hen not in use. A 1" brass ball valve controls access to the emergency supply, and the gauge indicates the pressure being introduced into the oxygen pipeline. The Emergency Gaseous Oxygen Inlet shall be housed in a w eather tight resessed enclosure. The enclosure door shall be labelled "Emergency Low Pressure Gaseous Oxygen Inlet" and shall be equipped w ith a staple for padlocking to allow entry only by authorized personnel. Amount ing f rame shall extend completely around the enclosure to trim recessed mounting on an exterior w all. The interior of the enclosure shall be clearly labelled w ith instructions for connection and operation of the emergency oxygen inlet. Bronze body check valves with female pipe threads on each end is required for installation in the main and emergency supply pipeline in accordance w ith NFPA-99. A brass body relief valve w ith the relief pressure set @75 psi is required for installat ion in the emergency supply line. The relief valve shall be supplied factory cleaned for oxygen service and shall automatically reseat af ter discharging to provide a positive seal. Non-Locking ValvesSPECIFICATIONS All area and main line isolations valves shall be CMM Alert- 2 Series. Valves shall be non- lockable. The valves shall be oxygen cleaned, full port, three piece ball-type with flanges to allow easy service and installation. The valve shall have a bronze body, and a blow-out proof stem. The valve ball shall be bronze chrome plated, and the seats and packing shall be Teflon (TFE). The valve shall have a pressure rating of 600 psig. and be hydrostatically tested. Type .K. copper pipe extensions that are cleaned for medical gas service shall be fitted into each side of the valve. A gauge port shall be drilled into one of the pipe extensions for the purpose of inserting a gauge if required. The valve assembly shall be plugged or capped and sealed in a plastic bag to prevent contamination. Each valve shall have a bracket used to identify the gas being handled by means of a gas specific label. A lever type handle shall be used to operate the valve(s); the valve shall be changed from fully open to fully closed through a quarter turn of the handle.

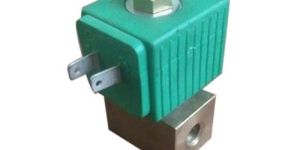

We have carved a niche in the industry by engaging ourselves in supplying an extensive range of Solenoid Valves. These valves are widely used for various engineering and automotive applications. Our offered valves are manufactured using high grade raw materials and other components in order to satisfy the needs of clients. In order to suit the demands of clients, these valves are made available in different grades, sizes and specifications. We deliver these Solenoid Valves in suitable packaging to ensure secure transit.

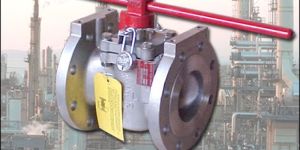

we offer Teflon Sleeved Plug Valves. Part Name Material 1 Valve Body C.I/D.I,CF8M,CF3M, CN7M,CD4MCU,CF8,WCB 2 Plug CF8,CF8M,CF3M,CN7M, CD4MCU,MONEL,Haste alloy C 3 Sleeve PTFE 4 Washers PTFE 5 Diaphragm & Wedge Ring PTFE Glass Filled 6 Metal Diaphragm CF8M/CF8 7 Thrust Collar CF8M 8 Cover Plate C.I/D.I,CF8M,CF3M,CN7M, CD4MCU,CF8,WCB 9 Boltings & Spring Washers ASTM A193, 194 Gr.B7/CF8M 10 Handle Bush M.S. 11 Handle Rod M.S.

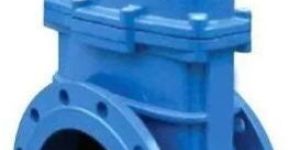

The gate valves are designed to stop, allow or throttle the flow of a process fluid. Gate valves, one of the original valve designs, are ideally suited for onoff, primarily liquid, service. A gate valve functions by lifting a rectangular or circular gate out of the path of the fluid. When the valve is fully open, gate valves are full bore, meaning there is nothing to obstruct the flow because the gate and pipeline diameter have the same opening. This bore diameter also determines the valve size. An advantage of this full-bore design is very low friction loss, which saves energy and reduces total cost of ownership.

Hirose Valve Industry Co., Ltd. is a hydraulic valve manufacturer that has produced, since 1923, various types of valves encompassing simple-design stop valves that are of very high quality. The most common types are Stop Valves, Check Valves, Ball Valves, Relief Valves and Throttle Valves

These valves are used in processing industries for steam, air or other fluids. Suitable for operation for simple on and off duty using solenoid valve, or with pneumatic controllers with 3-15 psi loading pressure or as a direct operated regulator for controlled pressure up to 30 psi. Flanges drilled according to BS 10 Table H or J. Can be supplied with other flanges against order. The valve can be supplied with integral controllers, to work as an " Upstream Pressure Control Valve " or as a " Downstream Control Valve " in cast steel body, for pressures of 40 bar and 400 degrees centigrade .

We manufacture needle valves. material: carbon steel, stainless steel, mild steel, cast iron, brass, bronze size: 1/2" to 2" ends: screwed, socket weld upto cl 1500 operation: hand wheel.

Solenoid valves include more than 3500 combinations which satisfy different needs & industrial requirements to control the most diverse liquids & gases such as water, air, steam, oils, corrosive fluids & many others.

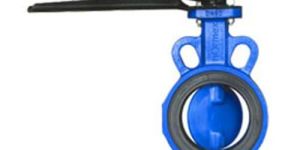

Control valves are an important part of SOMAS valve program and they can be used in many industries. Different SOMAS valves can be used as control valves and the ball segment valve is one of them. Thanks to its design, with ball segment and shaft in one piece, the ball segment valve is the ideal control valve. The butterfly valve is also an excellent control valve The ball valve has flow characteristics less suitable for control applications, but when the other advantages of the ball valve (valve seats in both directions and low resistance at full opening) are important, it may very well be used as a control valve. Control valves with torque transmission free of back-lash An extremely important part of a control valve is the connection between the valve shaft and the actuator. SOMAS offers a patented backlash-free transmission friction coupling (valid for D?50) to optimize control performance and eliminate backlash. The actuators are designed to fit valves and accessories with the ISO 5211 and VDI/VDE 3845

We are comprehensively engaged in offering a wide and superior range of Auto Drain Valves. These Automatic Drain Valves offered by us among the clients are precisely engineered, rigid construction, corrosion resistance, trouble free operations and superior performance. These auto drain valves are with adjustable timing. The offered products find applications in different industries for varied purposes. The product is manufactured using very high quality raw material procured from the most reliable vendors of the industry. All the products are quality tested before delivery to the customers to ensure 100% customer satisfaction. Features: Hassle free performance Un-matched prices High grade quality Long lasting service life Flawlessly finish Specifications: Pressure: 0 to 40 bar Size: 1\2″,1″ Temperature resistance: 85°c Body: aluminum die cast

1, Only dimension F-F is certified other dimensions are indicative.2, Jacketed valves are designed with oversized flanges.3, Max. working temperature 200°c.4, Flange drilling as perWCB / CF8 / CF8M / CF3MAS PER ANSI – B 16.55, STAITC ELIMINATOR will be provided wherever necessary. 6, Steam connection will be as per customer request.

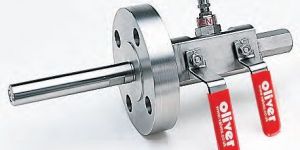

We are offering sampling valves. Undefined oliver valves offer both sampling valves and injection valves. With our innovative designs, you'll easily be able to sample the process stream, and inject chemicals and other media into the process stream. With a variety of different nozzles, our sampling and injection valves can directly integrate into any new or existing oil, gas and petrochemical project.

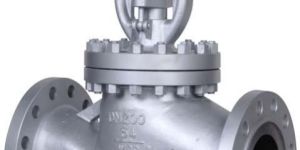

Motorized Globe control valve On Off single Phase and Modulating 4-20mA Size range starts for 12" to 10" Manual over ride provided available valve MOC WCB,SS304,SS316 & SS316L.
