Microscope Dealers in Chennai

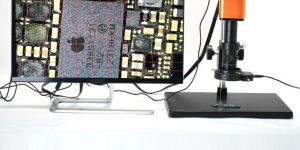

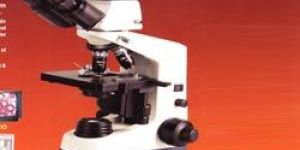

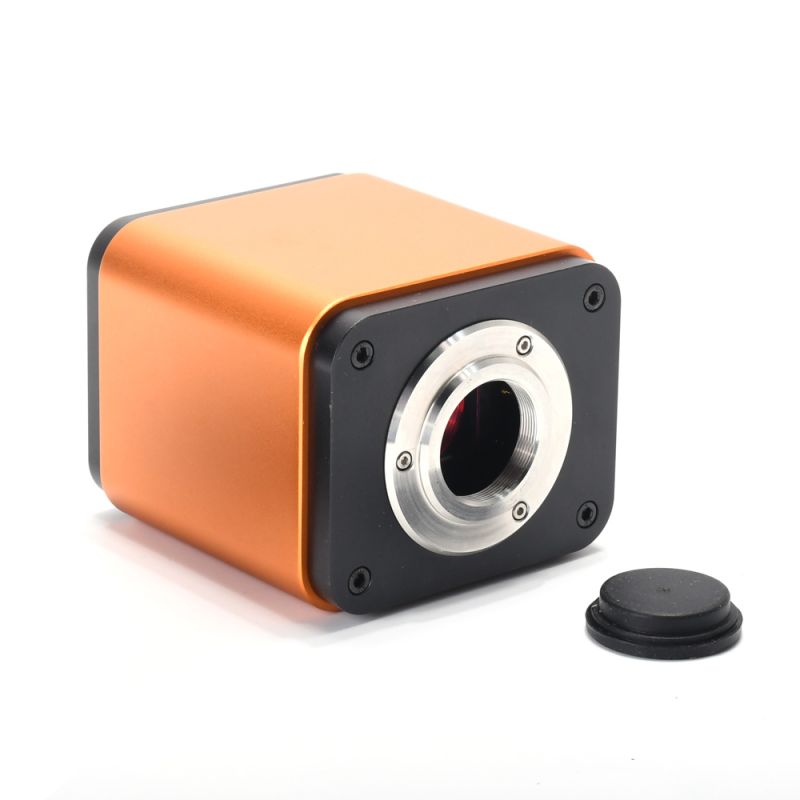

High transmission Video Observation head 30° inclined, 360° rotatable. High eye point wide field eye piece WF 10x  Paired (F.NO. 20) Super Plan Obj.  PL4x, PL10x, PL40x & PL100x, Oil Immersion Magnification Range           40x to 1000x standard. Optionally upto 2000x. High resolution built in digital camera with resolution 1.3 pixels, High Resolution Chip, RCA, S-Video, USB 2.0 output.   Imported Co-axial coarse and fine focusing system supported on ball bearing with tension control and pre focus stopper. Coarse focus range 30 mm and fine focusing reading to 0.002 mm. Reverse Revolving quadruple/quintuple nose piece with ball bearing for perfect alignment. Rectangular graduated mechanical stage 135 mm x 140 mm with low position Co-axial X-Y motion controls on right hand side. Koehler's illumination system with 6V/30W (CE approved)  super   bright halogen lamp & solid state variable light control. A versatile software for image Capturing, Processing and Editing

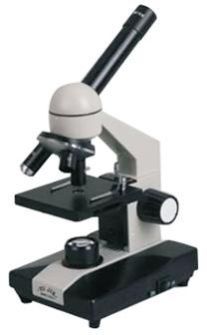

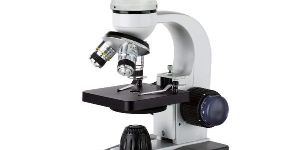

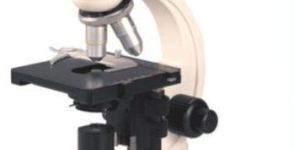

Leveraging over the skills of our qualified team of professionals, our company is instrumental in presenting Student Microscope. This Student Microscope is extensively used in different schools and colleges. Moreover, our products range is available in market at most affordable rate.   Features:   Rugged construction Low maintenance Durable finish standards

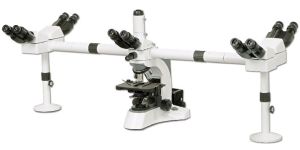

Multi-viewing Microscope allows people observation at the same time. • With the features of Infinite Optical System, Effective Illumination, LED Pointer and images Coherence, it is widely used in Clinic, Scientific Research and Teaching Demonstration SPECIFICATIONS Optical System - Infinity Optical System : standard Outfit Viewing Head • Compensation Free Trinocular Head, Inclined at 30°, 360° Rotatable, Interpupilary Distance 48-75mm : 1PCS • Compensation Free Binocular Head, Inclined at 30°, 360° Rotatable, Interpupilary Distance 48-75mm : 4 PCS Eyepiece - Extra Wide Field Eyepiece EW10x 20 : 10 PCS Nosepiece - Inverse Quintuple Nosepiece : standard Outfit Objective - Infinite Plan Achromatic Objective 4x ,10x ,40x ,100x : standard outfit Condenser - Swing Condenser N.A.0.9 0.25 : standard outfit Focusing Coaxial Coarse & Fine Focus Adjustment, Fine Division 0.002mm : standard outfit

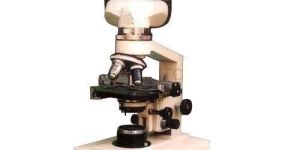

Relying on our expertise and know-how in this field, we are well-known as one of the prestigious organization in providing a wide range of Binocular Microscope. This Binocular Microscope is well manufactured and its quality is maintained as per the international quality standards. Our offered ranges of entire products are highly demanded in the market. We offer supreme quality products at thrifty prices. We always maintain quality and never compromise with that.Features:Superior qualityLow pricesPerfect finish.

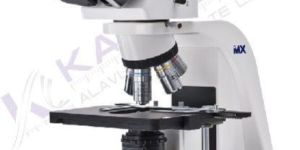

Trinocular Microscope offered is made available by us in 45º inclined finish with 360 degree rotatable trinocular head that provides for optimum user interface. For smooth operations, these also come with co-axial built-in mechanical stage with option of fine vernier graduation, low drive control as well as presence of ball bearing guide ways so as to ensure jerk free smooth slide manipulation through 50 X 75 mm travel feature. Further, the presence of exclusive preset focus lock also helps in preventing damages of valuable slides and objectives. Standard Features: 45º inclined with 360 degree rotatable Trinocular head Co-axial built in Mechanical stage with fine vernier graduation, Low Drive control, working on Ball bearing Guide ways for jerk free smooth slide manipulation through 50 X 75 mm travel Dust proof quadruple/quintuple ball bearing revolving nose piece provided with rubber ring for easy rotation Co-axial coarse & fine focusing adjustment knobs, fine motion, graduated to .002 mm Sub-stage Abbe type N.A. 1.25 condenser focus-able with rack & pinion having iris diaphragm and swing out filter holder Steeple Grey, chemical resistant, back-on finish Exclusive preset focus lock prevents damage of valuable slides and objectives Heavy rectangular sturdy base, with built-in illumination LED lamp, with intensity control, provided with fuse for extra safety With dust cover packed in Styrofoam packing Optical Accessories :  Objective : 5 X 10 X 15X [Hygienic]  Dark Field Condenser, Phase Contrast Attachment

The AR-Stereo and AR Series Zoom Microscopes are equipped with two secured WF 10x/22 eyepieces and a 45° binocular viewing head which can rotate 360°. The AR-Zoom also comes as a trinocular version onto which a camera can be mounted by means of optional adaptors. Optional supplementary objectives, 0.5x, 1.5x and 2x, can be supplied to achieve other magnifications and working distances. Eyepieces WF 5x, WF 15x, WF 20x and WF 10x with micrometer are available. The AR-Stereo microscope has identical specification to the AR-zoom but is equipped with fixed 2x / 4x objectives in a revolving objective turret. Specifications ModelAR-Zoom 64.210TubeBinocular, zoo ratio 1:4Trinocular, zoom ratio 1:4Magnification(4)10x-40x10x-40xWroking distance85mm85mmIlluminnation (2)Halogen 12V 10WHalogen 12V 10WField of view22-55mm22-55mm Note (2) With built-in transformer and cable(4) With standard WF10x/22 eyepieces

to meet the growing demands of the medical industry we offer superior quality co-axial trinocular research microscope with micro-photographic system. Our designed with our cutting edge technology our laboratory microscopes are provided with: fine focusing system and latest co-axial coarse  based on a 4-gear reduction system traveling on ball bearing guides with highly sensitive fine motion graduation reading to 0.002 mm. large graduate mechanical stage (145 x 125mm) convenient slide manipulation this coaxial system offers high degree precision along with work convenience. A stable and strong microscope stand is provided with ball-bearing quadruple revolving nose-piece turret on a dust-proof mount. The built in click stop get each objective to a perfect arrangement for a common field center. This microscope is provided with variable light intensity regulator and built in halogen 6 v 20 w illumination with on-off switch and easy replacement ( bulb). Along with this a replaceable plano-concave reflector for day-light has also been provided. A high grade na 1.25 condenser system with swing out filters ring and iris-diaphragm is adjusted through rack-n pinion. The high transmission binocular head with multilayer coated prismatic system makes the equipment substantially better. Observation head inclined at 45 degree c is set with diopter and interpupillary adjustment. It is fitted with color corrected coated, parfocalled, centered optics. Provided with din standard optics and a trinocular head for micro photography it is attached with high precision 4 mega-pixel digital camera which enhances multi-vision analysis. optical combination:  din standard optics achromatic objectives: 4x/5x, 10x/ 40x/45x (sl) & 100 x (sl)huygenian eyepieces: 5x (pair)super wide field eyepieces: hkwf 10x (pair) some of the features are enlisted below: online respiratory disturbance index (r.d.i.) calculation. ideally suitable in icu's conditions. complete system windows me/xp. usb connectivity, no external power supply required. online sleep stage scoring. tabular format for all important readings. graphical & numerical analysis unlimited continuous recording. facility to change individual channel hf, lf, sensitivity. optical isolated to provide excellent s/n performance it is provided with automatic marking: apneas & hypopneas: (obstructive central or mixed apneas)sleep stage 1, 2, 3, & 4arousale – rem following reports are printed after the test is completed oxygen de saturation, hr variation, body position. limp movement, snoring, summary report. sleep stages: s1, s2, s3, s4, rem, wake time. auto test start from same stage on power resumption. selectable sweep speed for careful data observation. split screen, freeze facility to study event carefully. highly synchronize video & psg data online display of heart rate, rdi & sleep stages. ultra fast automatic paging facility for efficient analysis. archiving on any media. high resolution auto focus camera with remote control. patient snap photo on psg report for easy identification off line room audio playback complete patient questionnaire before and after sleep study provided with maintenance accessories and packed in a thermocole and wooden box.

Our esteemed clients can purchase from us a quality-approved assortment of Dark Field Gemological Microscope at pocket friendly price. With the constant support of a team of experienced employees we manufacture the offered products with high quality features. These products can also be provided in customized options also to suit the needs and demands of our valuable customers. Apart from this, we are offering these products at very reasonable prices.

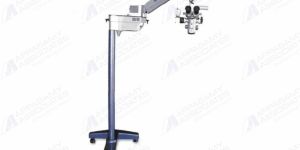

We are offering surgical operating microscope aaom 20-i eyepieces : 12.5x wide field (optional 10x wide field) diopter adjustment : from +6 to - 6 eye piece inclination : 60° off vertical inter pupillary distance : adjustable from 55 mm – 75 mm working distance : 200mm magnification manual 5 step : 0.4x, 0.6x, 1.0x, 1.6x, 2.5x total magnification : 3,5,8,13,20 field of view (in mm) : 80, 51, 31, 19, 12 fine focusing range : 50 mm motorized foot control illumination intensity : 80,000 lux (minimum) brightness : continuously variable light transmission : fiber optic cable light source : twin outlet 12v/100w halogen lamp with cold reflector arms : counterbalanced spring arms horizontal length of arms : 1000 mm vertical height adjustment : minimum 1750 mm vertical height adjustment : maximum 2130 mm rotation of primary arm : 360° rotation of secondary arm : 140° floor stand : mobile floor stand dimensions of base : length 750 mm, breadth 750 mm mobility : on four caster wheels power supply : ac 220-240 volts or 110 v on request net weight : 160 kg. (approx.) accessories are available : for video, still camera, assistance viewing swing and rotation : 0° to 90°swing, 360° rotation

With the more stress on research and development in today̢۪s competitive world, the demand for laboratory microscopes has increased. To cover up this demand we manufacture standard laboratory microscopes with the complete proficiency and specifications. We are also into trading of wholesale lab microscopes. We are amongst leading Indian suppliers.

Features: High quality stereo zoom microscope Delivers sharp high contrast images Excellent zoom ratio of 1:6.5 Perfect for industrial inspection and for assembly purposes Easy-view vertical screen. Large stage travel 6" x 10". Rotating chart clips Fibre optic illumination for surface measurement.

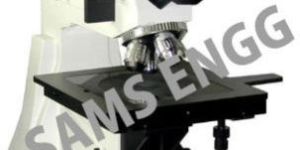

It is used for inspecting, identifying, measuring microscopic metal grain structures.Metallurgical microscope is the optical microscope, differing from other microscopes in the method of the specimen illumination.   Product Code : SAMS MET - 007
