Milling Machine Accessories Dealers in Chennai

Integration of a table and rotary actuator Angle adjustable, ±5º at each rotation end (Double: ±2.5º) Table deflection accuracy: 0.03 mm or less (MSUA) Connection port position: Side ported and axial ported selectable (When a switch is installed, side ported only.) Possible to move the auto switch mounting position as desired With auto switch (Series MDSU: MDSUA, MDSUB).

HEAVY DUTY CNC ROTARY TABLE The Rotary table models VRT series are designed for integrating with any CNC horizontal boring machine fitted with Siemens 840D controller having additional axis capacity or with an independent controller Siemens 802 D .The rotary table position can be continuously controlled in two axis one rotary ‘B’ axis and the another longitudinal ‘V’ axis. The rotary table bed made of grey cast iron grade 30 heavily ribbed. The Rotary table movement is through a Double Pinion Gear Box driven by one or two Servo motors as required. The table and saddle guide ways are hydrostatic and can be hydraulically locked after indexing.

A new series of coated grades for stainless steel and exotic alloy milling. ACM100 and ACM300 employ New Super ZX Coating and thereby enable milling that is 1.5 times faster and more efficient compared to conventional grades. ACM200 employs Super FF Coating and achieves smooth coating as well as excellent chipping resistance.

Simple but rugged design, Interlocks made using PLC which ensures safety, Control of drive through communication which reduces wiring complexity and will reduce fault finding time. Easy friendly HMI provides you Status of Mill System and diagnostic data’s, We offer maximum up to 1.98MW.

The SONIC M80 offers a robust, yet affordable, solution for the PCB drilling industry that is based on an industry proven design. The SONIC M80 takes reliability to a new level resulting in reduced down time and increased productivity. Low dynamic run out and increased motor torque provide accurate and repeatable drill quality throughout the available speed range. Long life, low maintenance and an efficient after sales service make the SONIC M80 the spindle of choice for PCB drilling. We manufacture an attractive variety of High Frequency Drilling Spindles that is designed using superior quality materials which is sourced from certified vendors. These are designed as per the International Standards and are tested to ensure the products free from all the defects. These are known for their robust fabrication, high efficiency and long service life. They are easy to use and maintain. Clients can avail these at competitive prices.

The structure is double rolls with four arms mill rolls on both arms can be bearing at the same time. Hydraulic control of lifting, lowering, clamping and centering. We tension is controlled by pneumatic or magnetic power tension control, expendable chucks is optional. Maximum roll diameter: 1500 mm Maximum weight: 3 T

We offer Rotary Indexing Table. Our clients can avail from us a premium range of Autorotor that finds application on Special Purpose Machines for repeated positioning & precision indexing. This Autorotor series 5 is a automatic square axis unit to convert the uniform rotation of inlet shaft in an recurrent rotation of output disk. It is based on the principle of conjoining indexing and locking in a non-lifting system of face gear rings. The number of standard indexing ranges from 2 up to 32. From 32 up to 540 indexing on request. Indexing tables are generally mounted on: Assembling machines Packing equipment Manufacturing equipment Automated welding machines Movement devices Machining isles Filling machines Printing machines Benefits: Housing of uninterrupted round shape, without peripheral protrusions. Underslung drive train. Simple mounting into plain round aperture Great rigidity, by virtue of locking into face gear rings of largest possible diameter High indexing accuracy up to ± 1" Very fast indexing - even with heavy table loads Constant monitoring of actual angular table position via rotary resolver - no need for zero-datum reference approach Version with both horizontal and vertical indexing table A thoroughly tried technology ensures highest service reliability

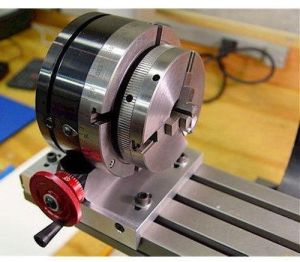

Based in Tamil Nadu (India), we are a renowned Exporter and Supplier of precision engineered Rotary Tables. Our Rotary Tables are applicable for precise movement ranging from 10-150mm (1/2-6"); typically require a cylinder and a precision guide. Sourced from the reliable manufacturers, our Rotary Tables are available in standard with auto switch capability. Stroke adjustments are available for extended, retract, or both in ranges of 0-5mm, 0-15mm, and 0-25mm. They also come with all necessary accessories for hassle free usage. Featuring a sturdy construction, our Rotary Tables come with an enclosure base for the motor and ball screw drive, fitted on top with a rotary bearing supporting the work table. Features & Benefits : Versatile : Changeover to clockwise/anti-clockwise rotation or reciprocating motion, as well as subsequent changeover to another indexing stationAll connections and settings are accessible from one sideSturdy, overload-protected mechanical systemFlat and compact design for minimum space and optimum installation conditionsIntegrated position sensing with inductive sensor

Side Milling Insert, ZCC Cutting Tools, Face Milling Cutter, Pcd Inser

We offer apmt 1604 pdttr nn lt30. Milling insert

Router Milling Tools, Glass Grinding Wheel, CNC Machine Tool

Carbide Milling Inserts, Turning Carbide Inserts, Ceramic Insert

Rotary Indexing Tables, Hydraulic Rotating Cylinders, Polymer Concret

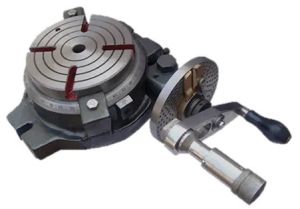

We are the leading manufacturer in machine tools rotary milling table,precision screwles vice, machine vice, bench vice.

TMT Quenching Boxes, Raw Coal, Iron Ore, Iron Steel Bar, Sponge Iro
