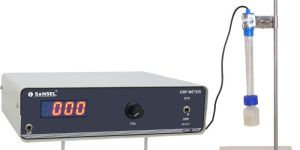

SANSEL make digital ORP (Oxidation Reduction Potential)/ Redox meter is a precise and rugged instrument carefully designed for the most accurate measurement of ORP in laboratories and industries.The instruments are completely IC version using “MOSFET” input “OP - AMP” and CMOS ICs. It is a metal cabinet of elegant shape. All the controls that are in regular use have been incorporated in the front panel for operational easy.The instrument is capable of measuring millivolts with auto. Polarity for redox potentials and potentiometric titrations. This instrument operates from 180V to 230V AC 50Hz.
Features :
Highly reliable and accurate meter.
Very responsive combination glass ORP electrode.
Latest ICs used for quick sensing and high accuracy.
CAL adjustment controls are provided on front for recalibration of instrument.
Specifications:
Model: ORP 300
Display: 0.5” 3 ½ Digit 7 segment Red LED
Range: -1999 to +1999 mV
Resolution: 1 mV
Accuracy: ± 1 mV ± 1 digit
Input Impedance: > 10¹² Ohms
Input connection: BNC socket
Electrode: ORP Electrode with BNC attachment
Operating Environment: 0 to 50 °C / 20 to 95 % RH non condensing
Power supply: 230V AC / 50 Hz ± 10%
Overall Dimensions in mm: 185 x 235 x 65 (L x B x H)
Instrument weight: 1.6 kg (Approx.)
Accessories :
Basic Instrument
ORP Electrode
Electrode Clamp & stand set
Instruction manual
