A seal pot is a small pressure vessel mounted at the top of the wet leg line. It is located to allow condensate to drain to the source, prevents convective transfer of vapors from sewer line below drain thus keeping the liquid level constant in the impulse tubes. The seal pot is in constant contact with steam. Hence, it is not vulnerable to freezing temperature during normal plant operation. If the plant is shut down during that temperature, it must be drained due to vulnerable conditions. The instrument is used in boiler applications, as reservoirs for sealing liquids, for measurement of corrosive fluids. Refinery, steel, power plant industries use this instrument. We supply the seal pots made of Zinc platted, electro-polished smooth surface finish with threaded or welded connections.

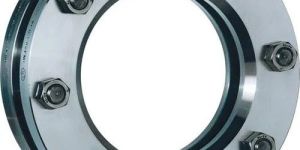

we bring forth a huge assortment of exceptional quality level gauge sight glass. The level gauge sight glass is best to gest a full view of the low and high pressures in the vessels and pipelines. The precise designing and accurate making of the level gauge sight glass makes it extremely reliable for conducting an accurate and safe reading of the fluid level. Clients can avail durable and sturdy level gauge sight glass from us in the required specifications at affordable prices.

Sight Glasses, Level Gauges, Level Switches, Safety Valves, Strainer

GAYATRI's make Orifice Plate with holding flanges nut bolts and gaskets are called orifice assembly. Flanges generally are of M.S./C.S./304 S.S./316 S.S., nut bolts M.S. Galvanized, Gasket C.A.F. Other construction is possible & will be made against order. Flanges generally are of 4 types a) Weld Neck b) Slip-on c) Carrier Ring d) D & D/2 tapings or pipe run assembly. Pressure tapings are in flange itself in 1st 3 types, while for D & D/2 they are on pipe. Assemblies supplied for 11/2" to 24" Line sizes. Orifice bore calculations as per BS1042 on the basis of your given data is done & bore size is determined & made. Bore calculations are also provided along with instruments or can be sent for approval before manufacturing.

Standards : SMS & TC     Sizes Available : 1”, 11/2, 2” ,21/2” & 3”     Material of Construction : AISI 304 / 316     Elastomers : Nitrile & Silicon     Applications : Dairy, Brewery, Food beverage, Pharmaceutical , Chemical and Cosmetics industries

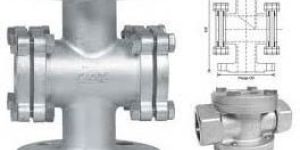

Sight Glasses, Pressure Sight Glass, Sight Flow Indicator

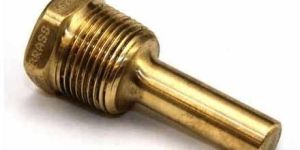

Orifice Plates, Thermowells, Strainer, Safety Valve, Breathe
