Maintance free design Horizontal Drawout and Isolation Positive racking mechanism Interlocks to prevent insertion / withdrawal of closed CB CB can operate in test or service position only Identicaly rated CBs are fully interchangable. Easy retro fitting with Cassete System. Fully type tested as per IEC60056 / IS 13118 / IEC 62271-100 Operating Mechanism Proven Spring operated Mechanism Designed to closed and latch Manual / Motorised Option In built trip free mechnism. In built anti pumping feature Mechanical ON/OFF indication

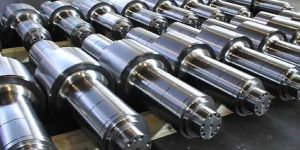

IIPL have complete rang of back –up, Work rolls, Roll chokes and housing for CRM. Rolls, Mill stands, Housing for HRM and Rollers, Guides for Pipe/ Tube Mills. We have fully equipped tool room along with CNC machines to manufactures precision equipments like C.R. Slitter, H.R. Slitter, CTL, and Crash guard Section Rolling with very high precision accuracy. We manufacture & supply for all industrial needs like Rollers for tube mills, cold rolling mills & hot rolling mills, Gearboxes, Thruster with break assembly, Coil Car/ Trolleys, Coolant Filtration Plant, Effluent Treatment Plant. Our dedicated team of technicians designs the best of all industrial equipments.

SMS hygienic sight glass products are made by forged material.Type of ends available: Weld end, Male end and Female end.Glass is made of tempered glass which can bear Max working 10 Bar. Replaceable.EPDM, Silicon, Viton and PTFE seats are available, making the Sight Glass suitable for many applications in such as food, dairy, beverage, meat processing, vacuum processing, pharmaceutical, chemical, and many other industries.It is necessary you specify at the time of order heat numbers and MTR's are required. Material Test Reports (MTR's) are available to document all heat number.

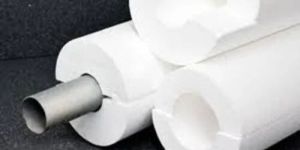

It is unique product manufactured out of chemically coated mineral fibers in specific size. size The uniformly machine rolled sectional pipe are used for hot and cold air cold air, water, stream pipelines in indusrtrial, housing and commercial complexes. It provides personal protection, fire protection, prevent condesation and reduce noise emissions.

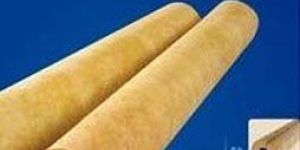

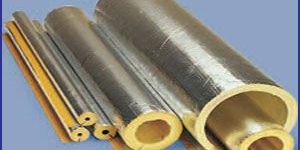

We specialize in bringing a huge range of precisely engineered Resin Bonded Pipe Sections that offer maximum resistance to heat passage. These pipe sections are spun from selected rocks fibers, with inorganic origin, bonded with resinous binder and preformed into rigid sections with the product ranges to fit for pipes of 1/4" to 14" with nominal bore and from 25 mm. to 100 mm. insulation thicknesses. These are then melted at 1600°c and blended to a carefully adjusted chemical composition so that they bring a huge strength in them.

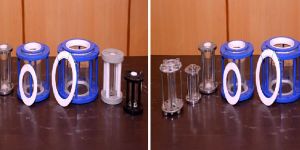

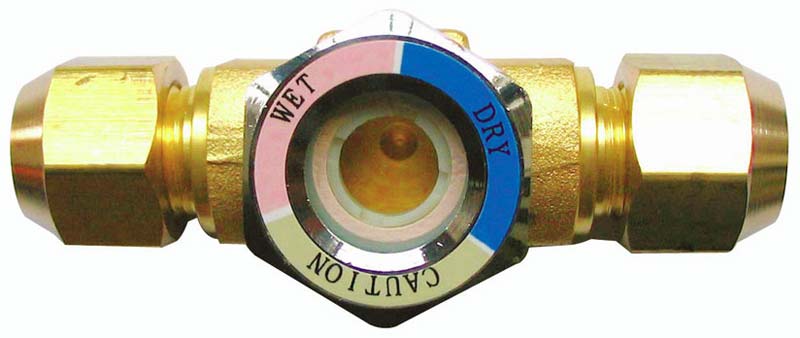

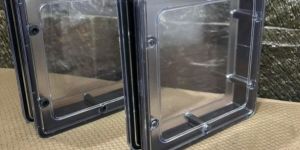

We are engaged in manufacturing & supplying of Sight Glass from Delhi, India. The huge assortment of Sight Glass we offer is fabricated in our fully equipped production unit under the guidance of skilled professionals. We ensure customer satisfaction by checking the Sight Glass on various quality parameters before the final dispatch. We are capable of delivering small or bulk orders of Sight Glass within the postulated time.   Details : These glasses are generally toughened and used for checking level of water or oil in Machines.

  Sight glass is a device used between any kind of non transparent pipelines to observe the flow of liquid. This can be used both in horizontal as well as vertical pipeline. Sight glass is constructed in such a way that it gives a complete view from every angle.A sight glass consists of one glass pipe section, one metal frame, a pair of PTFE bushes and washers and an acrylic cover. Borosilicate pipe section is highly heat resistant, has excellent chemical resistance and has low thermal expansion. Metal frame is composed of two flanges, which are welded with studs so that the stresses and vibrations of the pipeline do not transfer to the glass pipe section. Its check nut keeps the glass pipe section in compression and provides ease in replacement.PTFE bushes on both sides of glass pipe section that liquid ensures that liquid in the pipeline does not come in contact with metal frame. PTFE washers are used as gaskets while fitting the sight glass in the pipeline. Acrylic cover covers the glass pipe section and protects it from outer damages.Sight glass can be supplied with Ms/SS304/SS316 frame with any standard drilling.

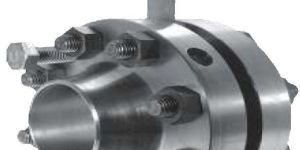

Orifice Flange Assemlies are mode to AGAASME recommendation and provide means to flow measurement. Assemblies to other international Standards viz.-ISO,BS,DIN etc. are also available. Orifice flanges cover complete range of sizes and pressure ratings upto ASA 2500 of ANSI B16.36 as standards viz,-API,MSS,BS and DIN etc. are available on request. These flanges are available in various types such as Weld neck, slip on, Screwed with facing FF, therefore, RJ, TG etc various types of tappings available are viz. Flange, corner and D-D2 Orifice Bore calculatoins can be carried out as per ASME MFC-3M, ASME 19.5, ISO 5167 BS,1042, R.W. Miller and L.K. SPINK etc. Orifice Flange Asemblies are supplied ready to install in Piplines complete with tud, nuts, Jack Bolts, Gaskets and Drain Pulgs. Orifice Flanges are manufactured in broad variety of material to ASTM Standard viz. Concentric Bore: For standard fluid condition an Orifice Plate would have a centrally located orifice bore Eccentric Bore: The orifice would be set off center and tangent to the bottom inside line I.D. to allow heavy solid or sluries to flow through the orifice. Also used when the Orifice bore is less than 1" in diameter and the line require vent od drain hole. Quadrant Bore: The quadrant bored orifies plate has a quarter round upstream edge and is designed for viscosity flows with Reynolds Number below 10,000

Allows plugging of oxygen flowmeter & probes from front. Bears weight of the metal BPC flowmeter & humidifier Push to insert and press-to-release mechanism for flowmeters & probes. Locating terminal unit pin & probe notch gives maximum stability to the flowmeter unit. Non-interchangeability between probes & terminal outlets for different services; possibility of error in making connection is avoided. Safety key plug used with type self sealing valves can also be used on the terminal units so that existing ancillary equipment can be inserted in both the terminal units as well as type sealing valves.

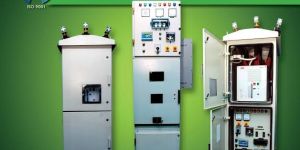

Owing to our expertise in this domain, we are engaged in offering an excellent quality array of Indoor Vacuum Circuit Breakers. These circuit breakers are manufactured using supreme quality raw material and cutting-edge techniques in compliance with international standards. It is widely used for power distribution and controlling applications in various power plants and electrical substation. We offer these Indoor Vacuum Circuit Breakers in various specifications at the most affordable rates. Robust construction Durable finish standards Superior performance Longer service life

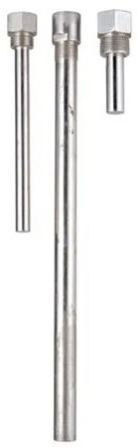

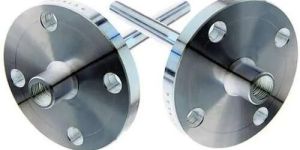

Type: Barstock, Solid Barstock, Deep Drilled and Machine, Tapered or Straight Hot End Materials: Hexagonal Round AISI 304, 316, 310, 321, 446, Inconel Tungsten Carbide, Cobalt, and Cermeric Coated. Process connection: Screwed: BSP NPT Metric, Thread Flanged: ASTM BSS DIN

A unique 'U' shaped insulation barrier housing the Vacuum interrupters, (except for VK 10 Q 40) imparting maximum mechanical strength against electrodynamic forces and provides most effective phase to phase and phase to earth segregation.

It consists of manual/motor operated spring charged mechanism of stored energy type. In the closed state of breaker, the closing spring can perform the duty operation. Facility is also available for hand charging the springs in the event of control supply failure. The closing spring is charged in less than 15 sec. Electrical Anti-pumping feature is also provided. The mechanism is trip free and suitable for rapid Re-closing. The vacuum interrupters are capable of switching capacitive currents and small Magnetizing current. Salient Features · Conforms to IS2147. IEC-62271-100, IEC-· 60298 & IEC-60694. · Fully compartmentalized & internal arc · compliance as per standards. · Emergency tripping arrangement without · opening the breaker chamber front door. · Extensible & modular construction. · High reliability. · Re-strike free. · Horizontal isolation, horizontal drawn-out. · Self aligning type cluster contacts for robust design. · Stored energy type spring closing mechanism. · Fully interlocked for operational safety.
