Precision Instruments & Electronics PVT.LTD Adyar, Chennai, Tamil Nadu

  • Vibration Transducer

    Vibration Transducer

    Get Latest Price

    • Availability300 gms
    • Power Input-24V DC for PIE Monitor 12V DC
    • Temperature-20oC to 70oC
    • FixingFour 5 mm dia holes in the aluminium casing
    • Input ConnectorMiniature Coaxial
    • Output Connector3 way Terminal Strip
    • Sensitivity100mV/mil or 200mV/mil or 50 mV/mil
    • Linearitywithin /- 5% of the best straight line
    • Frequency ResponseDC to 10 KHz
    ...more
  • Vibration Transducer

    Vibration Transducer

    Request for Price

    Availability : 300 gms

    Get Best Price
  • Vibration Switch

    Vibration Switch

    Get Latest Price

    • Model No1800/ VS
    •  Input From PIE Accelerometer through 3 core shielded cable
    •  Velocity Range0-25.0mm/sec
    • Velocity set point adjustment By Graduated potmeter on the front panel
    •  No. of set pointsTwo
    •  No. of Relay contactsOne change over contact each
    •  Relay contact rating5A @ 230V DC
    •  Alarm/Trip Relay IndicationBy red color LED
    • Start-up time delay 30 seconds From the time of power up
    •  ResetManual : Push switch on the front plate
    •  Supply of Accelerometer5V DC from the Vibration Switch
    •  Input Power90-270V /- 10% @ 50Hz   /- 5%
    •  Humidity95%Rh (max)
    •  EnclosureRugged Metallic casing
    •  Ingress ProtectionIP 20
    •  MountingPanel Mounting type
    •  Size192 mm x 96 mm
    •  Cut Out188 mm x 92 mm
    •  TerminalsSuitable to 2.5 Sq.mm cross section wire  from the back
    • FeaturesEasy to operate, Hi tech technology used, Tested in various parameters
    ...more
  • Vibration Monitoring System

    Vibration Monitoring System

    Get Latest Price

    Our organization is foremost provider of Vibration Monitoring System to our customers. Offered range is acknowledged for its high performance level and superior quality. Provided range is made available in bulk quantities and is free from all sorts of flaws. They are manufactured using the supreme quality of raw material by our experts and give the trouble free performance to the user. Besides, customers can avail this product at affordable rate.  Optimum Output Top Class Quality Hi-tech Technology Used
    ...more
  • Vibration Monitoring System

    Vibration Monitoring System

    Request for Price

    Our organization is foremost provider of Vibration Monitoring System to our customers. Offered range is acknowledged for its high performance level and superior quality. Provided range is made available in bulk quantities and is free from all sorts of flaws. They are manufactured using the supreme quality of raw material by our experts and give the trouble free performance to the user. Besides, customers can avail this product at affordable rate.  Optimum Output Top Class Quality Hi-tech Technology Used

    ...more
    Get Best Price
  • Velocity Transmitter

    Velocity Transmitter

    Get Latest Price

    • Range0-200 microns
    • Resolution1 micron
    • Power Supply230V AC /- 10% @ 50 Hz /- 5Hz
    • Temperature65 Deg C Max
    • DimensionTo match with the existing panel
    • PurityExcellent service life, Easy to operate, Easy to carry
    • InputFrom Non contact Proximity Sensor
    • No. of ChannelsTwo
    • DisplayBy 12.5mm 7 segment Led Display
    • No. of digitsThree separately for the two channels
    • Alarm provisionAlert and Trip
    • Alarm IndicationBy LEds for Alert and Trip
    • Alarm contactsOne change over relay contacts separately for Alarm & Trip
    • Contact rating5A @ 230V AC
    • Analog output4-20mA output for the calibrated range
    • Load resistance500 ohms
    • Setting of Alarm, TripBy Membrane key switches
    • Humidity95% Rh non condensing
    • CasingPanel Mounting type
    • TerminalsBy phoenix terminals at the backside to accept Wire dia of 2.5 sq. mm
    ...more
  • Velocity Transmitter

    Velocity Transmitter

    Request for Price

    Range : 0-200 microns

    Resolution : 1 micron

    Power Supply : 230V AC /- 10% @ 50 Hz /- 5Hz

    Temperature : 65 Deg C Max

    Dimension : To match with the existing panel

    Purity : Excellent service life, Easy to operate, Easy to carry

    ...more
    Get Best Price
  • Thermocouple Pipe Assembly

    Thermocouple Pipe Assembly

    Get Latest Price

    With aid of our industrious professionals, we are offering Thermocouple Pipe to our customers. Thermocouple Pipe is designed under the vigil of our experts using best techniques and supreme class material. These products have precise dimensions and are dispatched timely. We always pay attention towards the standard of our product range and offer them at most reasonable price.  Best grade materials  Flawless finish Light weight
    ...more
  • Thermocouple Pipe Assembly

    Thermocouple Pipe Assembly

    Request for Price

    With aid of our industrious professionals, we are offering Thermocouple Pipe to our customers. Thermocouple Pipe is designed under the vigil of our experts using best techniques and supreme class material. These products have precise dimensions and are dispatched timely. We always pay attention towards the standard of our product range and offer them at most reasonable price.  Best grade materials  Flawless finish Light weight

    ...more
    Get Best Price
  • Temperature Scanner

    Temperature Scanner

    Get Latest Price

    • Input3 wire RTD/PT100/CU 53/Thermocouple (K/R type)
    •  No.of channels to be specified
    • Range Configurable
    • Accuracy /- 1%
    • Display Seven segment LED(Min 0.5"),3 1/2 Digit for Temp & 2 Digit for channel No.
    • Scan Rate Min 6 channel per second
    • Indications Alarm & Trip,open & short Circuit indication
    • Output Relay 2 Nos,one for alarm & one for trip.,& each Channel can be configured for these relays,it can be configured for no.of input crosses set limit for Alarm/Trip/Rate High/Rate low
    • Contact Rating One change over contact.5A@240V AC/2A @ 24V DC
    • Delay 0-15 Minute,adjustable for Alarm and Trip separately
    • Display Either in Auto or Manual,set point indications,various Parameters Indications
    • Power Supply240V AC,50HZ
    • Features  High mechanical strength, Long functional life, Easy to carry
    ...more
  • Temperature Scanner

    Temperature Scanner

    Request for Price

    Get Best Price
  • Temperature Controller

    Temperature Controller

    Get Latest Price

    • Country of Origin230V AC
    • Mounting TypePanel Mounting type
    • Brand NamePrecision
    • Output Type4-20mA output for the calibrated range
    • Display12.5mm 7 segment Led Display
    • Power Supply230V AC /- 10% @ 50 Hz /- 5Hz
    • Humidity95% Rh non condensing
    • Load Resistance500 ohms
    • Alarm ProvisionAlert and Trip
    ...more
  • Temperature Controller

    Temperature Controller

    Request for Price

    Country of Origin : 230V AC

    Mounting Type : Panel Mounting type

    Brand Name : Precision

    ...more
    Get Best Price
  • Speed Sensor

    Speed Sensor

    Get Latest Price

    • FeaturesLong functional life, Easy to install, Precise design
  • Reverse Rotation Monitor

    Reverse Rotation Monitor

    Get Latest Price

    • Number Of FlowerPIE Reverse Rotation Indicator with digital display of speed of rotation
    • InputPIE Proximity sensor
    • No.of.inputs3
    • Speed range10 - 1500 rpm
    • Accuracy0.5 % of FSD
    • IndicationLED Indication provided for indication NORMAL,REVERSE & SPEED OF ROTATION
    • No.of.Output4(4 NO 4 NC)
    • Current5 AMPS at 230 V DC
    • Output4 - 20 mA
    • Casingmetallic panel mounting type
    • Panel cutout192 mm * 96 mm
    • FeaturesSafe in use, Longer service life, Quality-tested
    ...more
  • Reverse Rotation Monitor

    Reverse Rotation Monitor

    Request for Price

    Number Of Flower : PIE Reverse Rotation Indicator with digital display of speed of rotation

    Get Best Price
  • Process Control Equipment

    Process Control Equipment

    Get Latest Price

    We have emerged as one of the top notch name in the industry for offering an extensive range of Proximity Switch. This Proximity Switch is duly tested on well-defined parameters to assure unmatched quality and high strength. We always pay attention towards the standard of our product range and offer them at most reasonable prices.   Quality-tested  Best grade materials Best grade materials
    ...more
  • Process Control Equipment

    Process Control Equipment

    Request for Price

    We have emerged as one of the top notch name in the industry for offering an extensive range of Proximity Switch. This Proximity Switch is duly tested on well-defined parameters to assure unmatched quality and high strength. We always pay attention towards the standard of our product range and offer them at most reasonable prices.   Quality-tested  Best grade materials Best grade materials

    ...more
    Get Best Price
  • over Speed Switch

    over Speed Switch

    Get Latest Price

    • FeaturesBest grade materials, High performance, Smooth performance
  • over Speed Switch

    over Speed Switch

    Request for Price

    Get Best Price
  • IP Converter

    IP Converter

    Get Latest Price

    • Number Of FlowerExplosion Proof to Group II C & Zone 1&2 CIMFR certified
    • Electric Input4 to 20 mA DC
    • InputLess than 200 ohm
    • Output0.2 to 1 kg/cm2
    • Accuracy0.15% of span including linearity, Hysterisis & Dead band
    • Repeatability0.05% of span
    • Dead band0.02% of span
    • Output capacity4 SCFM
    • Over range capacity30mA
    • Air ConsumptionTypical 0.06 SCFM
    • Pneumatic connection1/4" NPT (F) for input and output
    • Signal cable gland size1/2 "NPT (F)
    • ProtectionIP 65
    • CharacteristicLinier & Direct
    • Calibration throughMechanically adjustable zero and span values
    • MountingSurface  or 2" pipe mounting
    • Position effectMounting has no effect
    • Operating temperature range-40 Deg C  to  66 Deg C
    • Air supply limits1.2 to 1.7 kg/cm2
    • Ambient temperature10 to 55 deg C
    • Accessories1.  2" pipe Mounting Kit, SS 304 2.  Blanking plug for unused pneumatic & electrical port
    • Linearity<= 0.5% of span
    • Hysterisis<=  0.3% of span
    • Response Sensitivity<=  0.1% of span
    • Air Supply influence<=  0.3% or 0.1 kg/cm2
    • FeaturesCompletely tested,Tested in various parameters, Fine finish
    ...more
  • IP Converter

    IP Converter

    Request for Price

    Number Of Flower : Explosion Proof to Group II C & Zone 1&2 CIMFR certified

    Electric Input : 4 to 20 mA DC

    Get Best Price
  • Hydrogen Sulfide Detector

    Hydrogen Sulfide Detector

    Get Latest Price

    Being an eminent company in this business, we are involved in presenting an enormous quality range of Hydrogen Sulfide Sensor. This Hydrogen Sulfide Sensor is used for the detection of presence of hydrogen sulfide. In addition, these products are available as per the requirements of our clients. Easy calibration Long life sensor Excellent performance
    ...more
  • Hydrogen Sulfide Detector

    Hydrogen Sulfide Detector

    Request for Price

    Being an eminent company in this business, we are involved in presenting an enormous quality range of Hydrogen Sulfide Sensor. This Hydrogen Sulfide Sensor is used for the detection of presence of hydrogen sulfide. In addition, these products are available as per the requirements of our clients. Easy calibration Long life sensor Excellent performance

    ...more
    Get Best Price
  • Explosion Proof Vibration Switch Model

    Explosion Proof Vibration Switch Model

    Get Latest Price

    We are engaged in offering a wide range of Vibration Switch Model for Cooling Towers, manufactured using quality material. The instrument has an adjustable switching delay for covered and uncovered conditions. It provides essential protection for critical industrial machines. It measures the vibration to which it is exposed and generates relay output when vibration exceeds the preset threshold values.  Longer service life High reliability Easy to use
    ...more
  • Explosion Proof Vibration Switch Model

    Explosion Proof Vibration Switch Model

    Request for Price

    We are engaged in offering a wide range of Vibration Switch Model for Cooling Towers, manufactured using quality material. The instrument has an adjustable switching delay for covered and uncovered conditions. It provides essential protection for critical industrial machines. It measures the vibration to which it is exposed and generates relay output when vibration exceeds the preset threshold values.  Longer service life High reliability Easy to use

    ...more
    Get Best Price

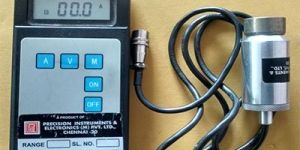

  • Condition Monitoring System

    Condition Monitoring System

    Get Latest Price

    Leveraging on our industrious experience, we are offering Condition Monitoring System. Provided range is made by experienced professional staff using supreme quality material and latest technology. This product is thoroughly checked by experts before being delivered to the buyers so that our valuable clients get quality products only.    Modern technology High performance level Consistently top rated
    ...more
  • Condition Monitoring System

    Condition Monitoring System

    Request for Price

    Leveraging on our industrious experience, we are offering Condition Monitoring System. Provided range is made by experienced professional staff using supreme quality material and latest technology. This product is thoroughly checked by experts before being delivered to the buyers so that our valuable clients get quality products only.    Modern technology High performance level Consistently top rated

    ...more
    Get Best Price
  • Accelerometer Sensor

    Accelerometer Sensor

    Get Latest Price

    • FeaturesOptimum output, Quality tested, Tested in various parameters
  • Accelerometer Sensor

    Accelerometer Sensor

    Request for Price

    Get Best Price
  • Proximity Switch

    Proximity Switch

    Get Latest Price

Be first to Rate

Rate This

Choose the service or product you're reviewing for this business

How would you rate the business?

What did you like and dislike?

  • Response
  • Delivery
  • Quality

Tell us about your experience?

About the Company

  • Primary Business Retailer
  • Secondary Business Type Manufacturer / Exporters / Wholesale Suppliers

Opening Hours

  • SUN : Closed
  • MON : 9:30 AM - 6:30 PM
  • TUE : 9:30 AM - 6:30 PM
  • WED : 9:30 AM - 6:30 PM
  • THU : 9:30 AM - 6:30 PM
  • FRI : 9:30 AM - 6:30 PM
  • SAT : 9:30 AM - 6:30 PM
Precision Instruments & Electronics (Madras) Pvt. Ltd., established in the year 1972 as a Private limited Company. From our operational unit located at Chennai, Tamil Nadu (India), we are fulfilling diverse requirements of our valuable clients ranging from Power, Fertilizer, Oil, Refinery, Paper, Cement, Steel and various process plants. Since our commencement, we are engaged in manufacturing, exporting and supplying of wide range of superior quality product range. Our products ranges comprise of Vibration Monitoring System, Condition Monitoring System, Speed Monitoring System, Velocity Transmitter, Vibration Transducer, Hydrogen Sulfide Sensor (Collaboration with BARC) and many more.
Our product ranges are beautifully designed with the state of the art latest Microcontroller Technology. They are supreme in quality and eco-friendly in nature. Our product range is completely based on customer satisfaction with commitment to the further development of our working practices. Our instruments are manufactured using the best raw material in compliance with the latest and advance technical skills. We offer our products at reasonable rates in the market. We export 10% of our products to Asian countries.
Mr. R. Ramakrishnan is the General Manager of the company and with his sagacious governance, we have become able to trigger the emanating engrossment of the market. He effectively deals with our clients and makes them comfortable with the company working environment. He is well known person of the industry because of his soft and humble nature and creativeness. He owns an in-depth knowledge of this industry, which he effectively uses to please our customers.
With the help of our efficient team members, we ensure our customers that they get the desired products range as per their demands. Our team properly listen and understand the requirement of our clients and show their awareness in the whole manufacturing process. They are good in their every aspect and are ready to switch the work with their co-workers whenever needed.
We offer unmatched quality in our entire product range at incomparable price range. We manufacture our range in compliance with the international standards. All our product ranges are perfectly finished and require less maintenance. Our product ranges are well designed and are of good quality.
Read More »
